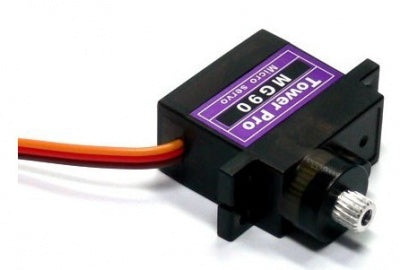

Micro Servo (Metal Gears)
Micro Servo (Metal Gears)
Thank you for supporting a US-based small business!
In stock
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
KEY FEATURES
- No Load Running Speed: 0.14sec/60° at 4.8V, 0.12sec/60° at 6V
- Torque Force: 1.3kg/cm at 4.8V, 1.5kg/cm at 6V
- Size : 23 x 12.2 x 29mm
- Gear/Case Type: Metal/Plastic
- Interface Type: Compatible with C1 Servo Board (JR & Futaba interface)
- Storage Temperature: -30°c to 60°c
- Operating Voltage: 4.8 to 6V
- Rotation Angle: 180°
- Servo Cable Length: 150mm
INCLUDES
- 1 x micro servo
- 3 x assorted control arms
- 3 x mounting screws
Warranty is valid for two weeks, starting upon date of receipt.
Recommended Accessories ▼
Bundle Deals▼
Let’s Connect! We’re a small business passionate about helping you achieve your goals of comfort, privacy, and security with Home Assistant, Single Board Computers, and more. Get in touch for a free consultation or just a fun chat about what’s possible—we’ll do our best to guide you in the right direction and get you the best deal! As a small team, we’ll strive to be available or get back to you as soon as possible.
SKU:C0145
