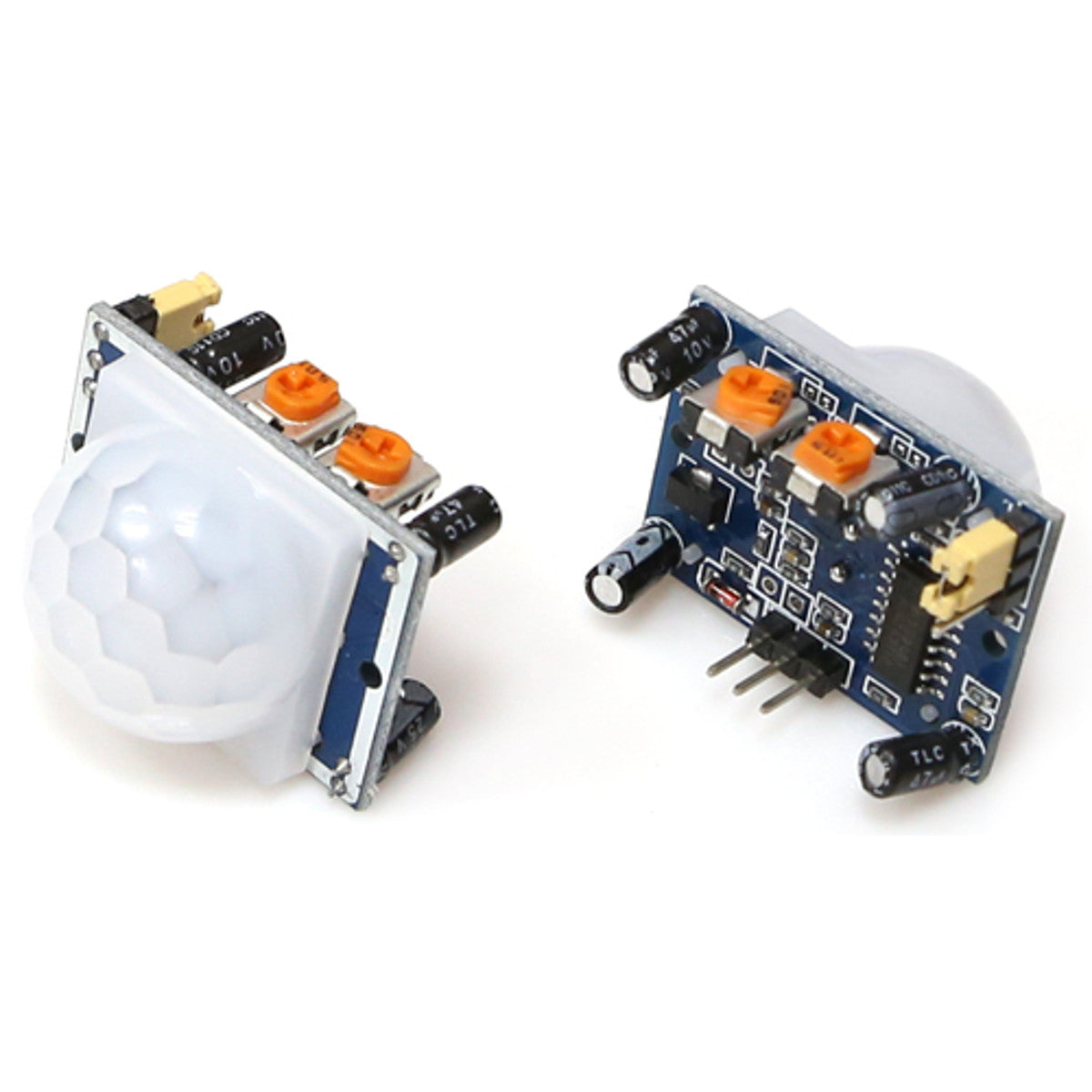

Motion Detector HC-SR501

Motion detector sensor for use with the ODROID-GO Game Kit.

KEY FEATURES

• Voltage: 5V – 20V
• Power Consumption: 65mA
• TTL output: 3.3V, 0V
• Lock time: 0.2 sec
• Trigger methods: L – disable repeat trigger, H enable repeat trigger
• Sensing range: less than 120 degree, within 7 meters
• Temperature: – 15 ~ +70
• Dimension: 32*24 mm

LINKS

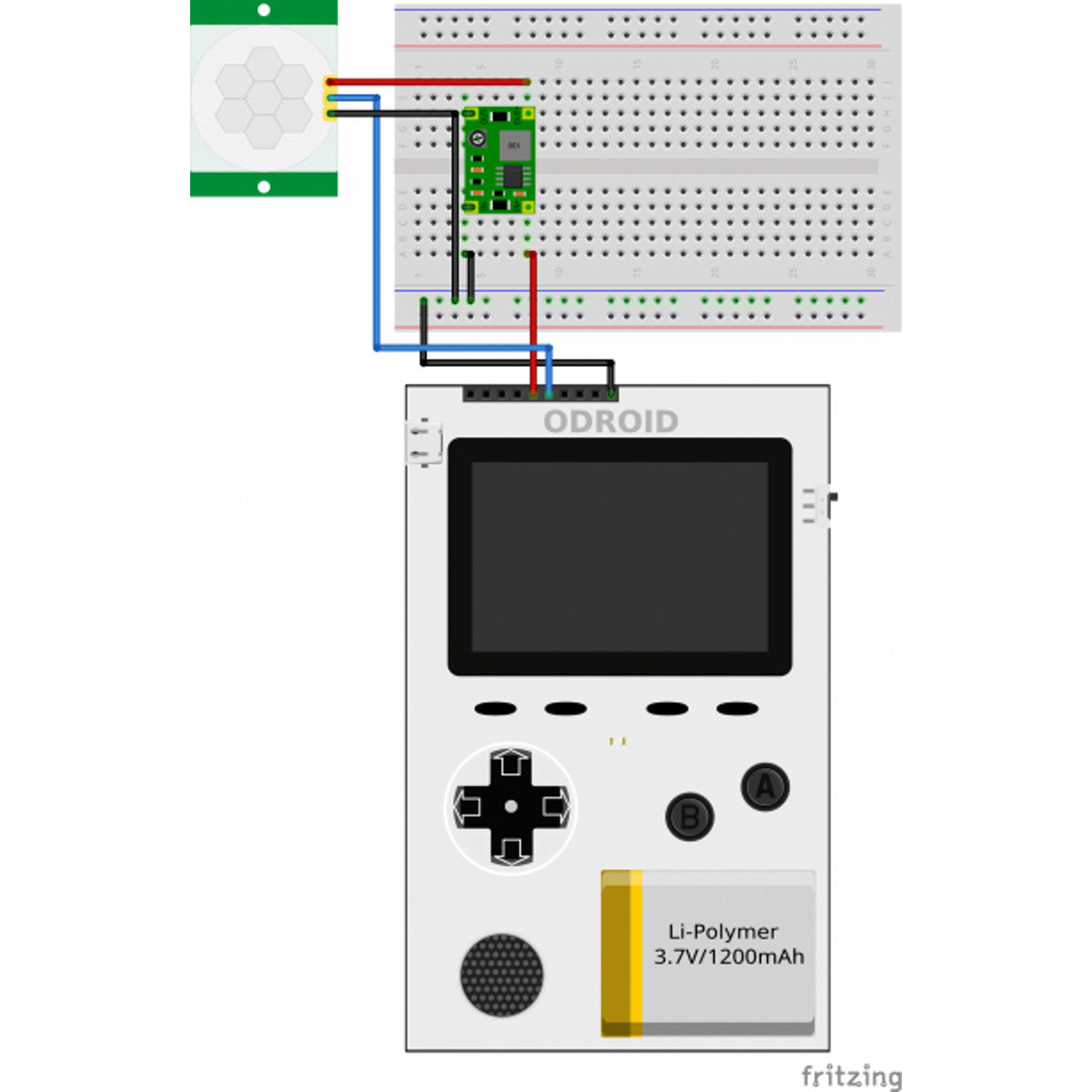

• Hardkernel Wiki - Motion Detector Project:  https://wiki.odroid.com/odroid_go/arduino/35_pir_motion_detector

Warranty is valid for two weeks, starting upon date of receipt.
