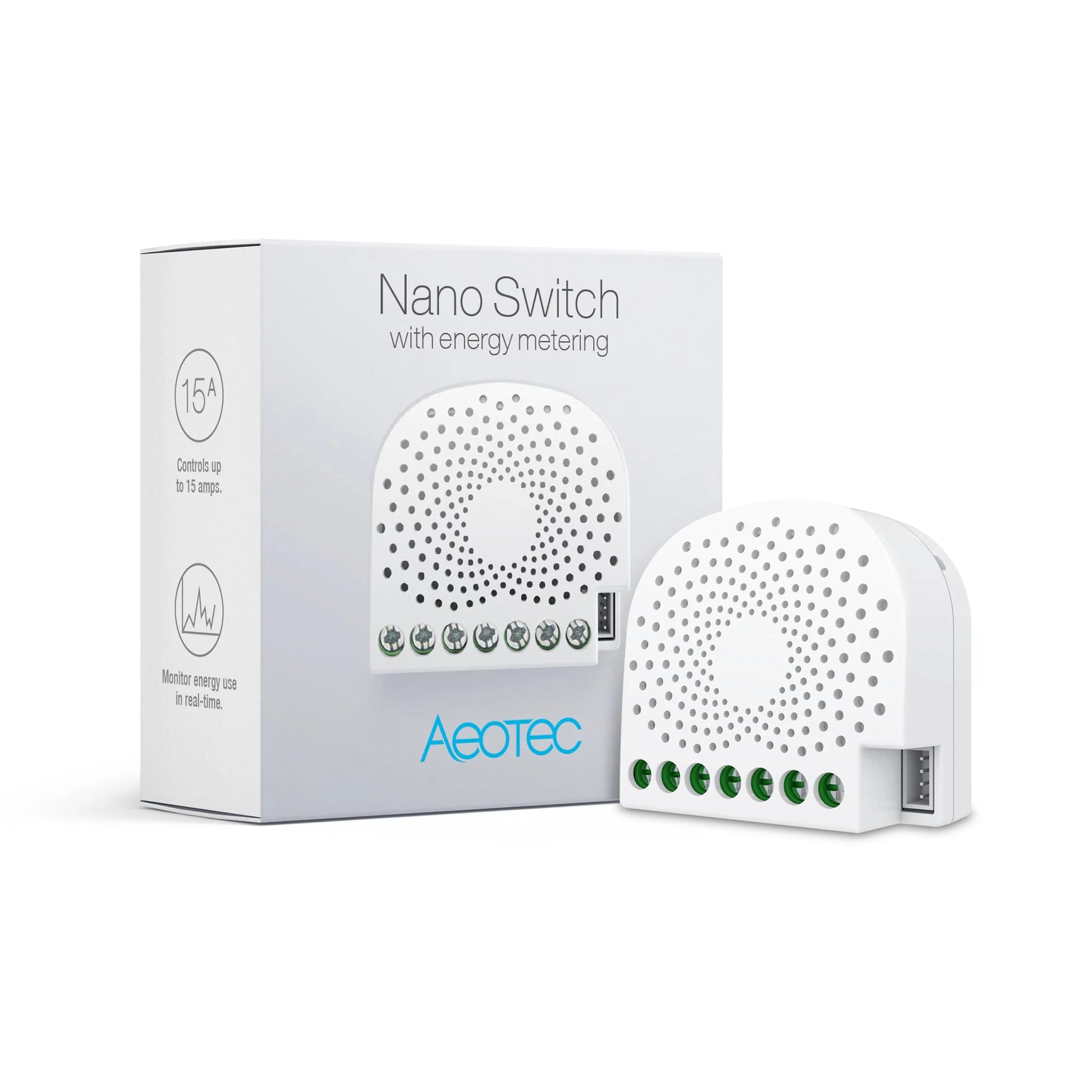

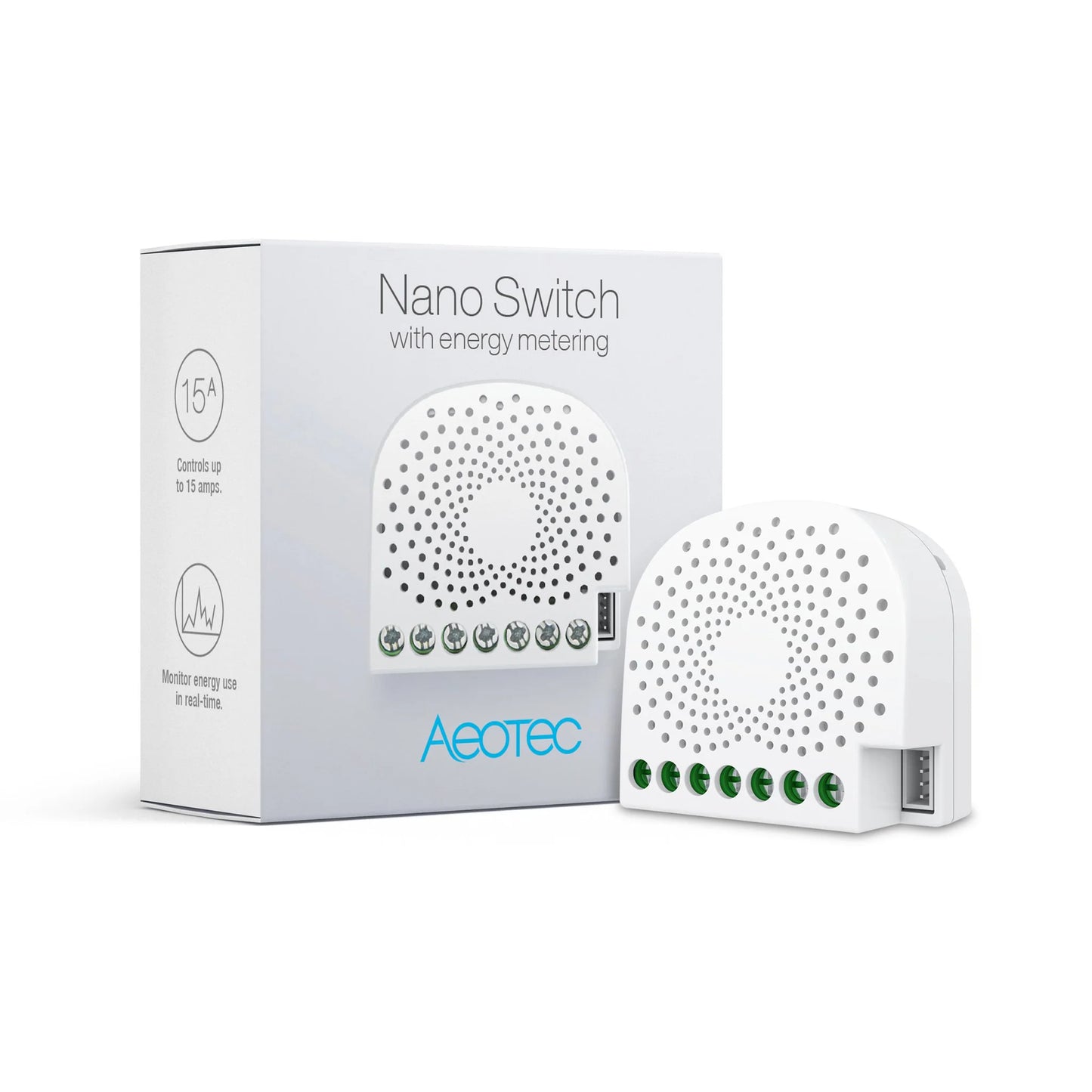

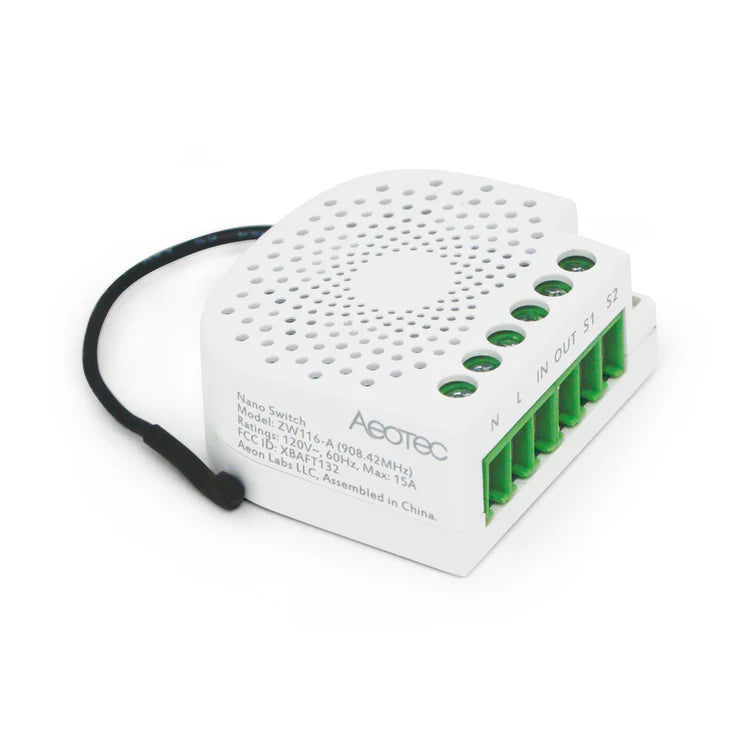

Nano Switch with Energy-Use Metering

Convert any switch or outlet into a Z-Wave connected switch or outlet and control it wirelessly.

Aeotec Nano Switch with power metering allows you to automate, schedule and manually control any of your home’s wall switches or power outlets using Z-Wave gateways, hubs and apps. As well as its standard on/off control and automation, this edition offers accurate energy consumption monitoring, allowing you to track and reduce your electricity spend.
Super small, only 1.58 inches wide and 0.76 inches deep, Nano Switch with power metering can be easily installed in the wall or wiring box behind any of your home’s existing switches or sockets, requiring nothing in your home to be changed. This invisible method of installation works with your wiring that has a neutral and for Nano Switch with power metering to be controlled both by Z-Wave and any existing switch.

Utilizing Z-Wave Plus and Aeotec’s Gen5 technology, Nano Switch is compatible with certified Z-Wave gateways, hubs and software including Samsung SmartThings, Mios Vera, Fibaro, Jeedom, and Open Z-Wave.

SPECIFICATIONS

Frequency: 908.4 MHz

Power input: 120 to 240VAC, 50/60Hz

All versions are compatible to these voltage levels and max currents:

110/120VAC 50/60Hz (1 phase only)

220-240VAC 50/60Hz (1 phase only)

Max standby power: <0.8W

Energy Measurement Input Voltage Required

90 - 240VAC required to power and allow energy reading

Power measurement accuracy: + or - 3W
