NanoPi M5 + Metal Case (WiFi Included)

FriendlyELEC NanoPi M5 — RK3576 High-Performance SBC (with Case & WiFi)

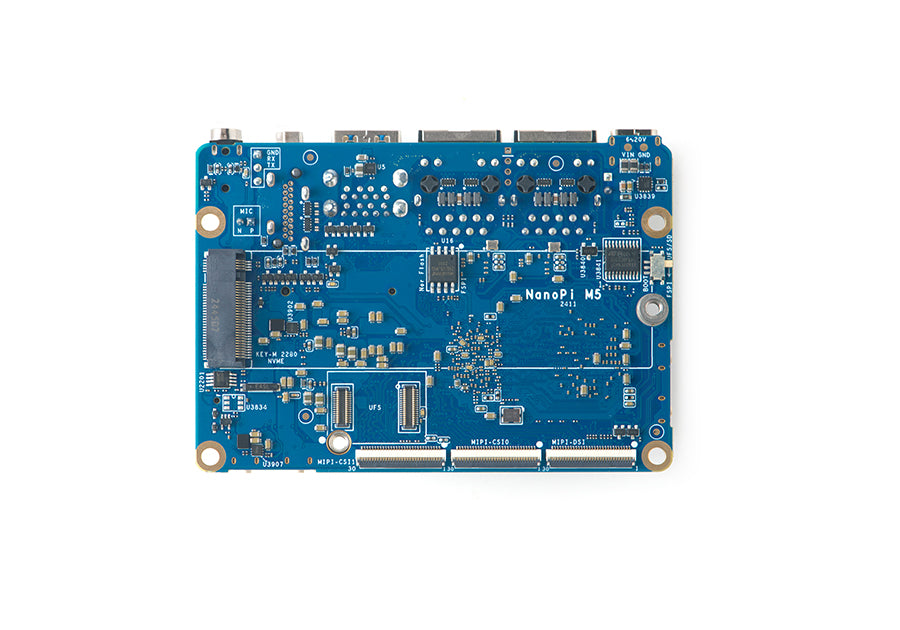

The NanoPi M5 is a powerful and versatile single-board computer from FriendlyELEC, powered by the Rockchip RK3576 octa-core processor (4× Cortex-A72 + 4× Cortex-A53) with a 6 TOPS NPU. It offers strong multi-core performance, dual Gigabit Ethernet, HDMI output, M.2 NVMe support, and excellent software compatibility. We offer the 3GB, 4GB, and 8GB RAM variants, all including the official case and WiFi module.

KEY FEATURES

• Rockchip RK3576: 4× Cortex-A72 (up to 2.2 GHz) + 4× Cortex-A53 (up to 2.0 GHz)
• 6 TOPS NPU: Supports INT4/INT8/INT16/FP16/BF16/TF32 for AI acceleration
• ARM Mali-G52 MC3 GPU
• 8K Video Decode / 4K Encode support

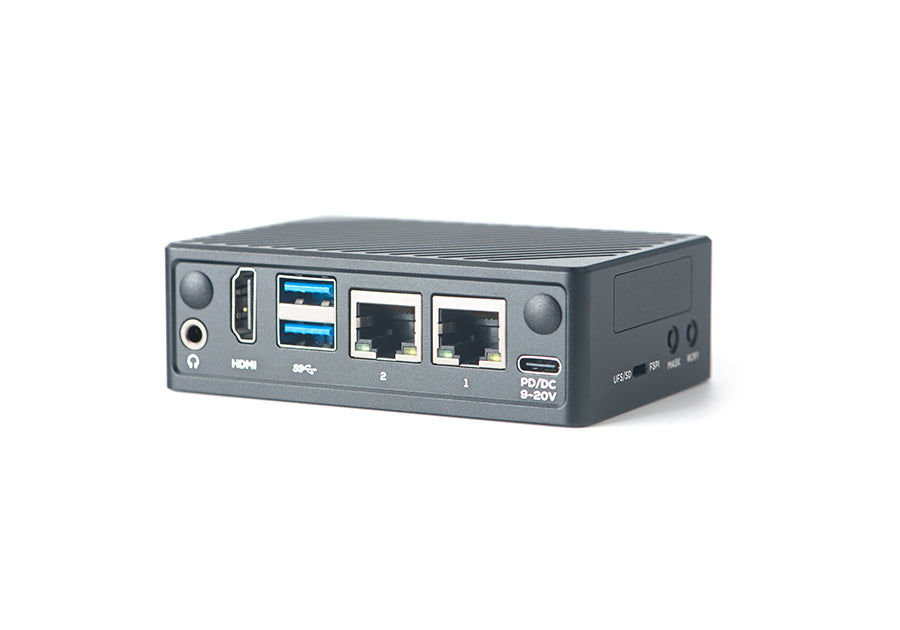

• Dual Gigabit Ethernet
• WiFi Included

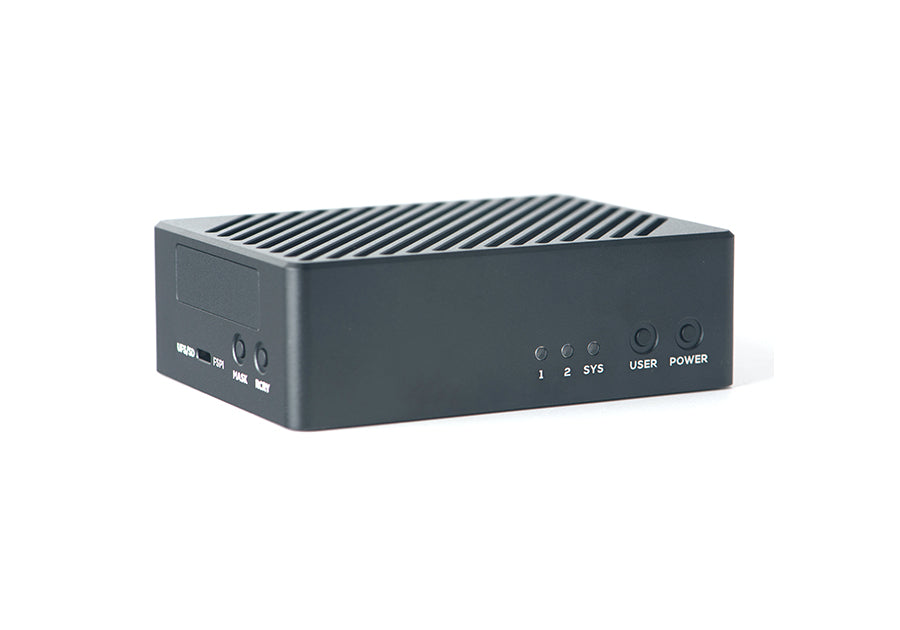

• Metal Case Included
• M.2 NVMe Support (2280)
• HDMI Output + MIPI DSI / CSI interfaces
• USB 3.2 Gen1 ports
• Strong OS Support: Android 14, Debian, Ubuntu, FriendlyWrt, OpenMediaVault, Proxmox, and more

SPECIFICATIONS

Processor & AI:

• SoC: Rockchip RK3576
• CPU: 4× Cortex-A72 + 4× Cortex-A53
• GPU: ARM Mali-G52 MC3
• NPU: 6 TOPS
• VPU: 8K@30fps H.265/VP9 decode, 4K@60fps encode

Memory:

• Available variants: 3GB / 4GB / 8GB RAM (select on product page)

Storage:

• microSD slot (UHS-I)
• Supports UFS module
• M.2 M-Key 2280 NVMe SSD (PCIe 2.1 x1)
• Onboard SPI Nor flash

Networking:

• 2 × Gigabit Ethernet
• WiFi module included

Display & Camera:

• 1 × HDMI (up to 1080p@120Hz)
• 4-Lane MIPI DSI
• 2 × MIPI CSI

USB & I/O:

• 2 × USB 3.2 Gen1 Type-A
• 30-pin GPIO header
• 3.5mm audio jack + microphone input
• Debug UART, RTC battery connector, fan connector

Power:

• USB-C (supports PD, 6V–20V input range)

Physical:

• Board size: Approx. 90 × 62 mm
• With case: Approx. 94.5 × 68 × 30 mm
• Metal case included

Software Support:

• Android 14
• Debian 12 / 13
• Ubuntu 24.04
• FriendlyWrt
• OpenMediaVault
• Proxmox VE
• And other Linux distributions

What's Included:

• 1 × NanoPi M5 board (3GB, 4GB, or 8GB RAM version)
• 1 × Official Metal Case
• 1 × WiFi Module

NOTES

• Available in 3GB, 4GB, and 8GB RAM variants — select your preferred configuration on the product page
• Case and WiFi module are included with this listing
• Excellent choice for edge AI, mini PCs, NAS, media centers, routers, and advanced embedded projects
• Strong official support and Wiki documentation from FriendlyELEC
