NanoPi R2S + Metal Case

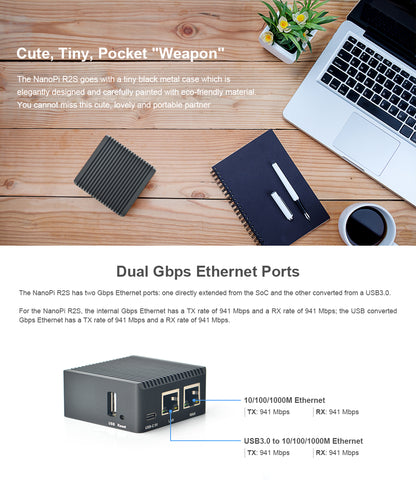

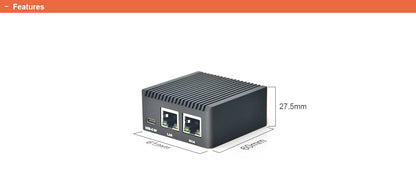

The NanoPi R2S (as "R2S") is a Friendly Elec mini-router with edge-computing and dual Gbps Ethernet ports. It is highly compact such that it could be perfectly enclosed in a custom metal case of 60 x 61 x 27.5 mm.

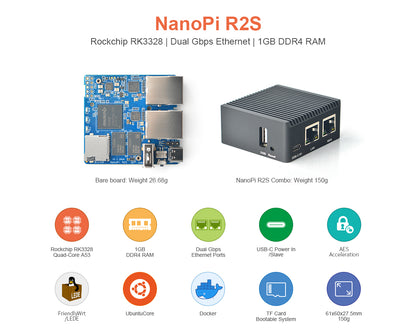

The NanoPi R2S uses Rockchip's quad-core A53 RK3328 SoC with powerful performance. Its default frequency is 1.2GHz. The NanoPi R2S has 1GB (or optional 2GB) RAM, dual Gbps Ethernet ports. It uses RK805 PMU chip and supports dynamic frequency scaling. It has one USB 2.0 port that can interface with 4G modules, USB HD cameras, USB WiFi modules etc.
The NanoPi R2S suppors TF card booting. It works with FriendlyWrt, Ubuntu Core, Armbian etc and has good support from various communities among which OpenWrt supports it in the mainline versions. These systems are based on Linux-5.4(LTS).
The NanoPi R2S is powered through USB Type-C. It is a good choice for applications that need to be deployed in compact space and need strong networking performance.
SPECIFICATION
CPU |
Model: Rockchip RK3328 Number of Cores: Quad-Core Cortex-A53 Frequency: 4 x Cortex-A53 Up to 1.3GHz |
Memory | RAM: 1GB DDR4 |
Storage | MicroSD Slot: MicroSD x1 for external storage up to 128GB |
Connectivity | Ethernet: Gbps Ethernet x1 USB 3.0 to Gbps Ethernet x1 |
USB | USB 2.0 Host x1: USB Type A USB-C x1: Power input(5V/2A) and Slave |
Pin-header | Serial Debug Port x1: 2.54mm pitch 3pin-header(3.3V TTL) |
LED | SYS LED(Red) x1 WAN LED(Green) x1 LAN LED(Green) x1 |
Button | User button x1 |
Working Temperature | 0℃ to 80℃ |
Power | DC 5V/2A |
OS Support | FriendlyWrt 21.02.1 (64-bit) FriendlyCore Focal Lite (Base on Ubuntu 20.04) |
PCB | 6 Layer |
Weight | 150g(With Case) |
Dimension | 55.6x52 mm |
