FriendlyELEC NanoPi R5S LTS

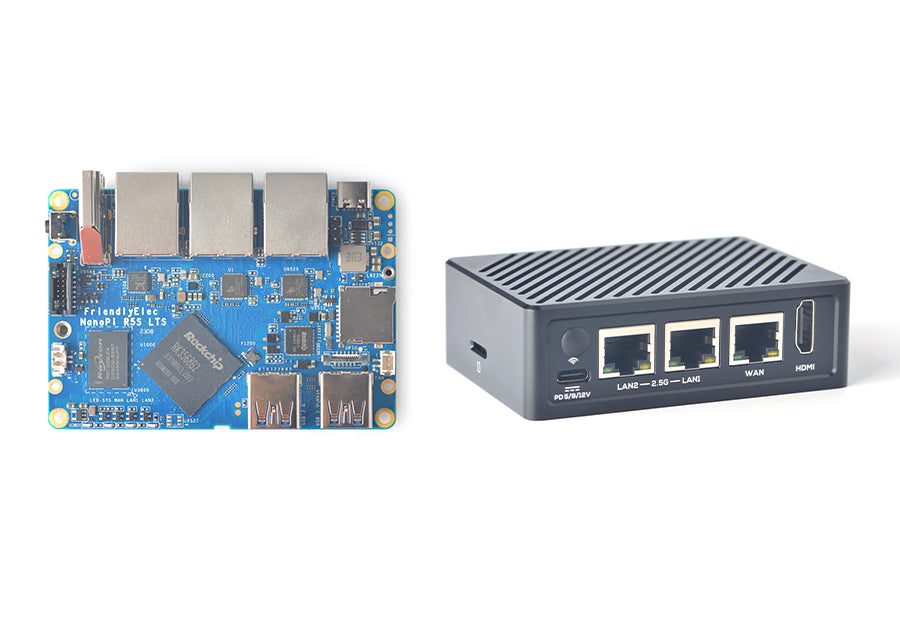

The NanoPi R5S LTS is a compact triple-Ethernet router / SBC based on the Rockchip RK3568B2. This unit has 4GB LPDDR4X RAM, 64GB eMMC, and includes the case. With one Gigabit port, two 2.5GbE ports, HDMI, M.2 expansion, and USB-C PD power, it is a strong small gateway, NAS node, or always-on Linux board.
KEY FEATURES
- Rockchip RK3568B2 quad-core Cortex-A55, up to 2.0 GHz
- 4GB LPDDR4X RAM
- 64GB eMMC

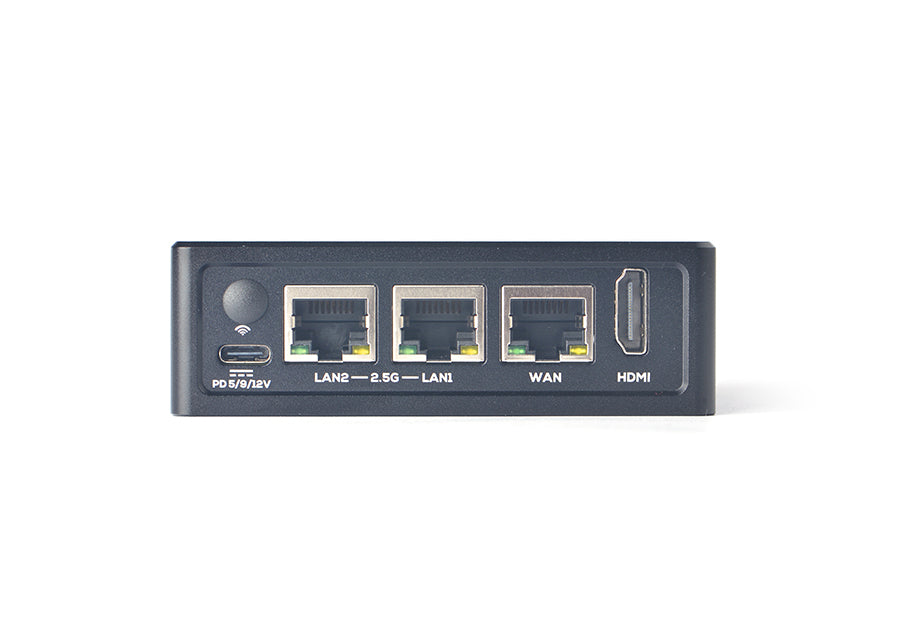

- 1 × Gigabit + 2 × 2.5GbE Ethernet
- HDMI up to 4K
- 2 × USB 3.0
- M.2 M-Key for NVMe or PCIe Wi-Fi
- USB-C PD power input

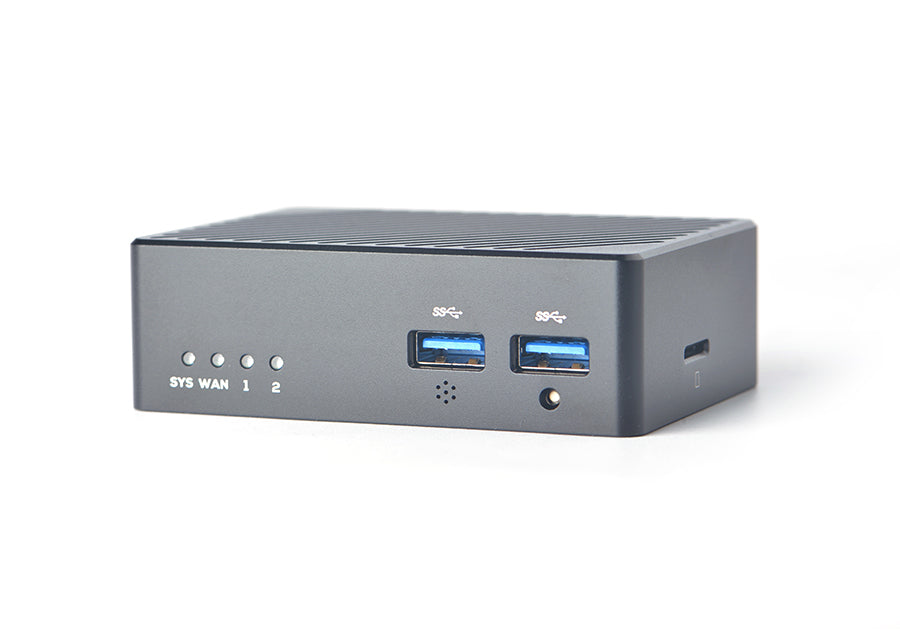

- Includes case
SPECIFICATIONS
| Category | Details |
|---|---|
| CPU | Model: Rockchip RK3568B2 Number of Cores: Quad-core ARM Cortex-A55 Frequency: 4 × Cortex-A55 up to 2.0 GHz |
| GPU | Mali-G52 1-Core-2EE OpenGL ES 1.1 / 2.0 / 3.2, Vulkan 1.0 / 1.1, OpenCL 2.0 |
| VPU | 4K@60fps H.265 / H.264 / VP9 decode 1080p@60fps H.264 / H.265 encode |
| NPU | 0.8 TOPS |
| Memory | 4GB LPDDR4X |
| Storage | 64GB eMMC 5.1 1 × microSD slot (UHS-I, up to 128GB) 1 × M.2 M-Key PCIe 2.0 for NVMe / PCIe Wi-Fi |
| Networking | 1 × Gigabit Ethernet (RTL8211F-CG) 2 × 2.5GbE Ethernet (RTL8125BG) |
| Video Output | 1 × HDMI (HDMI 1.4 / 2.0, up to 4096×2304@60Hz) |
| USB | 2 × USB 3.0 Type-A 1 × USB 2.0 header 1 × USB-C PD power input (5V / 9V / 12V) |
| GPIO / Other I/O | 12-pin 0.5mm FPC (SPI, UART, PWM, GPIO) SDIO / I2S expansion connector Debug UART, 3-pin 2.54mm header |

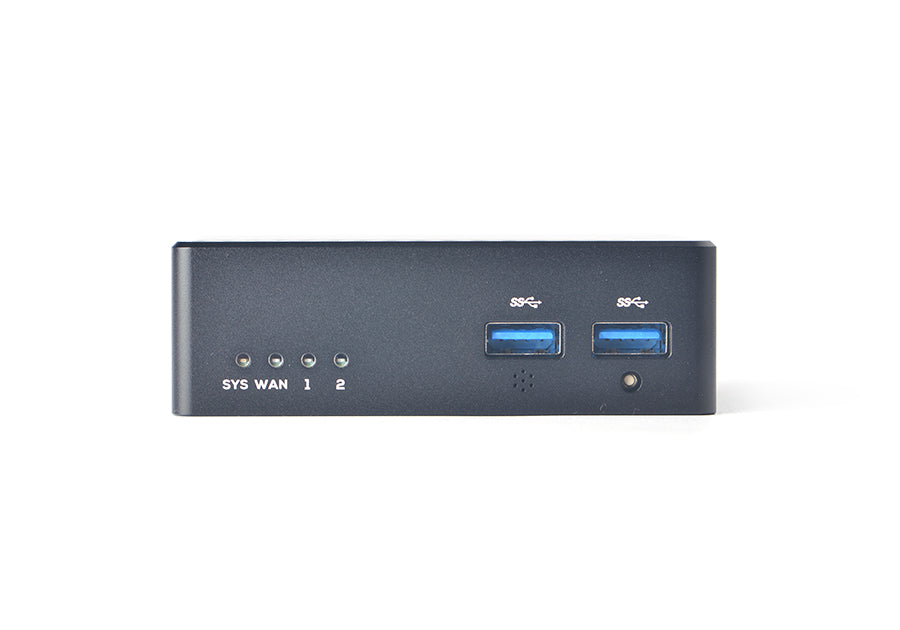

| LED | SYS LED (Red) WAN LED (Green) LAN1 LED (Green) LAN2 LED (Green) |
| Button | MASK button for eMMC update Reset button |
| Others | IR receiver (38 kHz) RTC battery connector for HYM8563TS 5V fan connector Working temperature: 0℃ to 70℃ |
| Power | USB-C PD, 5V / 9V / 12V |
| OS Support | Alpine Linux 3.23 Android 14 Tablet / Android 14 TV Buildroot - Weston (Wayland) Debian 12 Desktop LXQT / Debian 13 Core FriendlyCore 20.04 Qt5 FriendlyWrt 25.12 OpenMediaVault 8.0.6 Proxmox VE 8.2.7 Ubuntu 24.04 Core / Ubuntu 24.04 Desktop LXQT |
| Kernel | Linux-6.1-LTS U-boot-2017.09 *Firmware is continuously updated; refer to the actual version provided by the wiki |
| PCB | 8-layer |
| Dimensions | 62 × 90 × 1.6 mm (board) 68 × 94.5 × 30 mm (with case) |
| Weight | 57.5 g (board) 263.5 g (with case) |
What's Included:
- 1 × NanoPi R5S LTS (4GB LPDDR4X / 64GB eMMC)

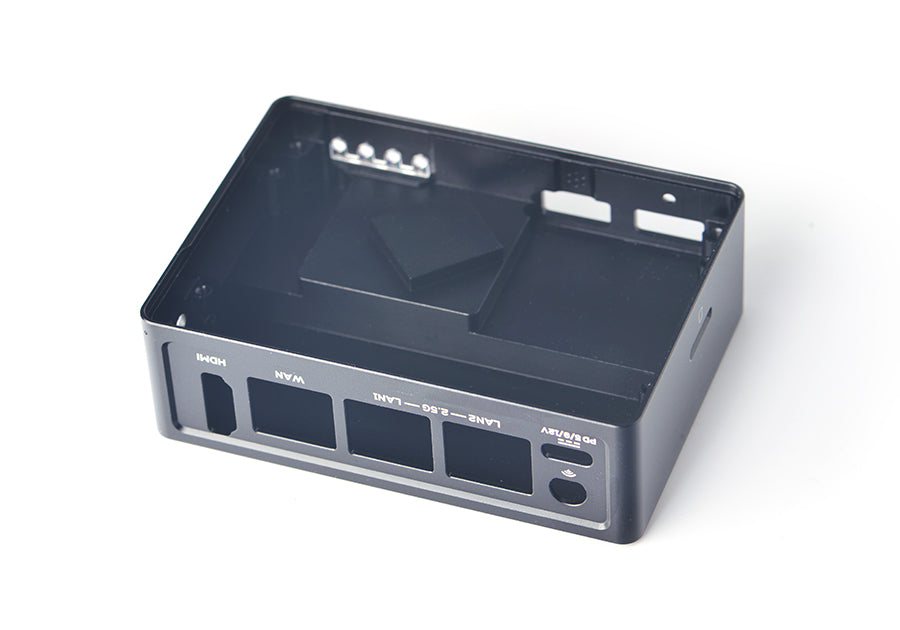

- 1 × Case
NOTES
- This unit has 4GB RAM, 64GB eMMC, and includes the case
- USB-C PD power is supported
- Excellent compact option for FriendlyWrt / OpenWrt, triple-port routing, NAS, and small Linux servers
