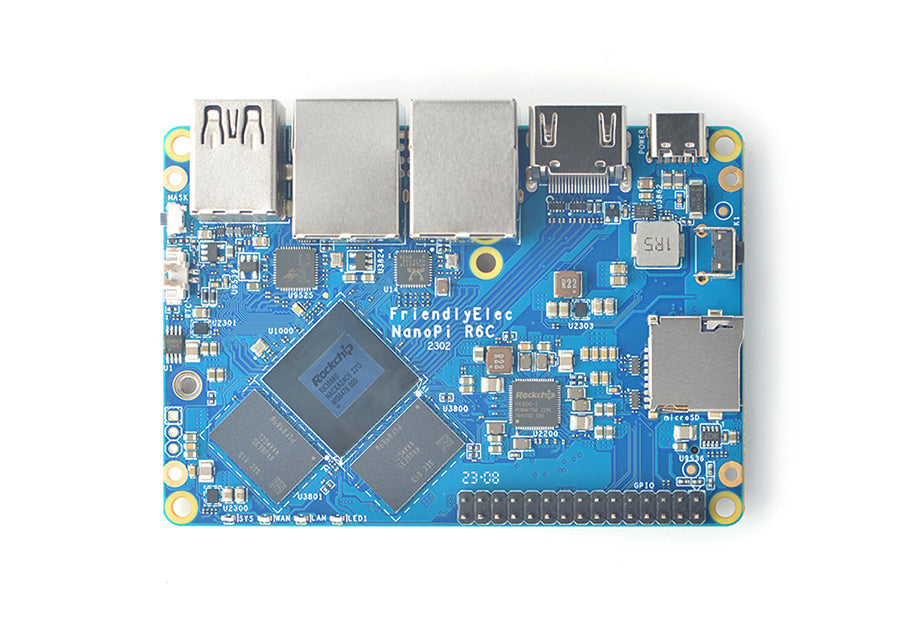

FriendlyELEC NanoPi R6C
The NanoPi R6C is a compact high-performance router / SBC based on the Rockchip RK3588S. This unit has 4GB LPDDR4X RAM, 64GB eMMC, and includes the case. It combines 8K HDMI, a 6 TOPS NPU, Gigabit + 2.5GbE networking, M.2 expansion, and USB-C PD power in a small chassis for FriendlyWrt, NAS, desktop Linux, and edge computing.
KEY FEATURES
- Rockchip RK3588S — 4× Cortex-A76 + 4× Cortex-A55
- 4GB LPDDR4X RAM
- 64GB eMMC
- 6 TOPS NPU
- 1 × Gigabit + 1 × 2.5GbE Ethernet
- HDMI up to 8K@60Hz
- M.2 M-Key for NVMe or PCIe Wi-Fi
- USB-C PD power input
- Includes case
SPECIFICATIONS
| Category | Details |
|---|---|
| CPU | Model: Rockchip RK3588S Cores: Quad-core ARM Cortex-A76 + Quad-core Cortex-A55 Frequency: Cortex-A76 up to 2.4 GHz, Cortex-A55 up to 1.8 GHz |
| GPU | Mali-G610 MP4 OpenGL ES 1.1 / 2.0 / 3.2, OpenCL 2.2, Vulkan 1.2 |
| NPU | 6 TOPS, supports INT4 / INT8 / INT16 / FP16 |
| VPU | 8K@60fps H.265 / VP9 decode 8K@30fps H.264 decode 4K@60fps AV1 decode 8K@30fps H.264 / H.265 encode |
| Memory | 4GB LPDDR4X, 64-bit, 2133 MHz |
| Storage | 64GB eMMC (HS400) 1 × microSD slot (up to SDR104) 1 × M.2 M-Key PCIe 2.1 x1 for NVMe / PCIe Wi-Fi |
| Networking | 1 × Gigabit Ethernet (RTL8211F-CG) 1 × 2.5GbE Ethernet (RTL8125BG) |
| Video Output | 1 × HDMI (HDMI 2.1 / 2.0 / 1.4, up to 7680×4320@60Hz) |
| USB | 1 × USB 3.0 Type-A 1 × USB 2.0 Type-A 1 × USB-C PD power input (5V / 9V / 12V / 20V) |
| GPIO | 30-pin 2.54mm header (SPI, UART, I2C, SPDIF, I2S, PWM, GPIO) |
| Debug | 3-pin UART header and onboard USB-C UART |
| LED | SYS LED (Red) WAN LED (Green) LAN LED (Green) LED1 (Green) |
| Button | MASK button for eMMC update User button |
| Others | RTC battery connector for HYM8563TS Working temperature: 0℃ to 70℃ |
| Power | USB-C PD, 5V / 9V / 12V / 20V 65W supply recommended at full load |
| OS Support | Alpine Linux 3.23 Android 14 Tablet / Android 14 TV Buildroot - Weston (Wayland) Debian 12 Desktop XFCE / Debian 13 Core / Debian 13 Desktop GNOME FriendlyCore 20.04 Qt5 FriendlyWrt 25.12 OpenMediaVault 8.0.6 Proxmox VE 8.2.7 Ubuntu 22.04 Desktop XFCE / Ubuntu 24.04 Desktop GNOME |
| Kernel | Linux-6.1-LTS U-boot-2017.09 *Firmware is continuously updated; refer to the actual version provided by the wiki |
| PCB | 8-layer |
| Dimensions | 62 × 90 × 1.6 mm (board) 68 × 94.5 × 30 mm (with case) |
| Weight | 53.1 g (board) 260 g (with case) |
What's Included:
- 1 × NanoPi R6C (4GB LPDDR4X / 64GB eMMC)
- 1 × Case
NOTES
- This unit has 4GB RAM, 64GB eMMC, and includes the case
- USB-C PD power is supported; a higher-wattage adapter is recommended for full-load use
- Excellent compact option for FriendlyWrt, NAS, desktop Linux, and RK3588S edge projects
