Net Card 3 for H-series (H4/H3 Net Card 3)

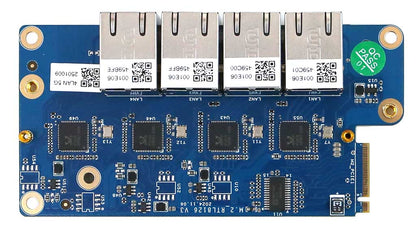

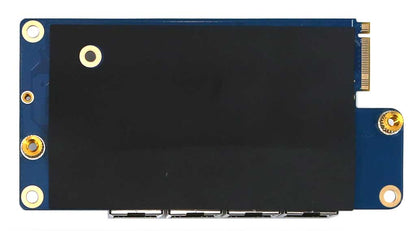

The NetCard 3 add-on board is a 4 x 5GbE network card designed to be exclusively used with the ODROID-H3 and H4 series.

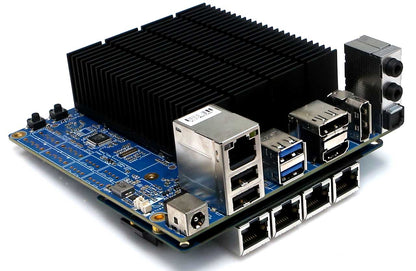

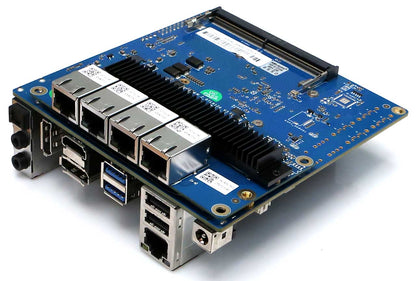

The NetCard 3 has the same size and shape as the existing NetCard v1 and v2. You also fix it to the H3 and H4 boards in the same way. If you want to learn more about the existing NetCard v1 and v2, go to: NetCard for ODROID-H Series )

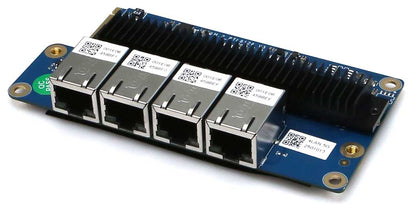

The four Ethernet controllers on the NetCard 3 are high speed 5GbE Realtek RTL8126 chipset.

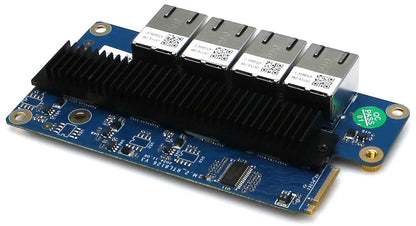

Each controller/chipset maintains transmission and reception capability at high speed and in the process each controller significantly emits more heat than a 1GbE or 2.5GbE chipset. For this reason, the NetCard 3 includes a rectangular heat sink with fins covering the four controllers, in order to prevent possible slow speed down or even link down due to overheating. Do NOT remove the heat sink while operating the NetCard 3.
Note!! : The H3 or H4 BIOS functions such as Wake on LAN, PXE Network Boot, Display information, etc do not apply to the controllers on the NetCard 3.
Compatible cases
ODROID-H4 : ODROID-H4 Case Type 2 / ODROID-H4 Case Type 3 / ODROID-H4 Case Type 4
ODROID-H3 : ODROID-H3 Case Type 5 / ODROID-H3 Case Type 6 / ODROID-H3 Case Type 7
The H4 can therefore provide excellent support for parallel clients, with enough remaining CPU resources to proceed with computation and disk IO. The H4 with a Netcard 3 is powerful enough to drive the performance of the 5G Ethernet high speed.
The 5GbE Netcard 3 brings a significant added value to a H4-based NAS solution or Router/Gateway where parallel clients can enjoy the full 5 GbE speed independently from each other.
