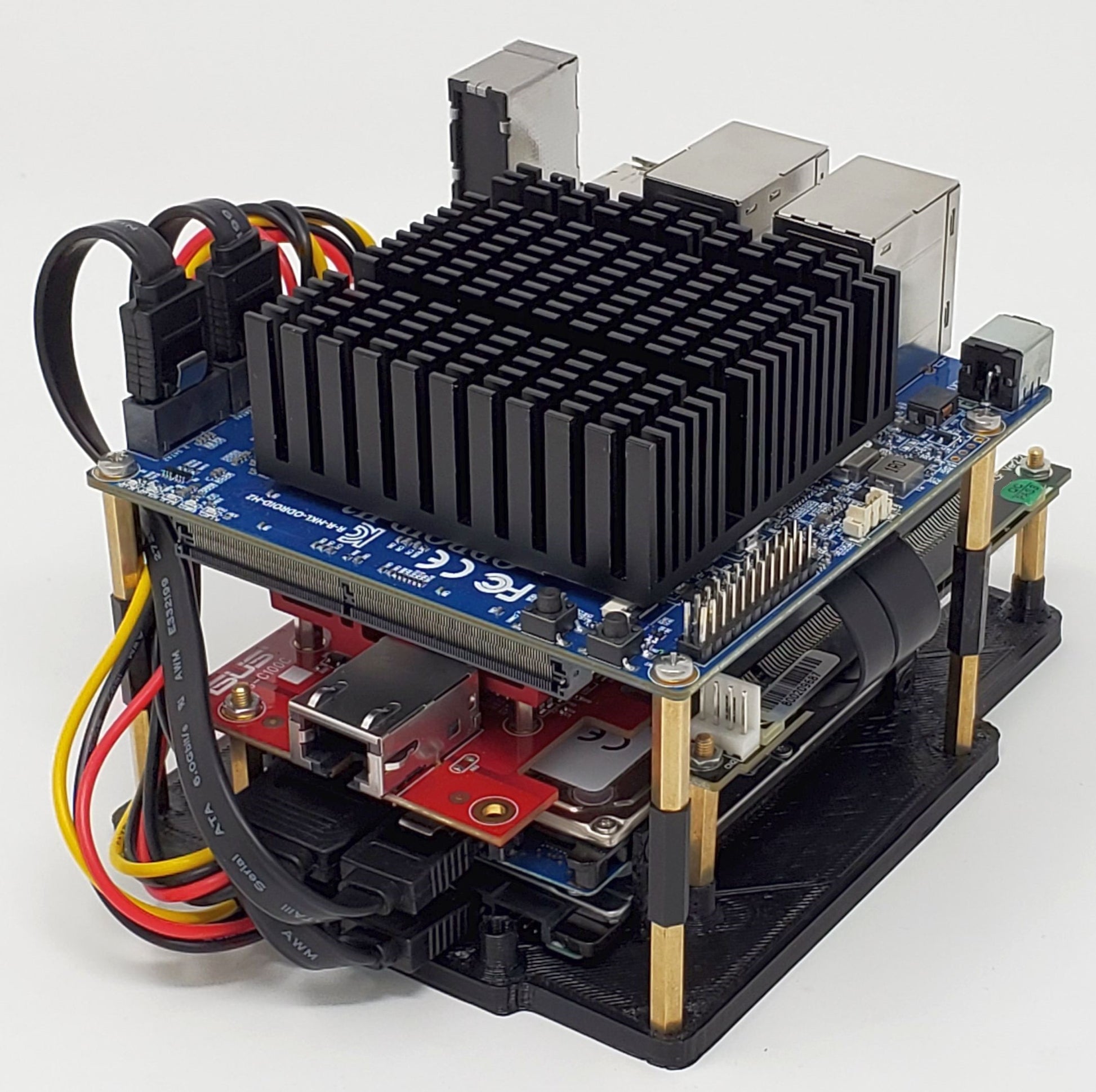

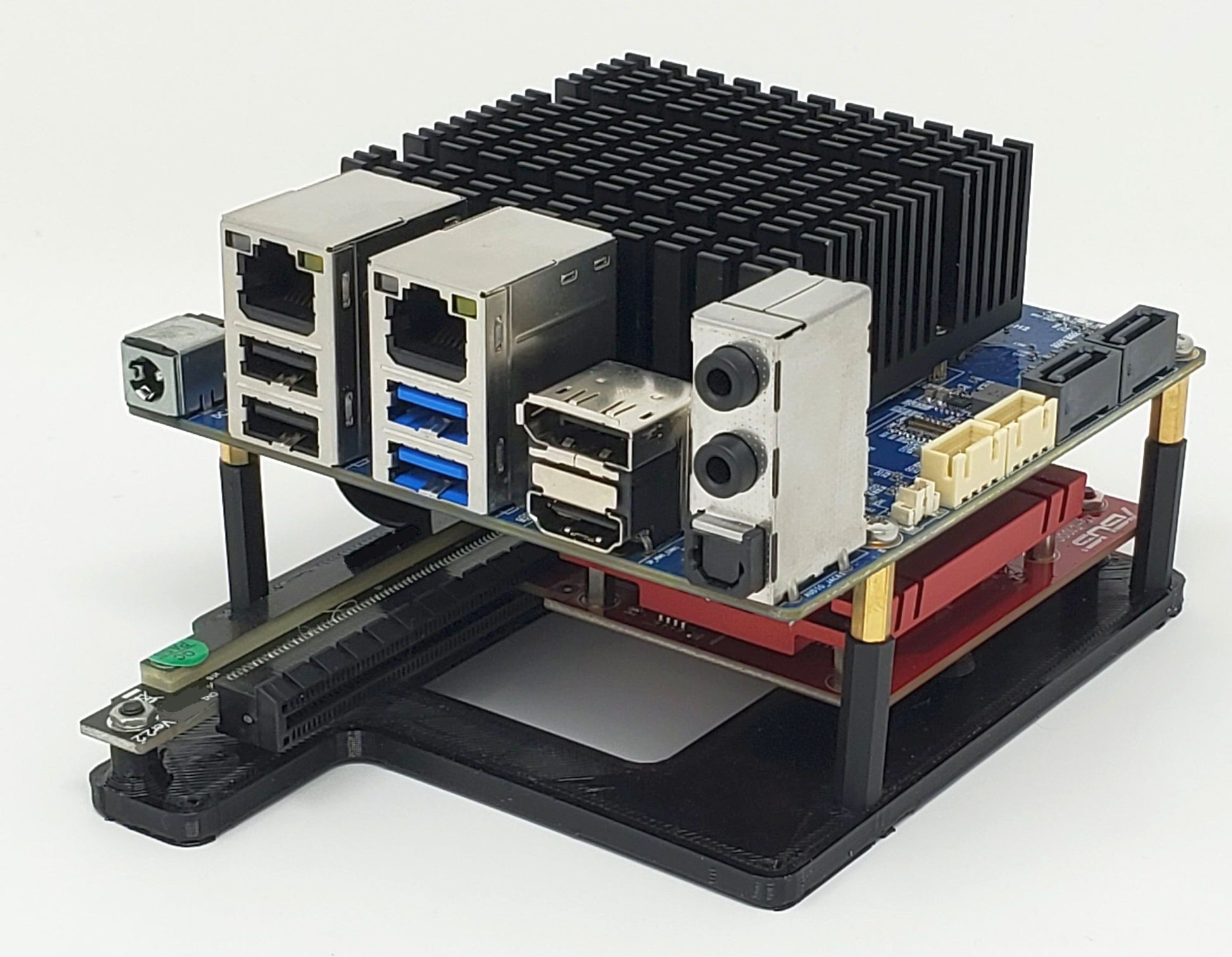

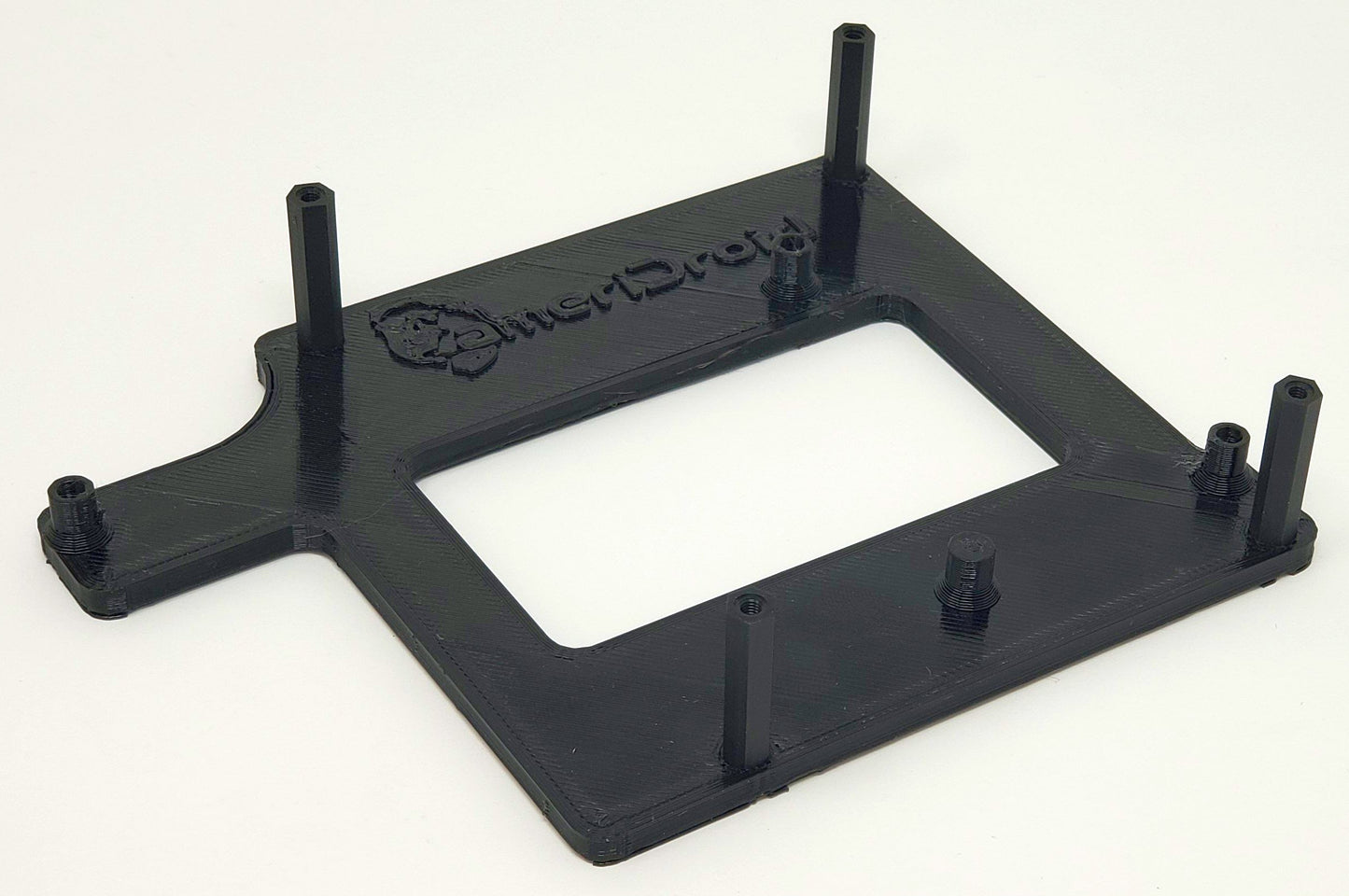

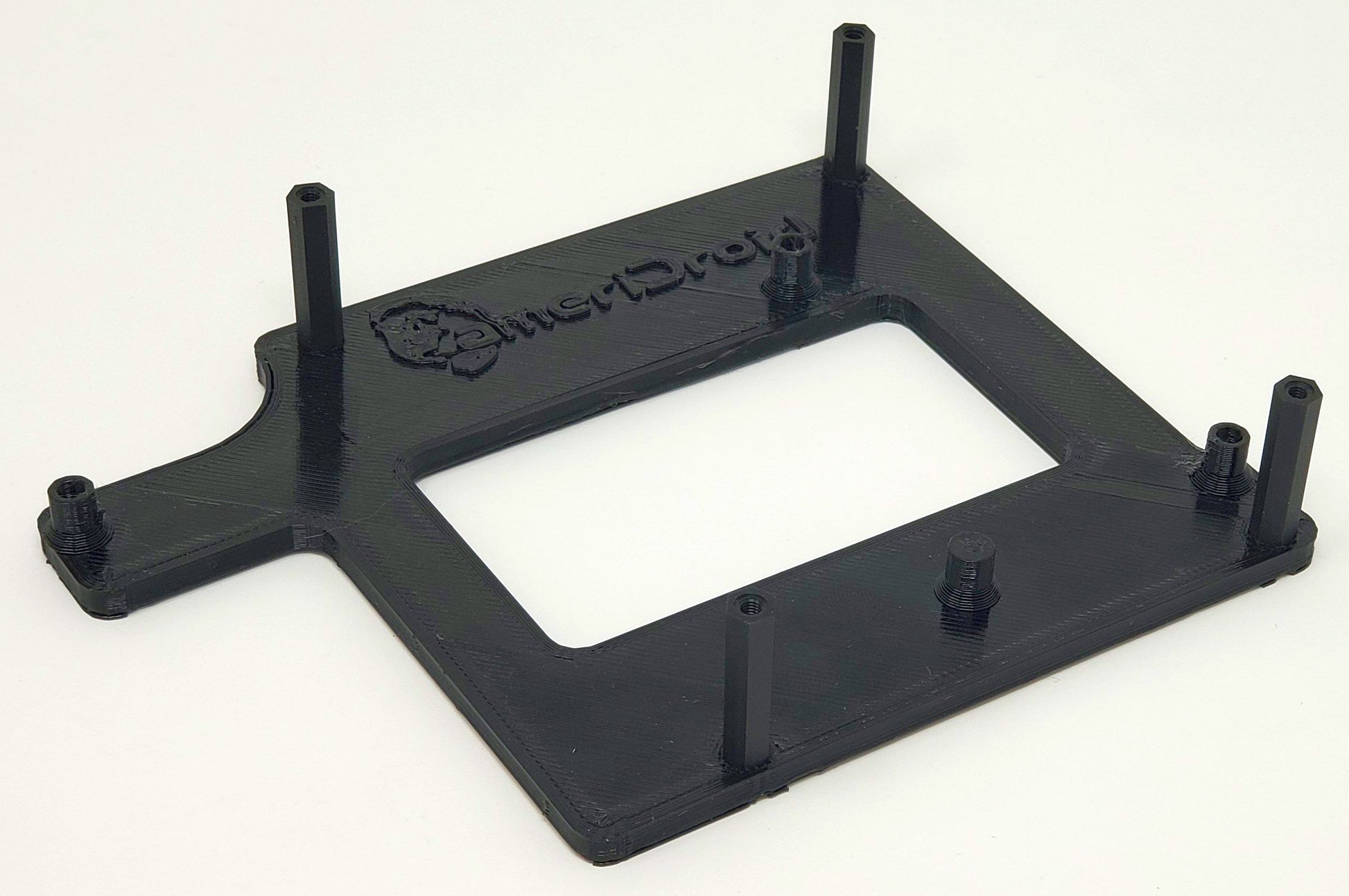

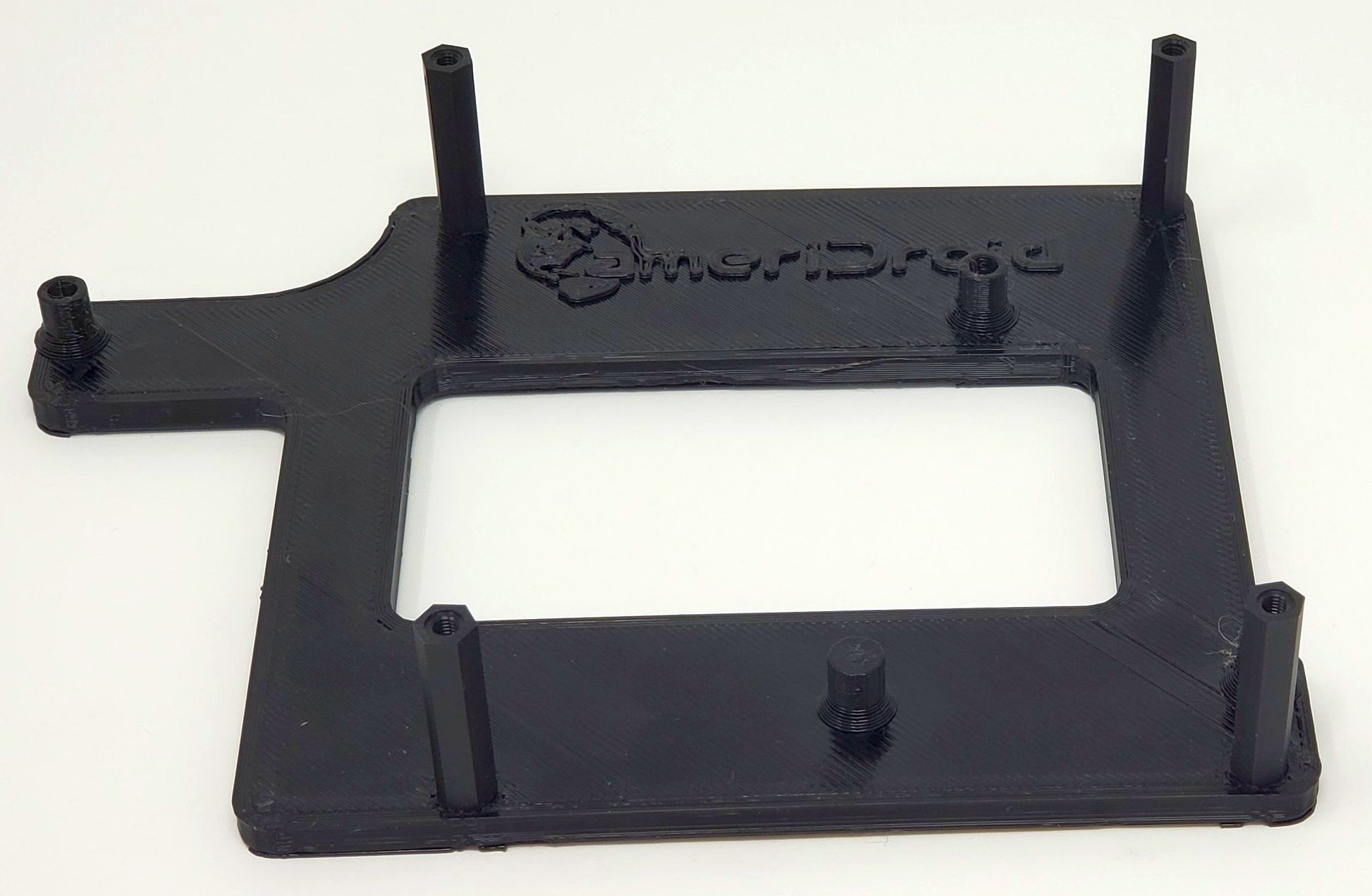

ODROID-H-Series Mounting Plate (Supports PCIe Cards and SATA Drives)

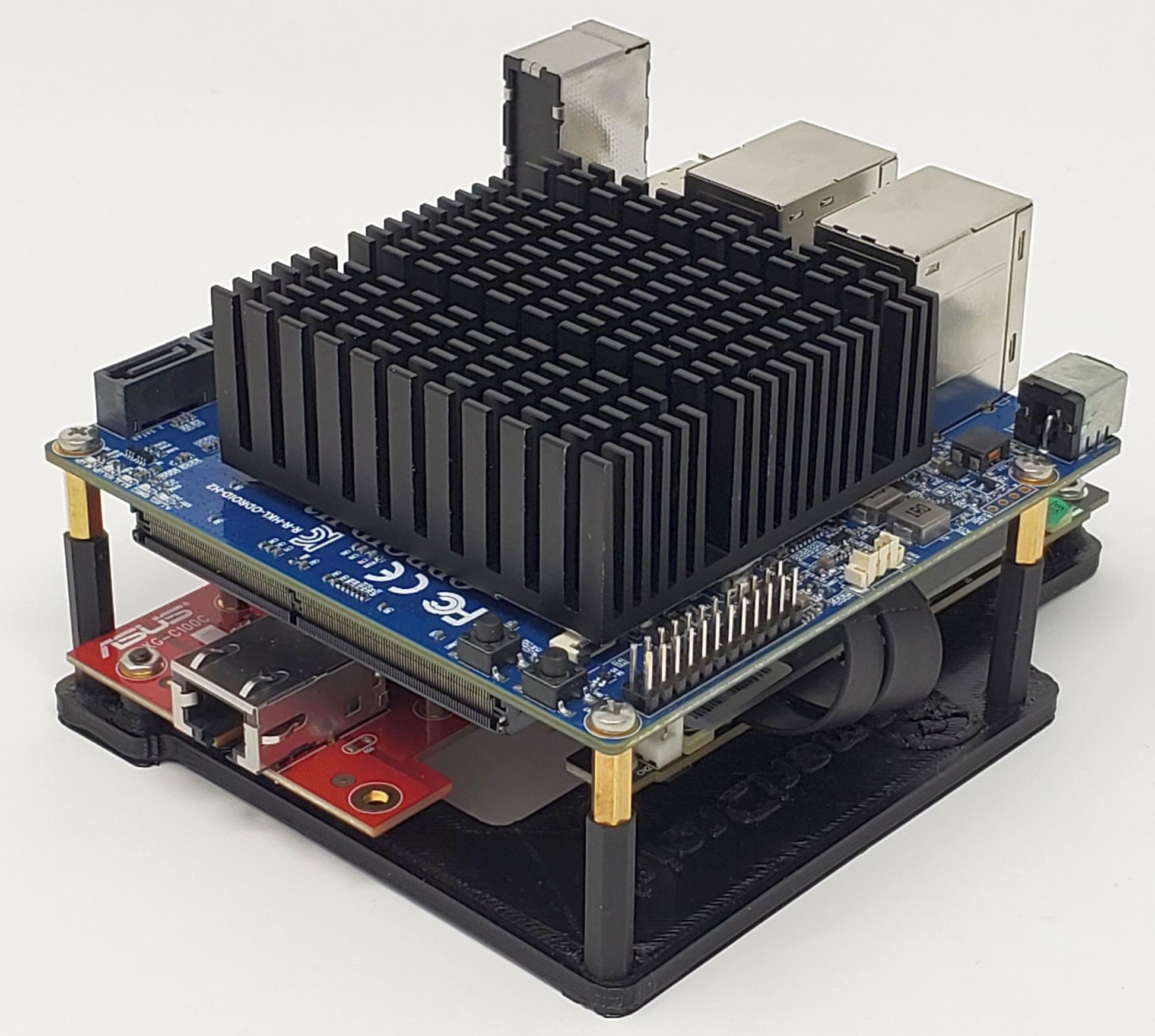

For those who want to provide a stable foundation for their ODROID-H3+ / H3 / H2+ / H2, this mounting plate does the job.

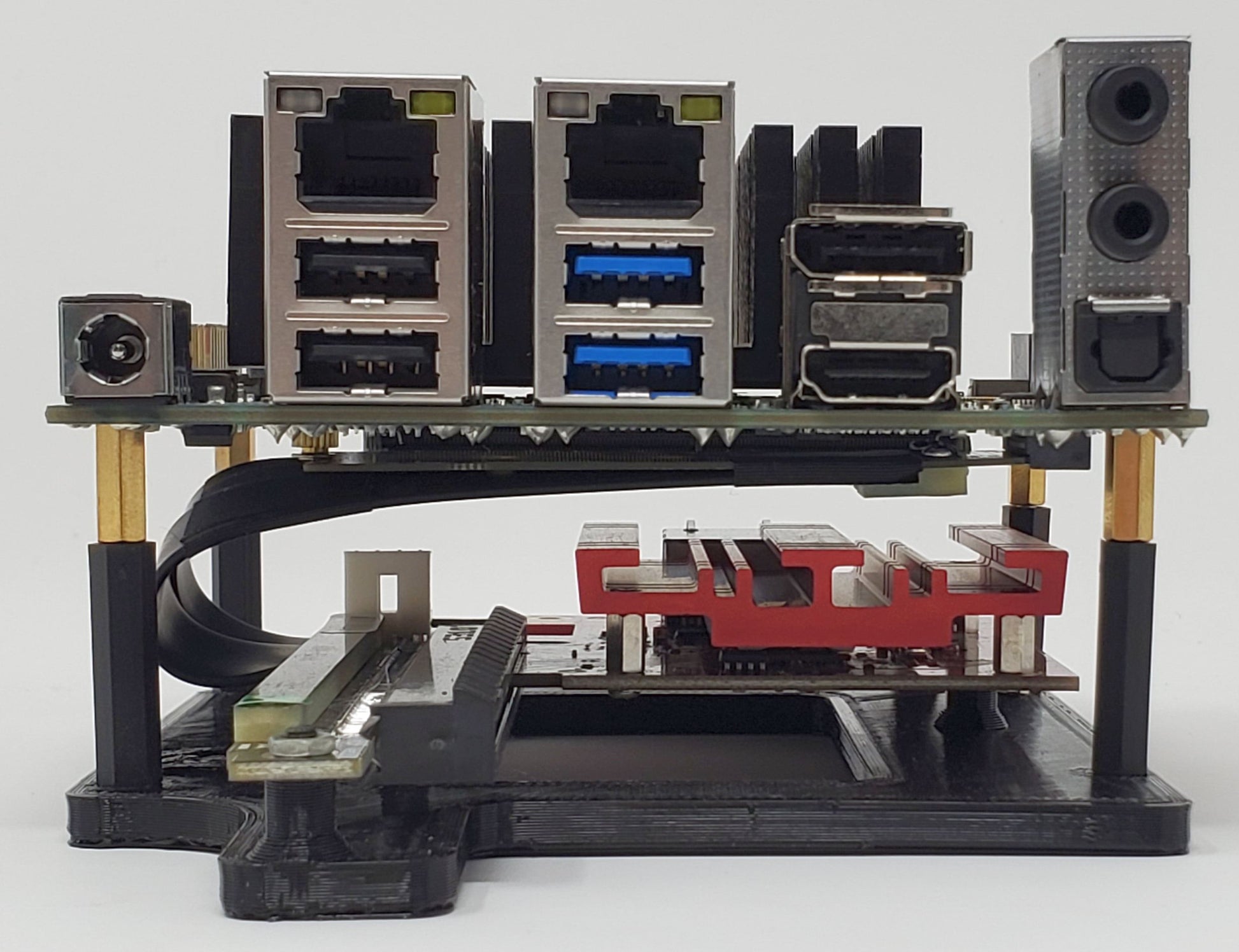

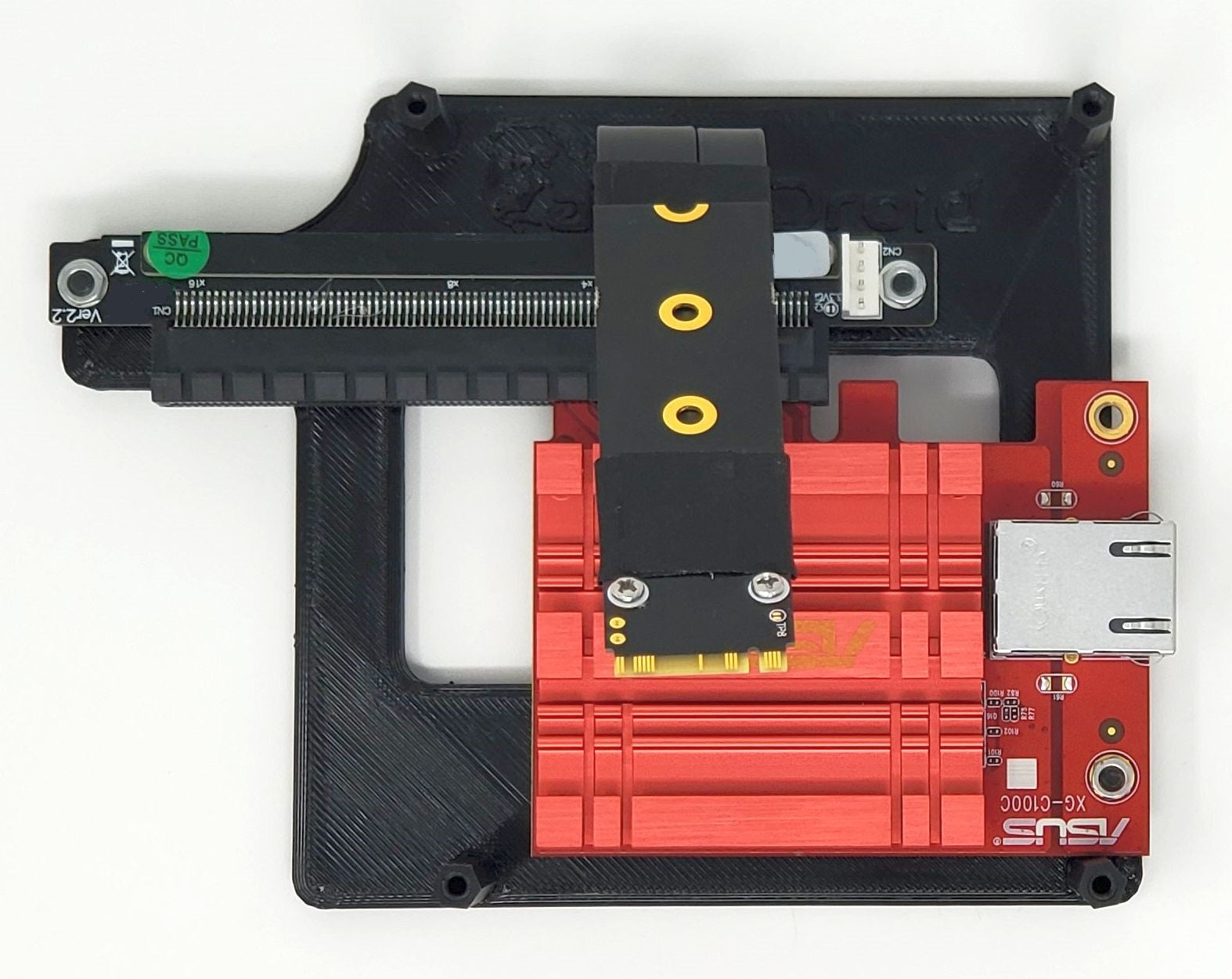

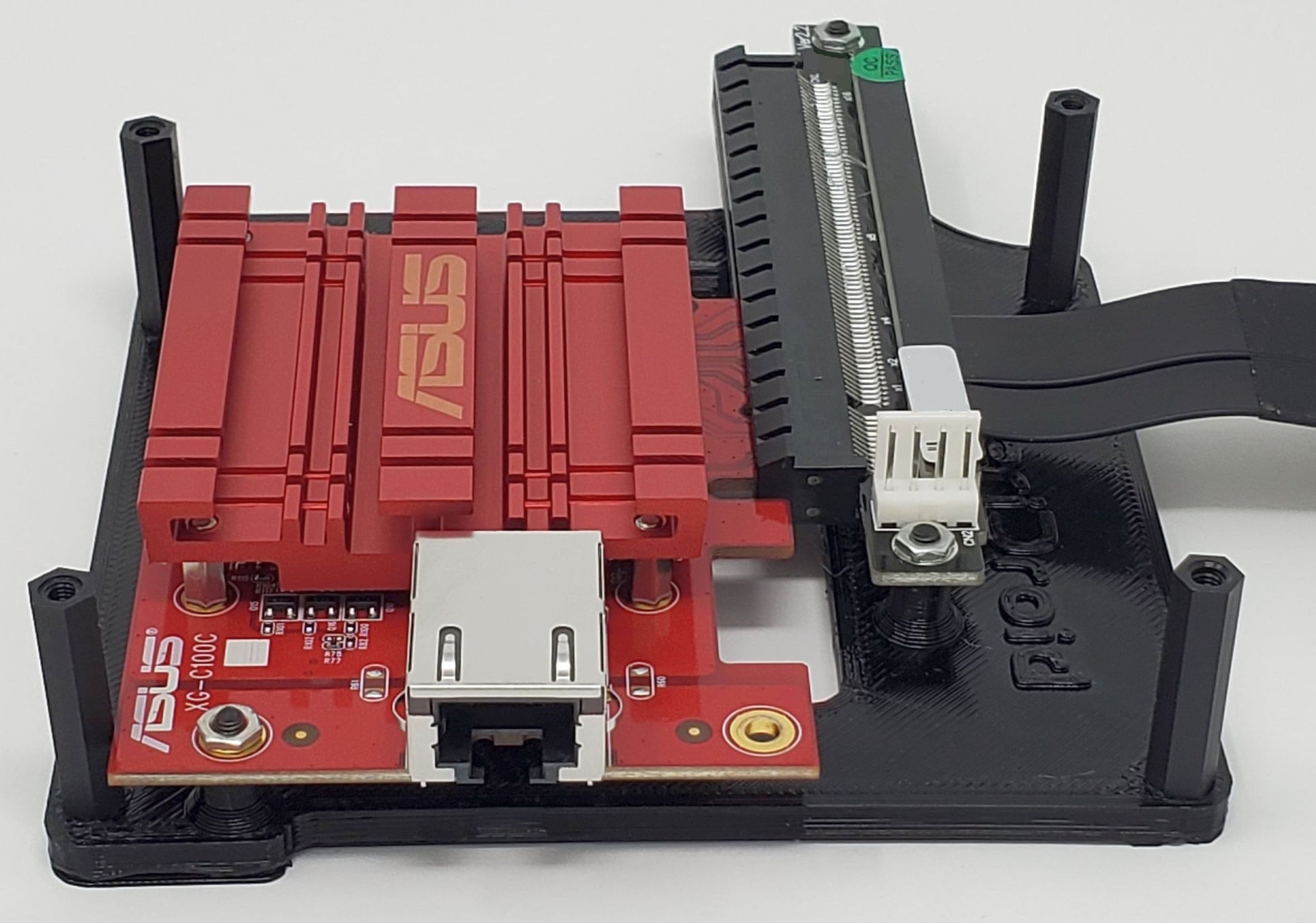

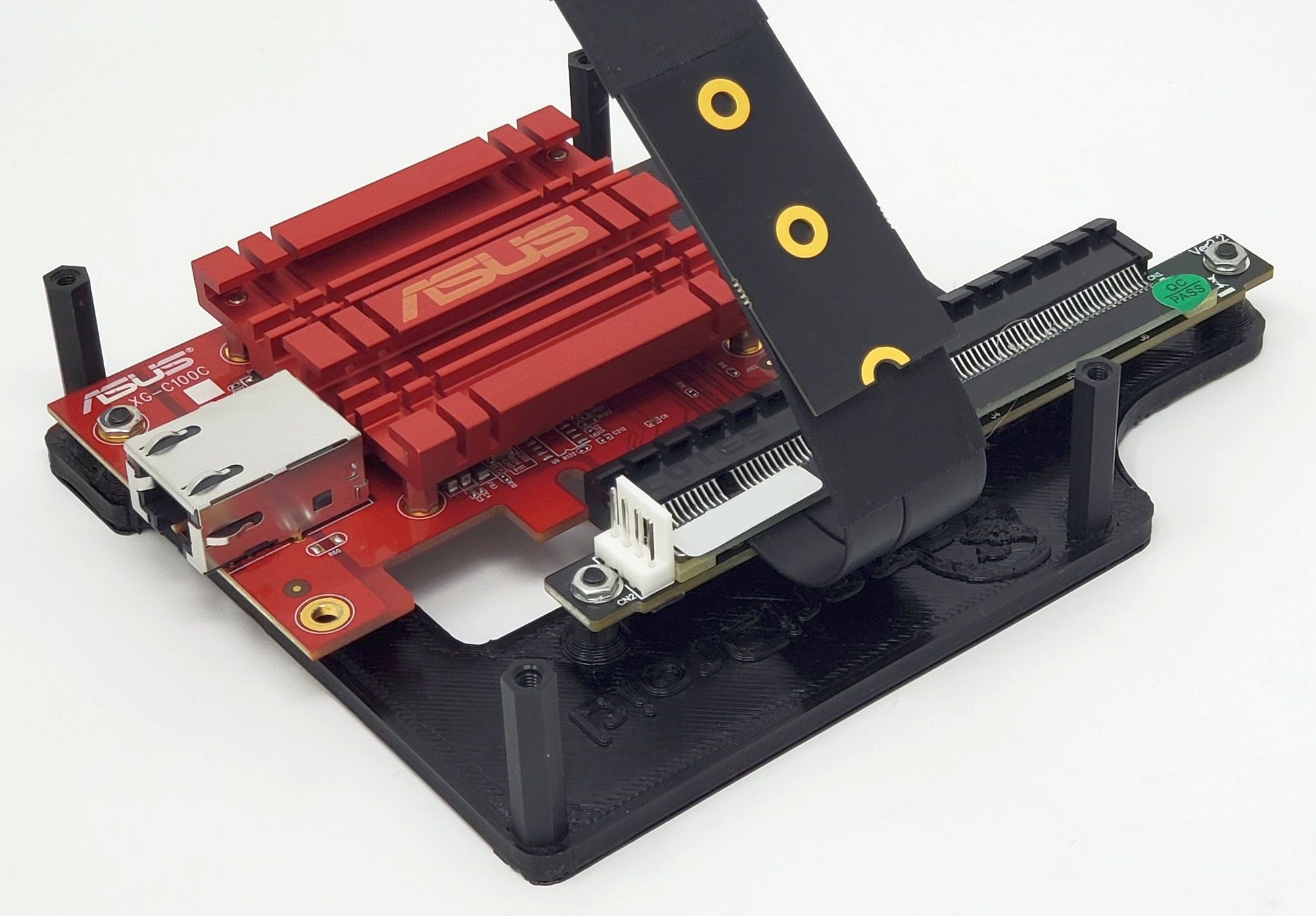

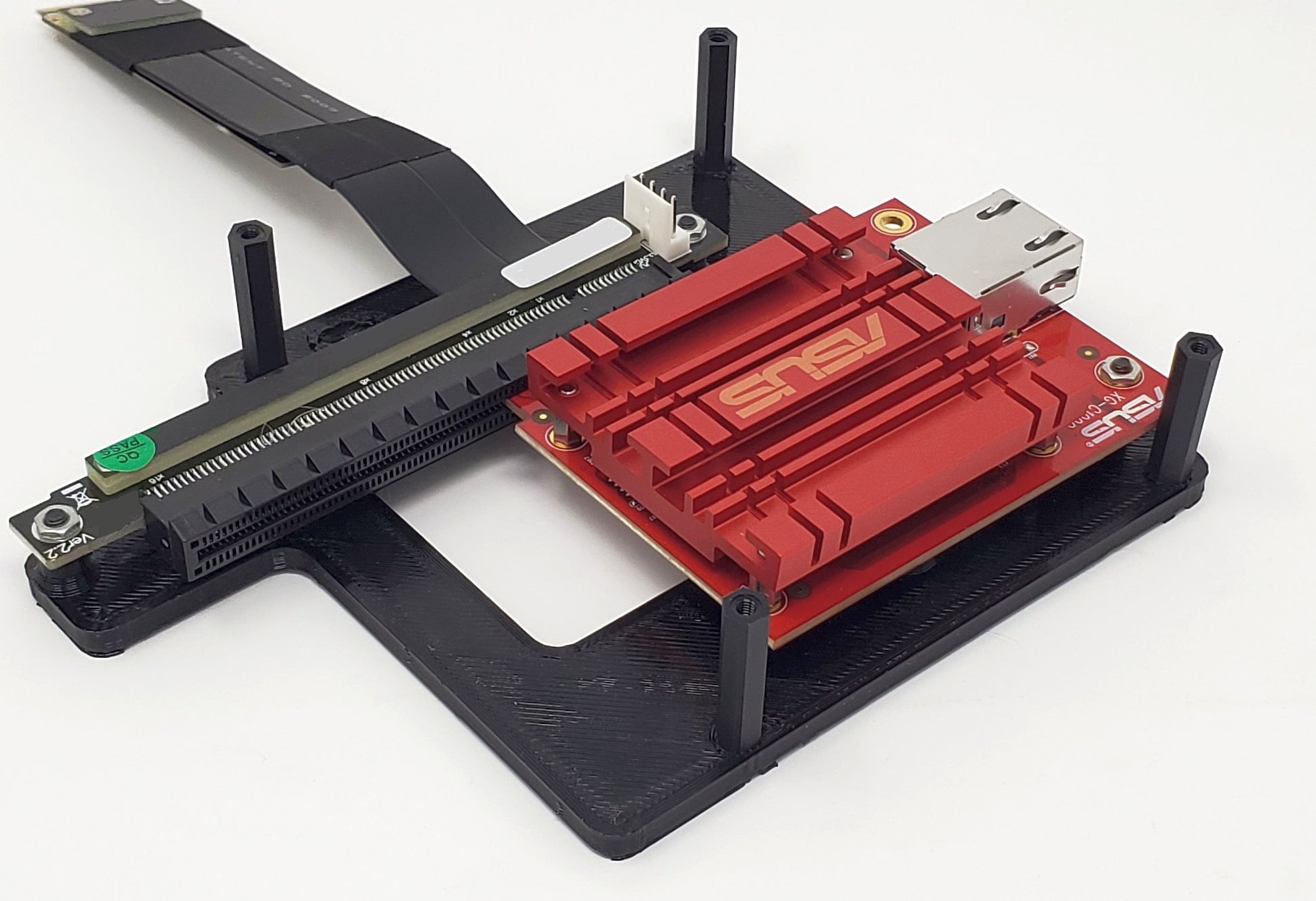

Coupled with our M.2 to PCIe adapter, many PCIe cards can be safely installed along with the ODROID-H-Series.

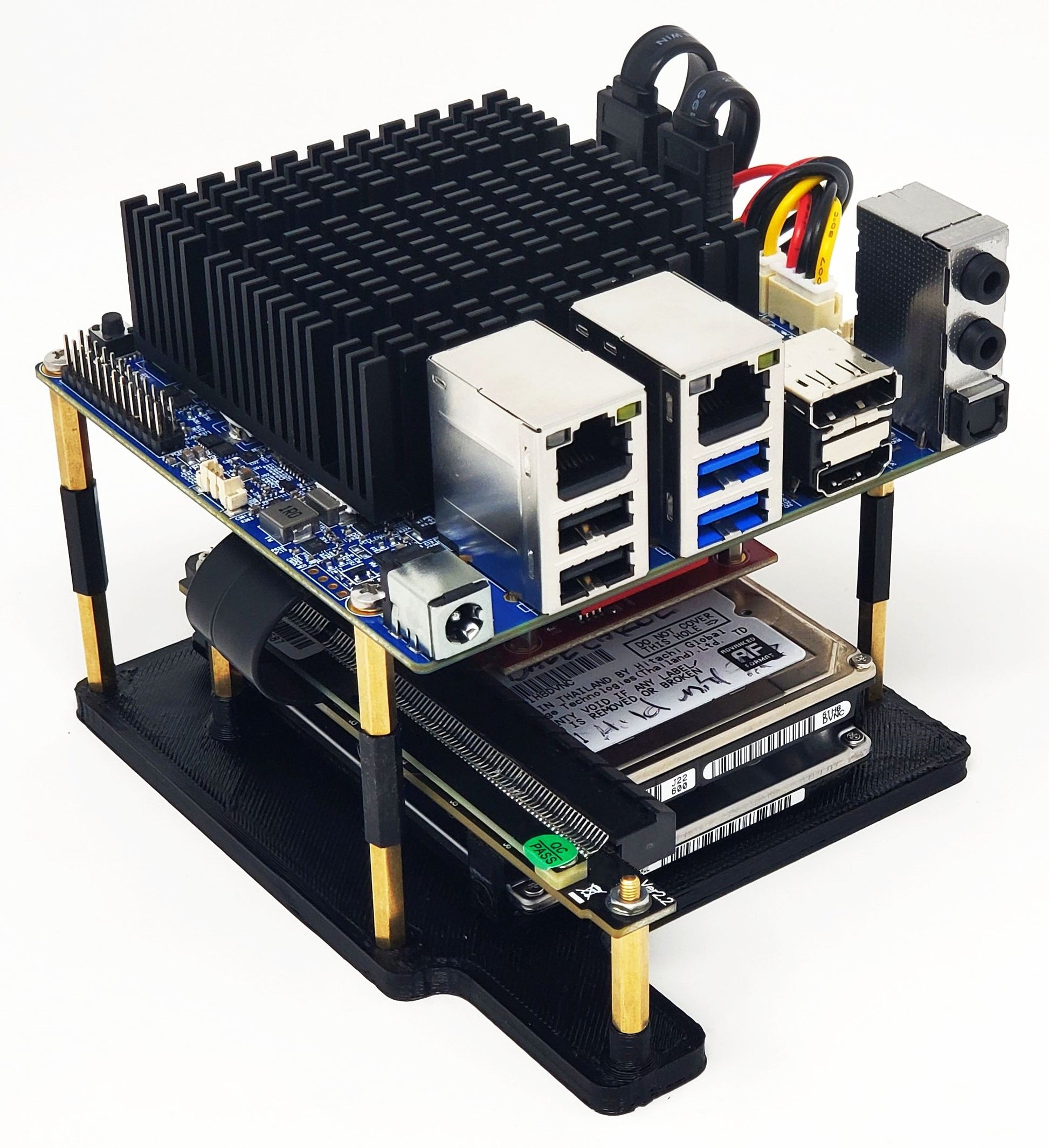

The Mounting Plate has now been enhanced to allow mounting of 2x 2.5" SATA drives, and also supports using the M.2 to PCIe adapter if desired.

KEY FEATURES

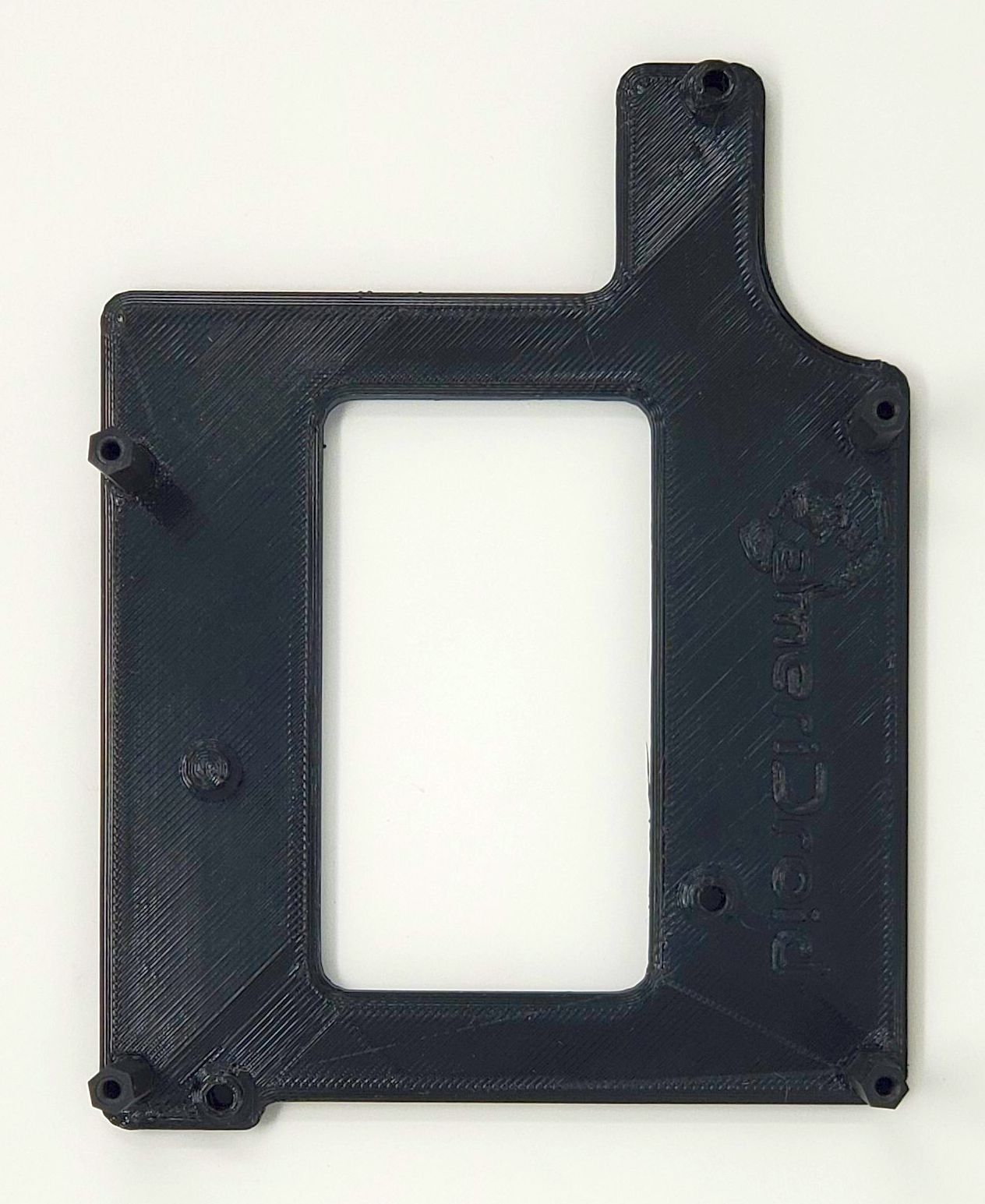

• 3D Printed in ABS or PETG plastic at 0.3mm or better resolution
• Contact us for the following:
• Modifications or customizations
• Custom logos (embossed or raised)
• Custom colors
• Includes all hardware to mount the ODROID-H-Series, M.2 to PCIe adapter and many PCIe cards

• 4x 24mm M3 F-F posts
• 4x 12mm M3 M-F posts
• 4x 8mm M3 screws
• 3x 16mm M3 screws
• 3x M3 hex nuts
• 1x M3 Allen key

NOTES

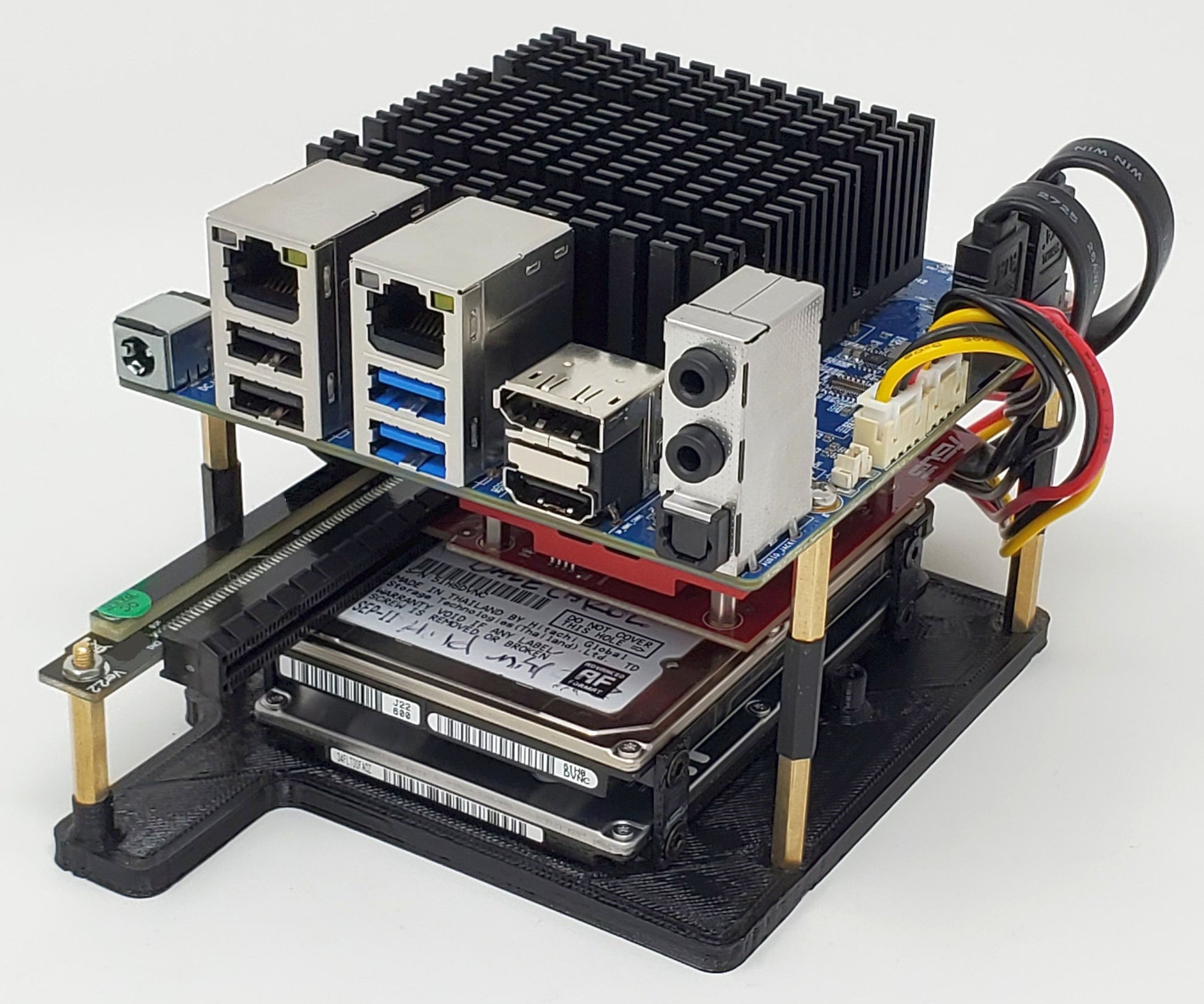

• Current revision allows mounting 1 or 2 SATA 2.5" drives - drive spacers included, but drive mounting screws need to be sourced separately - SATA data and power cables for the ODROID-H-Series available on this site
• Current revision allows 11mm more clearance between the top of the PCIe card and the H3+ / H2+ mounting post than the image shown in some of the pictures
• M.2 to PCIe adapter, not included, but available separately
• 10GbE Network Card not included, but available separately
