ODROID-Vu12

ODROID-Vu12

$164.95 USD
$164.95 USD
Shipping calculated at checkout.
US Flag Thank you for supporting a US-based small business!

Low stock

Free standard shipping on US orders over $150

Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.

📦

US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.

Description ▼

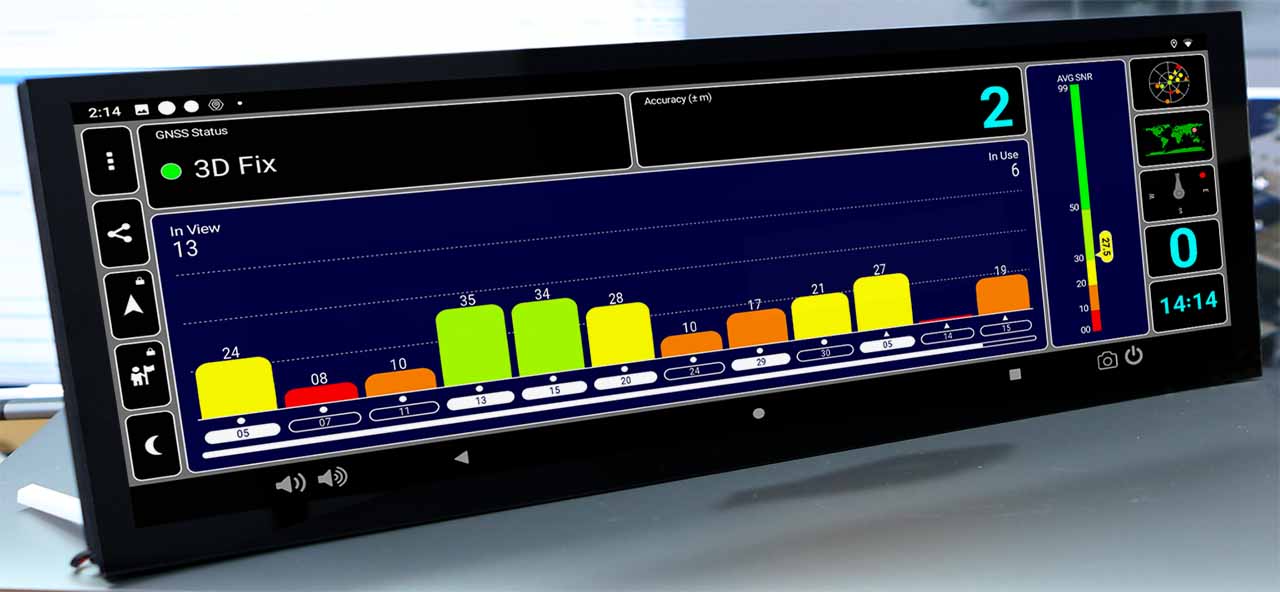

The ODROID-Vu12 is a 12.3-inch display device with an ultra-wide resolution of 1920×720 and is equipped with a capacitive 10-point multi-touch screen.

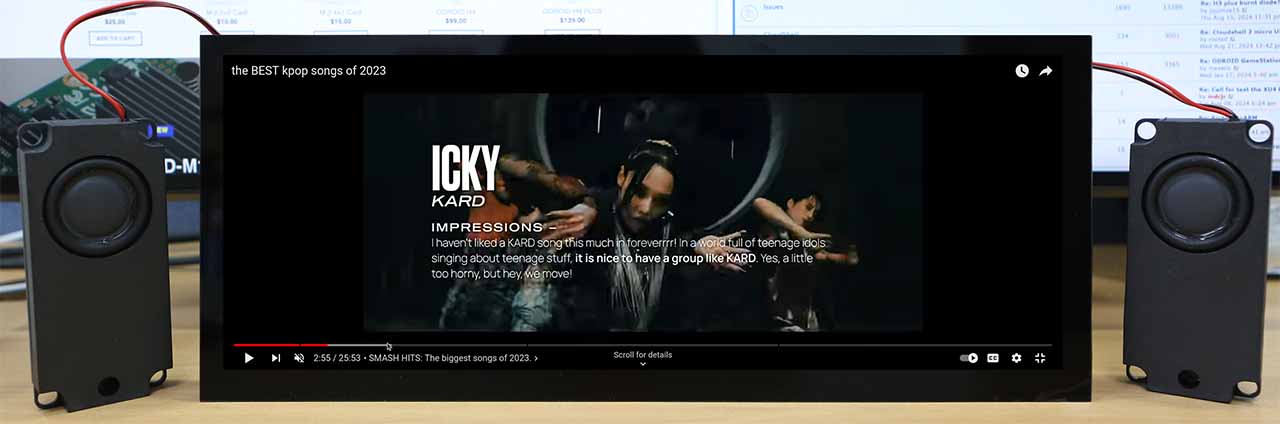

It has a built-in stereo digital amplifier, so you can enjoy loud sound by simply connecting speakers.

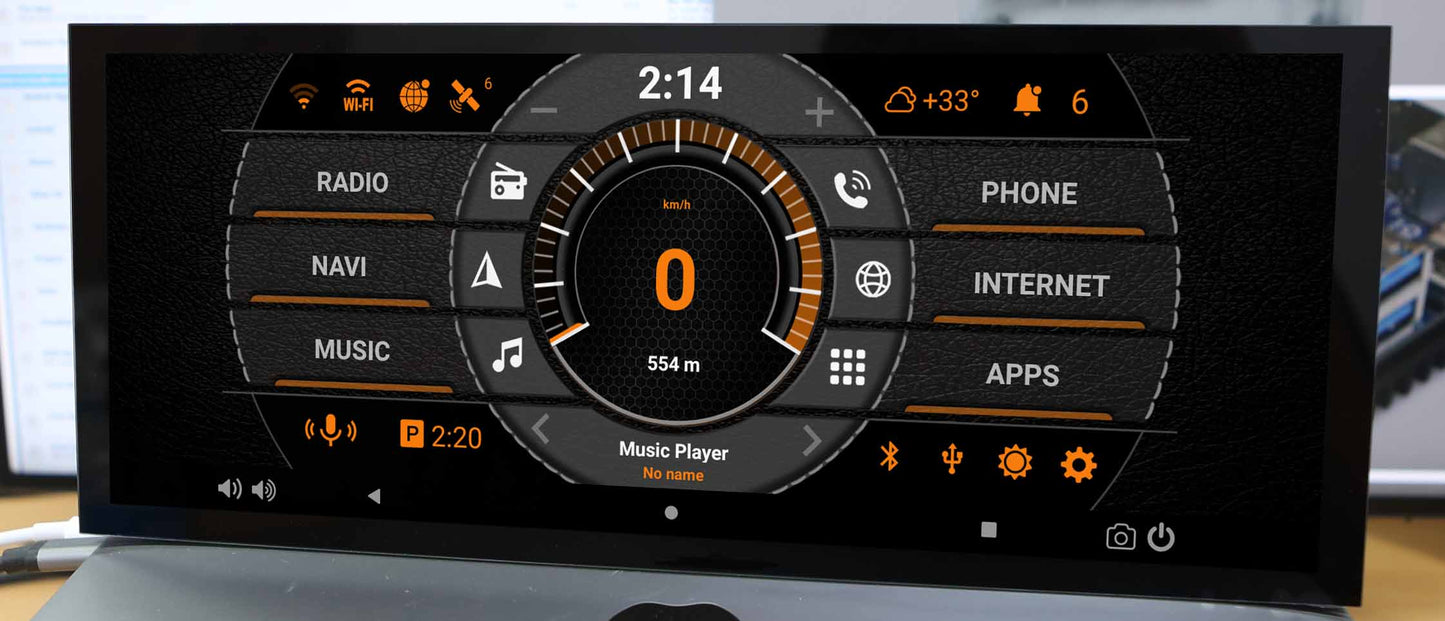

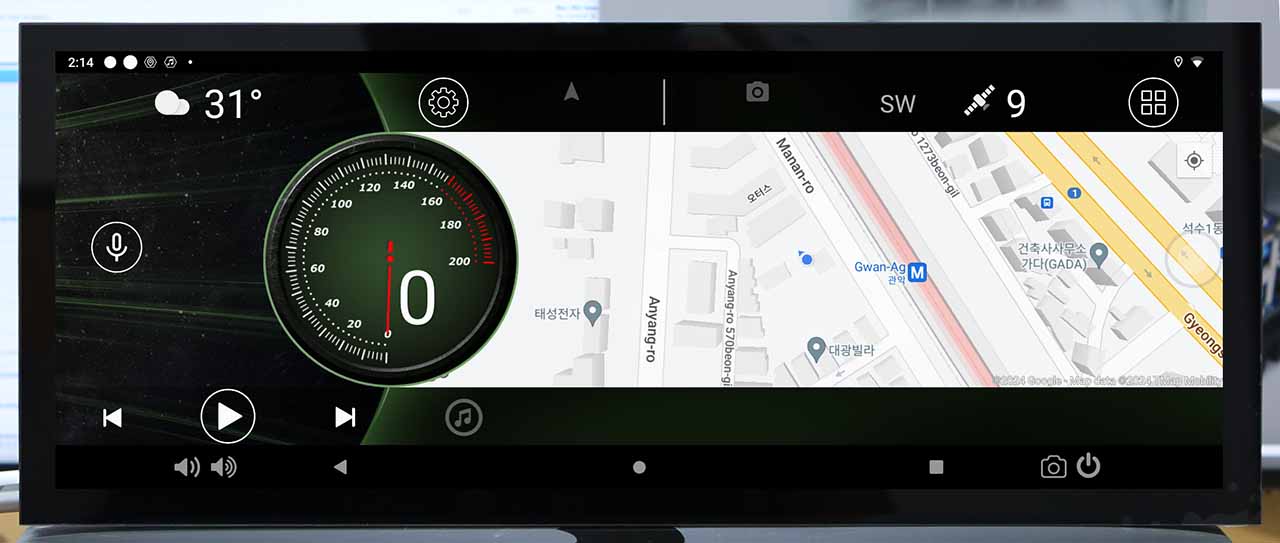

Vu12 is suitable for industrial embedded systems or DIY automotive infotainment devices.





Specifications

  • 12.3-inch TFT-LCD
  • 1920 x 720 pixels : Active display area : 292 x 110 mm
  • 10-point capacitive touchscreen (USB ID 222a:0001 ILI Technology Corp. Multi-Touch Screen)
  • Stereo speakers output to support HDMI audio output
  • Reset / Boot mode buttons for firmware update
  • ttyACM serial command support for Brightness/Analog volume/Digital Volume, etc.
  • Wide Viewing angle (in degree) : Left 88, Right 88, Up 88, Down 88
  • Screen Dimensions : 315 x 130 x 30 mm including control board.
  • DC input voltage range : 10V ~ 25V
  • DC barrel jack : outer (negative) diameter 5.5mm, inner (positive) diameter 2.1mm
  • Power consumption : 1.2 A at 12 Volt input with maximum brightness

We recommend using a 12V/2A power supply for this display device !

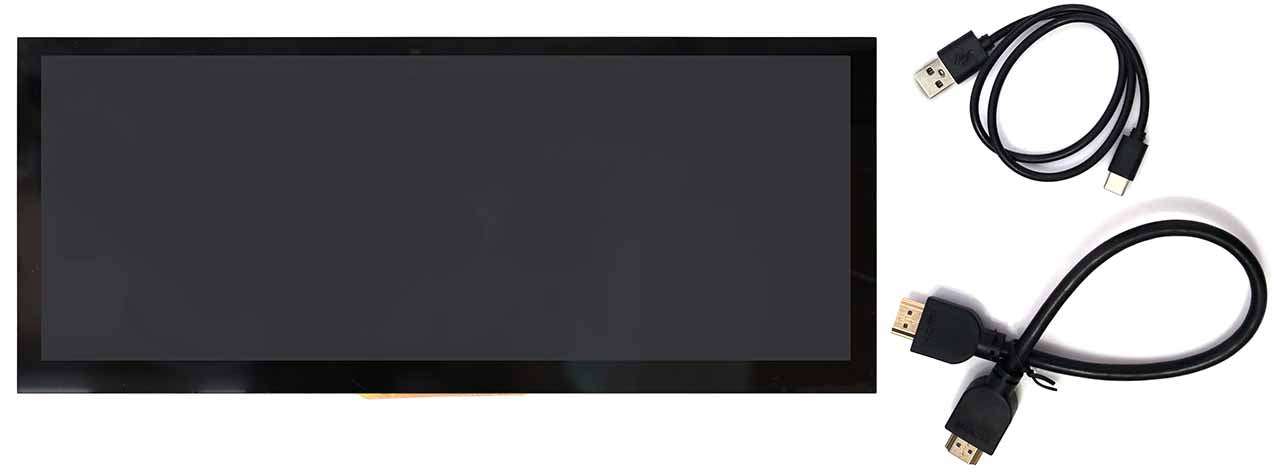

HDMI and USB cables are included in the package.

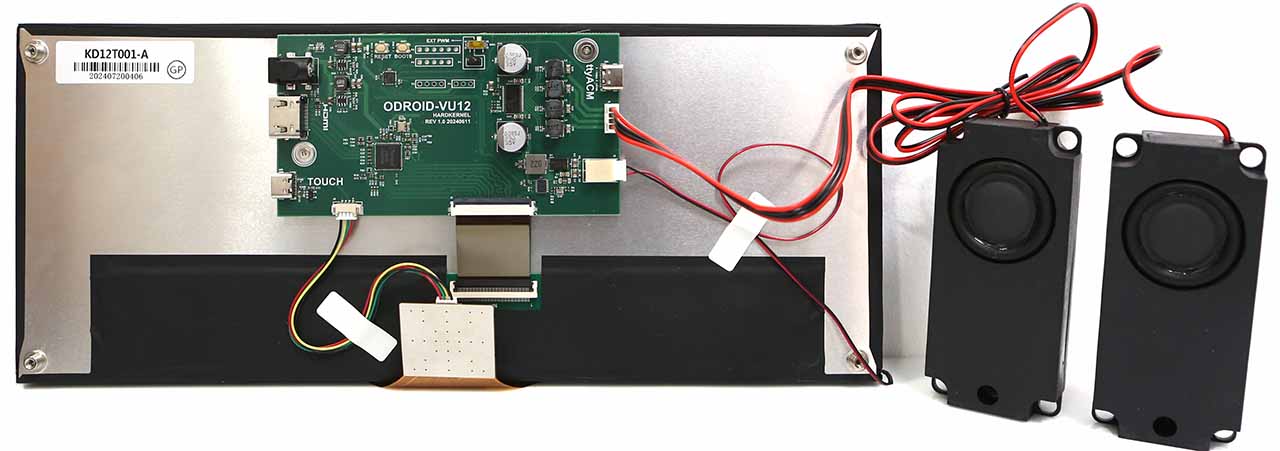

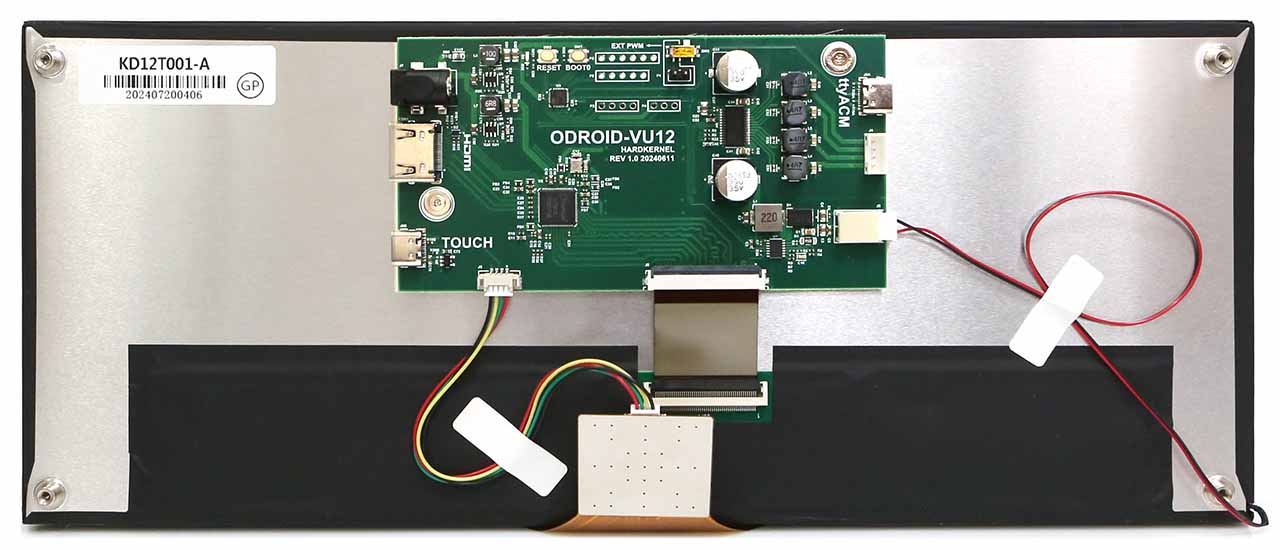

Hardware diagram

Board Dimensions

WIKI : https://wiki.odroid.com/accessory/display/vu_series/vu12
