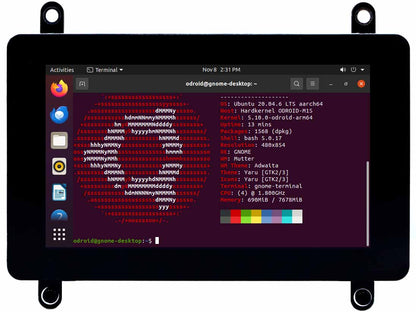

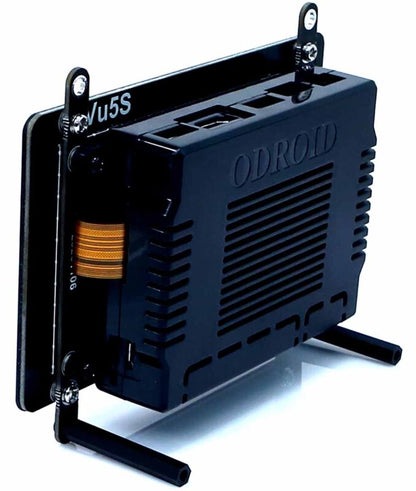

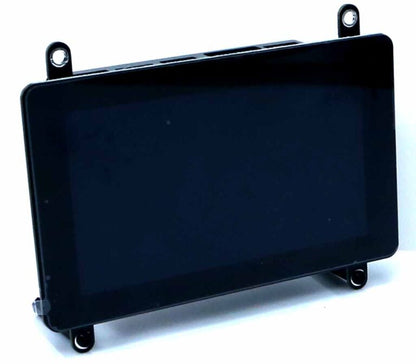

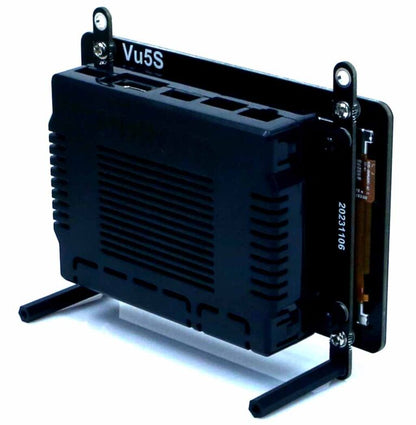

The two-lane MIPI-DSI port can be directly connected to a LCD panel. A 5 inch 480×854 wide viewing angle LCD and capacitive multi-touch screen is pre-assembled. The ODROID-Vu5S is dedicated to ODROID-M1S. It can only be used via a MIPI DSI Connector(J7) on M1S. The I type Bracket PCB is required to dock Vu5S to assembled ODROID-M1S with case.

SPECIFICATIONS

• 5-inch TFT-LCD
• Portrait 480(H) x 854(V) pixels hardware native resolution
• Mechanical Dimensions : 136(W) x 83.4(H) mm (Assembled with I Bracket: 106)
• Viewable screen size : 109.53 x 61.56 mm (active area)
• 5 finger capacitive touch input
• Power consumption : 1.5W ± 10% (when 50% of duty-cycle for the backlight PWM driver)

INCLUDES

A. Assembled 5inch TFT LCD + multi touch screen * 1EA
B. M3 x 40(BLACK) Support * 3EA including a spare part
C. M3 x 7(BLACK) Bolt * 7EA including a spare part
D. M3 x 5(SILVER) Bolt* 5EA including a spare part
E. Vu5S LCD Frame Board for M1S * 1EA
F. Vu5S I form Bracket Board for M1S * 2EA
