ODROID-Vu8S

The four-lane MIPI-DSI port can be directly connected to a LCD panel. A 8inch 800×1280 wide viewing angle LCD and capacitive multi-touch screen is pre-assembled. The ODROID-Vu8S is dedicated to ODROID-M1S. It can only be used via a MIPI DSI Connector(J7) on M1S. The I type Bracket boards are required to dock Vu8S to assembled ODROID-M1S with case.

SPECIFICATIONS

• 8-inch TFT-LCD
• Portrait 800(H) x 1280(V) pixels hardware native resolution
• Mechanical Dimensions : 202(W) x 153.0(H)
• Viewable screen size : 172.224 x 107.64 mm (active area)
• 5 finger capacitive touch input
• Power consumption : 2.4W ± 10% (100% duty cycle)

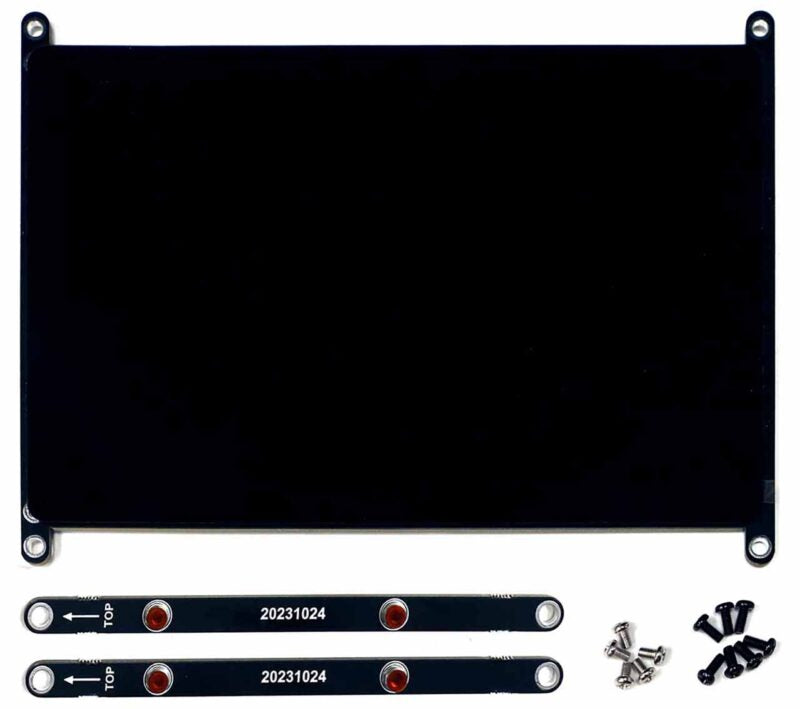

INCLUDED

A. Assembled 8inch TFT LCD + multi touch screen * 1EA
B. M3 x 40(BLACK) Support * 3EA including a spare part
C. M3 x 7(BLACK) Bolt * 7EA including a spare part
D. M3 x 5(SILVER) Bolt* 5EA including a spare part
E. Vu8S LCD Frame Board for M1S * 1EA
F. Vu8S I form Bracket Board for M1S * 2EA

LINKS

• WIKI : https://wiki.odroid.com/accessory/display/vu_series/vu8s
