PineCube Single Cube Computer

The PineCube is a computer with the main goal of providing a platform for a small, inexpensive IP camera solution with interchangeable lenses and additional customization features.

Please read the NOTES section below for important considerations before deciding to purchase.

KEY FEATURES

• BODY:
• Dimensions: 55mm x 51mm x 51.5mm
• Weight: 55 grams

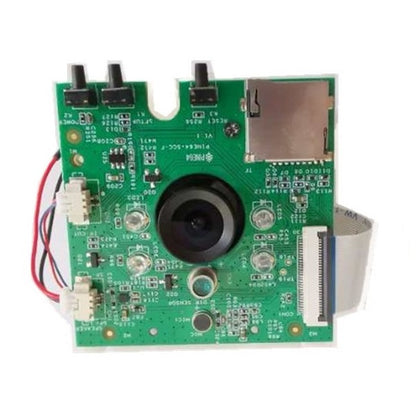

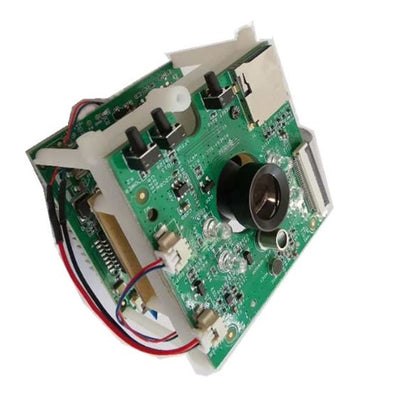

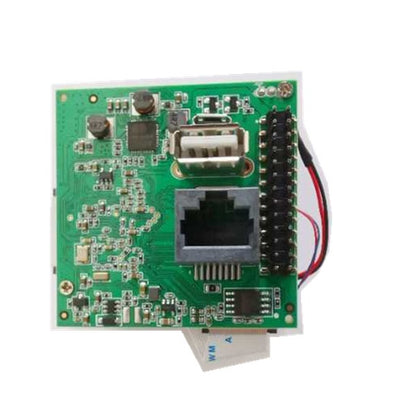

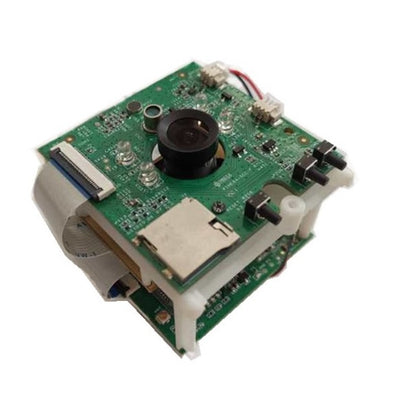

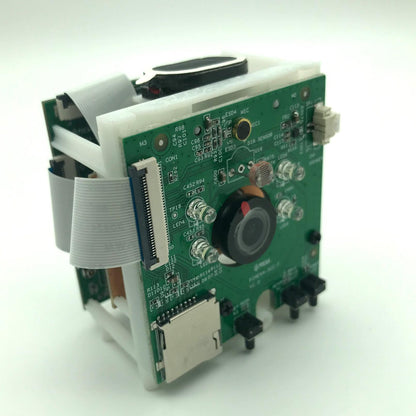

• Build: 3 pieces PCBs assembled together on a plastic frame
• CAMERA:
• Sensor: OV5640 5Mpixel auto-focus
• interchangeable M12 lens
• PLATFORM:
• SoC: Allwinner (Sochip) S3
• CPU: 800MHz ARM Cortex-A7 MPCore
• MEMORY:
• Internal: embedded on SoC 128MB DDR3
• Additional: 128Mb SPI NOR Flash
• External: MicroSD slot, bootable
• COMMUNICATION:
• WiFi 2.4G 11n/g/b
• 10/100Mbps Ethernet with passive PoE
• FEATURES:
• Sensors: Photoresistor, Microphone
• Speakers
• Volume and home buttons
• Infra-Red LED array for night vision
• OPTION:
• 4.5″ RGB LCD screen
• 3.7V 1200-1600mAh model: 903048 Lipo Battery

• The PineCube Single Cube Computer Dev Kit aimed solely for development purpose only and not a ready-to-use end product.
• The PineCube Dev Kit is not for end users looking for a fully-functioning IP Camera.

• Wiki - https://wiki.pine64.org/index.php/PineCube
• 3D Files (to print a case) - https://files.pine64.org/doc/PineCube/PineCube%20Case%203D.zip
