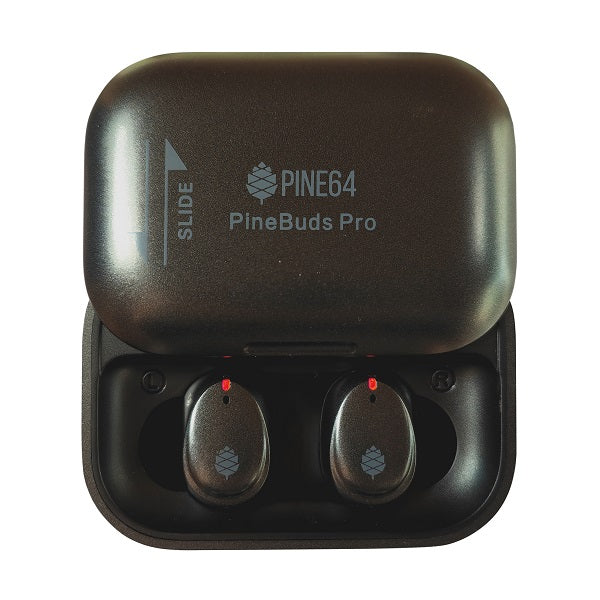

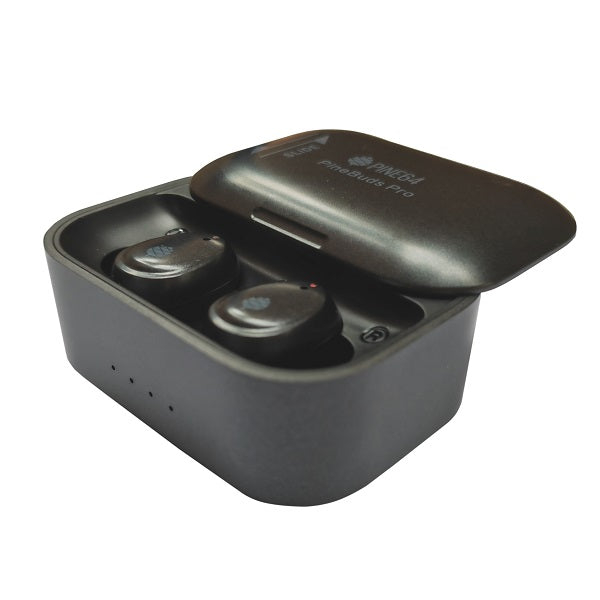

PineBuds Pro ANC Wireless Earbuds are engineered with open firmware, allowing you to customize your audio experience. Enjoy superior sound quality, immersive noise cancellation, and effortless use all in one device.

FEATURES

• User can flash in PINE64 community open firmware when becomes available. The community firmware may beyond typical TWS earbuds functionality.
• Every earbud craftmanship tuned for optimum performance.
• Small and lightweight earbud design for long period comfortable fit.
• The most advance active noise-canceling wireless earphones, transforms listening with up to 45 dB of active noise cancelation.
• A custom design of smaller NC acoustic module that combines a proprietary transducer, and feedback microphone in a sealed enclosure. This allows module sits closer to eardrum for the most effective noise cancellation with the lowest computation error.
• A custom design 6mm small size transducer packs high output and strong bass performance despite its compact size and can outperform typical 10mm transducers.
• Dual mic voice beam foaming, echo cancellation, and environment noise cancellation (ENC).
• Capable connects to multiple host devices, but not simultaneously.

SPECIFICATIONS

• 6 microphones Hybrid Adaptive ANC technology, effectively block out background noise up to 45dB
• Battery life:
  • 5 hours playtime
  • 25 hours with case
• Frequency Response (Output): 20Hz-20KHz
• Sound Pressure Level:  >100dB (1KHz/1mW)
• Transducer Design: Dynamic, Closed-Back
• Noise Reduction:
  • -45dB attenuation nominal 50-200Hz
  • -55dB max attenuation @150Hz
• Bluetooth Profile: A2DP, AVRCP, HFP
• Bluetooth Audio Codec: SBC, AAC
• Water Resistance Rating: IPX4 (Earbuds), should not wear during swimming, taking shower, or in a sauna
• Packaging Dimensions: 93mm x 78mm x 63mm
• Weight: 156 grams (whole), 65 grams (changing case), 5 grams (earbud)

HARDWARE

• Platform:
  • SoC: BES 2300YP
  • CPU: Dual-core 300MHz ARM Cortex-M4F
• Memory:
  • Flash:  4MB (Endurance erase cycles: >500)
  • SRAM: 992KB
• 3 microphones – FeedForward, FeedBack, Talk
• 6mm dynamic transducer (speaker)
• Communication:
  • Bluetooth 5.2 dual-mode compliant
  • USB to dual UARTs at charging case for firmware programming
• Battery:
  • Built-in LiPo 3.7V 800mAh battery in charging case
  • Built-in LiPo 3.7V 40mAh battery in each earbud
  • Charging: USB type-C port 5V 500mA

NOTES

• Warranty is 2 weeks.
