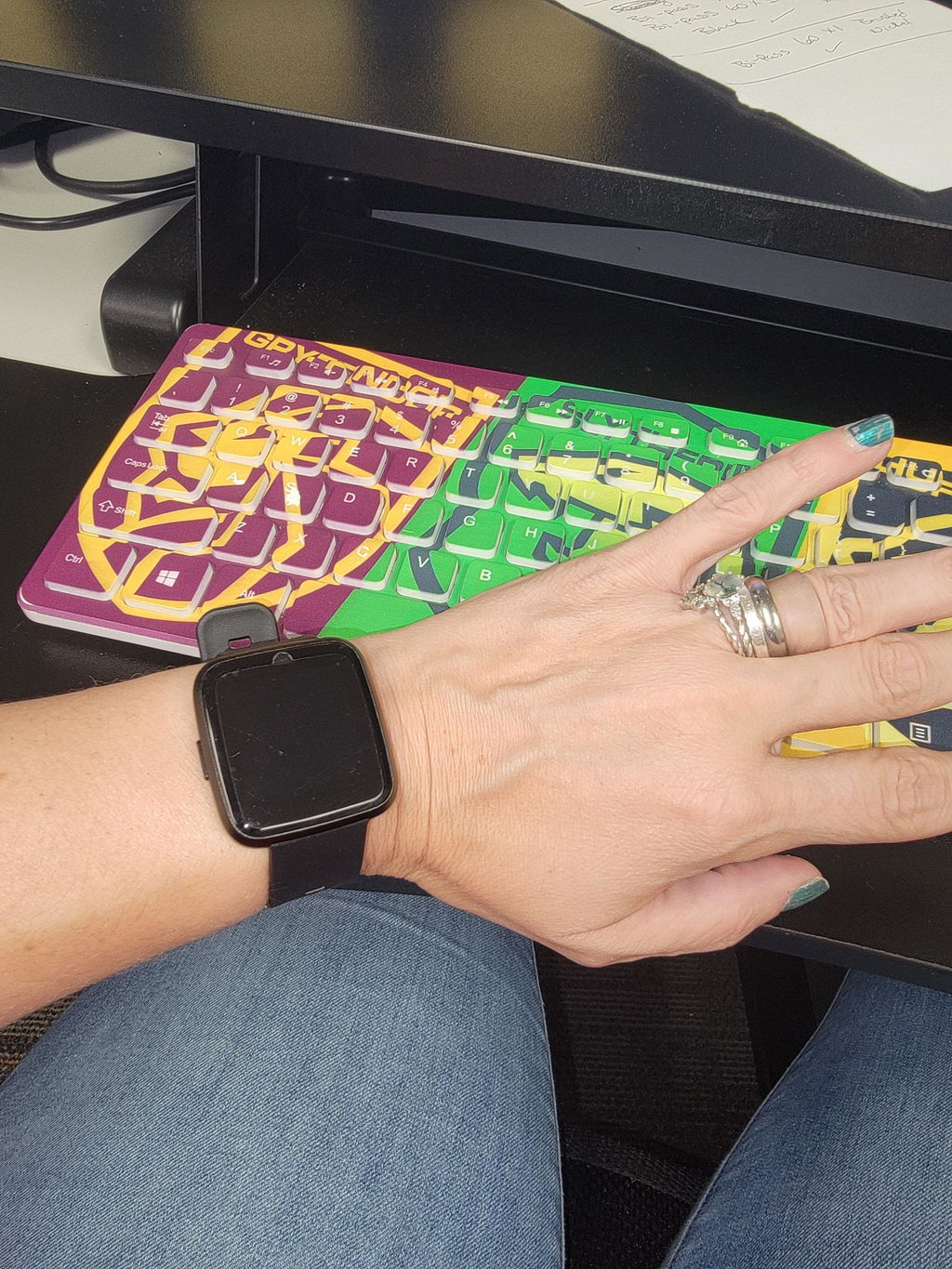

PineTime Smart Watch

If you're an experienced developer, or if you want to tackle a new development project, the PineTime may be just what you're looking for.

There are a couple of operating systems now available for the PineTime that are quite functional.

Please see the NOTES section below for important information to consider before purchasing.

KEY FEATURES

• BODY:
• Dimensions: 37.5mm x 40mm x 11mm
• Weight: 38 grams
• Build: Zinc Alloy and Plastic
• DISPLAY:
• Type: IPS capacitive touchscreen, RGB 65K colors
• Size: 1.3 inches
• Resolution: 240×240 pixels, 1:1 ratio
• PLATFORM:
• SoC: NORDIC Semiconductor nRF52832
• CPU: 64MHz ARM Cortex-M4F
• MEMORY:
• Internal: 512KB Flash, 64KB RAM
• Additional: SPI NOR 4 MB Flash
• COMMUNICATION:
• Bluetooth 5 (including Low Energy)
• FEATURES:
• Sensors: Accelerometer, PPG Heart Rate Sensor
• Actuator: Vibrator
• BATTERY:
• Built-in LiPo 170-180mAh battery
• Charging: Proprietary 2pin 5V 500mA, USB type A plug

NOTES

• The PineTime Sealed Kit is aimed at the enthusiast technology community - there are still some rough edges in the software, but there are at least two projects that are quite usable at this time.
• The PineTime Dev Kit aimed solely for development purpose only, this is not for end users looking for ready-to-wear smartwatch.
• The PineTime Dev Kit is a development kit, not a fully assembled smartwatch. Please note that the main unit and cover does not snap (lock) together. In the upcoming ready-to-wear PineTime, the body will be bonded with waterproof silicone adhesive.

• PineTime comes with a charging cradle
• A small numbers of stuck or dead pixels can be a characteristic of LCD screens. While rare, this should not be considered a defect. If you think that a minor dissatisfaction, such as a dead pixel will prompt you to file a PayPal dispute, DO NOT purchase the PineTime

LINKS

• Wiki - https://wiki.pine64.org/index.php/PineTime
