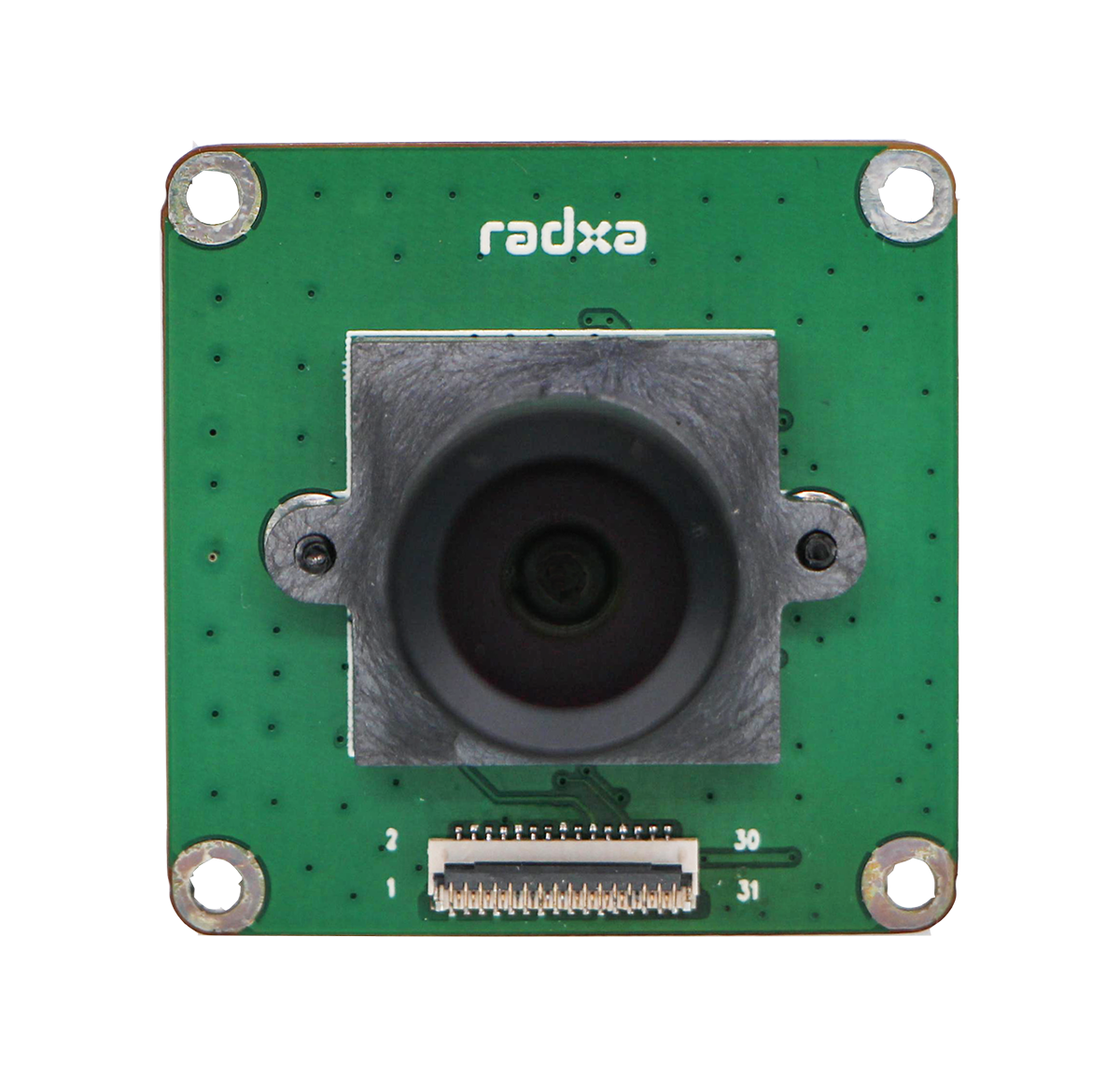

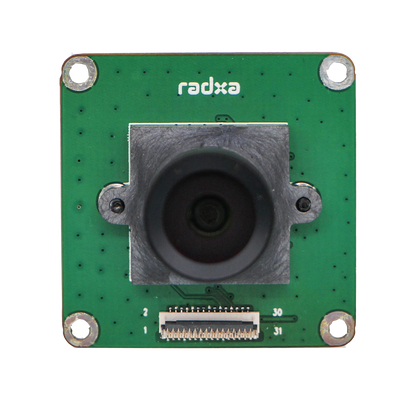

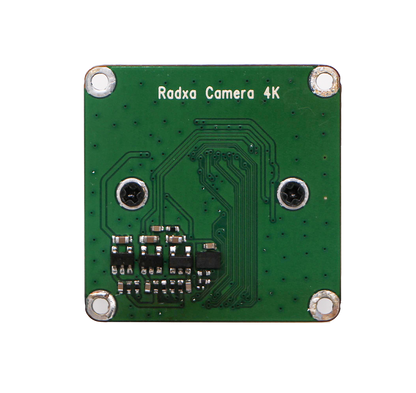

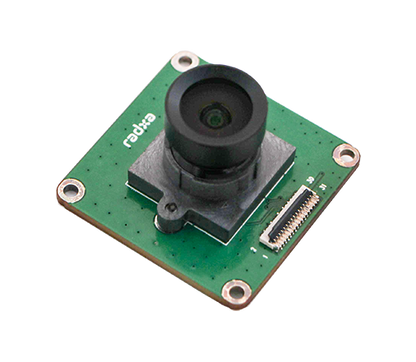

Radxa Camera 4K

Radxa Camera 4K is an HD camera for Radxa 5B. The camera has an IMX415 chip and connect Radxa 5B via CSI interface. The camera provides 8.29M pixels and it can be used as a surveillance camera, FA camera or industrial camera.

SPECIFICATIONS

• Sensor:
• SONY IMX415
• Diagonal 6.43 mm (Type 1/2.8)
• 8.29M pixel
• Unit cell size: 1.45 um (H) × 1.45 um (V)
• Output:
• CSI-2 serial data output ( 2 Lane / 4 Lane )
• RAW10 / RAW12 output
• Lens Specification:
• Interface Type: M12XP0.5
• Focal Length(EFL): 2.95±5%mm
• Back Focal Length(BFL): 4.64mm
• Flange Back Length(FBL): 4.00mm
• Single lens operating temperature: -40°C ~ +85°C
• FOV: D=88.2±5° H=75±3° V=59±2°
• CRA: 15°
• Ribbon cable length: 150 mm
