Description ▼

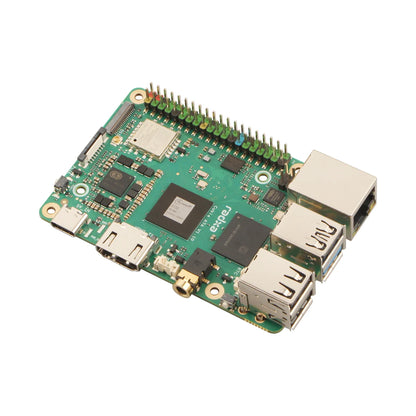

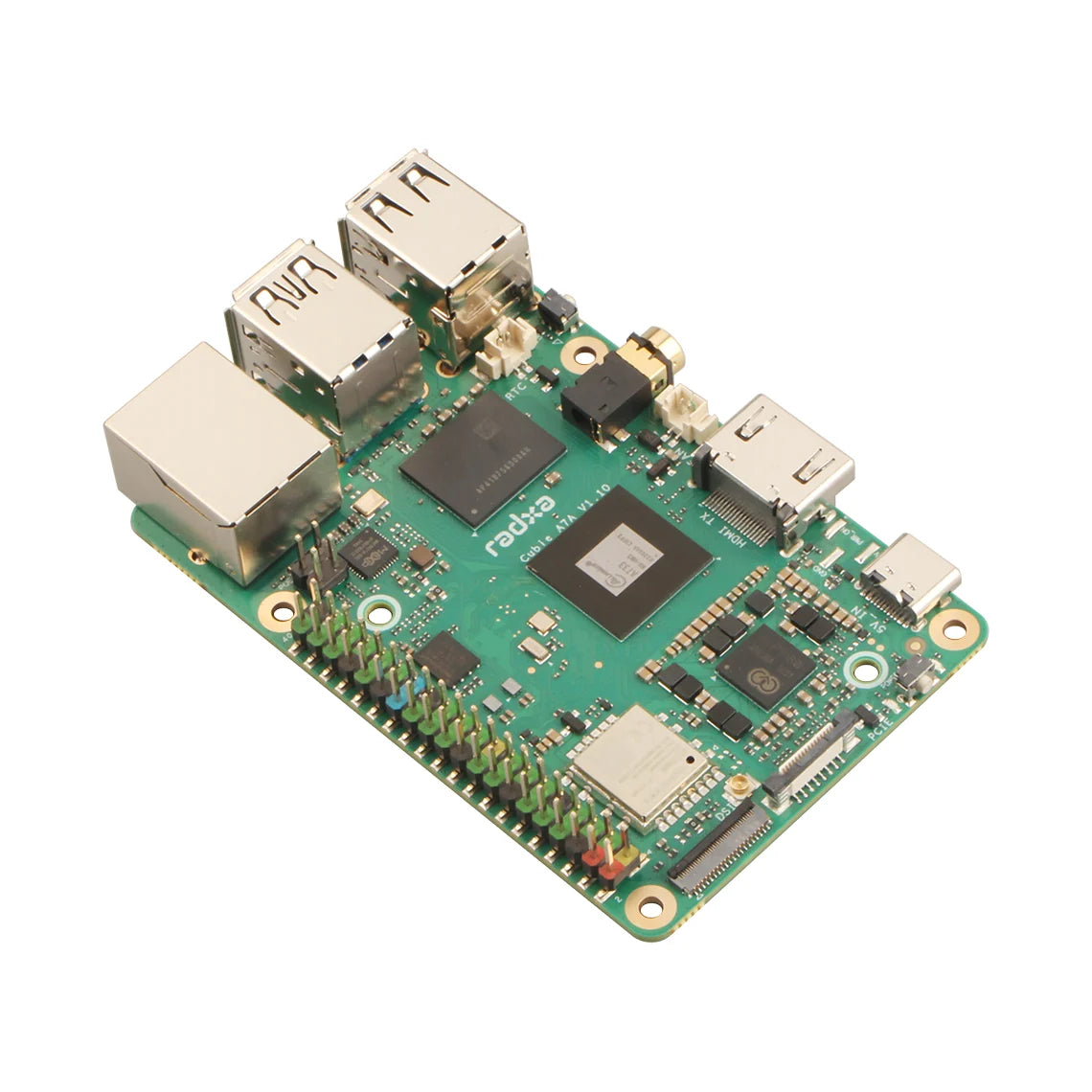

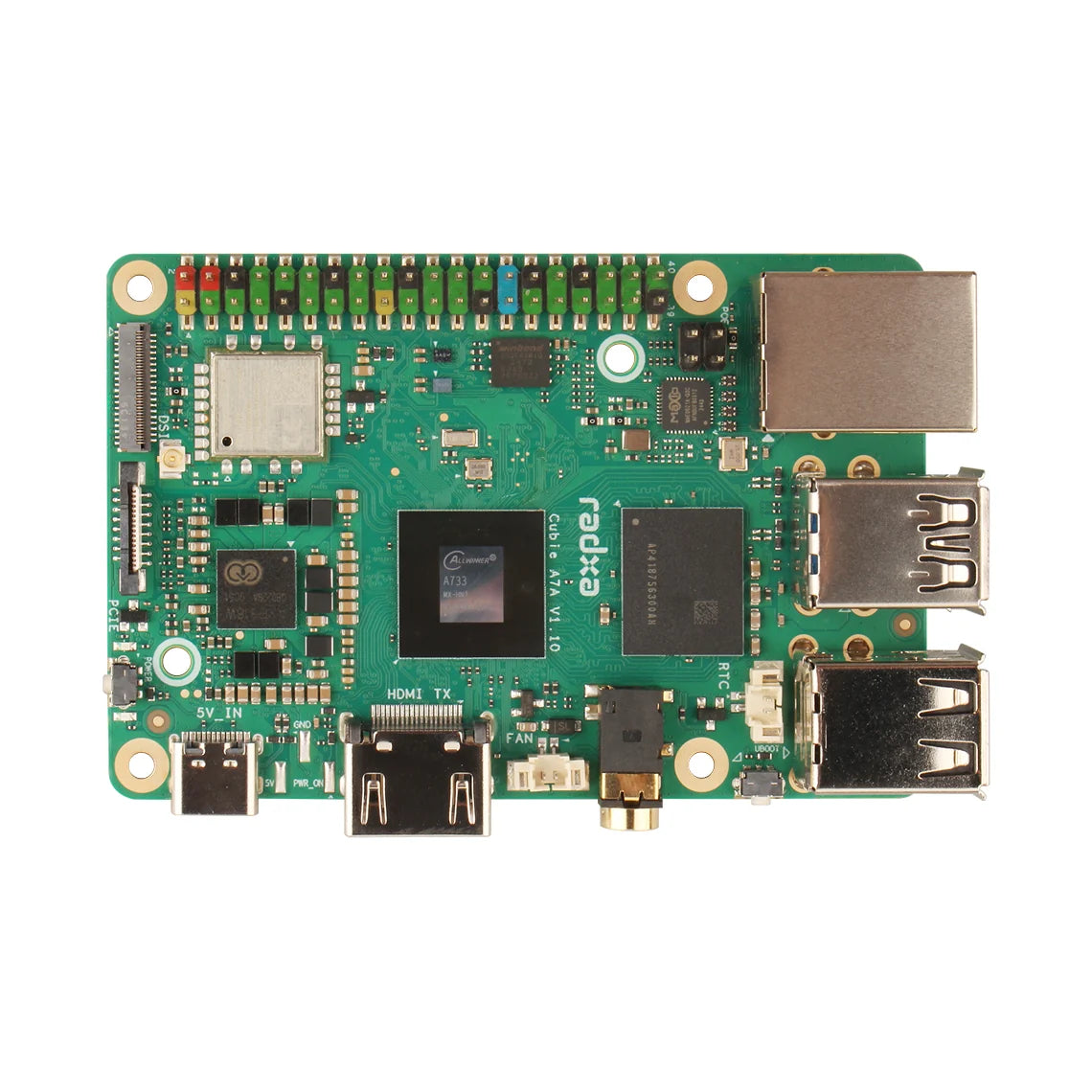

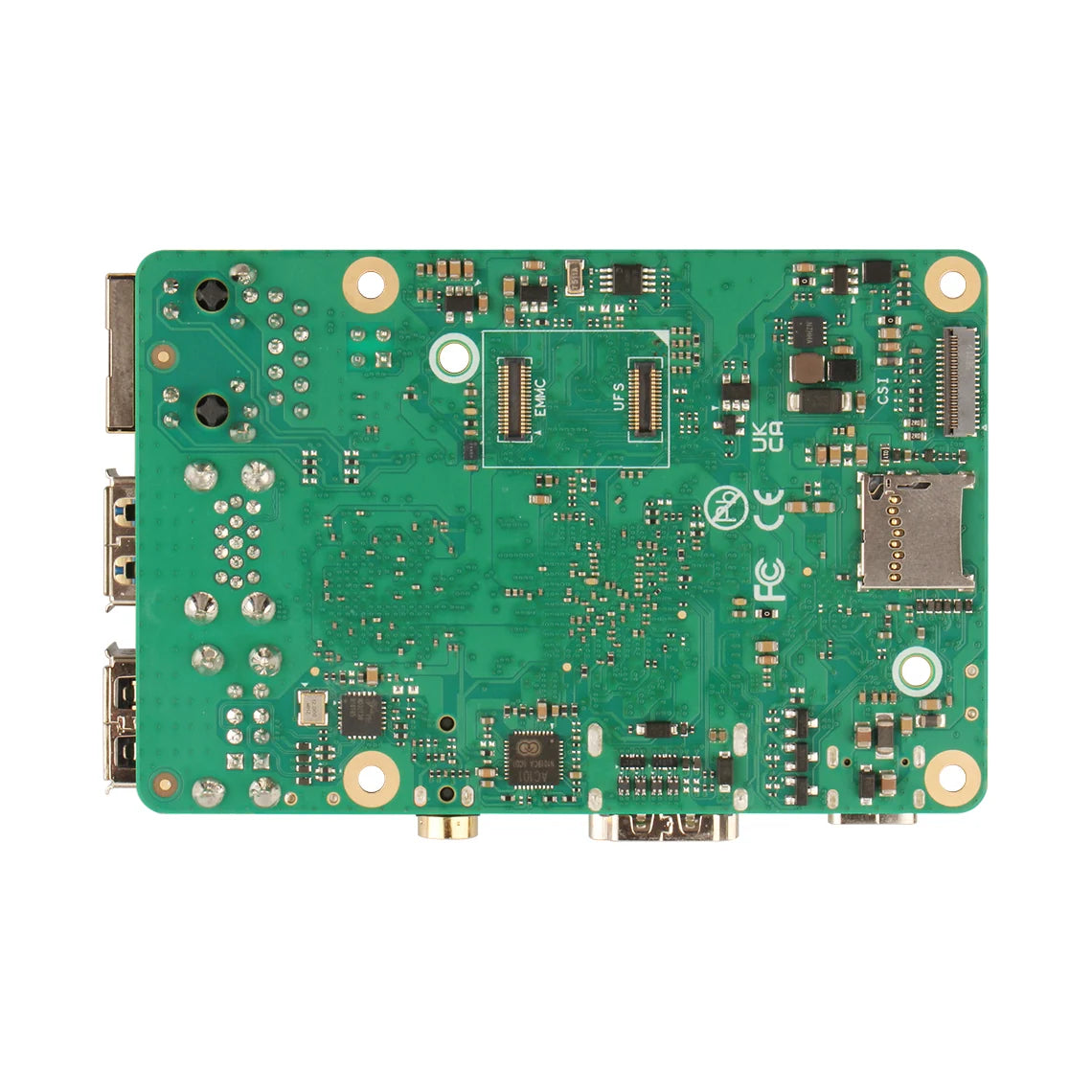

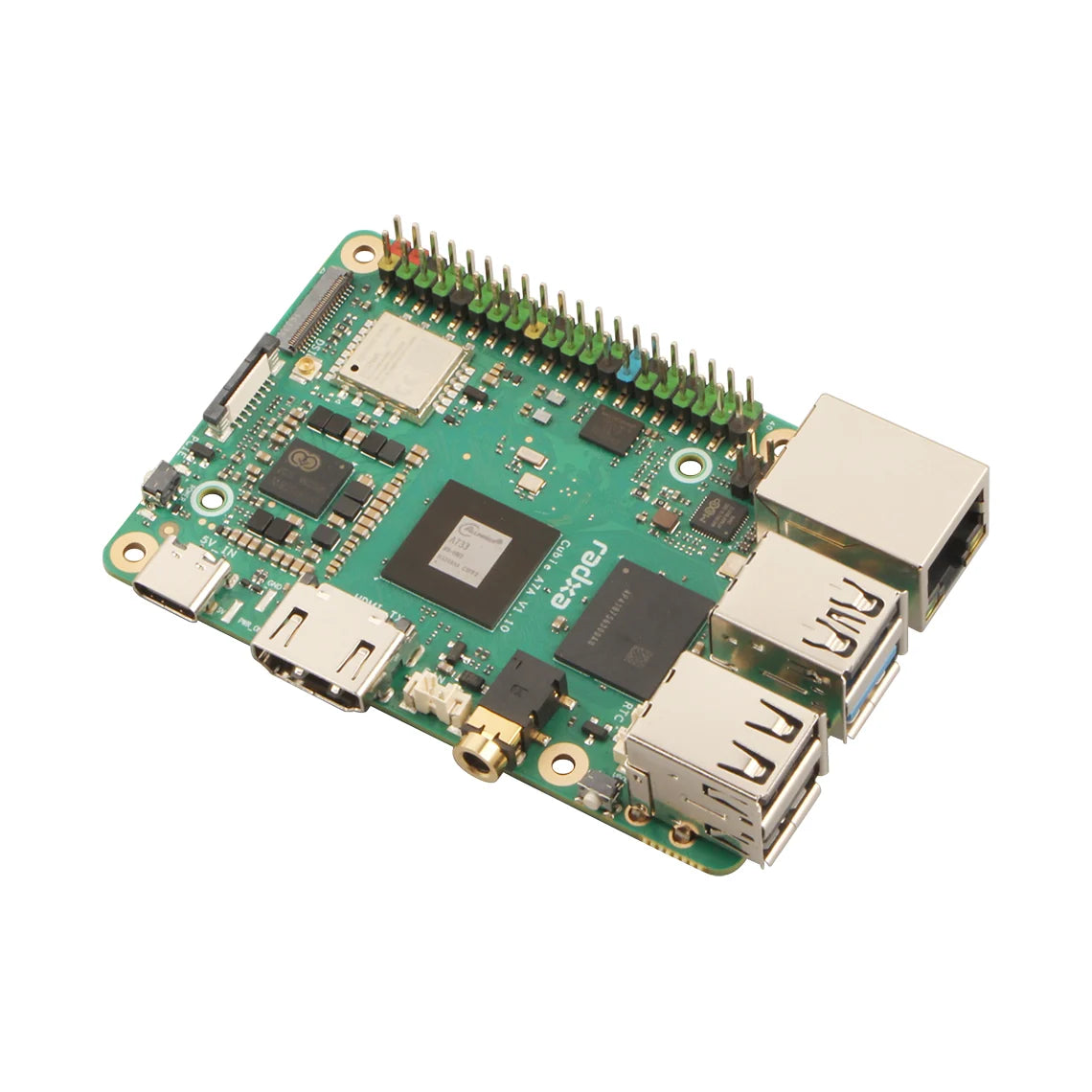

The Radxa Cubie A7A is a compact Allwinner A733 board with a 3 TOPS NPU. This unit has 4 or 6 GB LPDDR5, Wi-Fi 6, and Bluetooth 5.4.
KEY FEATURES
- Allwinner A733: 2× Cortex-A76 up to 2.0 GHz and 6× Cortex-A55 up to 1.8 GHz
- 3 TOPS NPU for edge inference
- Imagination BXM-4-64 GPU: OpenGL ES 3.2, Vulkan 1.3, OpenCL 3.0
- 4 or 6 GB LPDDR5
- Wi-Fi 6 and Bluetooth 5.4, external antenna included
- HDMI up to 4K60 and a 4-lane MIPI DSI. Both can be used together
- H.265 / VP9 / AVS2 decode up to 4K60, H.264 / H.265 encode up to 4K30
- Gigabit Ethernet (PoE with a separate HAT), USB 3.1, three USB 2.0, 40-pin GPIO, and a PCIe 3.0 x1 FPC
SPECIFICATIONS
| Category | Details |
|---|---|
| Model | Radxa Cubie A7A (RS501-D6S8R42W28) |
| CPU | Allwinner A733 2× Cortex-A76 up to 2.0 GHz 6× Cortex-A55 up to 1.8 GHz |
| GPU | Imagination BXM-4-64 MC1 |
| NPU | 3 TOPS |
| Memory | 4 or 6 GB LPDDR5 |
| Boot | 8 MB SPI NOR flash |
| Storage | microSD slot eMMC / UFS module connector (module not included) PCIe 3.0 x1 FPC (NVMe can be used as extra storage, not as boot media) |
| Wireless | Wi-Fi 6, Bluetooth 5.4, external antenna |
| Video | HDMI, up to 4K60 4-lane MIPI DSI HDMI and DSI can run together |
| Camera | 4-lane MIPI CSI, or 2× 2-lane MIPI CSI |
| USB | 1× USB 3.1 Type-A 3× USB 2.0 Type-A 1× USB-C 2.0 OTG and power |
| Network | 1× Gigabit Ethernet PoE with a separate HAT |
| Other | 40-pin GPIO 3.5 mm headphone jack 2-pin fan header 2-pin RTC header Power button |
| Power | USB-C, 5 V / 3 A minimum (supply not included) |
| Size | 85 × 56 mm |
| OS | Debian. Android 13 needs the vendor BSP |
What's Included:
- 1 × Radxa Cubie A7A (4GB or 6GB RAM)
NOTES
- Select either 4 or 6 GB LPDDR5 board with Wi-Fi 6 and Bluetooth 5.4
- microSD card, eMMC or UFS module, and power supply are not included
- Radxa recommends a heatsink under sustained load. Passive cooling on the bare board is limited
- PoE needs a separate HAT
