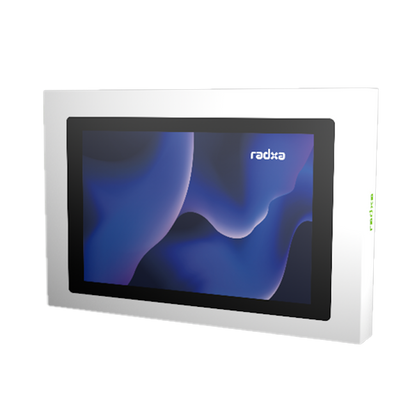

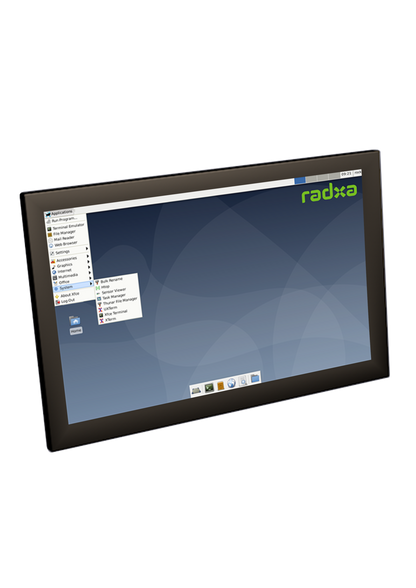

Radxa Display 8 HD is a color active matrix LCD module with touch panel designed specifically for Radxa Single Board Computers. This 8.0 inch display lets you create interactive projects such as tablets, industrial HMI, information dashboards and so on. With a single cable for power, display and touch, and enabled software onscreen keyboard, the Radxa Display 8 HD gives you full human computer interface without the need to connect a keyboard or mouse. Additionally, a built in sensor on the display can be used for automatically portrait or landscape rotation.
FEATURES
8.0 inch LCD
800 x 1280, 16.7M colors resolution
Full angle viewing LCD
5-Point capacitive touch panel
Support PWM brightness control
Support Color enhancement
Built in g-sensor for portrait/landscape rotation
SPECIFICATIONS
Active area: 107.64(H) x 172.224(V) mm
Pixel Pitch: 0.04485(W) x 3 x 0.13455(H)
Pixels arrangement:RGB vertical stripe
Display color: 16.7M
Display Mode: Normally Black
Viewing Direction: All angle viewing
Luminance (cd/m^2): 300 type cd/m2
Contrast Ratio: 1000(typical)
Surface Treatment: Anti\u2010glare
Interface: MIPI
Backlight: White LED
Input voltage: 1.8 V
Operation Temperature: 20 to 60°C
Storage Temperature: 30 to 60°C
Report rate: 100Hz
Outputs touch coordinates in real time
Unified software applicable to capacitive touch screens of various sizes
Self-calibration during initialization
Automatic drift compensation
Green mode: <48ms
Sleep mode: <200ms
Initialization: <200ms
The Radxa Display 8 HD touch panel is powered by GT911, a new generation 5-point capacitive touch solution designed for 7" to 8" panels, consists of up to 26 transmitter electrodes and 14 receiver electrodes to provide higher touch accuracy. GT911 supports up to 5 concurrent touches with real-time tracking of accurate position and motion trajectory as well as touch area. Furthermore, it is able to report such information to the host as required.
NOTES
In the last batch we received screens that had mounting holes only compatible for the ROCK5 Model A, at this time we are not certain which mounting holes compatibility we will get in the next batch.
