Radxa Linkr

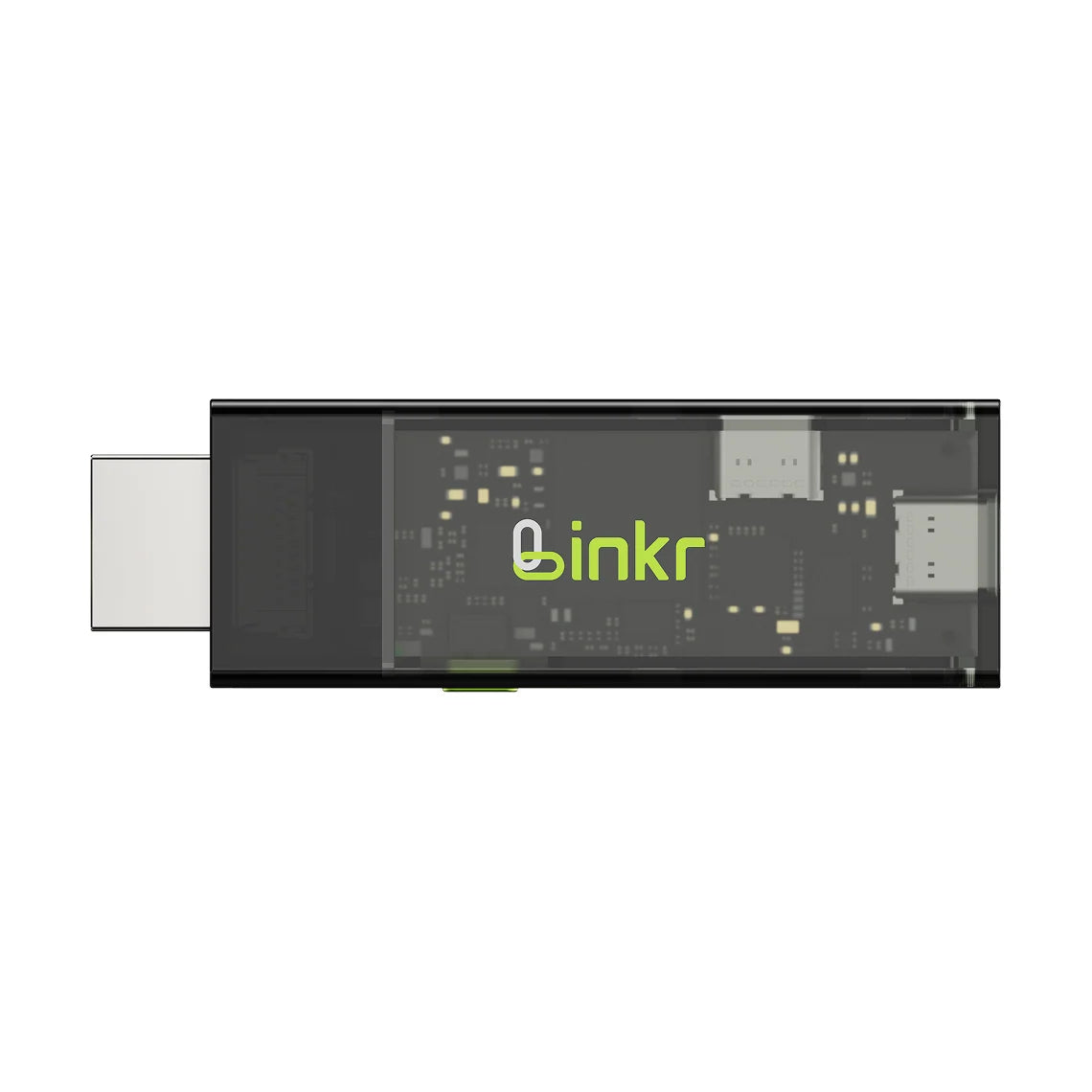

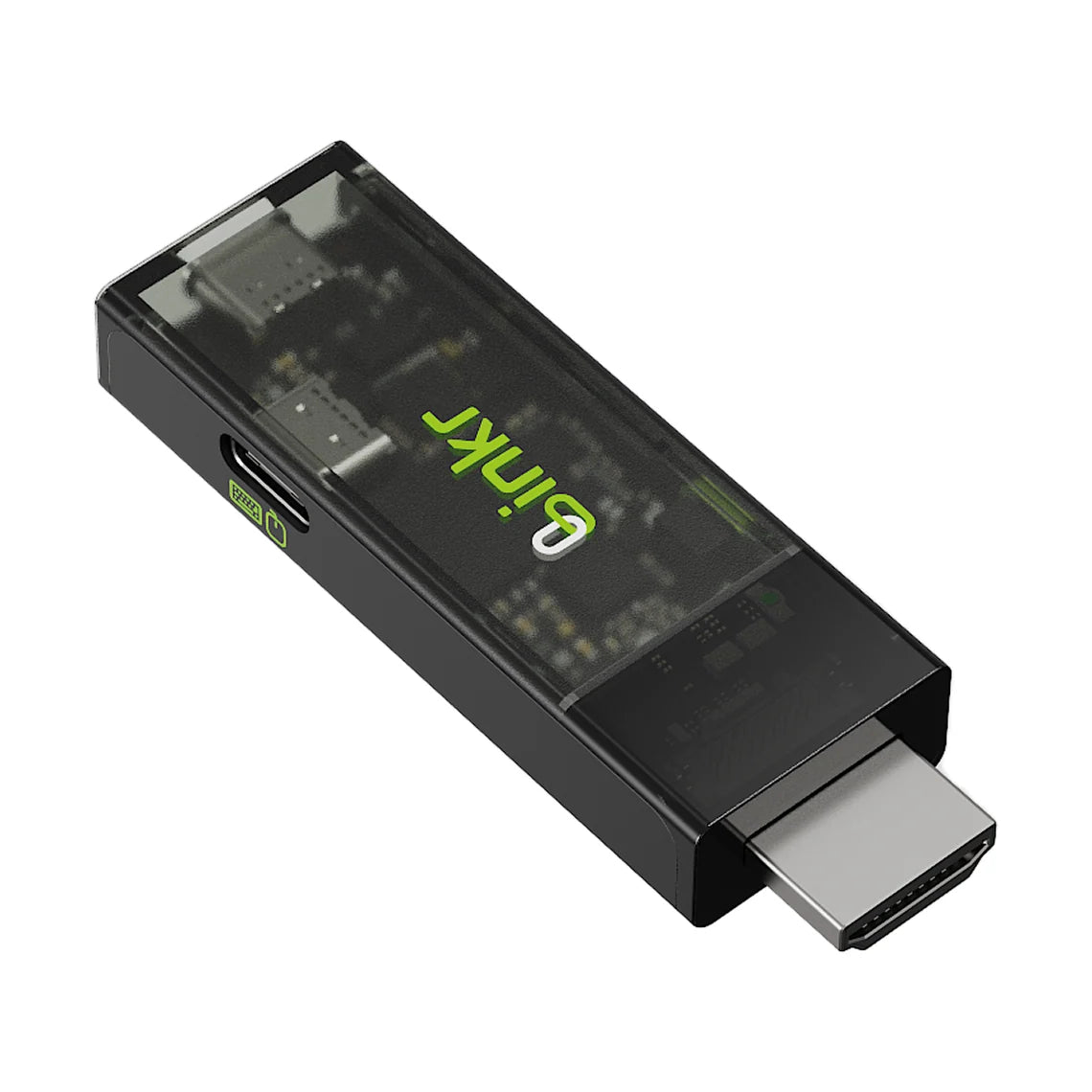

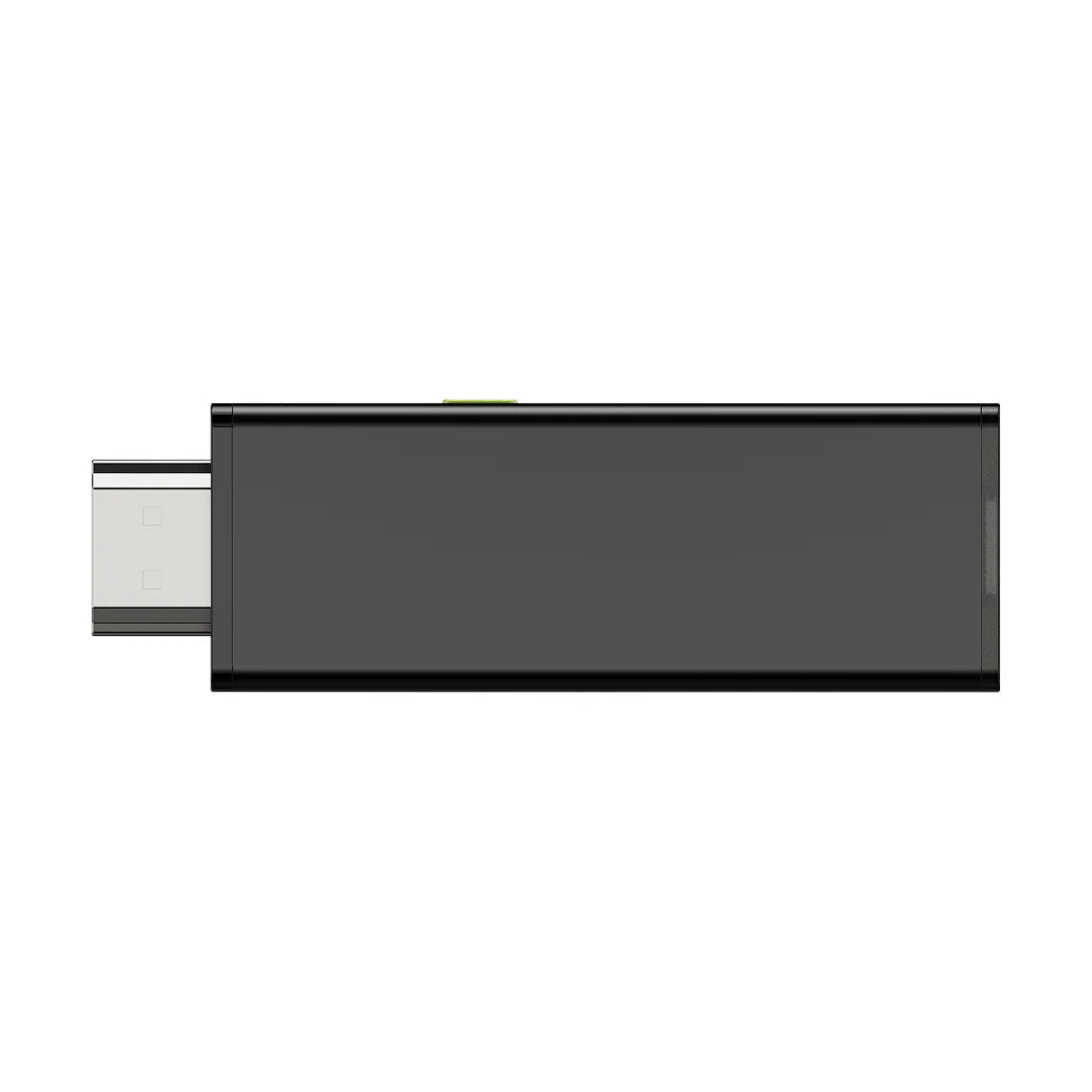

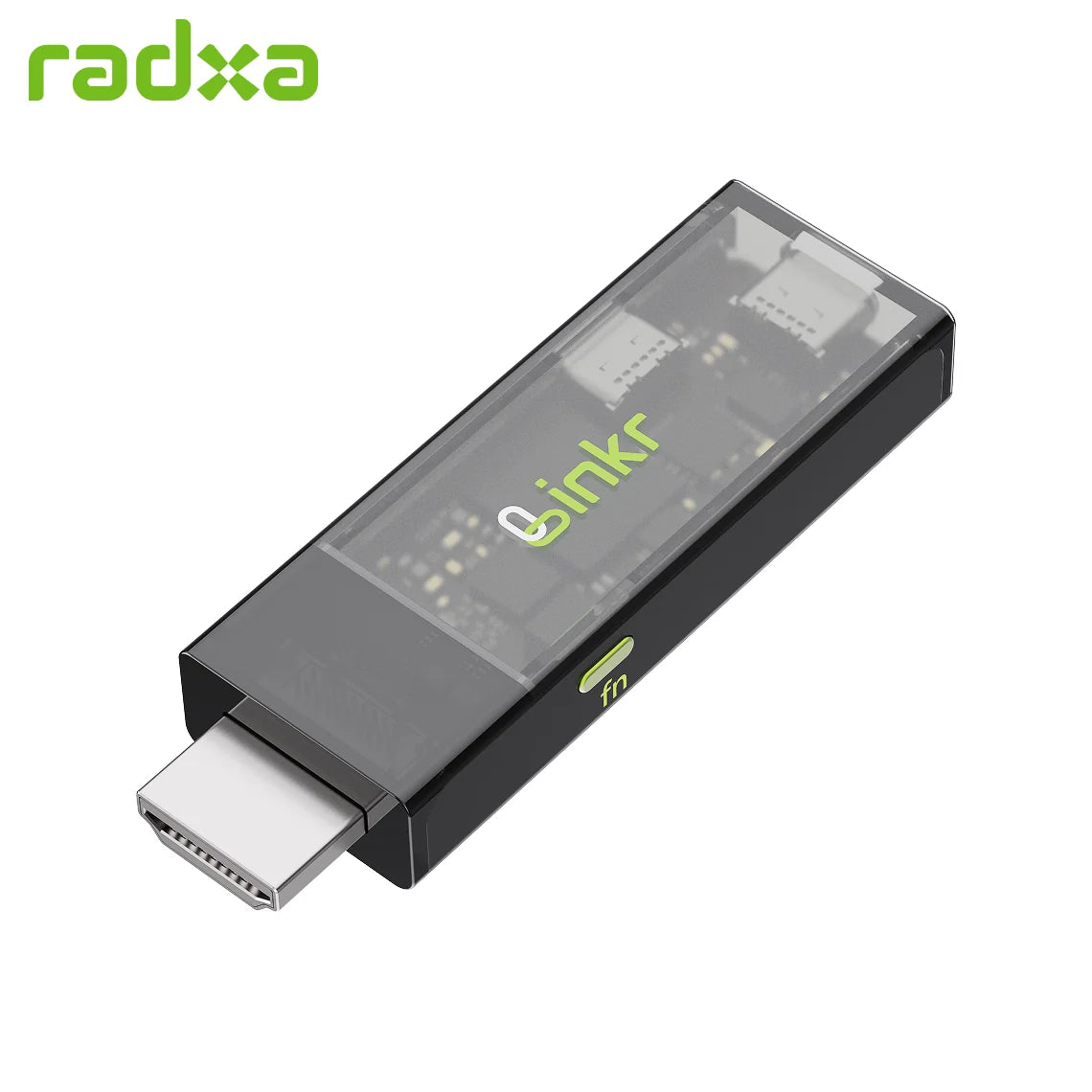

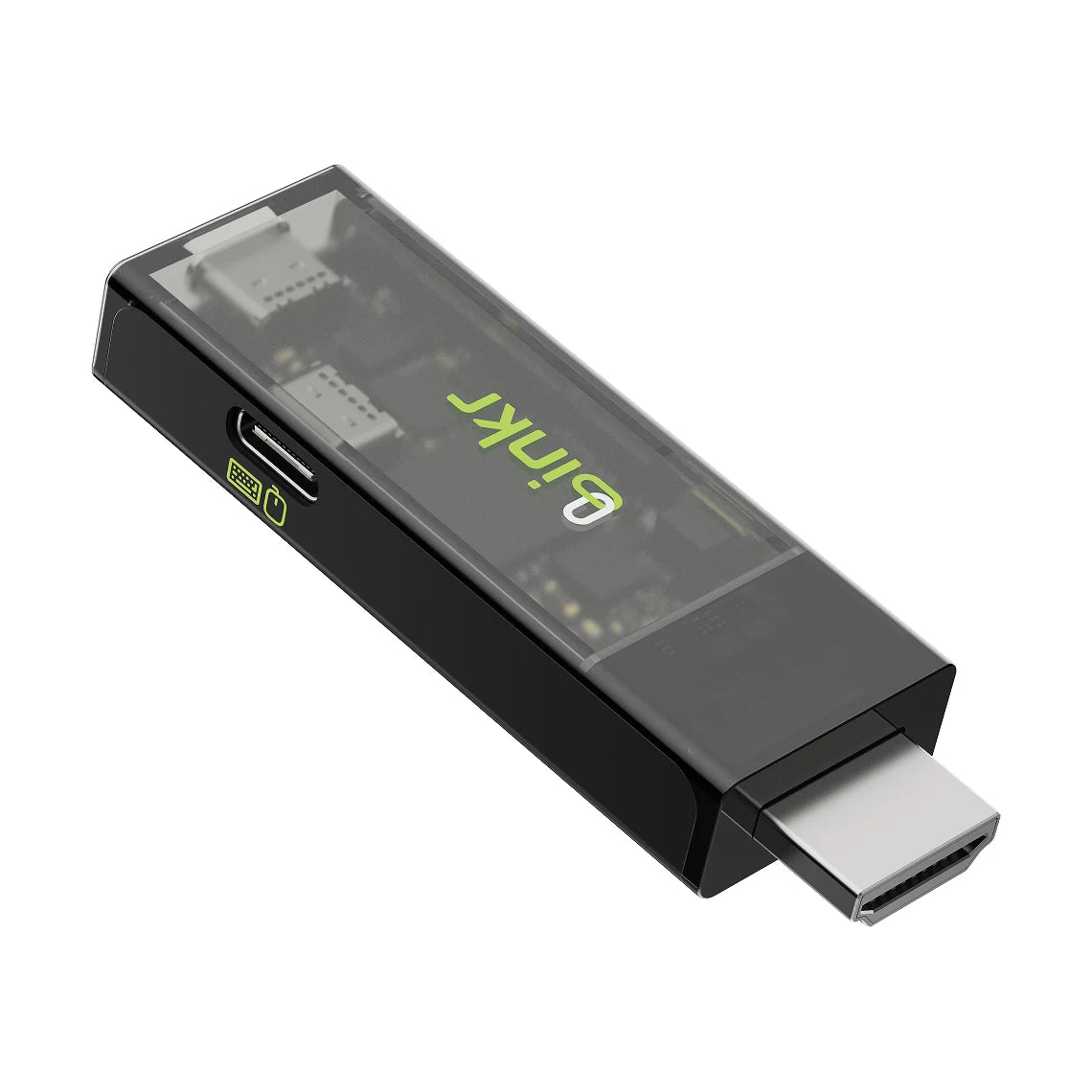

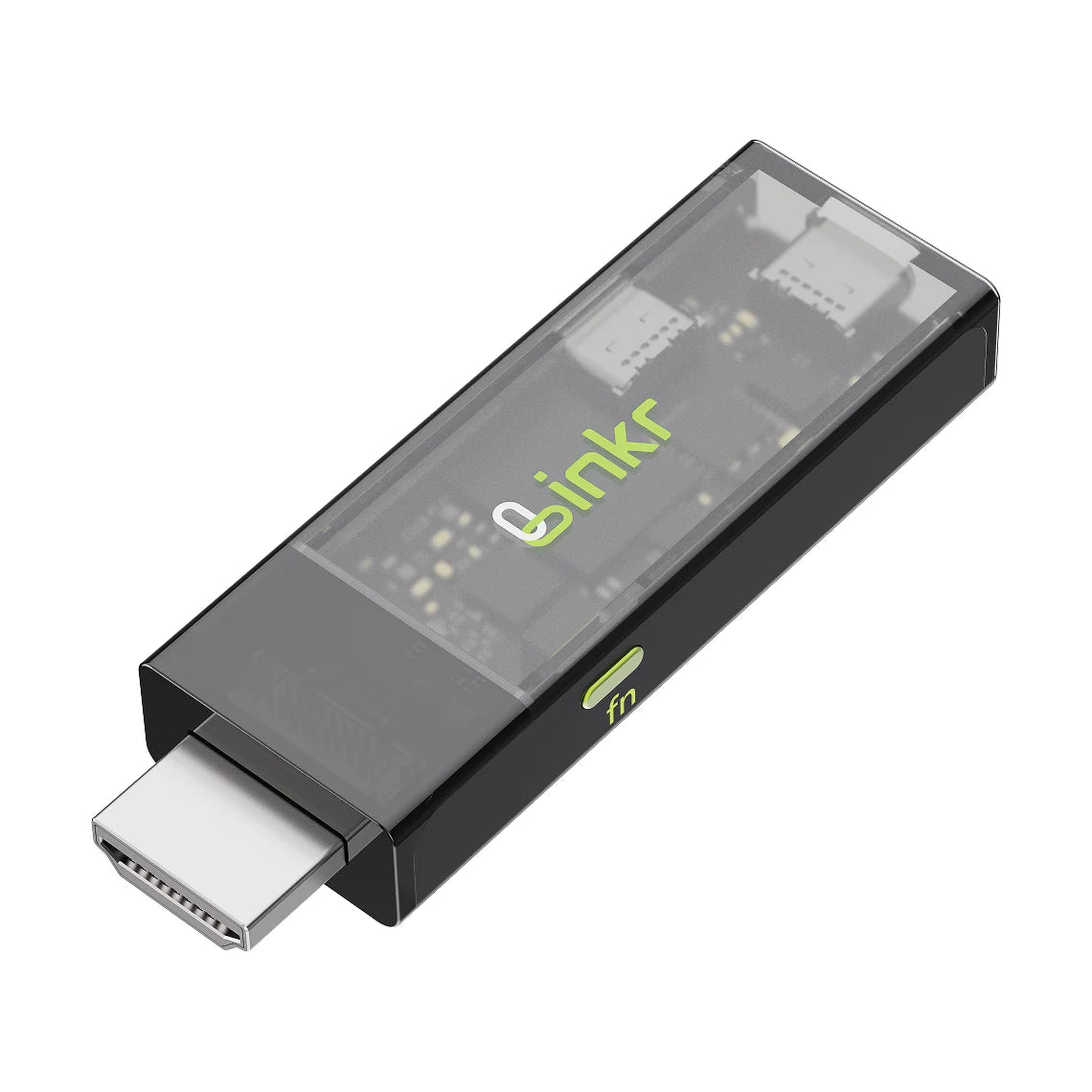

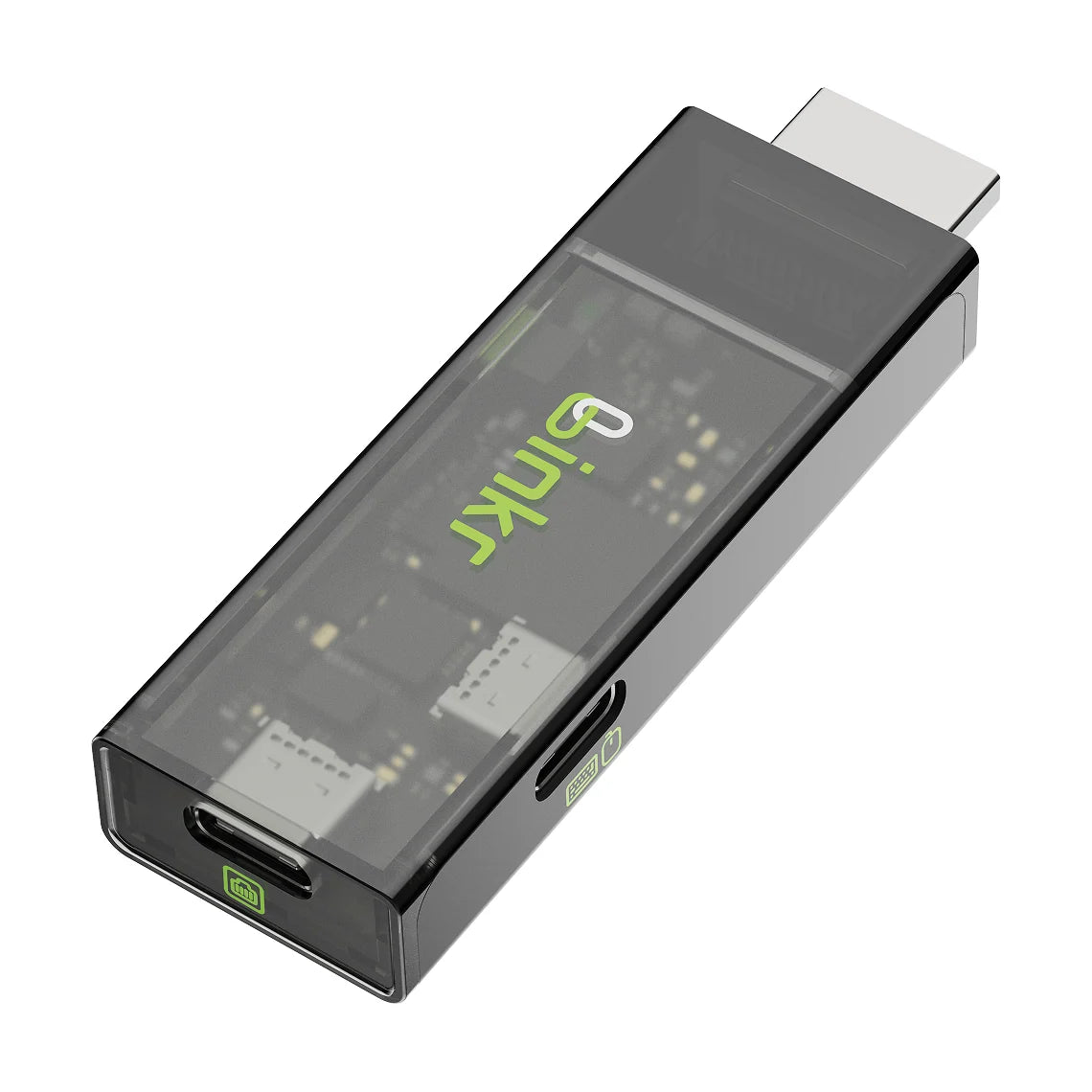

The Radxa Linkr is a USB-stick-size IP-KVM. Plug HDMI and USB into the target machine, then view the screen and use keyboard/mouse from a browser. Works before the OS boots. Control over USB-C, 10/100 Ethernet, Wi-Fi client, or Wi-Fi hotspot. Tailscale for remote access without port forwarding.
KEY FEATURES
- HDMI video in up to 2K@30
- USB keyboard and mouse to the target
- Browser control at linkr.now — no extra app
- USB-C direct to a PC, USB-C to RJ45 (10/100), Wi-Fi client, or Wi-Fi AP
- H.264 (WebRTC) and MJPEG streaming
- Virtual media — mount ISO / IMG
- Built-in Tailscale and optional 2FA
- Works on BIOS / UEFI and headless boxes
SPECIFICATIONS
| Category | Details |
|---|---|
| Model / SKU | Radxa Linkr (MV004) |
| Video input | HDMI up to 2K@30 Hz |
| Control | USB-C device port — keyboard / mouse to the target Also used for firmware flash and can power the Linkr from the target |
| Network | USB-C network port — direct to PC or USB-C to RJ45 10/100 Mbps Onboard Wi-Fi client and hotspot First Wi-Fi setup needs a wired connection |
| Storage | Optional 16GB eMMC and/or microSD slot for firmware and virtual media |

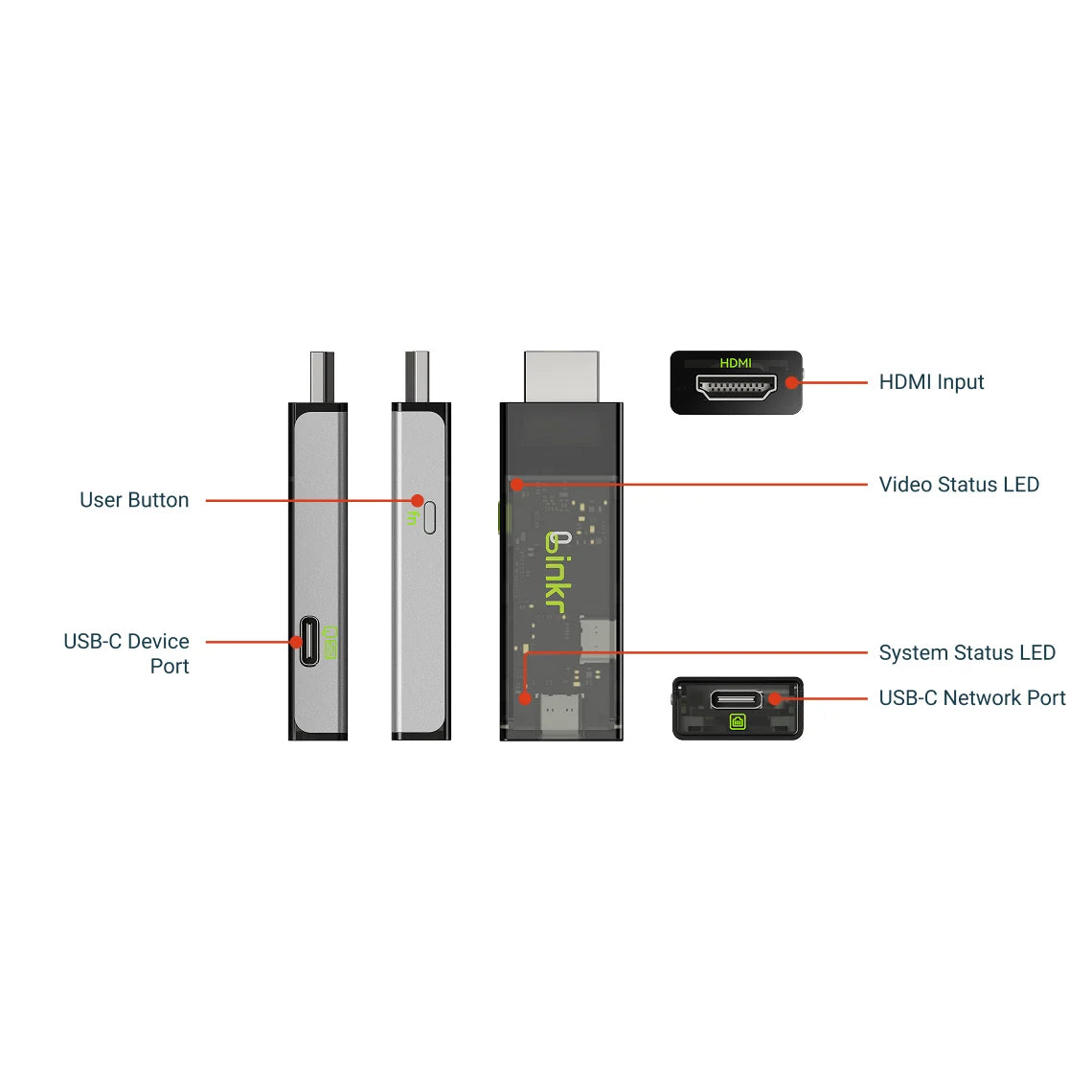

| Buttons / LEDs | 1× user button (short press highlights the unit in linkr.now; hold ≥10 s factory reset) Video LED and system LED |
| Power | USB-C 5 V / 2 A |
| Size | 70 × 22 × 12 mm |
What's Included:
- 1 × Radxa Linkr
- 1 × USB-A to USB-C cable
- 1 × USB-C to USB-C cable
- 1 × USB-C power/data splitter cable
- 1 × USB-C to RJ45 cable
- 1 × quick start guide
NOTES
- HDMI and USB must both go to the target machine. Your laptop or phone is the controller in a browser
- HDMI max is 2K@30, not 4K
- Ethernet on the included adapter is 10/100, not Gigabit
- Long-press the user button wipes network, accounts, and Tailscale binding
