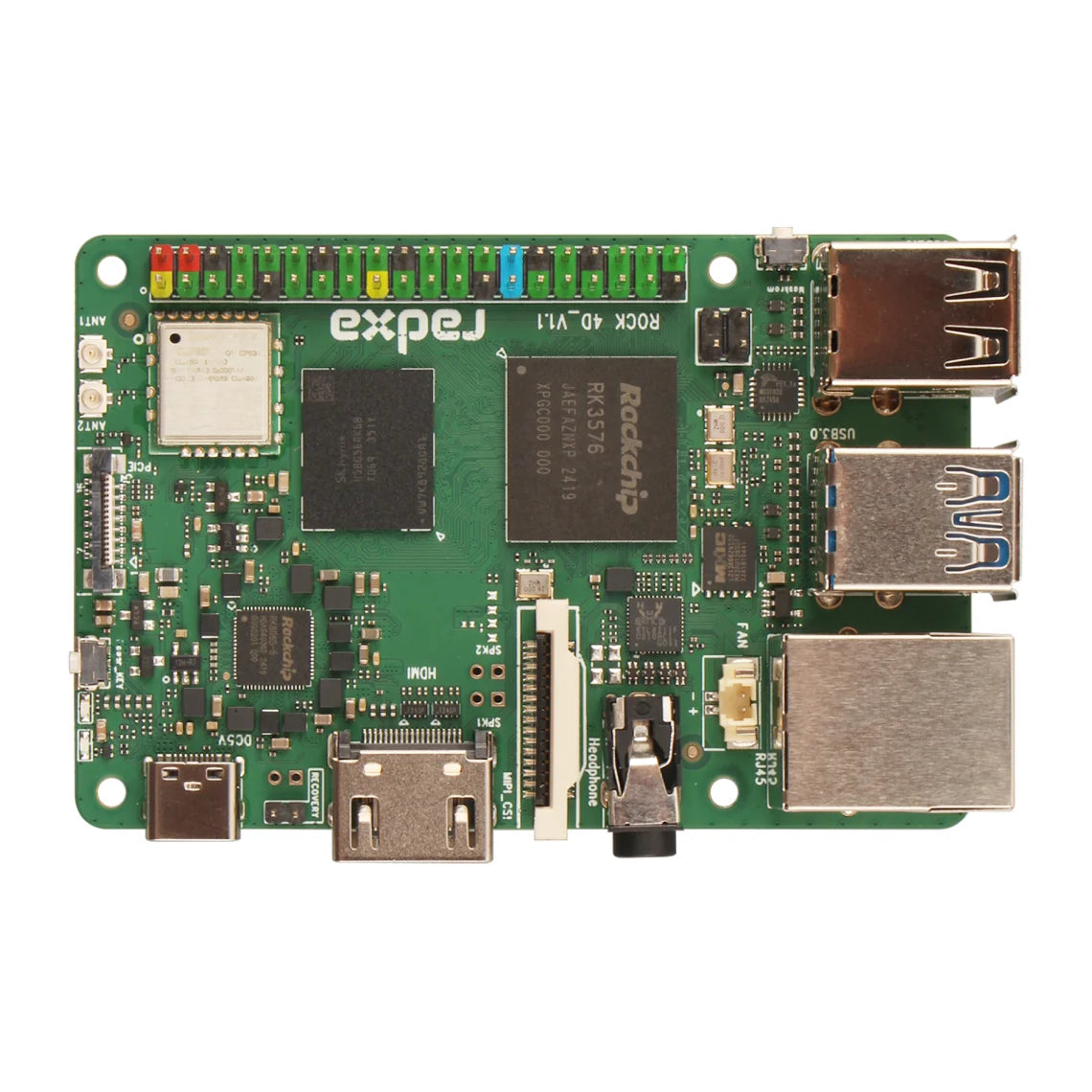

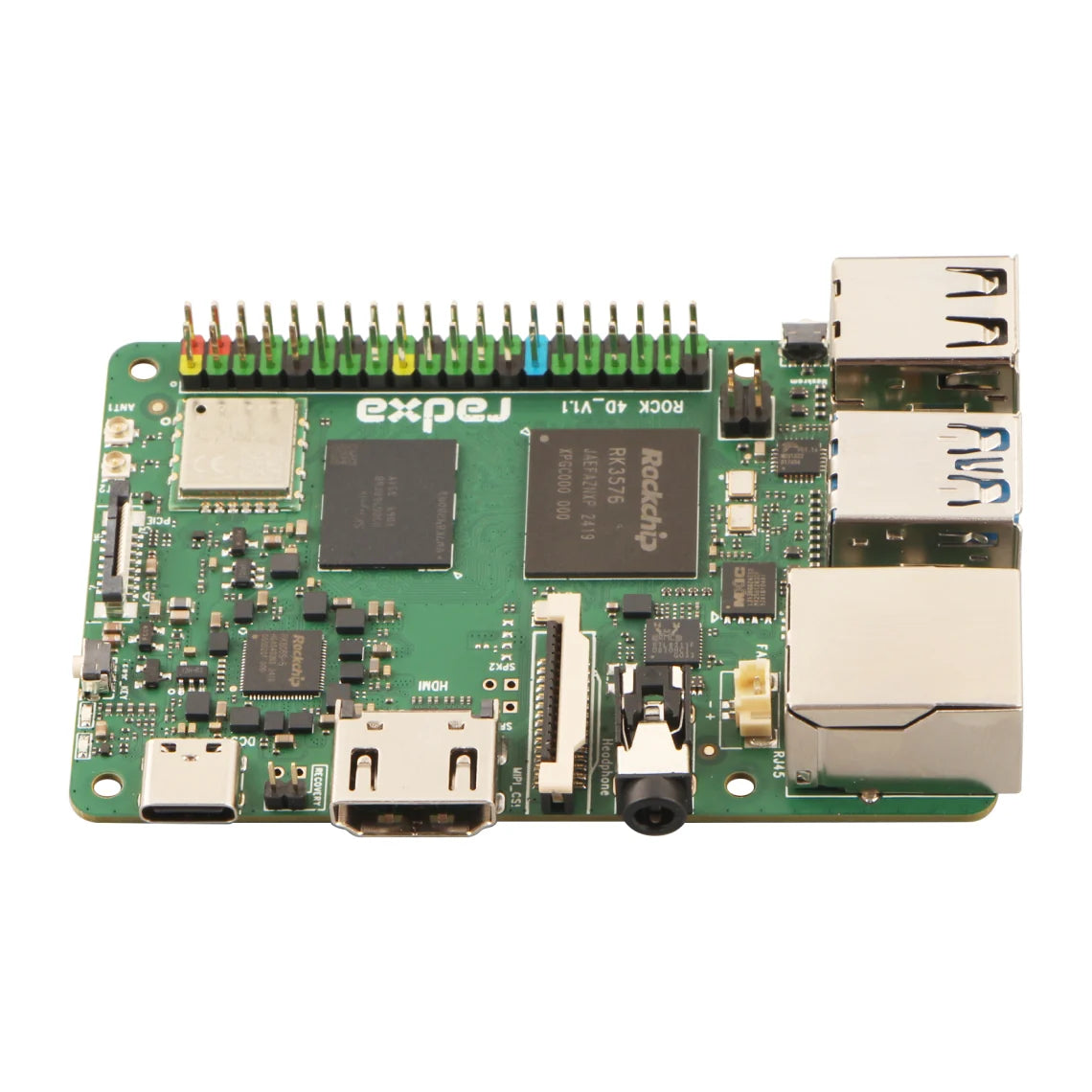

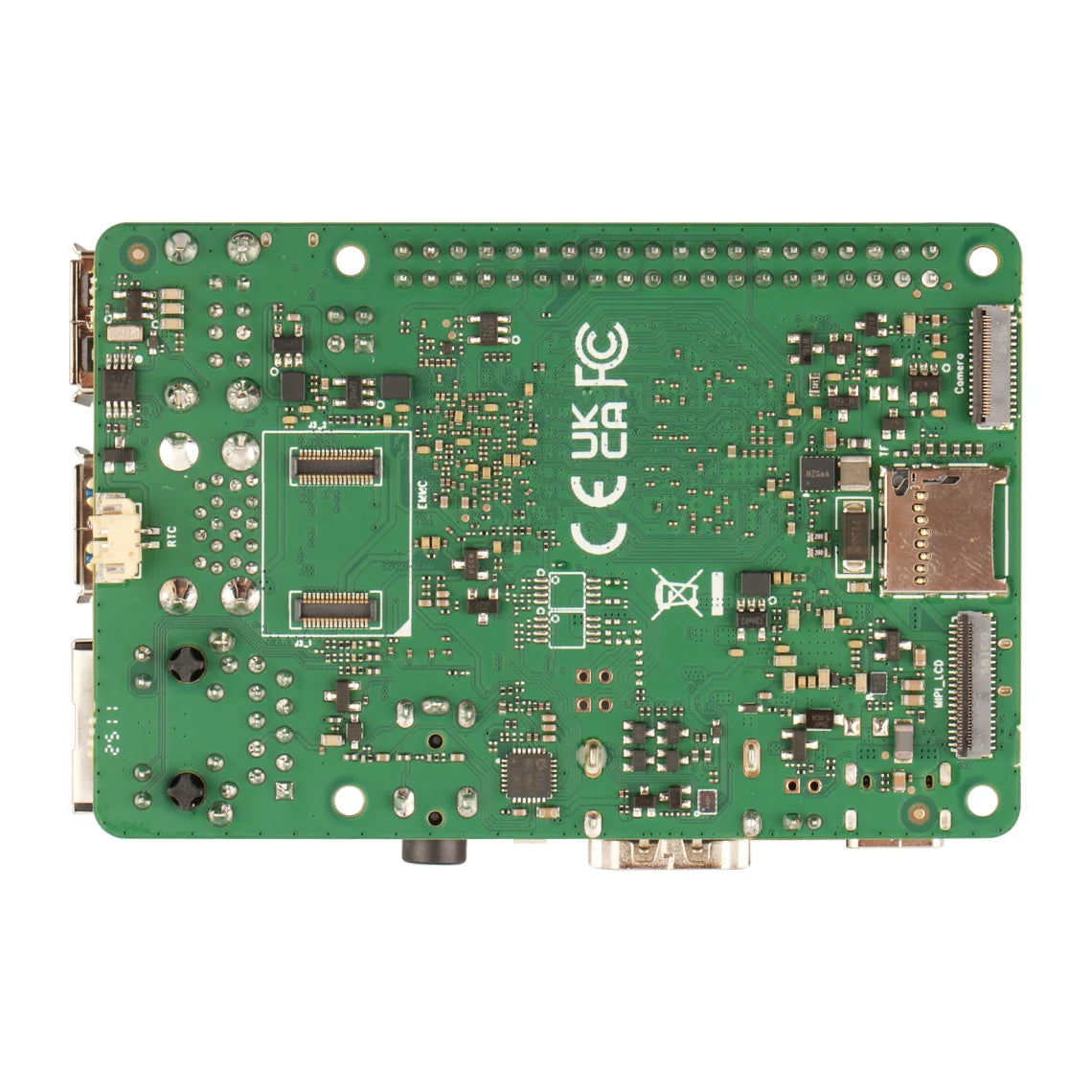

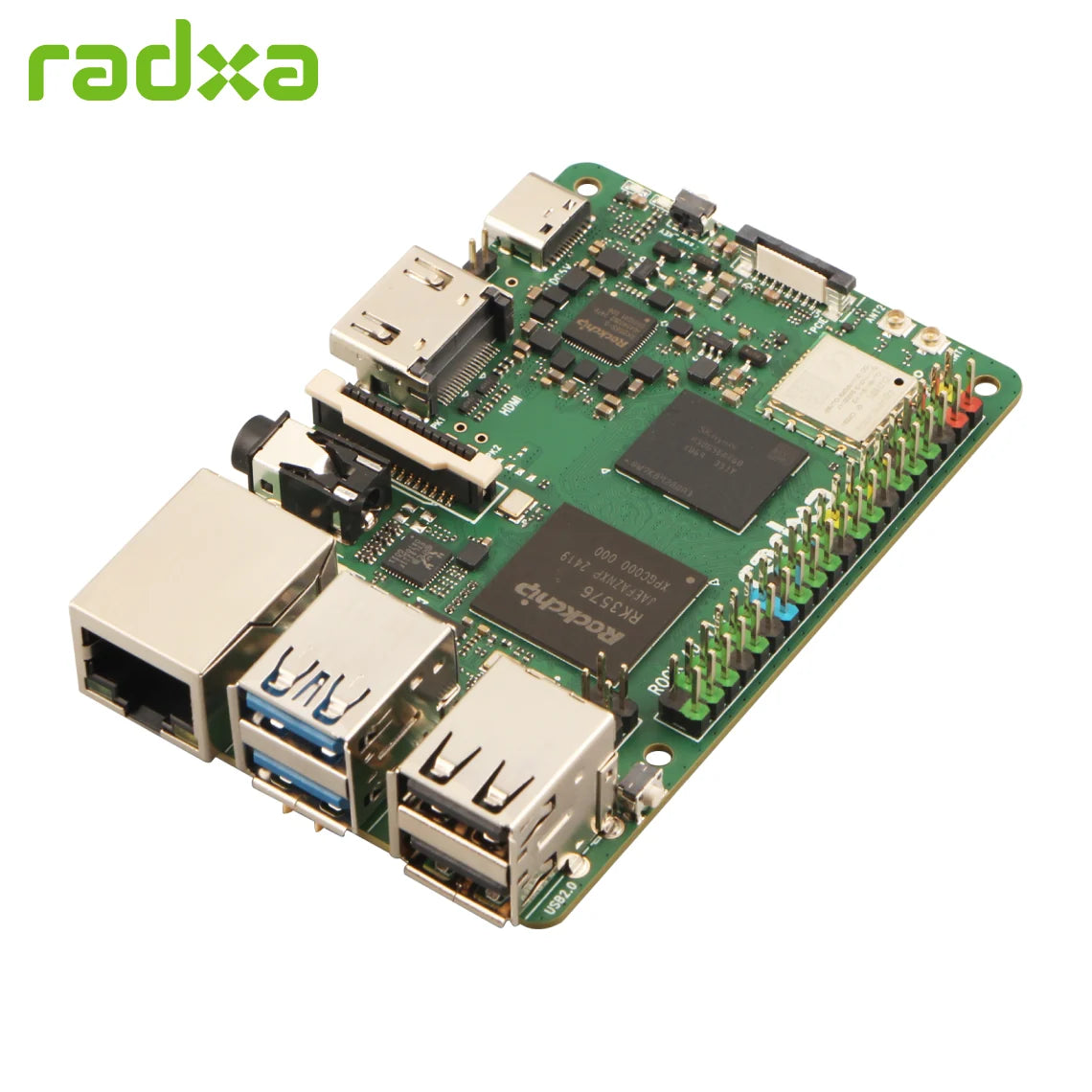

Radxa ROCK 4D
The Radxa ROCK 4D is a Rockchip RK3576 single-board computer built for edge AI and 4K multimedia. This version has 6GB LPDDR5 RAM, a 6 TOPS NPU, HDMI 2.1 up to 4K@120Hz, Wi-Fi 6, Gigabit Ethernet, and Raspberry Pi-style GPIO. A strong mid-range board for Linux, Android, AI inference, and compact desktop use.
KEY FEATURES
- Rockchip RK3576 — 4× Cortex-A72 + 4× Cortex-A53
- 6GB LPDDR5 RAM
- Arm Mali-G52 MC3 GPU
- 6 TOPS NPU
- HDMI 2.1 up to 4K@120Hz
- Wi-Fi 6 + Bluetooth 5.4
- Gigabit Ethernet with optional PoE
- eMMC / UFS module support + microSD
- 40-pin GPIO and PCIe 2.1 FPC expansion

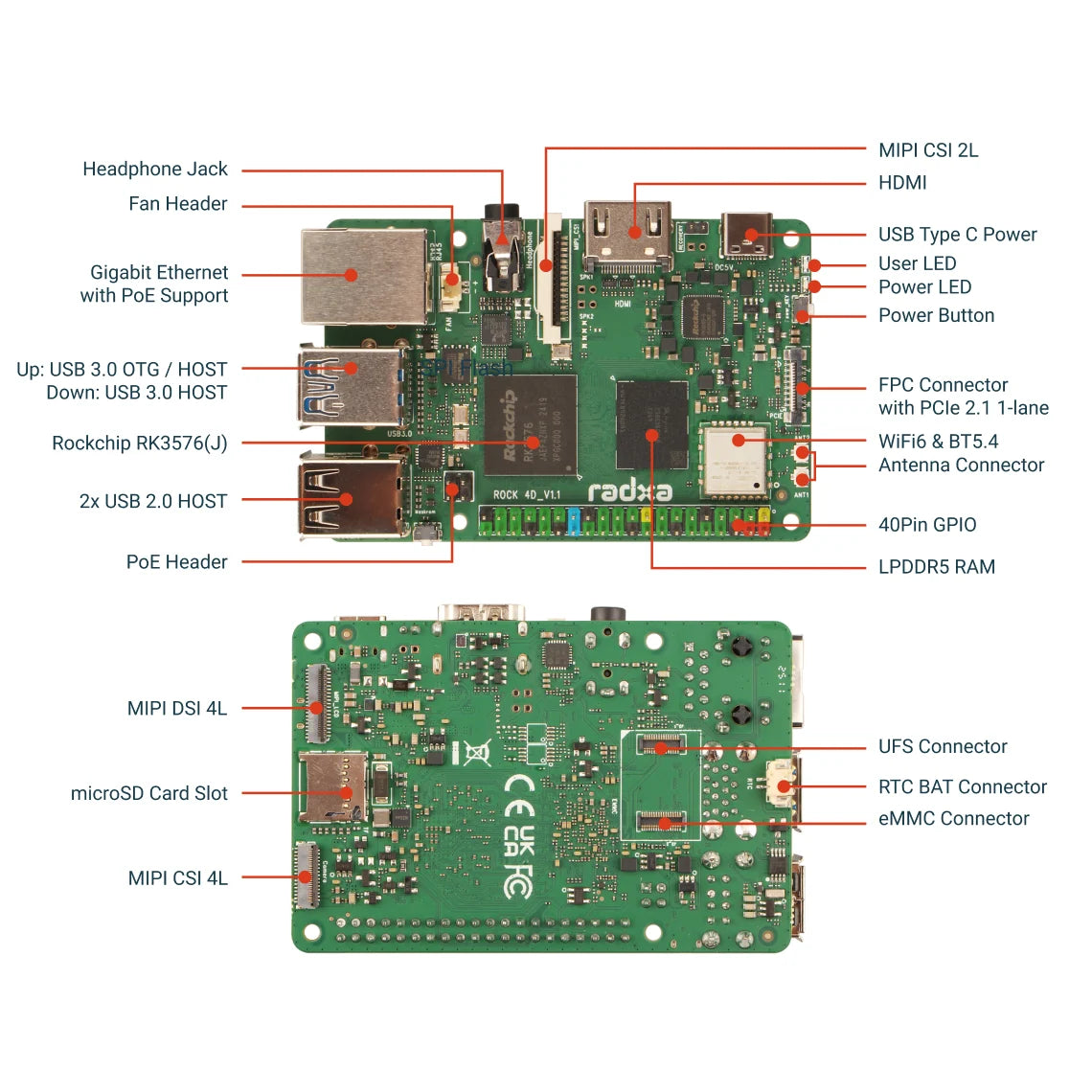

SPECIFICATIONS
| Category | Details |
|---|---|
| SoC | Rockchip RK3576 |
| CPU | 4× Cortex-A72 up to 2.2 GHz 4× Cortex-A53 up to 2.0 GHz |
| GPU | Arm Mali-G52 MC3 OpenGL ES 3.2, OpenCL 2.0, Vulkan 1.1 |
| NPU | 6 TOPS INT4 / INT8 / INT16 / FP16 / BF16 / TF32 |
| Memory | 6GB LPDDR5 |
| Storage | 16MB SPI NOR Flash eMMC / UFS module connector microSD card slot |
| Video Output | 1 × HDMI 2.1 (up to 4K@120Hz) 1 × 4-lane MIPI DSI |
| Camera | 1 × 4-lane MIPI CSI (or 2 × 2-lane) 1 × 2-lane MIPI CSI |
| Networking | 1 × Gigabit Ethernet (PoE with optional HAT) Wi-Fi 6 Bluetooth 5.4 |
| USB | 1 × USB 3.0 Type-A Host 1 × USB 3.0 Type-A OTG / Host 2 × USB 2.0 Type-A Host |
| Audio | 3.5 mm headphone jack with microphone input |
| Expansion | 40-pin GPIO (UART, SPI, I2C, I2S, PWM, CAN, ADC) PCIe 2.1 x1 FPC 2-pin PWM fan header |
| Power | USB-C or GPIO header |
| Software | Debian Linux Android 14 Yocto Buildroot |
| Operating Temperature | 0°C to 60°C |
What's Included:
- 1 × Radxa ROCK 4D (6GB RAM)
NOTES
- This board has 6GB LPDDR5 RAM
- An eMMC module, UFS module, or microSD card is needed for the operating system
- PoE requires a separate PoE HAT
- A USB-C power supply is required
