Radxa ROCK 5C

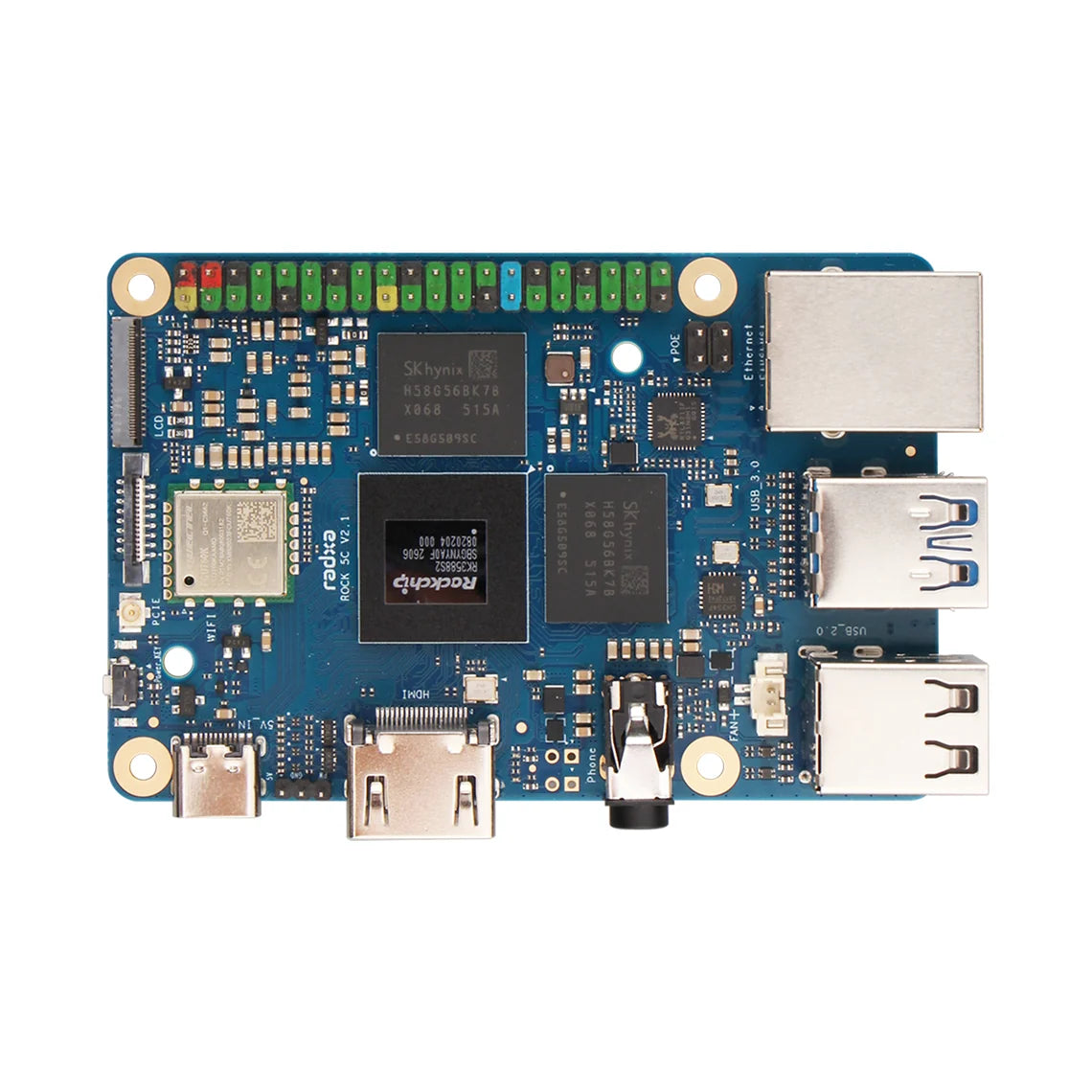

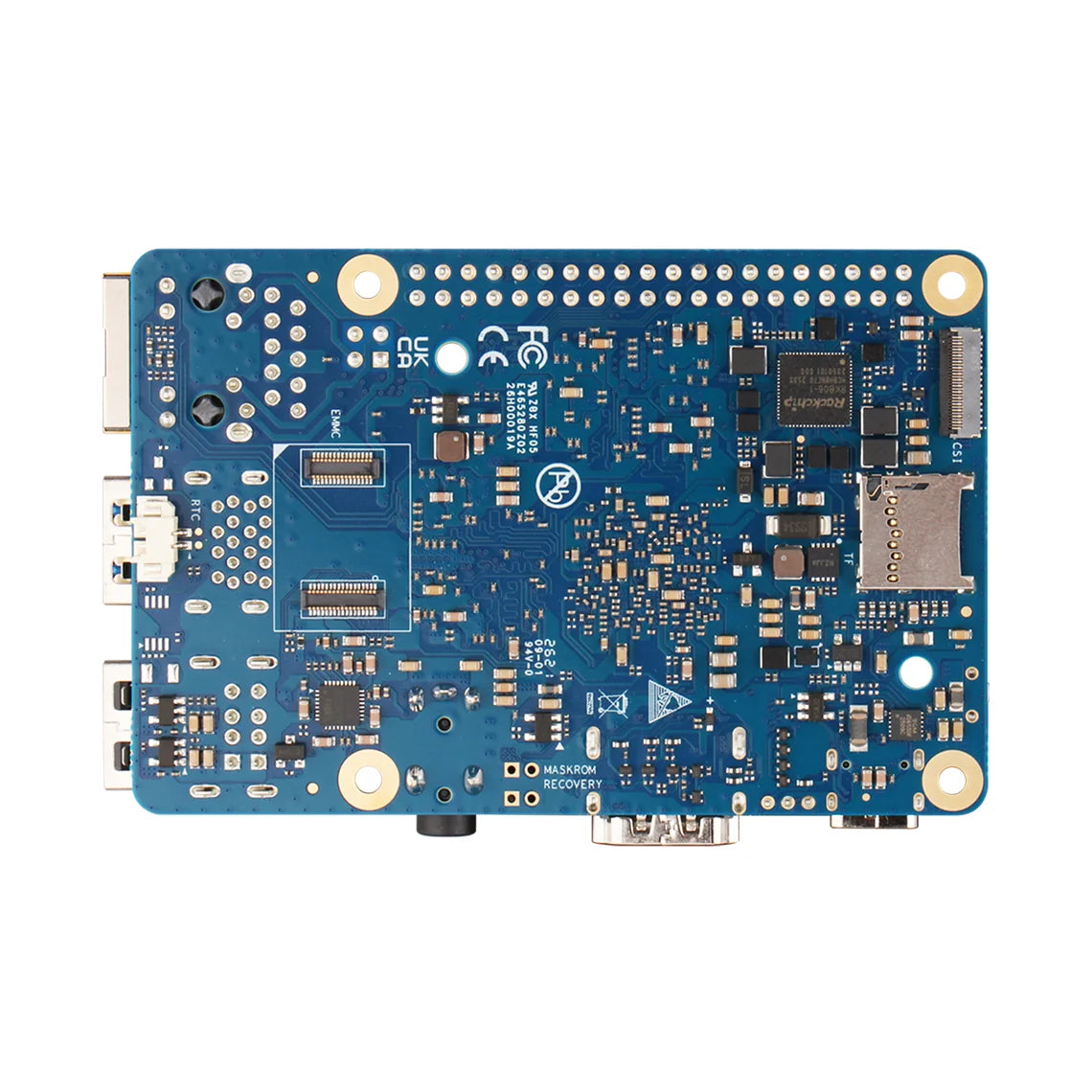

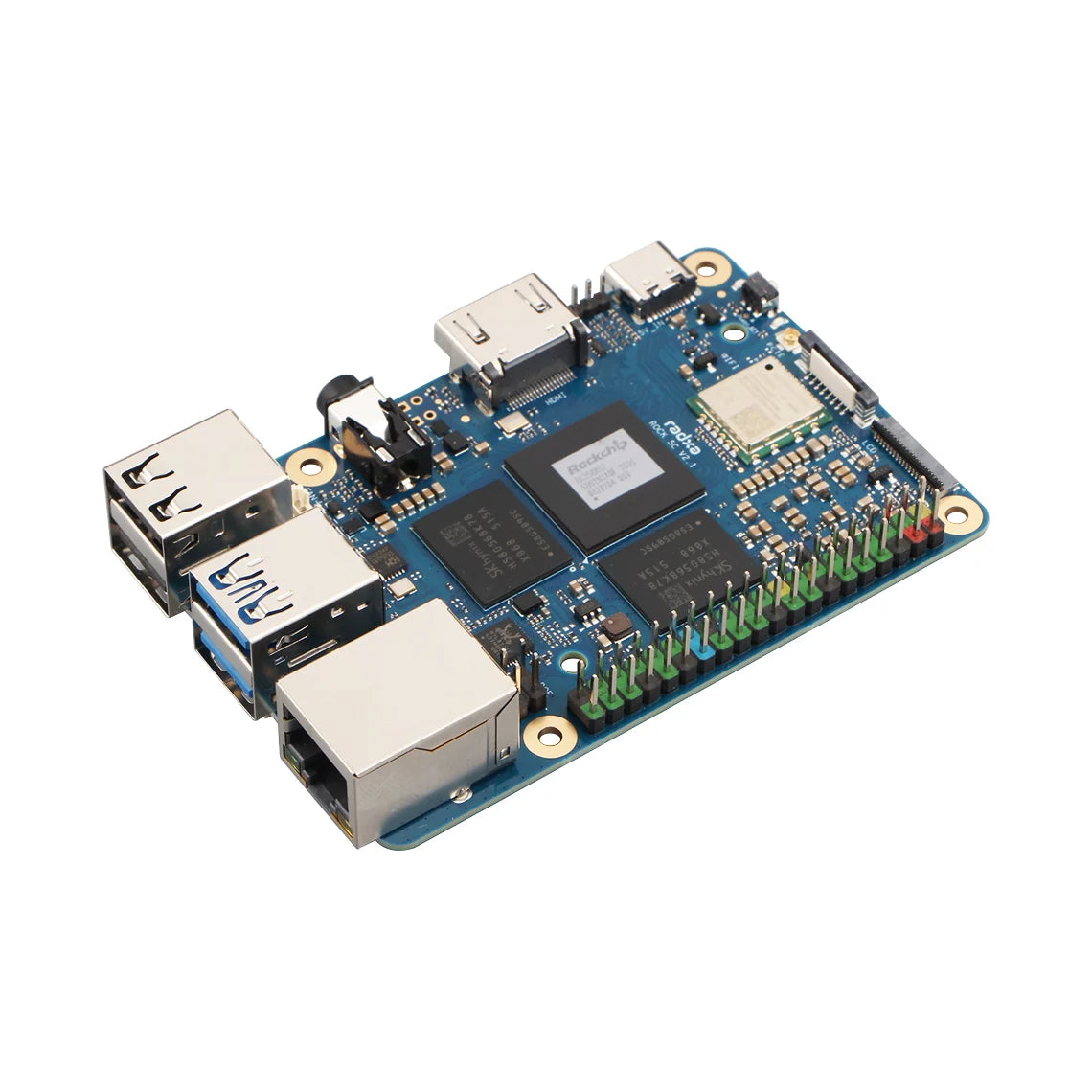

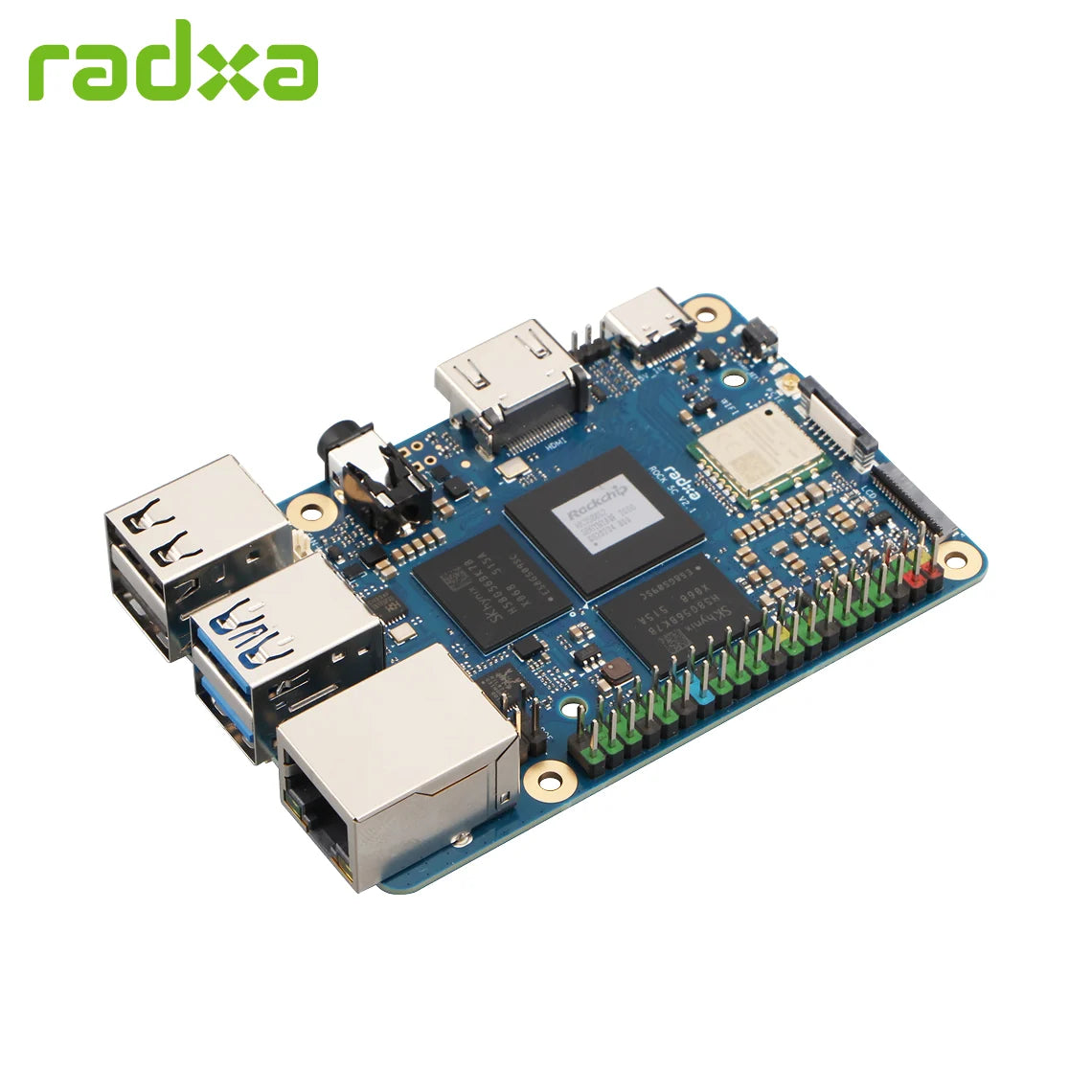

The Radxa ROCK 5C is a compact RK3588S2 single-board computer with 8GB LPDDR4x RAM. It delivers four Cortex-A76 performance cores, Mali-G610 graphics, a 6 TOPS NPU, 8K HDMI, Wi-Fi 6, Gigabit Ethernet, and Raspberry Pi-style GPIO / PCIe expansion. A strong choice for desktop Linux, 8K media, AI, NAS, and maker projects.
KEY FEATURES

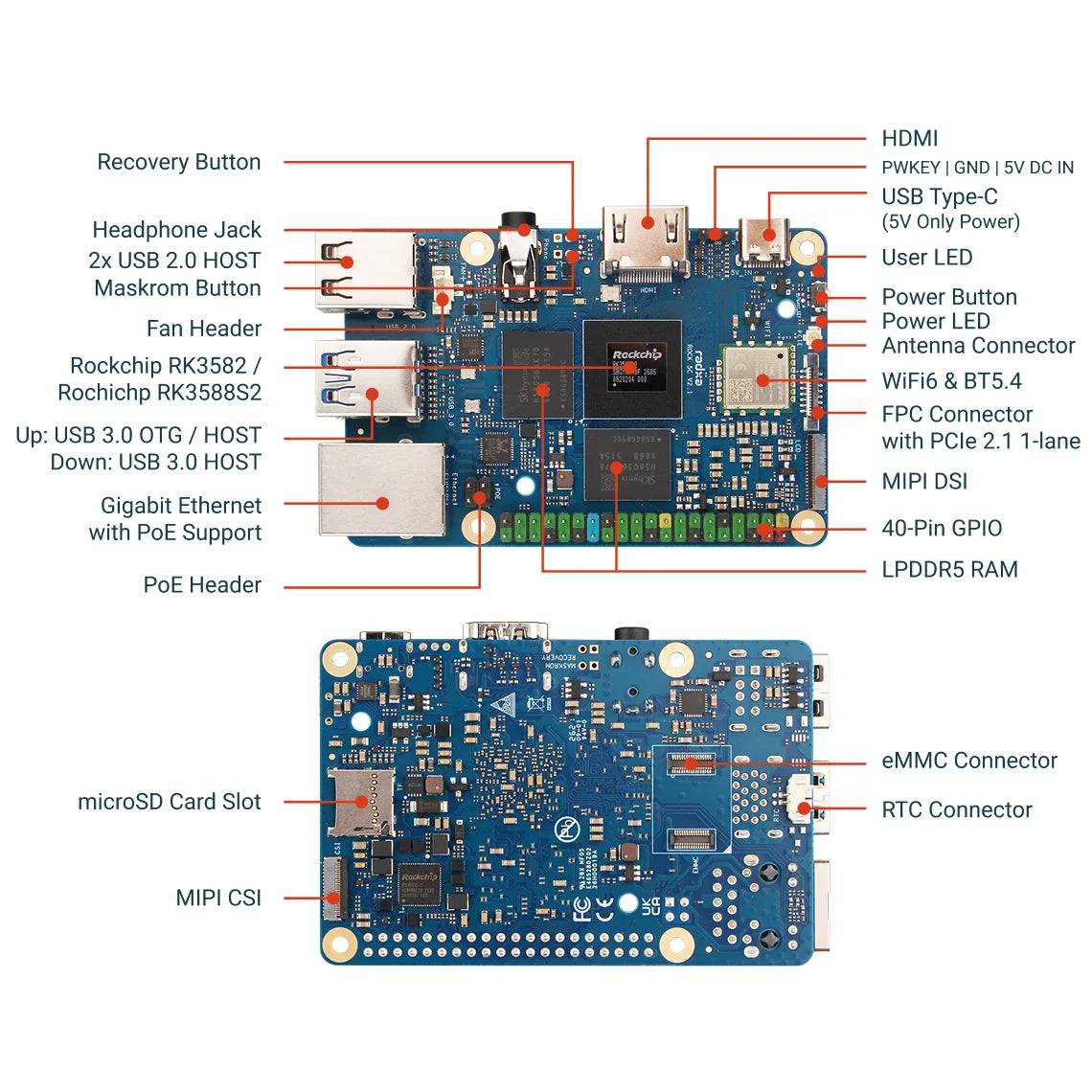

- Rockchip RK3588S2 — 4× Cortex-A76 + 4× Cortex-A55
- 8GB LPDDR4x RAM
- Arm Mali-G610 MC4 GPU
- 6 TOPS NPU
- HDMI 2.1 up to 8K
- Wi-Fi 6 + Bluetooth 5.4
- Gigabit Ethernet with optional PoE
- eMMC connector + microSD slot
- 40-pin GPIO and Raspberry Pi-style PCIe FFC
SPECIFICATIONS
| Category | Details |
|---|---|
| SoC | Rockchip RK3588S2 |
| CPU | 4× Cortex-A76 up to 2.4 GHz 4× Cortex-A55 up to 1.8 GHz |
| GPU | Arm Mali-G610 MC4 OpenGL ES 3.2, OpenCL 2.2, Vulkan 1.2 |
| NPU | 6 TOPS @ INT8 |
| Memory | 8GB LPDDR4x (64-bit) |
| Storage | eMMC module connector microSD card slot |
| Video Output | 1 × HDMI 2.1 (up to 8K) 1 × MIPI DSI (up to 2K) |
| Multimedia | H.265 / VP9 decode up to 8K@60fps H.264 decode up to 8K@30fps AV1 decode up to 4K@60fps H.264 / H.265 encode up to 8K@30fps |
| Camera | 1 × 4-lane MIPI CSI (or 2 × 2-lane) |
| Networking | 1 × Gigabit Ethernet (PoE with optional HAT) Wi-Fi 6 Bluetooth 5.4 |
| USB | 2 × USB 2.0 Type-A 1 × USB 3.0 Type-A Host 1 × USB 3.0 Type-A OTG / Host |
| Audio | Headphone jack with microphone input |
| Expansion | 40-pin GPIO header Raspberry Pi-style PCIe FFC connector |
| Power | 5V via USB-C |
| Software | Debian / Radxa OS Ubuntu Android |
| Dimensions | 86 × 56 mm |
What's Included:
- 1 × Radxa ROCK 5C (8GB RAM)
NOTES
- This is the ROCK 5C with 8GB RAM and the RK3588S2 SoC
- An eMMC module or microSD card is needed for the operating system
- PoE requires a separate PoE HAT
- A 5V USB-C power supply is required
