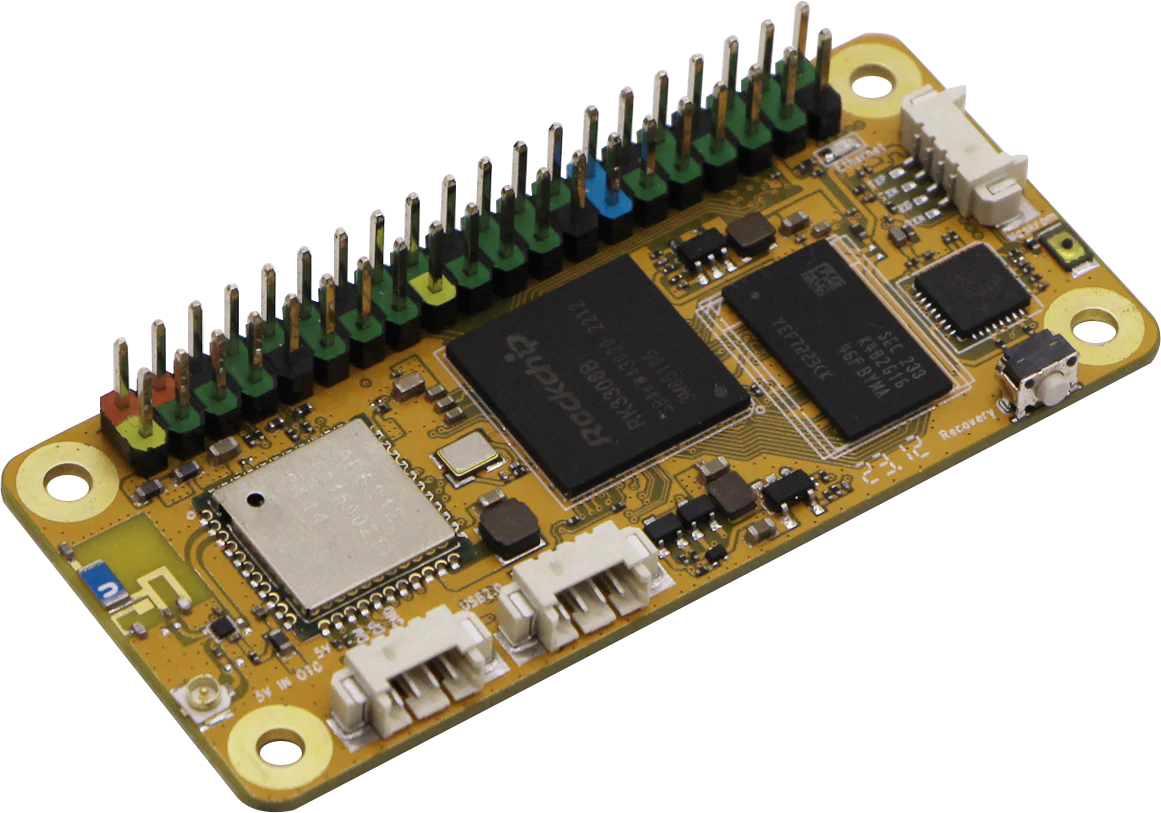

RADXA ROCK S0

RADXA ROCK S0

Regular price $19.95 USD
Regular price Sale price $19.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Description

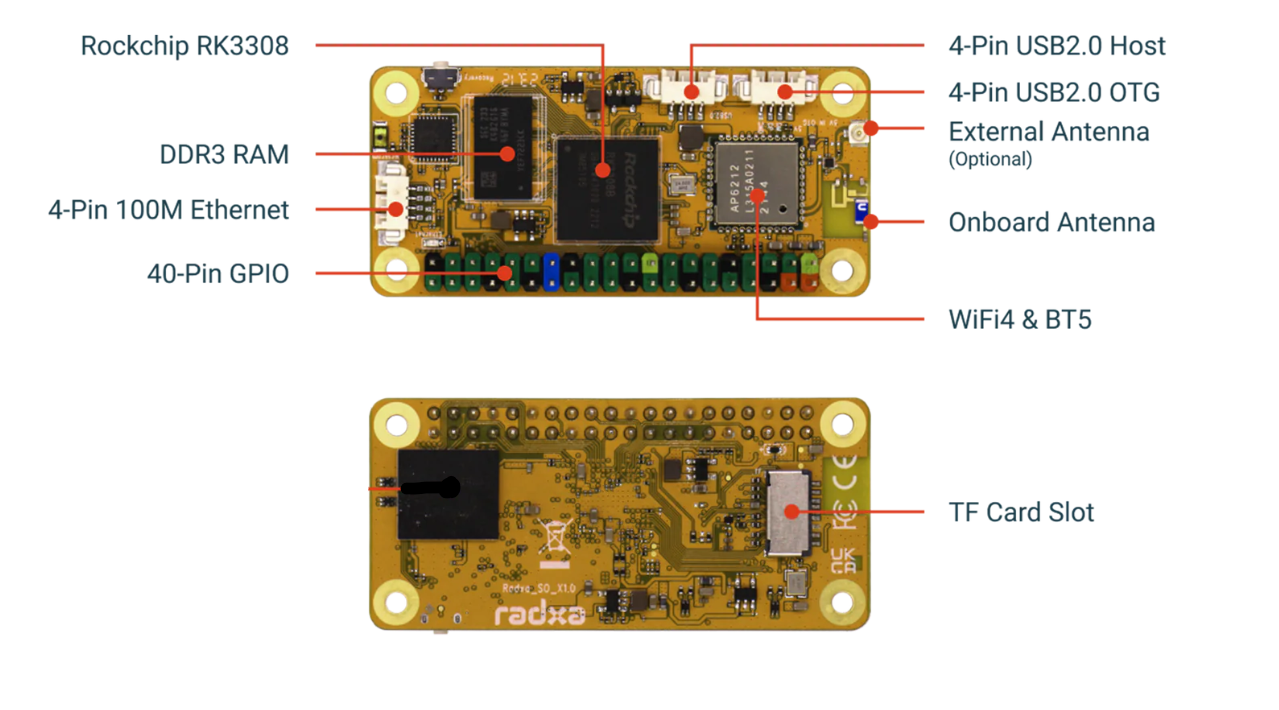

SPECIFICATIONS

  • Rockchip RK3308BS Quad Cortex-A35 64bit SOC @1.3GHz
  • 512MB DDR3 RAM
  • USB 2.0 OTG (via 4-pin MX1.25mm connector)
  • USB 2.0 HOST (via 4-pin MX1.25mm connector)
  • 10/100Mbit Ethernet (via 4-pin MX1.25mm connector)
  • 802.11 b/g/n Wifi (4) + Bluetooth 5.0 with external antenna connector
  • We currently offer the variant with No eMMC.
  • Reset button
  • Maskrom button
  • microSD card slot
  • 40 pin GPIO header (not included)
    • I2C x4
    • PWM x3
    • SPI x2
    • UART x3
    • I2S0 x1
    • 5V DC power in x2
    • 3.3V DC power in x2
  • ARMv8 Instruction Set
  • Debian, Ubuntu Linux support
  • Hardware access/control library for Linux
  • Power demand idle: 0.5W / full load: <=5W
  • CPU does only need heat management when operated continuously under high load or high environmental temperature!
  • Operating temperature 0-50°C
  • Dimensions 65x30mm

NOTES

Warranty is valid for a year, starting upon date of receipt.
