Radxa Wireless Module M.2 E Key WiFi 6 and BT 5.2

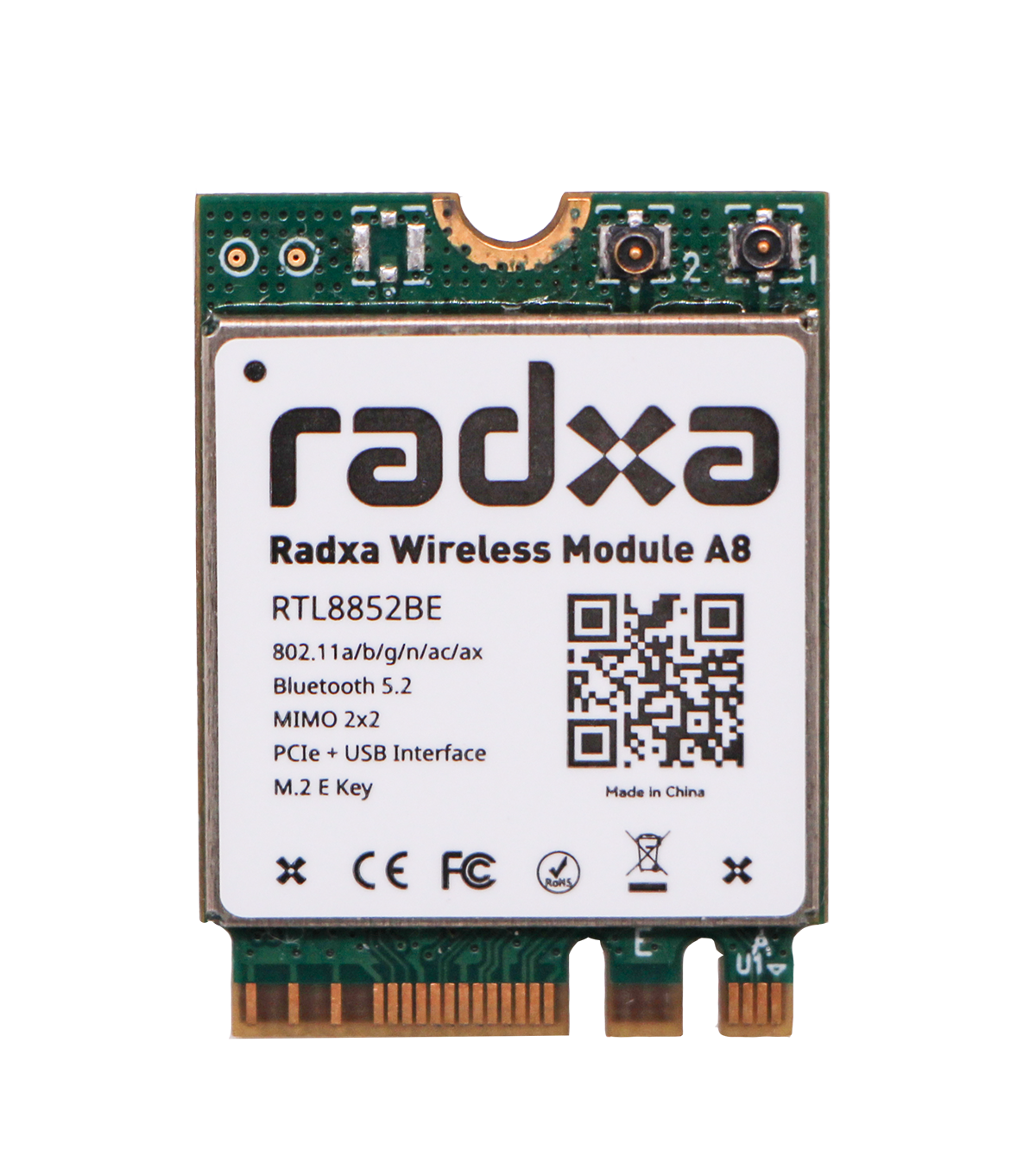

Radxa Wireless Module A8 is a standard M.2 2230 Wireless Module based on Realtek RTL8852BE, a highly integrated single‐chip that support 2‐stream 802.11ax solutions with multi‐user MIMO (Multiple‐Input, Multiple‐Output) with Wireless LAN (WLAN) PCI Express network interface controller with integrated Bluetooth 5 USB interface controller. It combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in a single chip.

FEATURES

• IEEE 802.11a/b/g/n/ac/ax compatible WLAN
• Support Bluetooth 5 system (BT 5.2 Logo Compliant)
• Complete 802.11n MIMO solution for 2.4GHz and 5Ghz band
• Maximum PHY data rate up to 286.8 Mbps using 20MHz bandwidth, 573.5Mbps using 40MHz bandwidth, and 1201Mbps using 80MHz bandwidth
• Backward compatible with 802.11a/b/g devices while operating at 802.11n data rates
• Backward compatible with 802.11a/n/ac devices while operating at 802.11ax data rates
• Compliance with Windows operating system host-implemented FIPS 140-2 security requirements
• Support 20/40/80MHz 5GHz
• supports WLAN\u2010Bluetooth coexistence
• supports low power Bluetooth
• Support Bluetooth 5 system (BT 5.2 Logo Compliant)
• Compatible with Bluetooth v2.1+EDR

SPECIFICATIONS

• Name: Radxa Wireless Module A8
• Product description: IEEE 802.11a/b/g/n/ac/ax Wireless LAN 2T2R and Bluetooth 5.2 Combo Module (M.2 2230)
• Chipset: RTL8852BE
• Host Interface: Wi-Fi: PCIe, BT: USB
• Dimensions: 22mm x 30mm x 2.25mm
• Form Factor: M.2 2230 E Key

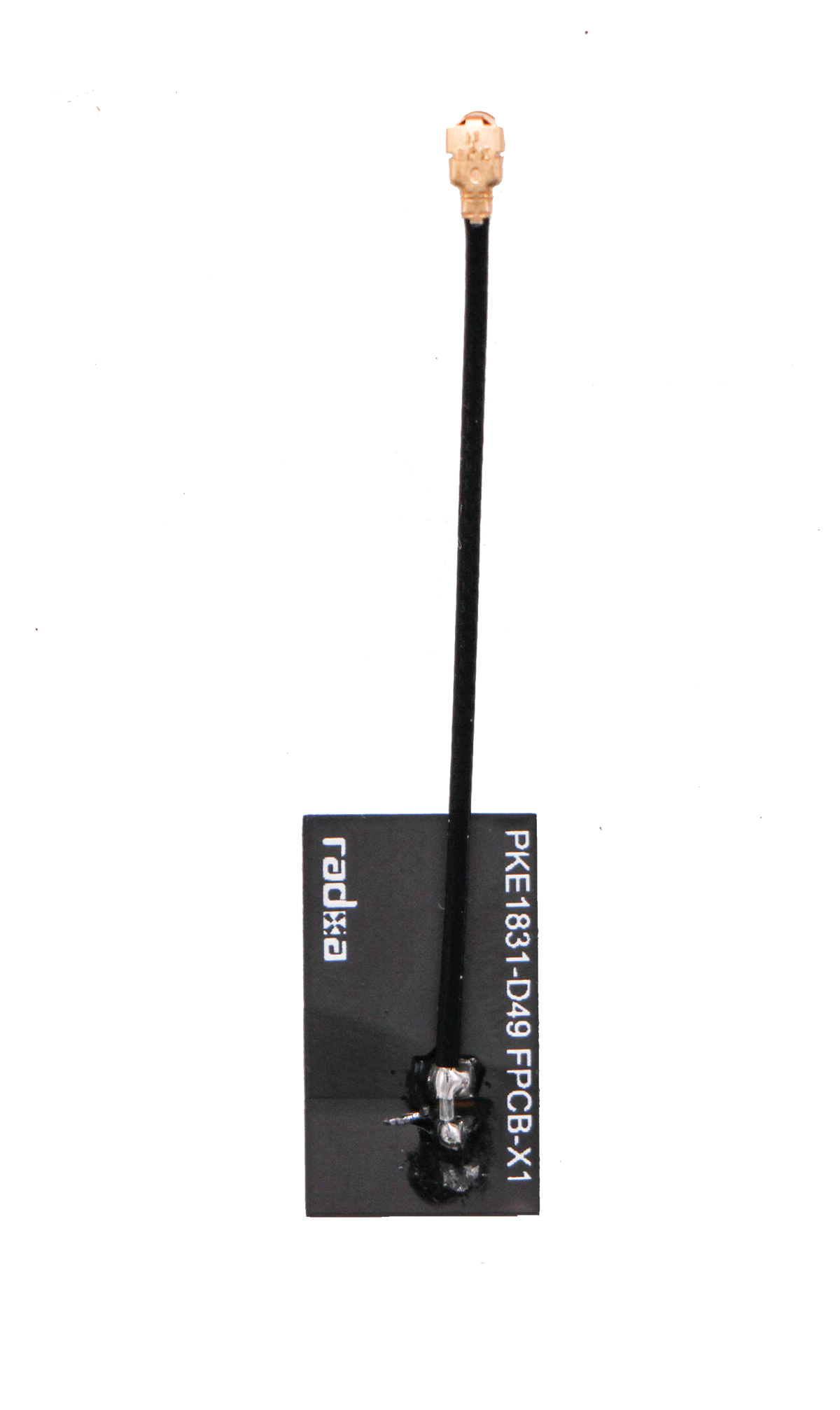

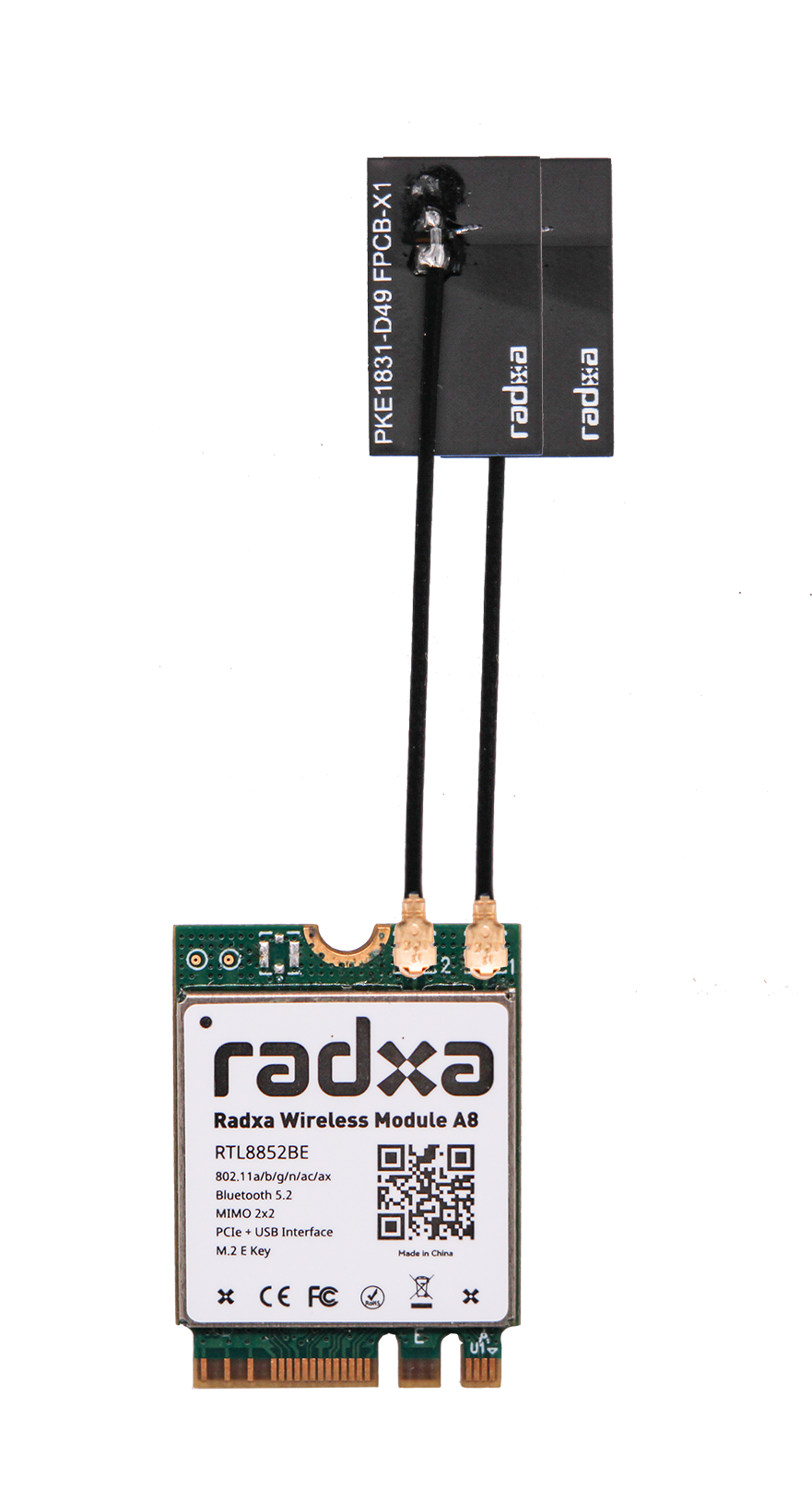

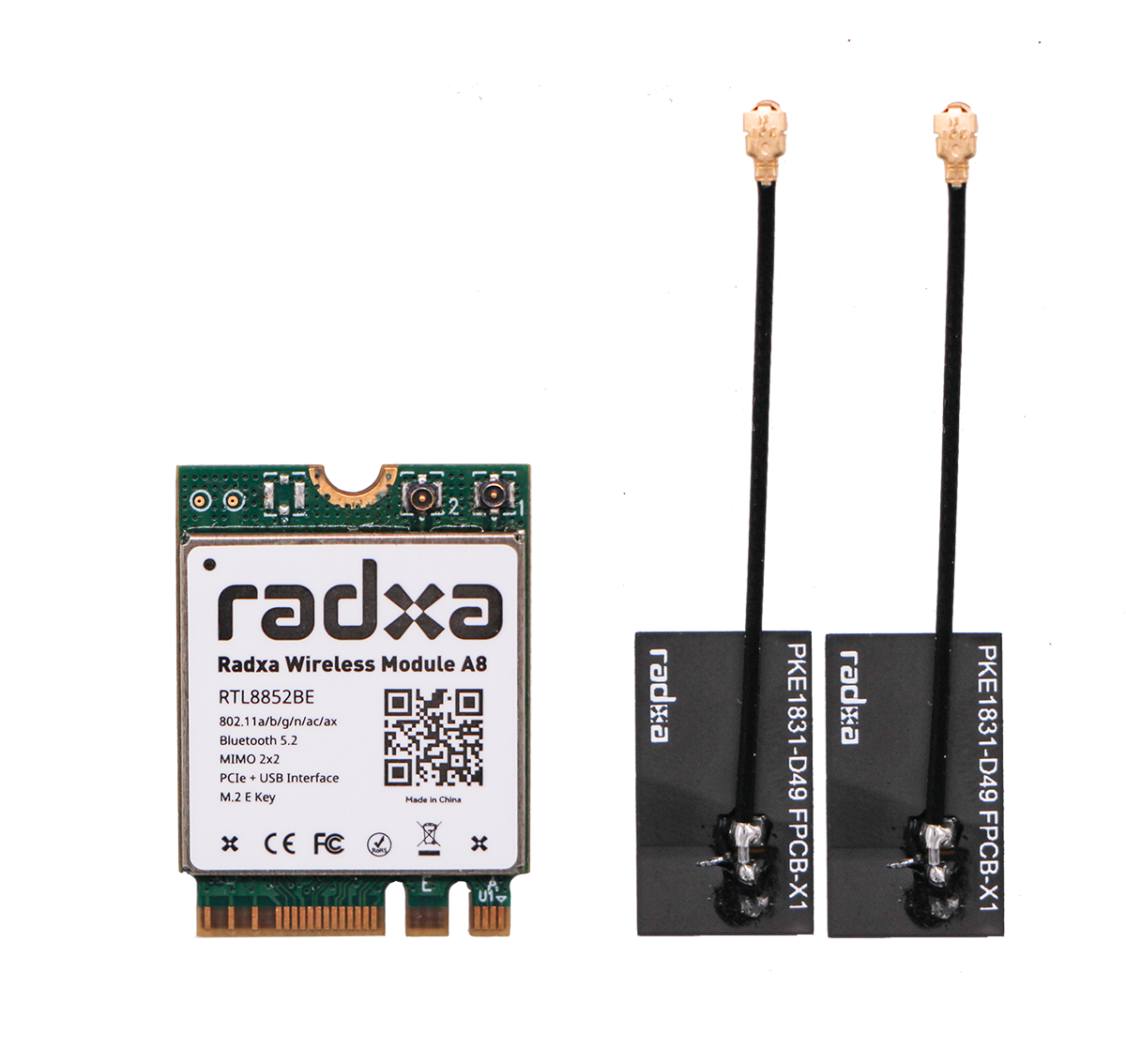

• Antenna: I-PEX MHF4 Connector Receptacle (20449) ANT1(Main): WiFi/Bluetooth TX/RX, ANT2(AUX): WiFi TX/RX
• Operating Temperature: 0 to +70°C

• Weight: 3g
