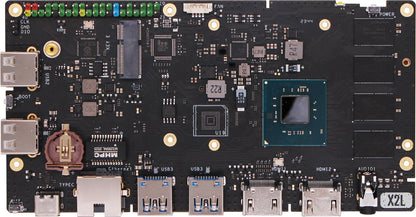

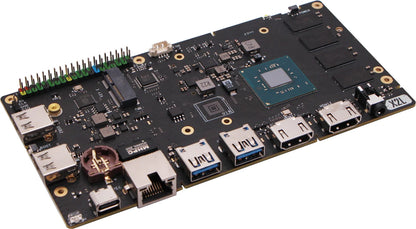

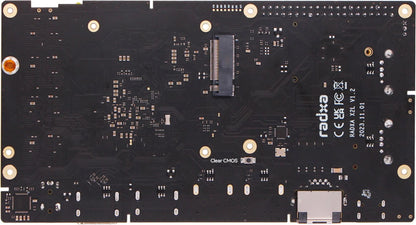

RADXA X2L

The new Intel® Celeron® J4125 based low profile SBC from RADXA

SPECIFICATIONS

Processor"

• Intel®Celeron®Processor J4125
  Quad-core processor / 4 Threads @ 2.00 GHz
  Burst frequency 2.70 GHz
• Intel® UHD Graphics 600
  Graphics Base Frequency: 250MHz
  Graphics Burst Frequency: 750MHz
  DirectX Support: 12
  OpenGL Support: 4.4

Memory:

• LPDDR4@2400 MT/s
• 2GB /4GB /8GB options


Display:

• 2x HDMI with up to 4k@30


Audio

• 3.5mm headphone jack with mic input

Wireless

• 1x M.2 E Key Connector for WiFi / BT Module

Storage

• 1x M.2 M Key Connector (4-lane PCIe 2.0) for M.2 NVMe SSDs (for OS boot and storage)

USB

• 2x USB 3.0 HOST Type A
  2x USB 2.0 HOST Type A


Ethernet

• 1x GbE LAN (RTL8111H)


IO:

• 40-pin expansion header:
  • up to 2 x UART
  • up to 2 x SPI
  • up to 2 x I2C
  • up to 8 x PIO (Programmable IO)
  • up to 16 x PWM
  • 1 x 5V DC power in
  • 2 x 3.3V DC power out

Other

• RTC battery socket

• 4-pin 1.25mm fan header
• 3-pin debug header
• 4x buttons:
  • 1x power button
  • 1x BOOTSEL Button for RP2040
  • 1x User Button
  • 1x Clear CMOS Button

Software

• Intel® 64 Instruction Set
• Windows 10 64-bit
• Debian / Ubuntu Linux support
• Hardware access/control library for Linux

Power

• USB PD, support USB Type C PD 2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A. Power adapter with fixed voltage in 9 to 20V range via the USB Type C port


Size

• 80.6mm x 155.6mm

Operation temperature:

• 0°C to 50°C

Certifications:

FCC, CE, RoHS
