RADXA Zero 3W

Out of Stock, can be pre-ordered

$25.95
RAM
eMMC
GPIO

Disclaimer for Price Display Issues:

We strive to ensure that all prices displayed on our website are accurate. However, in rare cases, you may encounter an incorrect price for a product variant due to technical issues. If you notice a discrepancy in the price displayed when selecting a variant, please try the following steps:

  • Clear your browser cache and reload the page.
  • Use a different browser.
  • Add the variant to the cart.

The correct price will always be displayed in your cart before you complete your purchase. We apologize for any inconvenience this may cause and appreciate your understanding.

* If "Preorder Now" badge appears, we have sold out of that particular model. Try selecting a different model.
* Note: Some ad blockers disable the "Preorder Now" badge. We have not found a workaround for getting the "Preorder Now" badge to appear with all ad blockers.

Please make sure to read our Pre-orders policy.

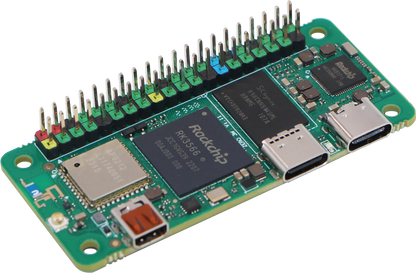

RADXA Zero 3W is an Rockchip RK3566 64bit quad core based Mini SBC in the same form factor as the Raspberry Pi Zero, but with much, much more power. It has quad-core power with up to 8GB LPDDR4 RAM that has similar dimensions to a USB stick.

SPECIFICATIONS

Specification Details
CPU Rockchip RK3566 64bit quad-core processor, Quad-core Arm® Cortex®-A55 (ARMv8) 64-bit @ 1.6GHz
GPU Arm Mali™-G52-2EE, OpenGL® ES1.1/2.0/3.2, Vulkan® 1.1, OpenCL™ 2.0
Memory LPDDR4 1GB / 2GB / 4GB / 8GB
Storage Soldered high performance eMMC 5.1 with capacities of 8GB / 16GB / 32GB / 64GB
MicroSD card uSD slot supports up to 128GB uSD card
Video Decoding/Encoding H.264/H.265 decoder up to 4K@60fps
H.264/H265 encoder up to 1080p@60fps
Display 1080p@60fps via Micro HDMI
Wifi/BT WiFi4 (802.11 b/g/n) / BT5.0 with onboard antenna and uFL connector, antenna option can be configured via software
USB USB 2.0 HOST
USB 2.0 OTG (for power and data)
MIPI CSI x1
Network Wireless 802.11 b/g/n, WiFi 2.4GHz, Bluetooth 5.0
IO 40-pin expansion header up to 5 x UART
1 x SPI bus
up to 2 x I2C bus
1 x PCM/I2S
up to 6 x PWM
up to 28 x GPIO
2 x 5V DC power in
2 x 3.3V power pin
Software ARMv8 Instruction Set
Debian/Ubuntu Linux support
Hardware access/control library for Linux
Maskrom button
Size 66 x 30 mm

NOTES

To operate you will need:

  • RADXA ZERO 3W
  • Power adapter with USB type C port equal or larger than 5W
  • MicroSD Card or onboard eMMC module
  • Keyboard & Mouse
  • Monitor with HDMI input
