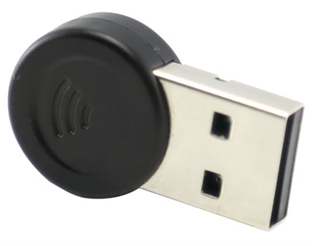

RD1100+ USB Zigbee dongle
RD1100+ USB Zigbee dongle
Thank you for supporting a US-based small business!
Out of Stock!
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
The LinknLink RD1100+ USB Zigbee dongle is a compact device designed to provide seamless Zigbee 3.0 connectivity for Home Assistant users. Featuring a standard USB-A interface, it integrates a high-performance Silicon Labs Zigbee radio, ensuring reliable communication across a wide range of Zigbee-based smart home products. Its compact design conserves USB port space on your Home Assistant gateway, eliminating the need for additional USB extensions. The RD1100+ comes with a firmware compatible with the iSG all in one but it can be updated to work with Home Assistant following the instructions found in the below notes.
SPECIFICATIONS
- Interface: USB-A 2.0
- Zigbee Radio: Silicon Labs EFR32MG13
- Zigbee Protocol: Zigbee 3.0
- Radio Frequency: 2400 ~ 2483.5 MHz (16CHs)
- TX Power: -9 ~ +19 dBm
- RX Sensitivity: -98 ~ -100 dBm
- Max Data Speed 250kbps
- Comm. Range 200m (max)
- Certifications FCC, CE, EAC, ROHS
- Dimensions 28.3x15.9 mm
NOTES
- If Home Assistant is failing to connect device, please flash firmware following instructions here.
