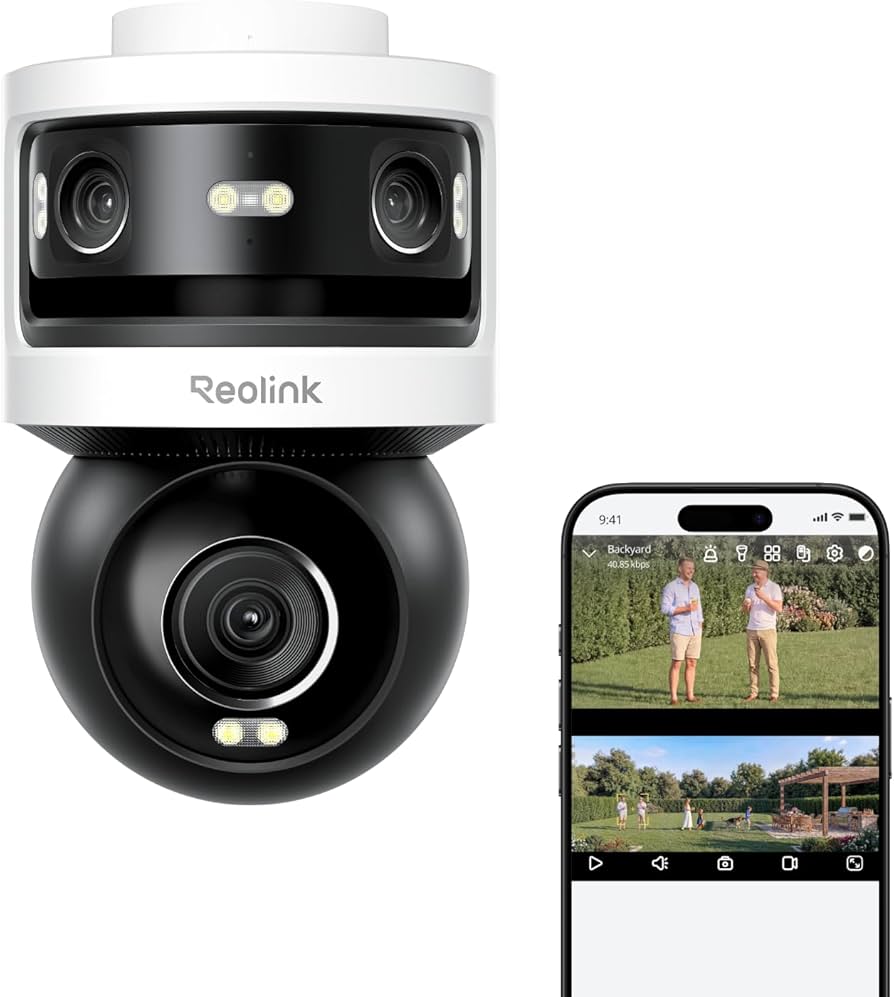

Reolink OMVI 3i PoE

Reolink OMVI 3i PoE

$299.95 USD
$299.95 USD
Shipping calculated at checkout.
US Flag Thank you for supporting a US-based small business!

Out of Stock! If you see a Pre-order badge and/or an Add to Cart/Preorder Now button, you can place a pre-order now!

Description ▼

All-in-one Triple-Lens 180° Panoramic Pan-Tilt Security Camera

  • 10MP Dual-Lens 180° View
  • 4K 360° Full Coverage
  • SyncTrack with auto framing & auto tracking
  • Local Storage (No Monthly Fees)
  • Local AI Video Search

One Camera. Complete Coverage. Nothing Missed

OMVI 3i Panoramic Camera

180° Panoramic with Auto-Tracking

One camera replaces two.

The OMVI 3i's 18MP triple-lens system delivers a sweeping panoramic view while simultaneously tracking movement in real time. Watch the full scene and zoom in on important details, both visible on your screen at the same time.

OMVI 3i PoE
  1. Indicator Light
  2. Spotlight & IR LED
  3. Spotlight & IR LED
  4. Dual Lens
  5. Mic
  6. Speaker
  7. Lens
  8. Spotlight & IR LED

OMVI 3i PoE

  1. Power Port
  2. Ethernet Port
  3. Mounting Base
  4. Mounting Screw
  5. microSD Card Slot
  6. Reset Button

OMVI 3i Specifications

Video & Audio

Feature Specification
Image Sensor 1/2.7" + 1/2.8" CMOS sensor
Resolution Upper cam: 5120 × 1920 (10MP)
Lower cam: 3840 × 2160 (8MP)
Lens Upper cam: f=2.8mm, F=1.6
Lower cam: f=6mm, F=1.6
Video Compression H.264 / H.265
Zoom Digital zoom
Field of View Upper Cam: H: 180°, V: 65°
Lower Cam: H: 55°, V: 30°
Infrared Night Vision Up to 30 meters (100ft) with IR-cut filter
Color Night Vision Spotlight: 8pcs / 7W / 6000K
Frame Rate Main stream: 2fps – 20fps (default 20fps)
Sub stream: 4fps – 20fps (default 20fps)
Bit Rate Upper cam:
Main: 3072–8192 Kbps (default 6144)
Sub: 256–2048 Kbps (default 1536)

Lower cam:
Main: 3072–7168 Kbps (default 5120)
Sub: 256–1228 Kbps (default 1228)
Audio Two-way audio

Power Requirements

Feature Specification
PoE IEEE 802.3at, 48V, active
DC Power DC 12.0V ⎓ 2A, < 24W

Interface

Feature Specification
Power Port DC power port
Ethernet Port One 10M/100Mbps, RJ45
SD Card Slot Supports up to 512GB microSD card
Reset Button Yes
Audio In/Out Built-in microphone and speaker

Pan & Tilt

Feature Specification
PT Angle (Max) Pan: 350° | Tilt: 50°
Pan Speed 4°/s – 60°/s (configurable)
Tilt Speed 8°/s – 30°/s (configurable)
Preset Points Supports 1 guard position + up to 64 preset positions
Patrol Supports 1 patrol (up to 4 presets per patrol)
Sync Tracking Yes

Software

Feature Specification
Browsers Supported Edge, Chrome, Firefox, Safari
OS Supported PC: Windows, macOS
Smartphone: iOS, Android
Protocols & Standards HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
User Access Max 20 users (1 admin + 19 users)
Max 12 simultaneous streams (2 main + 10 sub)

Other Features

Feature Specification
Smart Alarm Motion detection, Person detection, Vehicle detection, Animal detection
Auto Framing Yes
Local AI Video Search Yes
Perimeter Protection Upper cam: Line Crossing, Zone Intrusion, Zone Loitering
Lower cam: N/A
Recording Modes Motion-triggered (default), Scheduled, 24/7 recording
Time Lapse Yes
Tracking Methods Sync Track
Smart Home Compatibility Google Assistant

Working Environment

Feature Specification
Operating Temperature -10°C ~ +55°C (14°F ~ 131°F)
Operating Humidity 10% ~ 90%
Weatherproof IP66

Mechanical

Feature Specification
Dimensions 202 × 151 × 125 mm
Weight (without accessories) 1.3 kg
