Description ▼

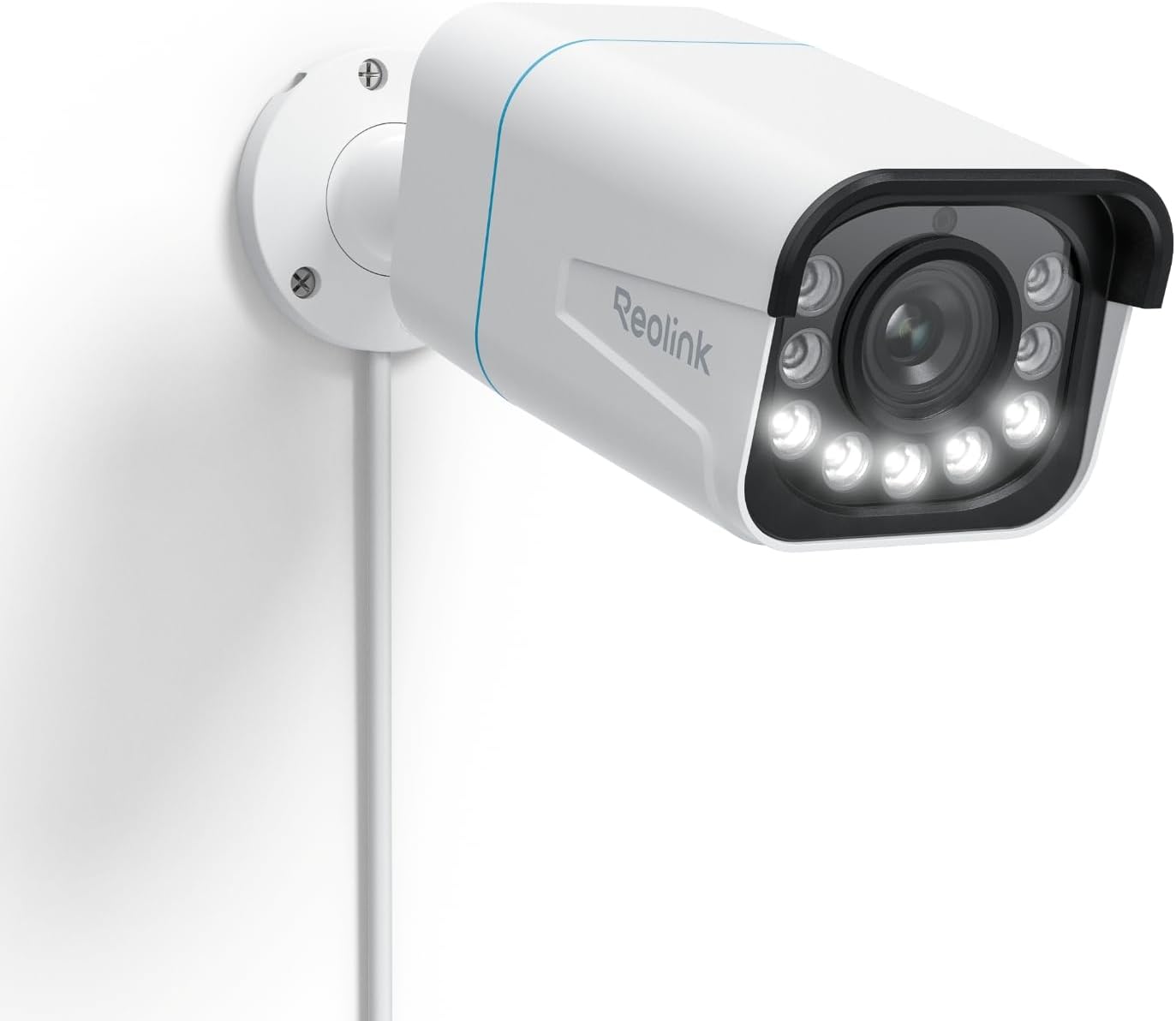

Smart 4K PoE Camera with 5× Optical Zoom

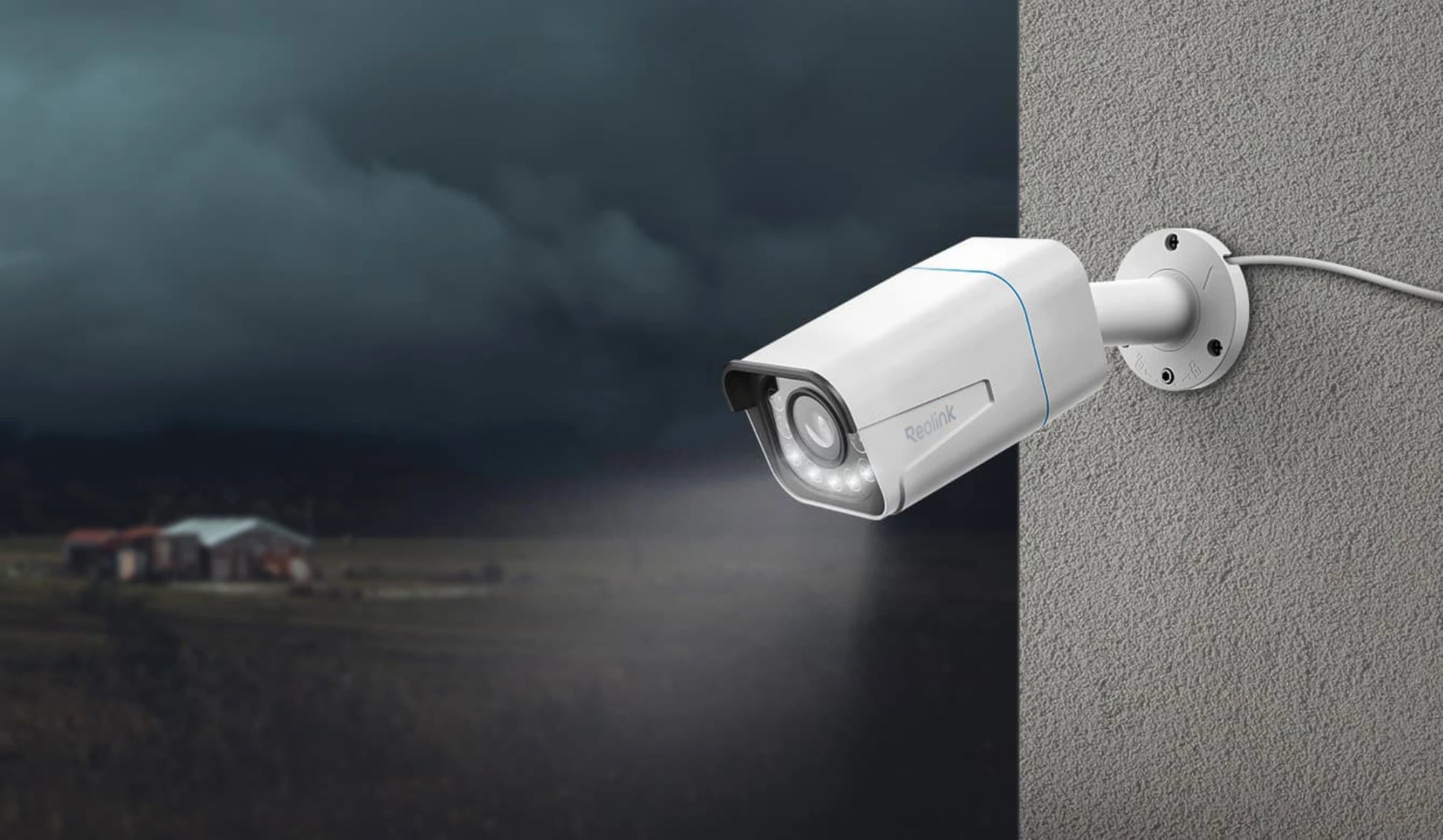

This 4K PoE camera brings 4× clearer details to every frame than 1080p HD cameras. With spotlights, it delivers bright nighttime footage with vibrant full-color details, ensuring around-the-clock peace of mind.
FEATURES
- 4K 8MP Ultra HD
- 5× Optical Zoom
- Person/Vehicle/Animal Detection
- Color Night Vision
- IP67 weatherproof housing
2. After adjustment, tighten the screw to fix the camera.
SPECIFICATIONS
| Video & Audio | |
| Image Sensor | 1/2.8" CMOS Sensor |
|---|---|
| Video Resolution | Default: 3840 x 2160 (8.0 megapixels) at 25 fps |
| Lens | f=2.7-13.5mm F=1.6-3.3, with IR cut |
| Optical Zoom | 5× optical zoom |
| Video Format | H.264, H.265 |
| Field of View | Horizontal: 105°-31°; Vertical: 55°-17° |
| Day & Night | Auto-switching with IR-cut filter |
| Infrared Night Vision | Up to 30 meters (IR LED: 4pcs/28mil/850nm) |
| Color Night Vision | Spotlight: 5pcs/4W/6500K/450 lumens |
| Audio | Two-way audio |
| Power | |
| PoE | IEEE 802.3af, 48V active |
| DC Power | DC 12.0V⎓1A, <12W |
| Interface | |
| Power | DC power port |
| System | Reset button |
| Ethernet | One 10M/100Mbps; RJ45 |
| Storage | microSD card slot (Max. 512GB) |
| Audio | Built-in microphone and speaker |
| Software Features | |
| Frame Rate | Mainstream: 2fps - 25fps (default: 25fps); Substream: 4fps - 15fps (default: 10fps) |
| Code Rate | Mainstream: 4096Kbps - 8192Kbps (default: 6144Kbps); Substream: 64Kbps - 512Kbps (default: 256Kbps) |
| Browsers Supported | Edge, Chrome, Firefox, Safari |
| OS Supported | PC: Windows, Mac OS; Smartphone: iOS, Android |
| Smart Alarm | Motion detection; person/vehicle/animal detection |
| Record Mode | Motion recording (default); scheduled recording; 24/7 recording |
| Protocols & Standards | HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
| Maximal User Access | 20 users (1 admin account & 19 user accounts); 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| Work with | Google Assistant |
| Working Environment | |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Humidity | 10% ~ 90% |
| Weatherproof | IP67 |
| Size & Weight | |
| Dimensions | 80 × 72 × 238mm |
| Weight | 838g |
| Warranty | |
| Limited Warranty | 2-Year limited warranty. For support, visit https://support.reolink.com/hc/en-us/ |
