Description ▼
RFXCOM RFX-868 (EU only. Not for use in the United States. 868 MHz is not an unlicensed US band, and this unit is not FCC authorized. Operating it in the US may be illegal.)

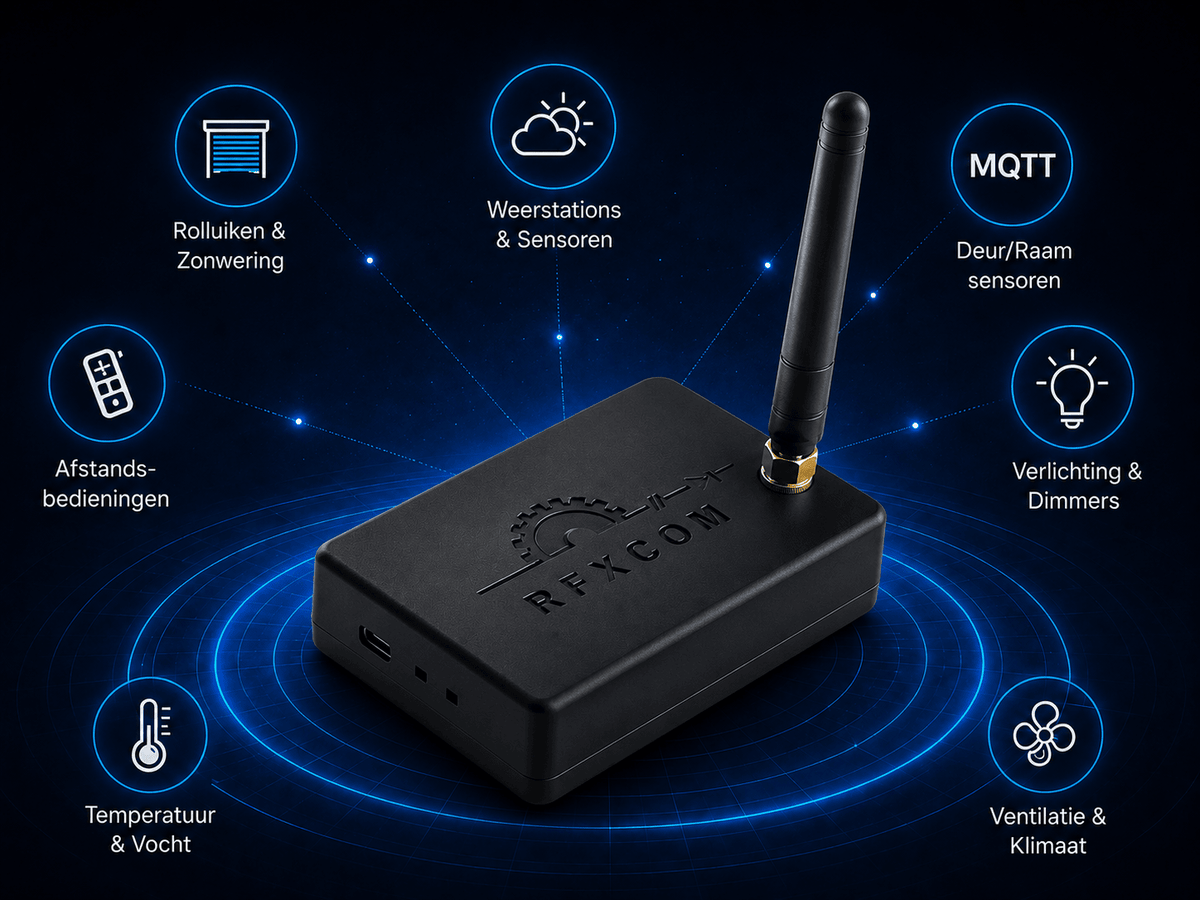

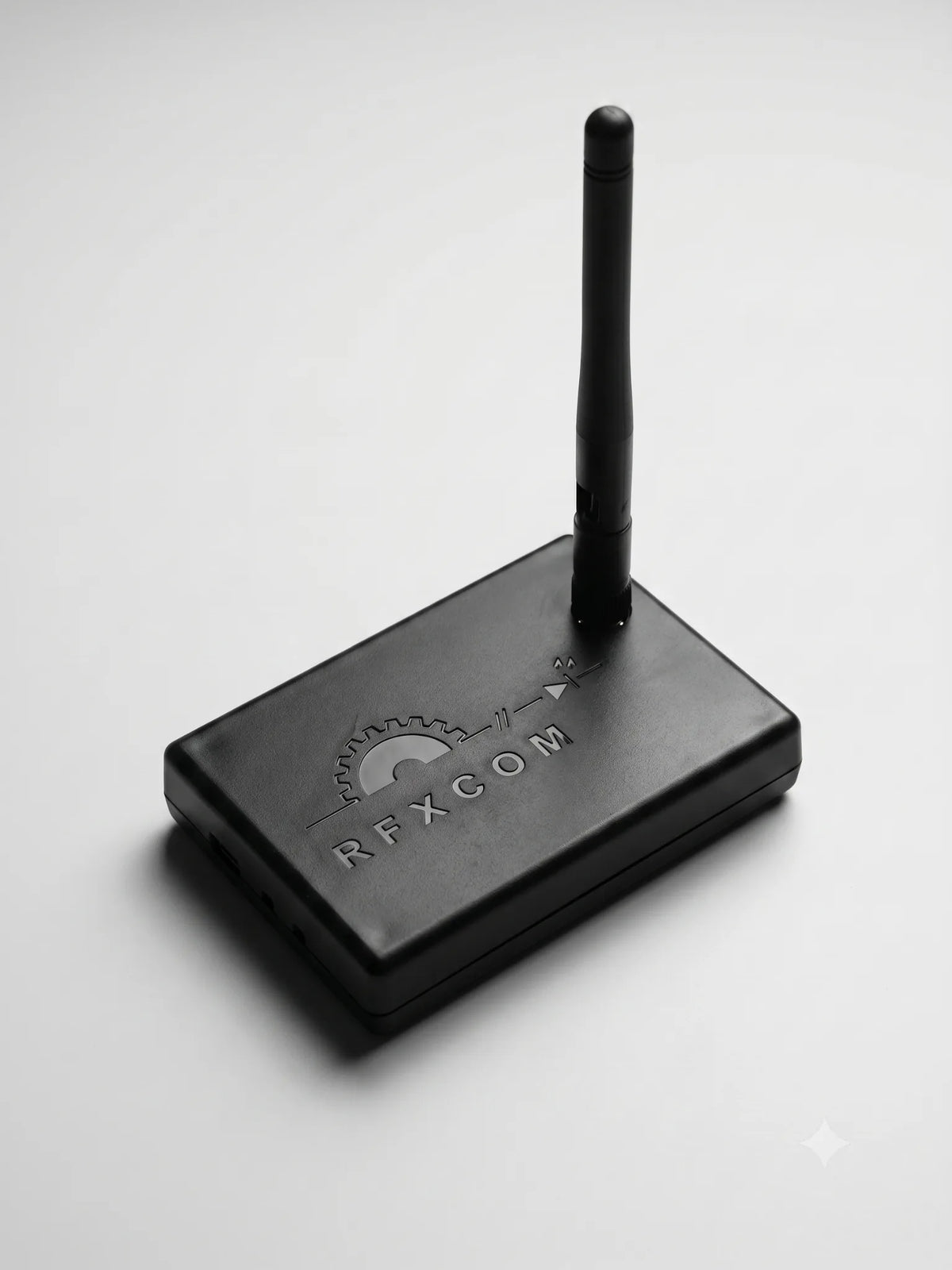

The RFX-868 is an 868 MHz USB / Wi-Fi / MQTT transceiver for Home Assistant and other local controllers. It is the 868 MHz counterpart to the RFX-433EMC — ventilation (Itho, Orcon), FS20 / Edisio, Visonic sensors, and several 868 MHz weather stations. No cloud.
KEY FEATURES
- Transmit and receive on 868 MHz (about 868.30–868.95 MHz, ASK / FSK)
- USB-C, onboard Wi-Fi, and MQTT with auto-discovery
- Works with Home Assistant, Domoticz, OpenHAB, HomeSeer, Node-RED, and any MQTT broker
- Itho CVE / CVE ECO RFT and Orcon ventilation
- FS20, Edisio, Honeywell ActiveLink, Gaposa 868 motors
- Visonic PowerCode sensors (and unencrypted CodeSecure / Keeloq parts)
- Weather: Alecto, FineOffset / Ecowitt, Davis Vantage Vue EU
- Local only — no vendor cloud
- Field-updatable Type 7 firmware
- Made in the Netherlands
SPECIFICATIONS
| Category | Details |
|---|---|
| Model | RFXCOM RFX-868 |
| Frequency | 868 MHz (868.30–868.95 MHz typical) |
| Modes | Send and receive |
| Interfaces | USB-C serial (RFXCOM protocol) Wi-Fi 802.11 b/g/n MQTT with Home Assistant auto-discovery Optional W5500 LAN module (sold separately) |
| Supported families (examples) | Orcon RF15 / WTW Itho CVE RFT and CVE ECO RFT Edisio, FS20, Honeywell ActiveLink Gaposa QCTX 868 motors Visonic PowerCode Alecto ACH2010 / WS5500 FineOffset WH2900, Ecowitt WH31 / WN32 / WH40 / WH57 / WS90 Davis Vantage Vue EU |
| Power | 5 V USB-C About 0.14 W typical Use a solid 5 V supply (2 A or better recommended for Wi-Fi / MQTT) |
| Software | RFX868 firmware Type 7 (USB / Wi-Fi / LAN / MQTT builds) RFXmngr on Windows for pairing and testing (not used with MQTT firmware) |
| Certifications | CE, RoHS |
What's Included:
- 1 × RFXCOM RFX-868 transceiver
- 1 × USB-C cable
NOTES
- No power adapter and no external antenna in the box
- This is not a 433 MHz unit. Use the RFX-433EMC for 433.92 / Somfy RTS / KAKU-style devices
- Somfy IO is not supported
- On the RFX-868 only one receive protocol can be enabled at a time. You can still transmit other supported 868 protocols
- Check the RFX MQTT User Guide (chapter 12.2) before you buy if your exact model is listed
- MQTT firmware and RFXmngr are not used at the same time
- This is not an older RFX868XL / RFXtrx868. Those use different firmware
-
US customers: do not buy this for use in the United States. The RFX-868 transmits on 868.30–868.95 MHz, a European short-range band. It is CE marked for the EU and is not FCC authorized. In the US that frequency sits in the 851–869 MHz land-mobile allocation used by public-safety and commercial radio, not in an unlicensed band. Operating it here can violate FCC rules. The protocols it supports (Itho, Orcon, FS20, Edisio, EU weather stations) are European devices anyway. US installs should use 915 MHz gear, or the RFX-433EMC only for 433.92 MHz devices that are legal to operate here.
