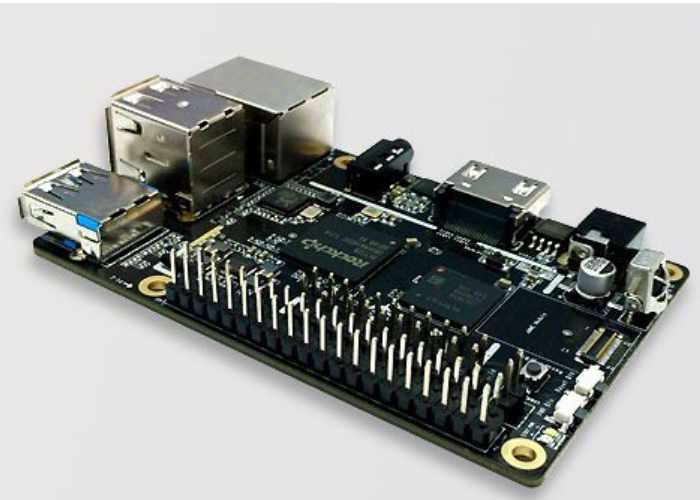

ROCK64 Single Board Computer Rev3
ROCK64 Single Board Computer Rev3
Out of Stock! If you see a Pre-order badge and/or an Add to Cart button, you can place a pre-order now!
Couldn't load pickup availability
Description ▼
We can facilitate large custom orders if you need these for your project
The ROCK64 Rev3 is Pine's new revision of the instant classic featuring the same footprint similar to the ODROID-C2 and Raspberry Pi 3, but with some extra cool features! In addition to a Quad-Core ARM Cortex A53 64-bit processor, USB2.0 ports, 40-pin GPIO header and microSD slot similar to the C2 and RasPi3, it also shares the following features with the C2 that are not present on the RasPi3: eMMC module socket, 4K/60fps video decoding, Gigabit Ethernet, and IR receiver. The real kicker is that the ROCK64 trades 2 USB2.0 ports for a USB3.0 port to provide high-speed USB access to your projects! With the included Power over Ethernet (PoE), a real time clock (RTC), and improved RPi GPIO compatibility, the ROCK64 Rev3 is a rock star of a single board computer!
In addition, some RPi boards like the Raspberry Pi DAC work on the ROCK64.
Additional items required to operate - see "NOT INCLUDED" section below
KEY FEATURES
- Powerful Linux/Android Computer
- Revision 3 model
- RK3328 1.5GHz 64-bit quad-core CPU, multi-core GPU
- Mali-450 MP2 GPU supporting up to 4K@60fps video decoding via VP9 or 10-bit H265/H264
- User may choose between 1GB/2GB/4GB LPDDR3 RAM (selectable on purchase, memory not expandable)
- 10/100/1000Mbps Ethernet with RJ-45 LAN jack
- 2x high speed USB2.0 host ports
- 1x super speed USB3.0 host port
- 40 GPIO pins (Improved Pi2 GPIO compatibility) + Pi-P5+ Bus
- 3.5mm A/V Jack on board
- Power over Ethernet (PoE)
- Real Time Clock (RTC)
- Physical power / reset / recovery buttons
- IR Receiver
- Linux or Android available
- Size: 85 x 56 x 18 mm, Weight: 40g
- Package includes main board
NOT INCLUDED
- No power supply included - Consider a PINE64 5VDC/3A power supply available on this site
- No microSD or eMMC card included - eMMC memory is much faster and more reliable than microSD memory
- No case included
- No HDMI cable included - needed to connect to a display device. Recommend HDMI2.0 cable to support 4K output
- USB-UART module by PINE64 highly recommended for tinkering with u-boot, kernels, multiple installs and more
- As of 16-Mar-2021, we have been informed that there is no new production planned for the 1GB variant at this time due to component cost increase
- If running Android, WiFi Module 5 is recommended
- Powered by 3.5mm barrel connector
- If using with a monitor, recommend monitors that can handle 1080p or 4K. 720p is also currently possible. Other resolutions (like 1024x768, 1280x800, etc.) may be difficult or not possible at present to configure.
LINKS
- ameriDroid Learn - https://ameridroid.com/blogs/ameriblogs/tagged/rock64
- Getting Started - PINE64 Installer - https://github.com/pine64dev/PINE64-Installer/blob/master/README.md
- Installing Android to eMMC Guide - http://files.pine64.org/doc/rock64/guide/ROCK64_Installing_Android_To_eMMC.pdf
- Linux Github Repo - https://github.com/rock64-linux
- Linux ayufan Github Repo - https://github.com/ayufan-rock64
- Android 7.1 ayufan Github Repo - https://github.com/ayufan-rock64/android-7.1
- Rockchip Linux Github Repo - https://github.com/rockchip-linux
- Rockchip Android RKMC (Forked from Kodi 16.1) - https://github.com/JamesLinEngineer/RKMC
- LibreELEC Github Repo - https://github.com/Kwiboo/LibreELEC.tv/releases
- ROCK64 Wiki - http://wiki.pine64.org/index.php/ROCK64_Main_Page
- Rockchip Open Source Wiki - http://opensource.rock-chips.com/
- ROCK64 Schematic v2.0 - http://files.pine64.org/doc/rock64/ROCK64_Schematic_v2.0_20170704.pdf
- ROCK64 Pi-2 and Pi P5+ Bus - http://files.pine64.org/doc/rock64/ROCK64_Pi-2%20_and_Pi_P5+_Bus.pdf
- ROCK64 ES9023 Audio with 10/100Mbps Ethernet Board Schematic - http://files.pine64.org/doc/rock64/ROCK64_ES9023_Audio_100Mbps_Ethernet_Board.pdf
- Rockchip RK805 Datasheet v1.1 - http://files.pine64.org/doc/rock64/Rockchip_RK805_Datasheet_V1.1%C2%A020160921.pdf
- RK USB Driver and Android ADB Driver - http://files.pine64.org/doc/rock64/tools/DriverAssitant_v4.5.zip
- RK Android Firmware Flashing Tool Using USB-OTG - http://files.pine64.org/doc/rock64/tools/AndroidTool_Release_v2.38.zip
- RK Android Firmware Tool for Preparing SD Card to eMMC Update and SD Card Boot Image - http://files.pine64.org/doc/rock64/tools/SD_Firmware_Tool._v1.46.zip
- Etcher (Linux/Windows/Mac) to Burn Images to SD Cards and USB Drives - https://www.etcher.io/
- Win32DiskImager - https://sourceforge.net/projects/win32diskimager/files/Archive/
- PuTTY (Serial / Telnet / SSH) Terminal - http://files.pine64.org/doc/PADI/tools-drivers/putty.zip
- PINE64 Resources Page - https://www.pine64.org/?page_id=7175
- Synfare Rock64 Resources Page - http://synfare.com/599N105E/hwdocs/rock64/index.html
- Volumio 2 on ROCK64 - https://volumio.org/forum/volumio-rock64-t9467.html
Warranty is valid for thirty days, starting upon date of receipt.
