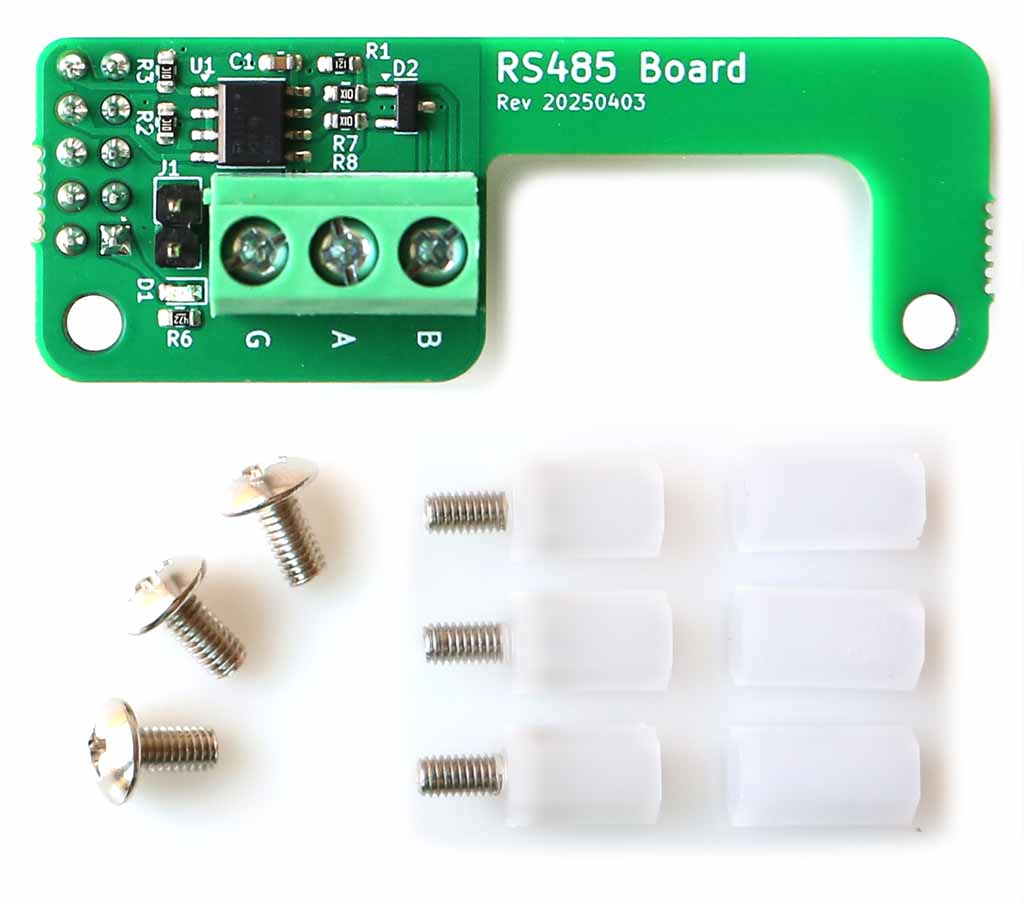

RS-485 Add on Board for C5
RS-485 Add on Board for C5
Thank you for supporting a US-based small business!
In stock
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
FEATURES
This board is designed to provide RS-485 control to ODROID single board computers, it is easily attachable to GPIO headers and accessible through UART bus.
-
Texas Instruments THVD1406
-
Half-duplex RS-485
-
Auto-direction control using the data input pin (No control pin required)
-
Maximum Data rates: 500 kbps
-
Built-in termination resistor (Use by shorting the j1 connector)
| Form Factor | Board dimension : 56 (L) x 20 (W) x 21 (H) mm |
| I/O | 1x RS-485 bus |
NOTES
Wiki: https://wiki.odroid.com/accessory/add-on_board/485board
