S1 Pro Multi Sense

Presence and environmental sensing without cameras or cloud dependency.
Wall-mounted WiFi mmWave sensor tracking up to 3 targets.
One device gives a complete picture of your space.

Peace of Mind, Built In.

Understands space, not just motion.

mmWave Presence Sensing

Advanced mmWave radar continuously tracks presence for up to three people simultaneously, including their position, distance, and movement. This allows the system to understand where someone is in a room, not just that someone moved.

With support for three configurable detection zones and one exclusion zone, you can precisely control where presence should trigger automations, and where it should be ignored. Fast, continuous updates ensure detection feels instant, stable, and reliable, even when people move slowly or remain still.

Clear insight, right out of the box.

Air Quality Intelligence

Built-in air quality sensing continuously monitors eCO₂, VOCs, IAQ, and gas resistance, giving you real-time insight into the air you breathe. Changes in air quality are detected early, helping you respond before comfort or focus is affected.

For applications where absolute accuracy matters, an optional high-precision add-on enables true CO₂ measurements. This modular approach lets you start with meaningful air quality insight immediately and upgrade when needed.

Comfort, kept in balance.

Temperature & Humidity

Temperature and humidity are measured continuously to provide a clear picture of indoor comfort. These readings help identify conditions that feel too warm, too dry, or too humid often before you consciously notice them.

By understanding how temperature and humidity change throughout the day, automations can respond more intelligently, maintaining a stable and comfortable environment without constant manual adjustment.

Aware of light, indoors and out.

Light & UV Sensing

Integrated light and UV sensing measures ambient light levels (lux) and UV index, allowing the system to understand real-world lighting conditions in and around your home. This goes beyond simple on/off detection.

Lighting automations can respond naturally to daylight, cloud cover, and sun exposure enabling smarter behavior for lighting, shading, and energy efficiency based on actual conditions, not fixed schedules.

Clear signals, when you need them.

Physical Feedback

A built-in LED and buzzer provide immediate visual and audible feedback, offering clear confirmation when something changes. Whether it’s presence detection, air quality alerts, or system status, feedback is always direct and unambiguous.

All feedback behavior is fully controlled through Home Assistant automations, giving you complete control over when, how, and if the device communicates from subtle indicators to clear alerts.

Adapts to how and where you install it.

Modular by Design

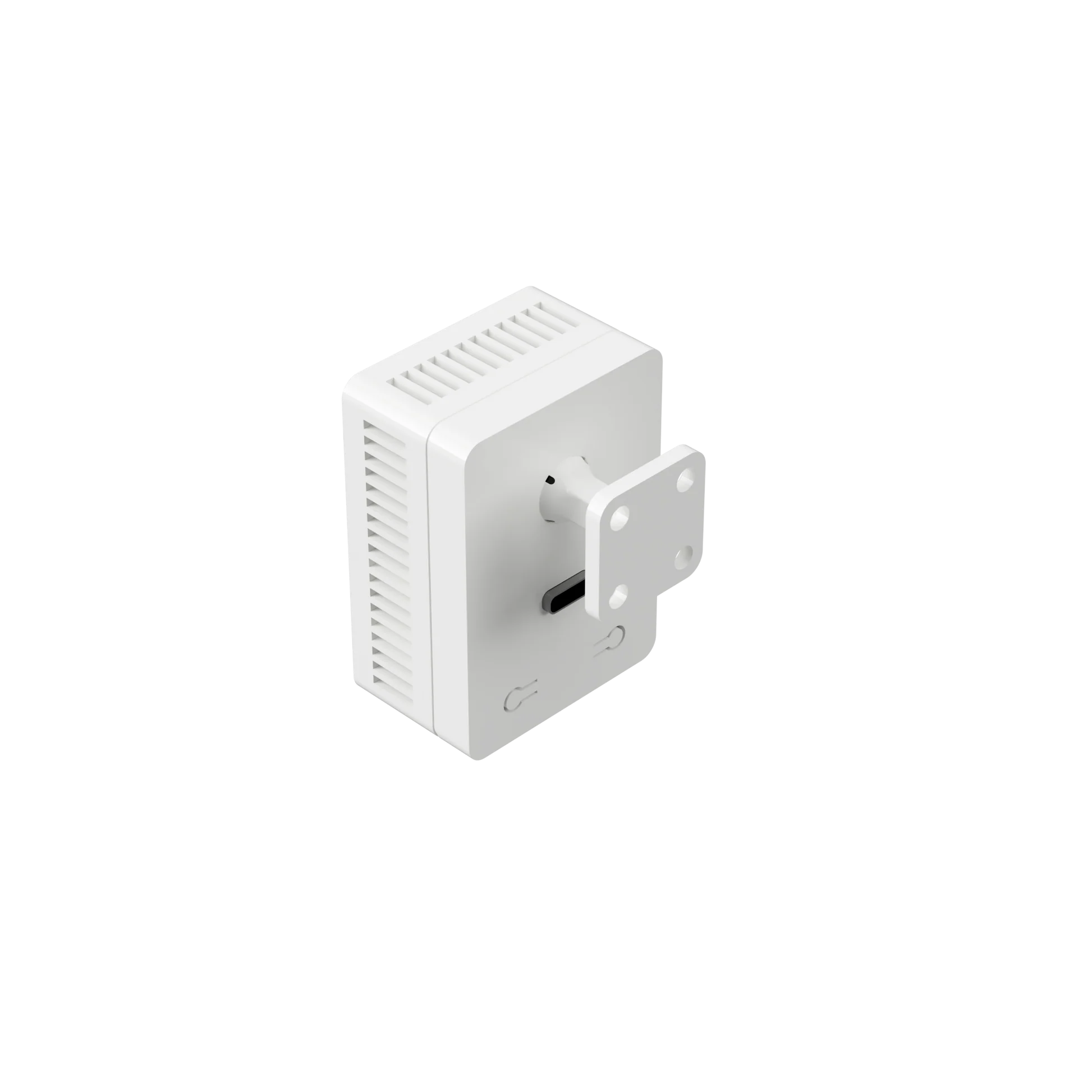

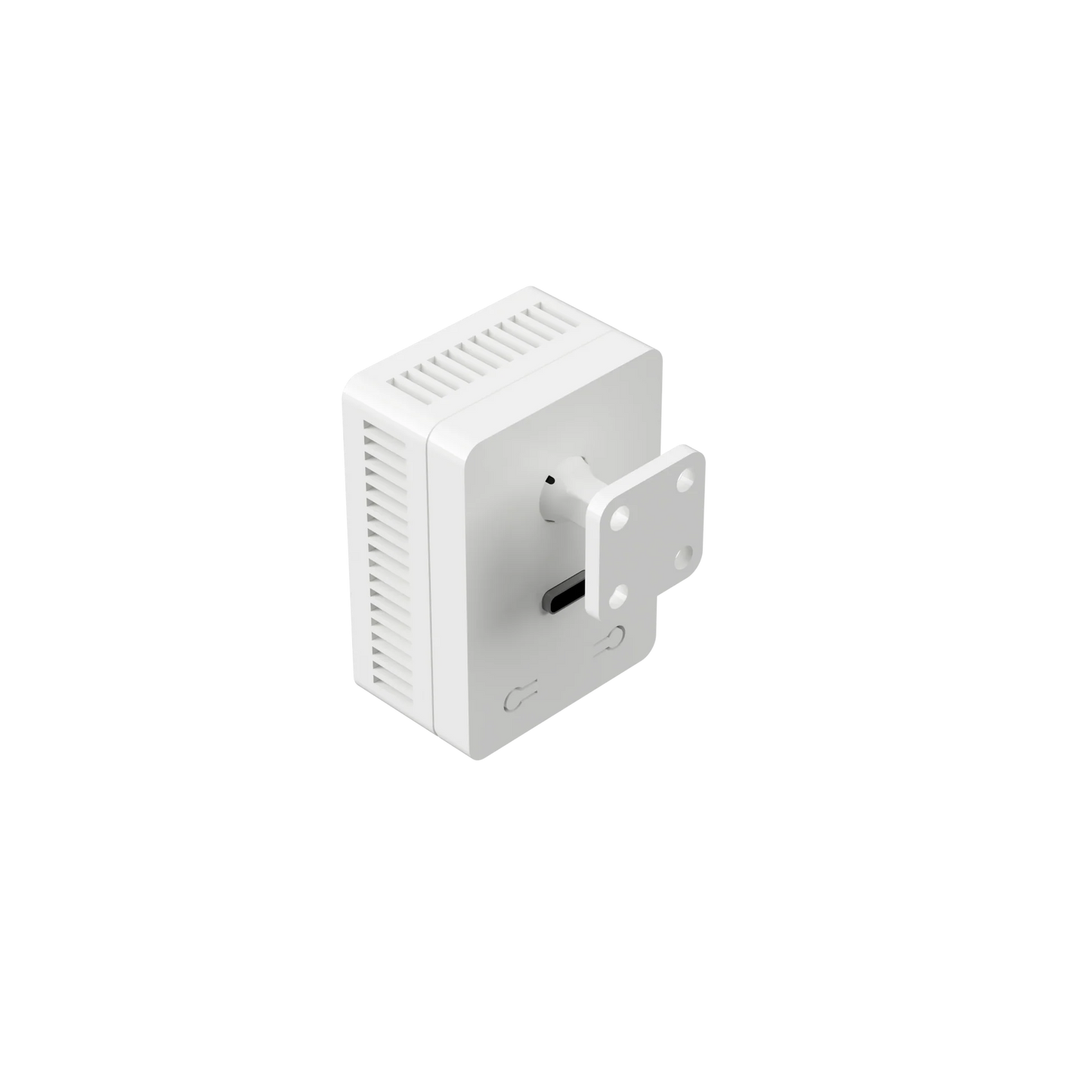

Optional mounting add-ons enable flexible positioning. Choose a standard ball mount for flat wall surfaces, or a corner ball mount for clean installation in 90° wall corners.

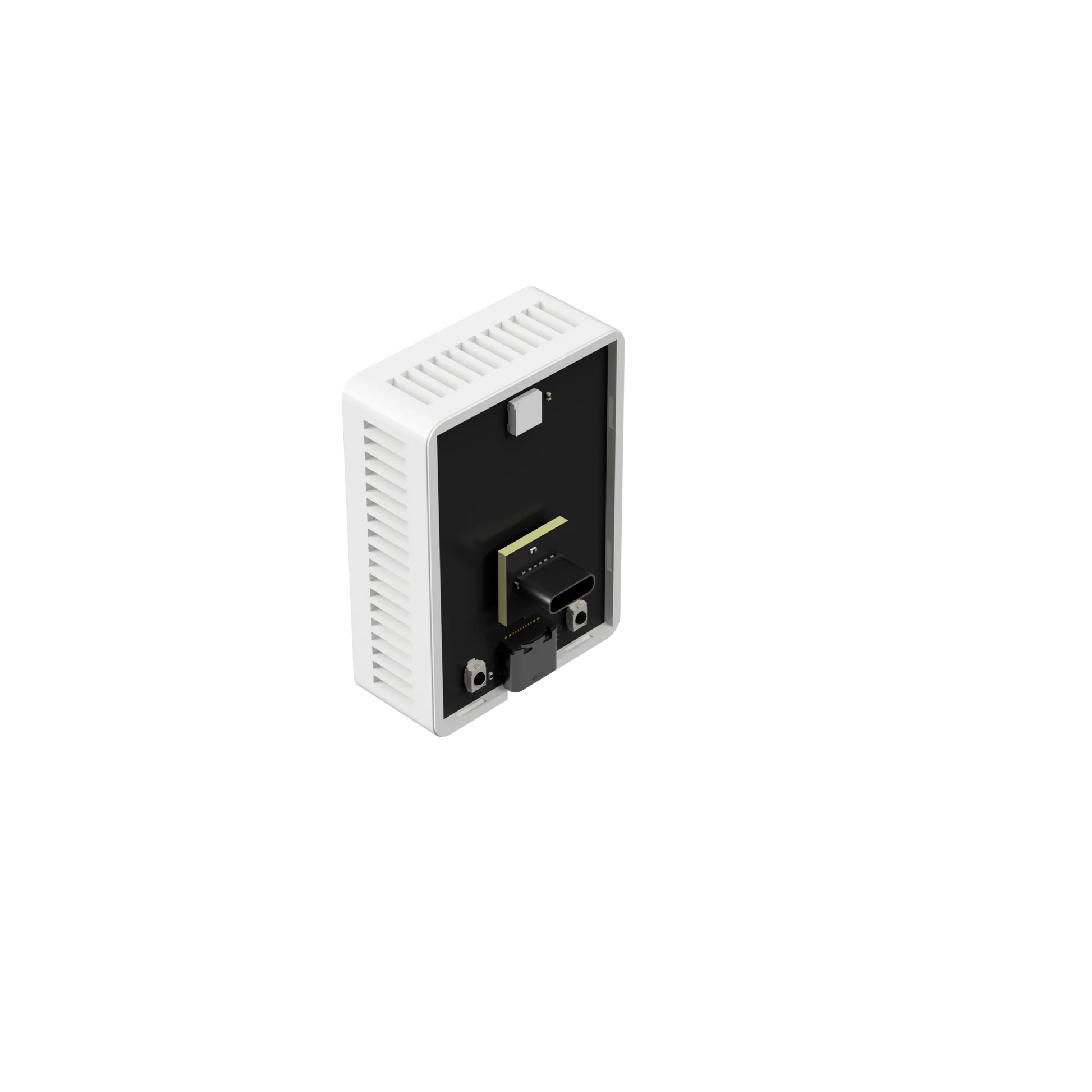

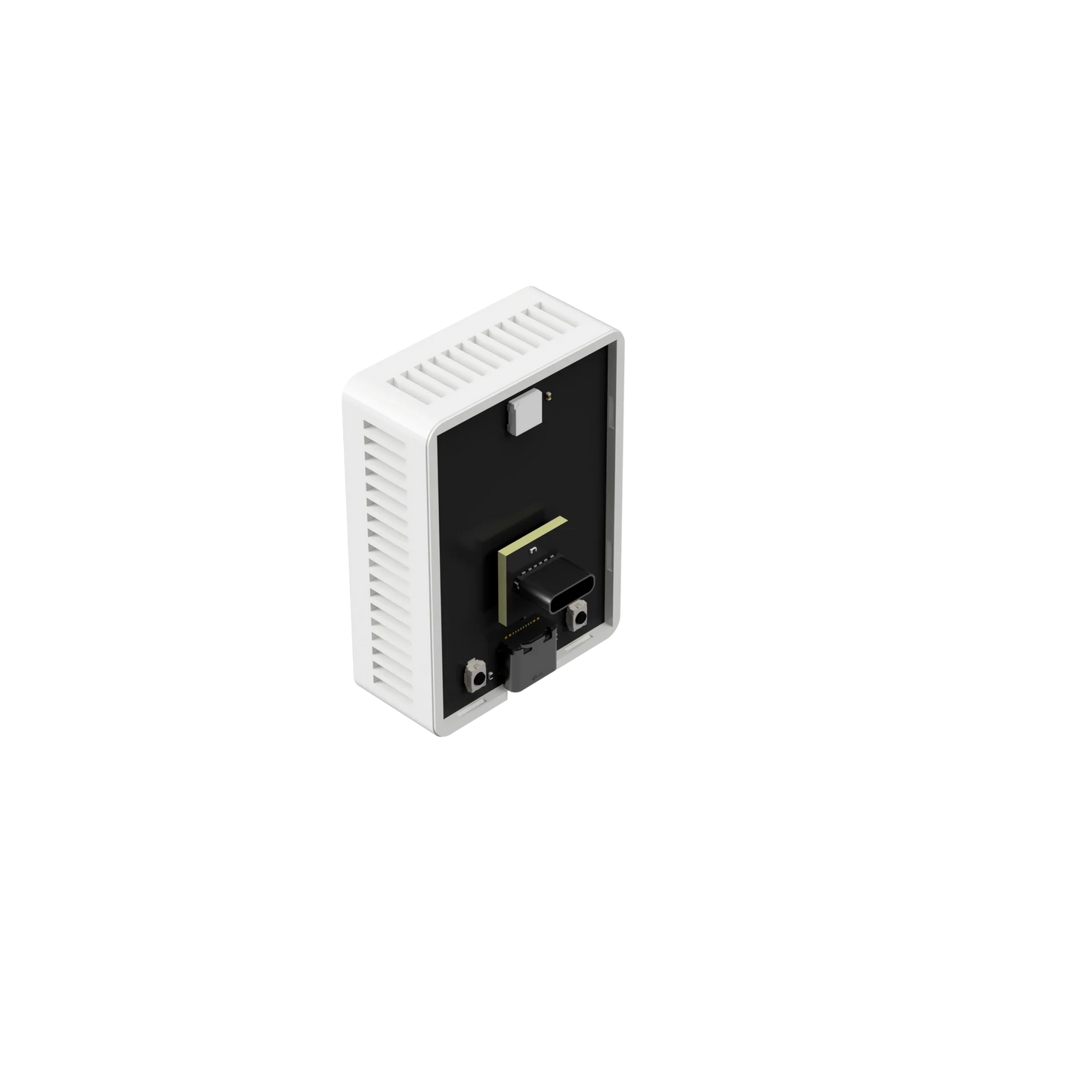

Optional USB-C add-ons adapt the device to different installation scenarios. The device includes a standard USB-C port on the bottom for wall-mounted use with a cable. Use the male USB-C accessory for direct plug-in to a wall power adapter. Use the female USB-C accessory when placing the sensor upright on a shelf, TV cabinet, or other flat surface.

Engineered to Understand Your Home.

Processing & Connectivity

• 32-bit RISC-V single-core processor
• Integrated Wi-Fi at 2.4 GHz
• Integrated Bluetooth Low Energy
• Fully compatible with ESPHome
• Fully compatible with Home Assistant

mmWave Presence Radar

• Detection range up to 6 m
• Wide horizontal field of view of 120°
• Vertical pitch angle of 35°
• Tracks up to 3 targets simultaneously
• Outputs real-time position, distance, and movement data
• Update rate of approximately 30 ms
• Supports 3 detection zones
• Supports 1 exclusion zone

Air Quality Sensor

• eCO₂ equivalent values
• VOC equivalent values
• Indoor Air Quality index
• Gas resistance measurement
• Temperature measurement
• Humidity measurement
• Air pressure measurement

Optional CO₂ Add-on

• True CO₂ measurement using NDIR technology
• Measurement range up to 40,000 ppm
• High accuracy and long-term stability
• Integrated temperature measurement
• Integrated humidity measurement

Light & UV Sensor

• Ambient light measurement in lux
• Ultraviolet index measurement

Feedback Components

• Full-color RGB LED
• Piezo buzzer rated at approximately 80–90 dB

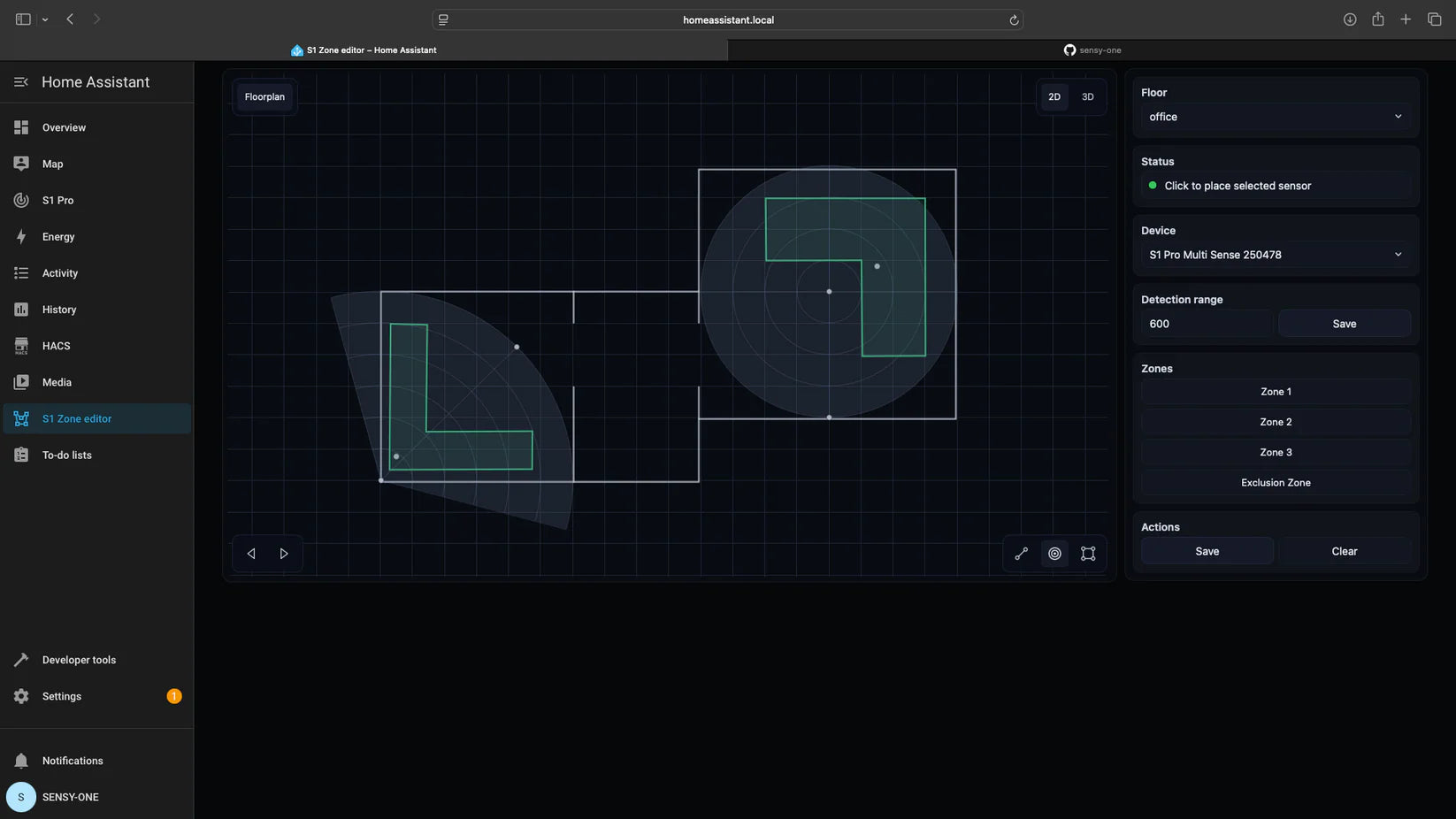

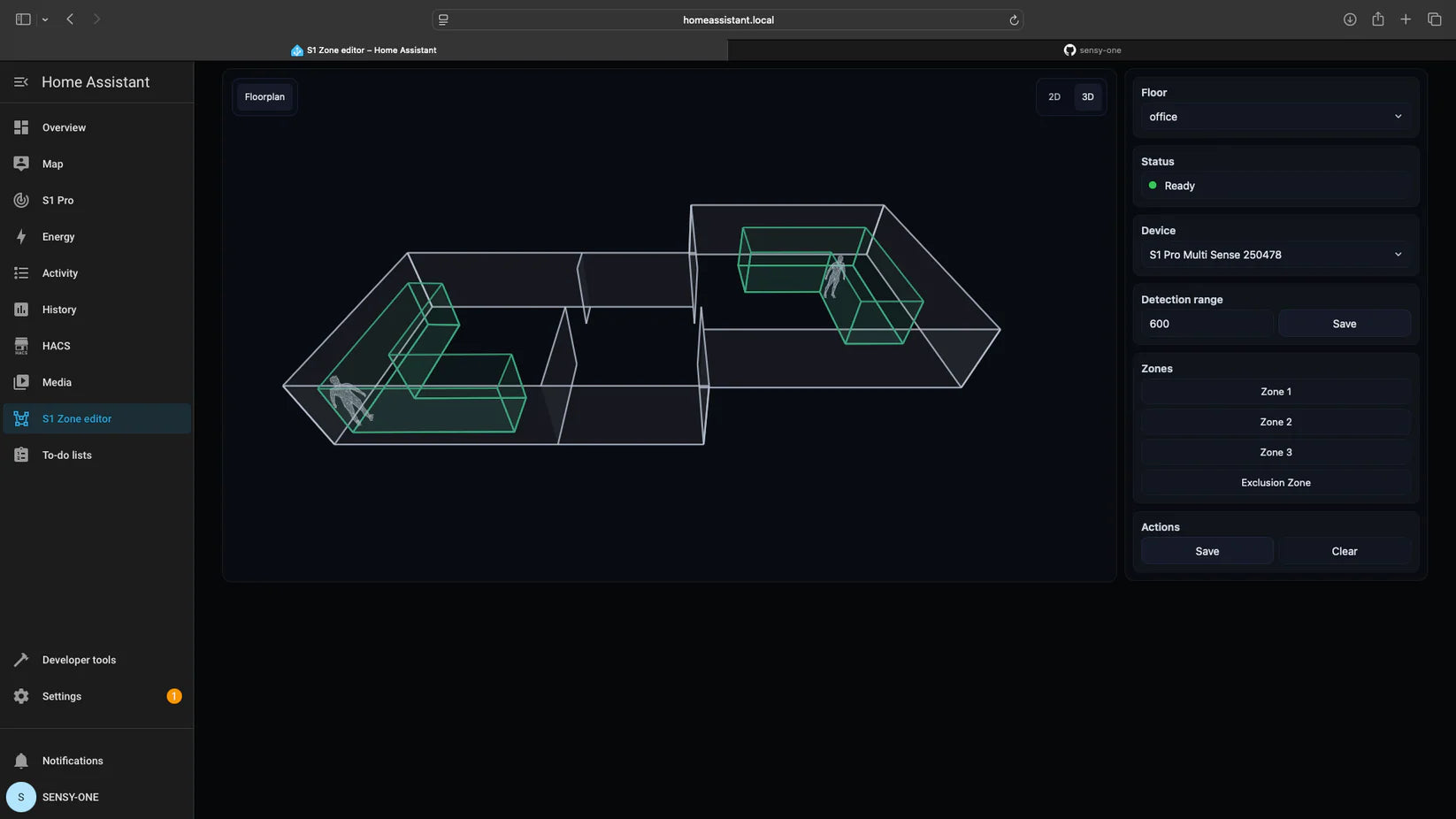

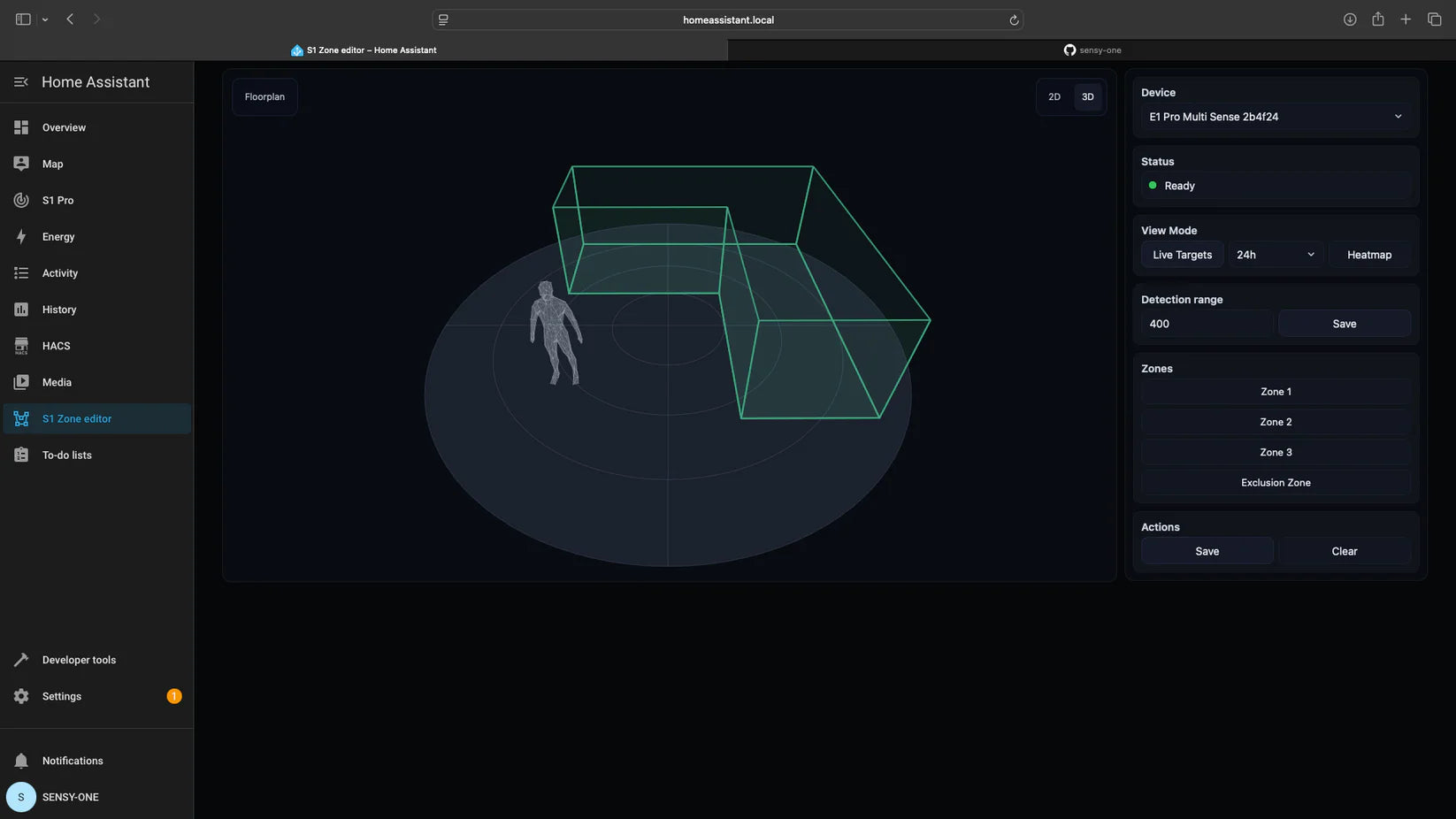

Home Assistant Add-on

• Build interactive 2D and 3D floorplans
• View live presence targets in 2D and 3D
• Analyze movement using spatial heatmaps
• Configure range, detection zones, and exclusion zones
