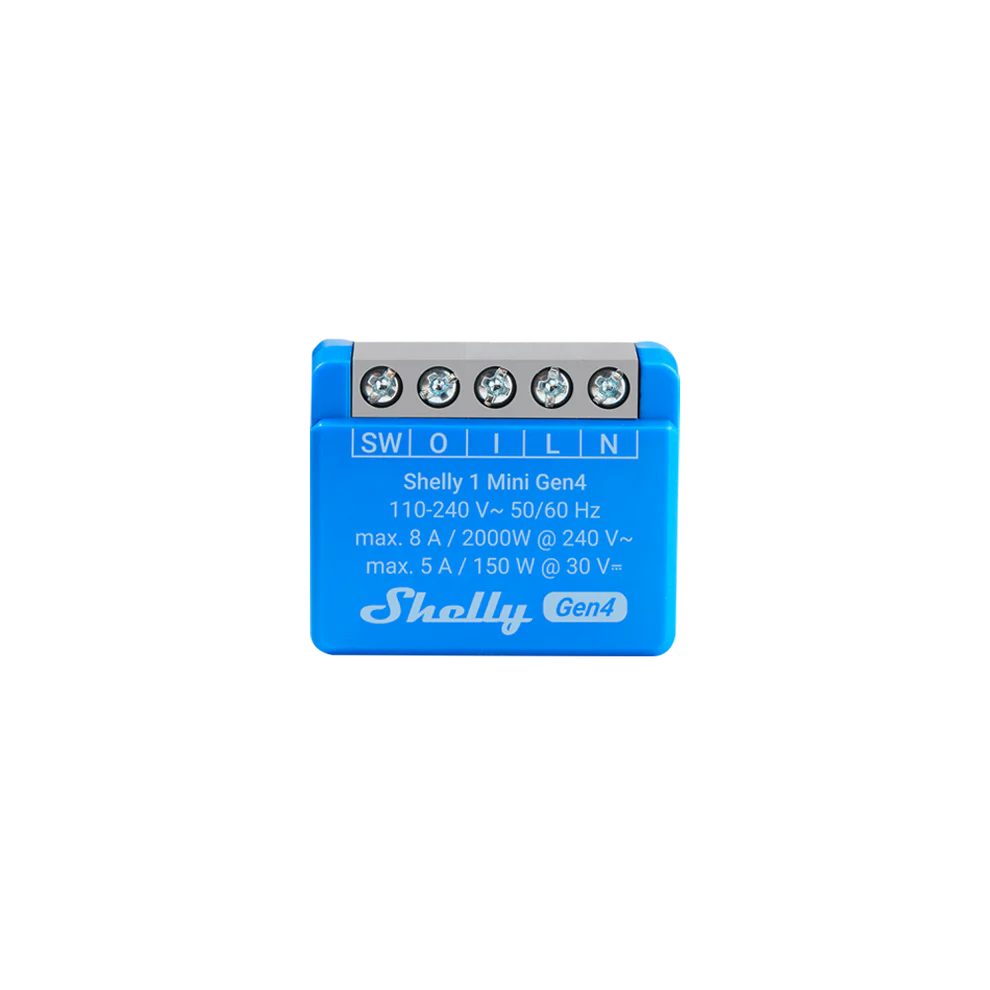

Shelly 1 Mini Gen4

Shelly's next generation compact smart switch for controlling lights and small appliances up to 8 A. Equipped with Shelly chip and multiprotocol connectivity support: Wi-Fi, Zigbee, Bluetooth, Matter.

KEY FEATURES

• New - Multiprotocol connectivity: Choose from Wi-Fi, Zigbee and Bluetooth
• New - Matter-certified
• Supports up to 8 A at 240 VAC and 5 A at 30 VDC
• Dry contacts (potential-free) - option for contactor control
• Perfect to retrofit behind existing switches and sockets
• Wi-Fi and Zigbee range extender & Bluetooth gateway
• Supports schedules, scenes and local actions
• Supports scripting, HTTPS, MQTTS, Inbound and Outbound Web Sockets
• No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform.

Shelly 1 Mini Gen4 is a small form factor smart switch with potential-free contacts, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device is an improved version of Shelly 1 Mini Gen3 with a more advanced processor and Zigbee connectivity.

Shelly 1 Mini Gen4 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

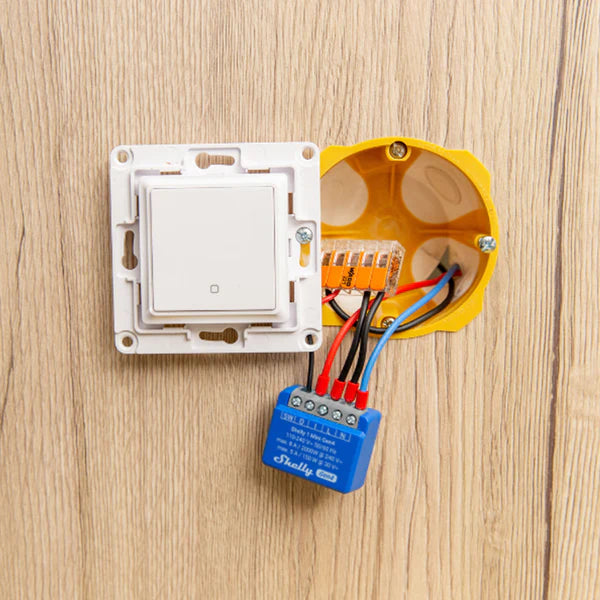

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.

Shelly 1 Mini Gen4 has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.
The device has multi-protocol wireless MCU which provide Zigbee and Bluetooth connectivity ensuring a secure connection.

This device is compatible with Matter.

SPECIFICATIONS

Physical
Size (HxWxD)	29x34x16 ±0.5 mm / 1.34x1.11x0.63 ±0.02 inch
Weight	19 ±1 g / 0.65 ±0.04 oz
Screw terminals max torque	0.4 Nm / 3.5 lbin
Conductor cross section	0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length	6 to 7 mm / 0.24 to 0.28 in
Mounting	Wall box
Shell material	Plastic
Shell color	Blue, C-95%; M-53%; Y-0%; K-0%
Connectors color	Grey (Mouse Grey)
Environmental
Ambient working temperature	-20 °C to 40 °C / -5 °F to 105 °F
Humidity	30 % to 70 % RH
Max. altitude	2000 m / 6562 ft
Electrical
Power supply	110 - 240 V~
Relay	Dry, NO contact, 1-pole, µ contact
Power consumption	< 1.2 W
External protection	Tripping characteristic B or C, max. 10A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
Output Circuits Ratings
Max. switching voltage	240 V~ 30 V⎓
Max. switching current	8 A/240 V~ 5 A/30 V⎓
Max. output power	2000 W/240 V~ 150 W/30 V⎓
Voltage protection / Cutoff	No
Current protection / Cutoff	No
Max power protection / Cutoff	No
Sensors, Meters
Internal-temperature sensor	Yes
Radio
Wi-Fi	Protocol: 802.11 b/g/n/ax RF band: 2412 - 2472 MHz Max. RF power: < 20 dBm Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth	Protocol: 5.0 RF band: 2402 - 2480 MHz Max. RF power: < 4 dBm Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Zigbee	Protocol: 802.15.4 RF bands: 2400 to 2483.5 MHz Max. RF power: < 20 dBm Range: Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions)
Microcontroller Unit
CPU	ESP-Shelly-C68F
Flash	8 MB
Firmware Capabilities
Schedules	20
Webhooks (URL actions)	20 with 5 URLs per hook
Scripting	Yes
MQTT	Yes
Basic Wiring Diagrams
Wiring Diagram
Terminals Legend
SW	Switch (controlling O) input terminal
L	Live (110 - 240 V~) wire
O	Load circuit output terminal
N	Neutral wire
I	Load circuit input terminal
L	Live (110-240 V) terminal
N	Neutral terminal
