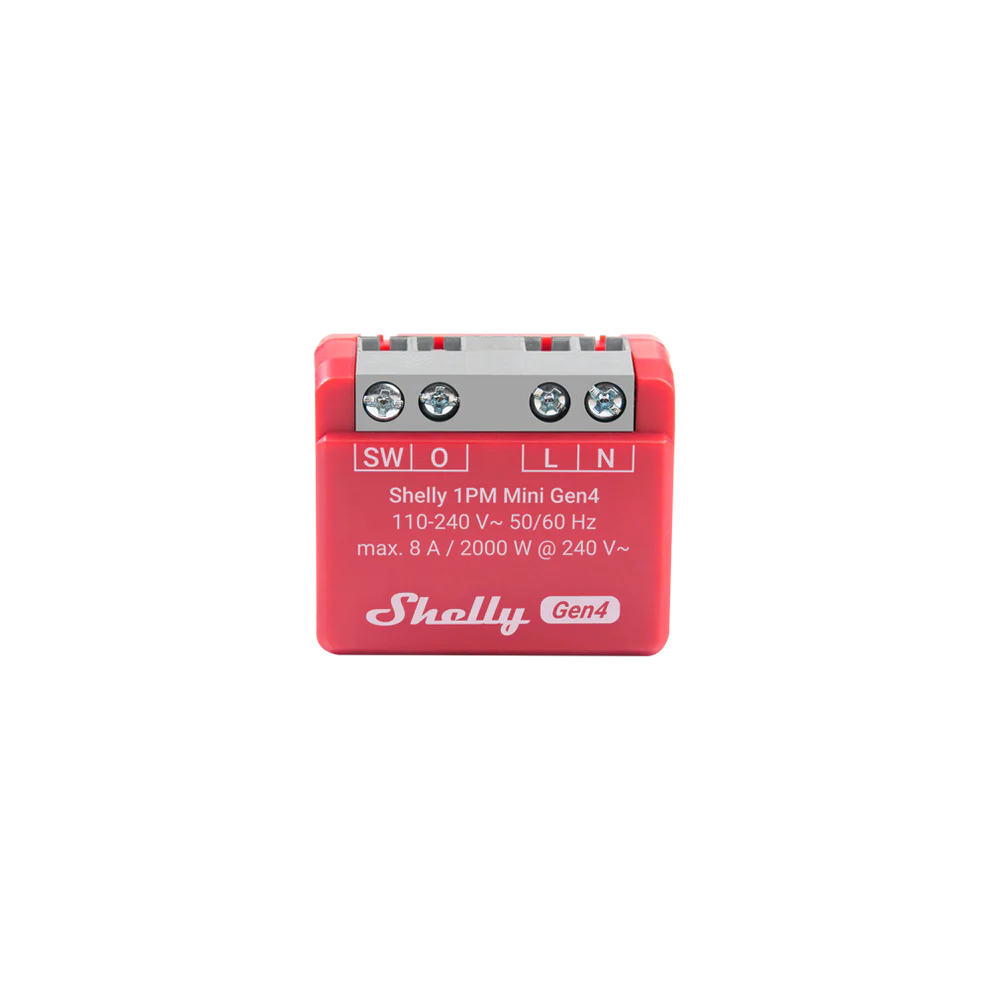

Shelly 1PM Mini Gen4

A compact smart switch with power metering for controlling lights and small appliances up to 8 A. Equipped with Shelly chip and multiprotocol connectivity support: Wi-Fi, Zigbee, Bluetooth, Matter.

KEY FEATURES

• New - Multiprotocol connectivity: Choose from Wi-Fi, Zigbee and Bluetooth
• New - Matter-certified
• Supports up to 8 A at 240 VAC
• Precise and real-time power metering with free cloud data storage for analysis and energy usage optimization.
• Perfect to retrofit behind existing switches and sockets
• Supports schedules, scenes and local actions
• Supports scripting, HTTPS, MQTTS, Inbound and Outbound Web Sockets
• No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform.

Shelly 1PM Mini Gen4 is a small form factor smart switch with power measurement, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device is an improved version of Shelly 1PM Mini Gen3 with with a more advanced processor and Zigbee connectivity.

Shelly 1PM Mini Gen4 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

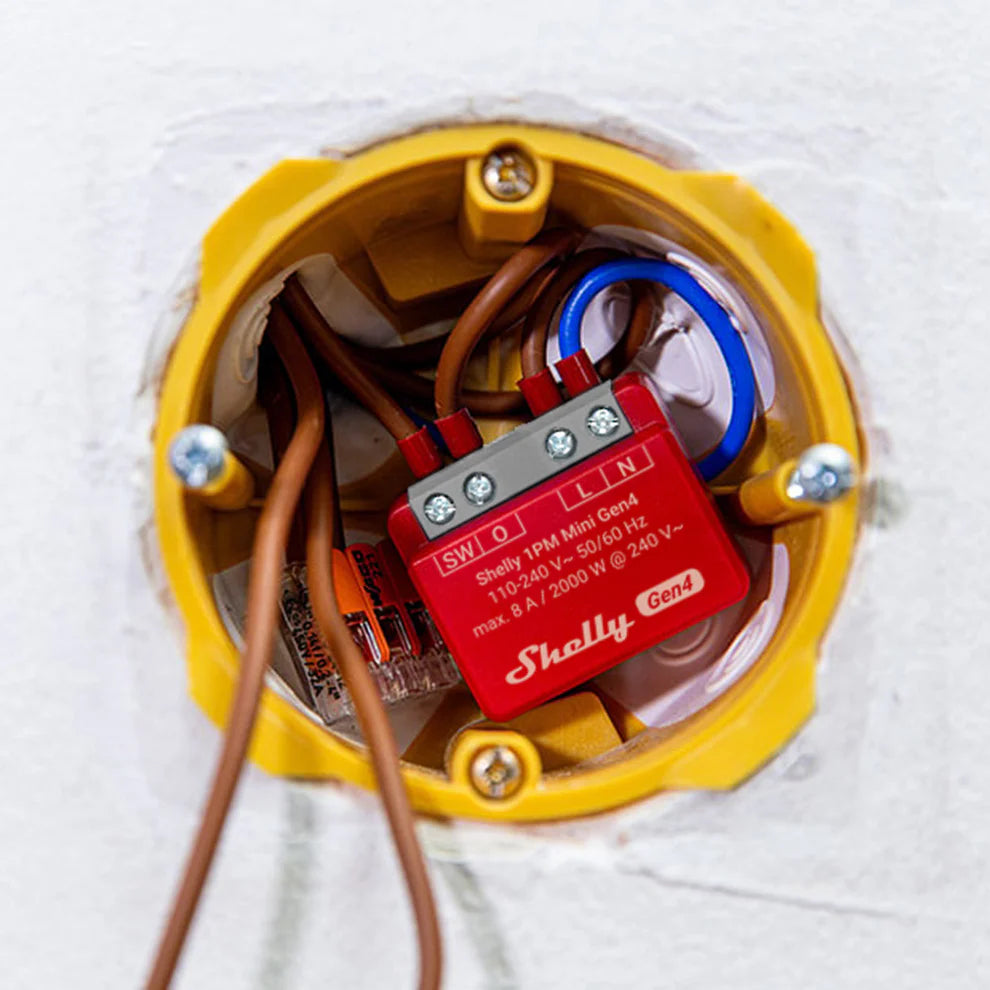

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.

Shelly 1PM Mini Gen4 has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.
The device has multi-protocol wireless MCU which provide Zigbee and Bluetooth connectivity ensuring a secure connection.

This device is compatible with Matter.

SPECIFICATIONS

Physical
Size (HxWxD)	29x34x16 ±0.5 mm / 1.34x1.11x0.63 ±0.02 inch
Weight	18 ±1 g / 0.63 ±0.04 oz
Screw terminals max torque	0.4 Nm / 3.5 lbin
Conductor cross section	0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length	6 to 7 mm / 0.24 to 0.28 in
Mounting	Wall box
Shell material	Plastic
Shell color	Red, C-3%; M-100%; Y-70%; K-12%
Connectors color	Grey (Mouse Grey)
Environmental
Ambient working temperature	-20 °C to 40 °C / -5 °F to 105 °F
Humidity	30 % to 70 % RH
Max. altitude	2000 m / 6562 ft
Electrical
Power supply	110 - 240 V~
Relay	NO contact, 1-pole, µ contact
External protection	Tripping characteristic B or C, max. 10A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
Output Circuits Ratings
Max. switching voltage	240 V~
Max. switching current	8A/240 V~
Power measurement	Yes
Voltage protection / Cutoff	Yes
Current protection / Cutoff	Yes
Max power protection / Cutoff	Yes
Sensors, Meters
Internal-temperature sensor	Yes
Radio
Wi-Fi	Protocol: 802.11 b/g/n/ax RF band: 2412 - 2472 MHz Max. RF power: < 20 dBm Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth	Protocol: 5.0 RF band: 2402 - 2480 MHz Max. RF power: < 4 dBm Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Zigbee	Protocol: 802.15.4 RF bands: 2400 to 2483.5 MHz Max. RF power: < 20 dBm Range: Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions)
Microcontroller Unit
CPU	ESP-Shelly-C68F
Flash	8MB
Firmware Capabilities
Schedules	20
Webhooks (URL actions)	20 with 5 URLs per hook
Scripting	Yes
MQTT	Yes
Basic Wiring Diagrams
Wiring Diagram
Terminals Legend
SW	Switch (controlling O) input terminal
L	Live (110 - 240 V~) wire
O	Load circuit output terminal
N	Neutral wire
L	Live (110-240 V) terminal
N	Neutral terminal
