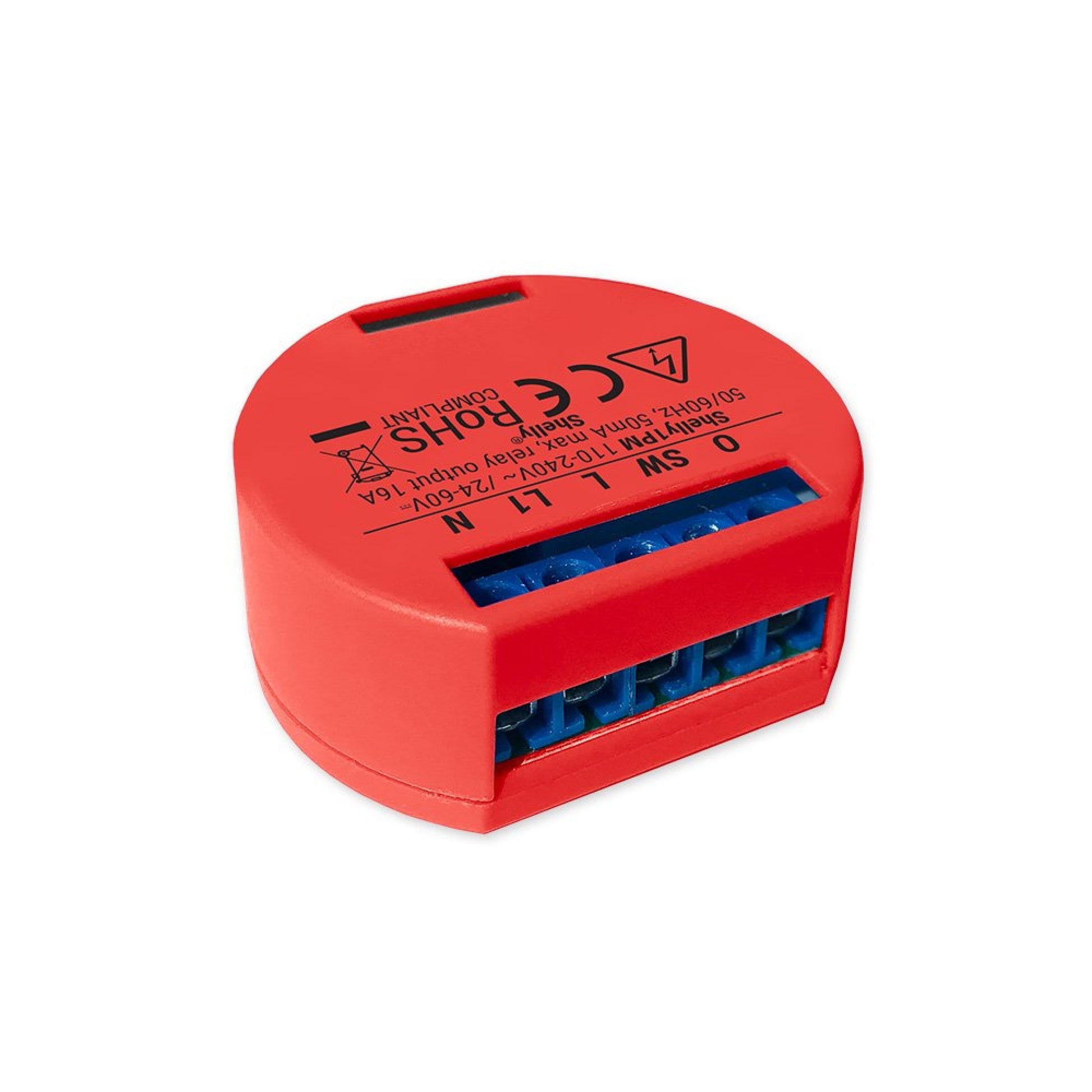

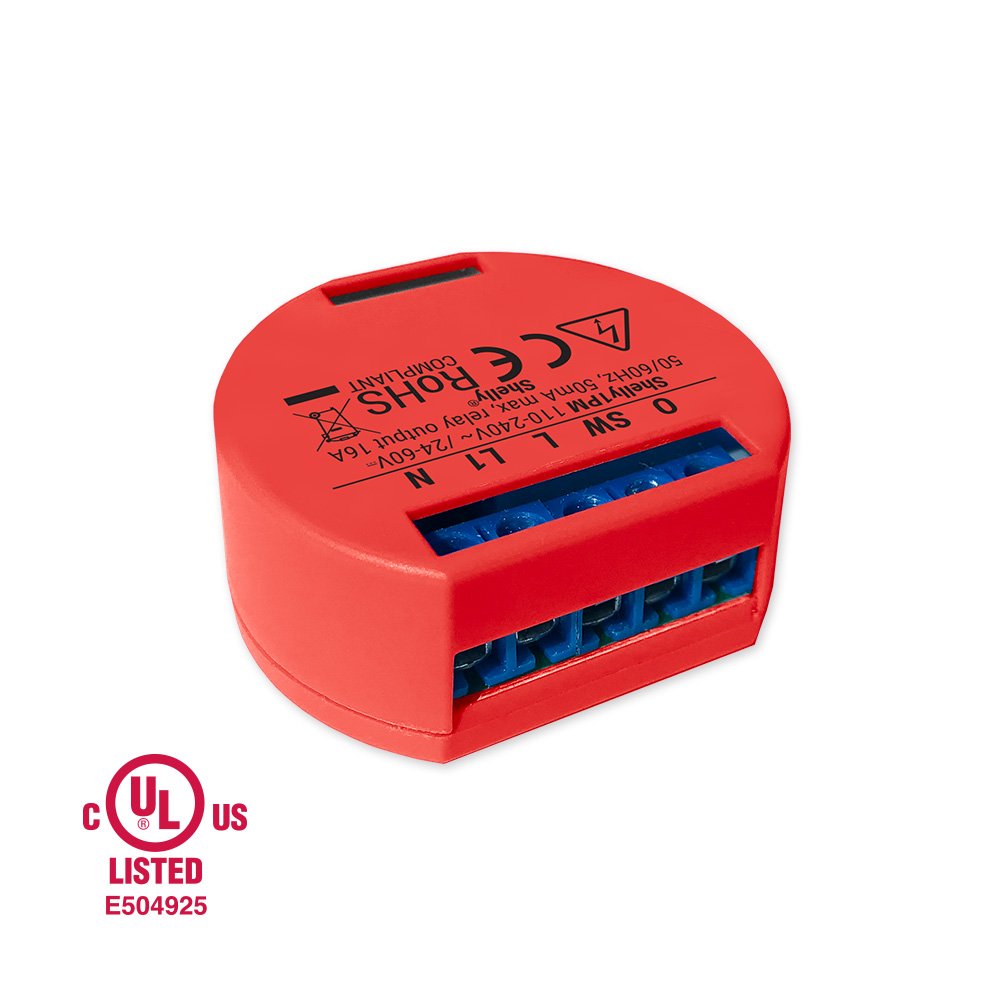

Shelly 1PM - WiFi AC/DC Relay Switch 16A

Shelly 1PM - WiFi AC/DC Relay Switch 16A

Orders placed now will ship within the next 2 business days depending on demand.
Note: Pre-order items, items that require assembly, or items indicating otherwise may ship later.

$19.95 USD
$23.95 USD $19.95 USD
Sale Sold out
Shipping calculated at checkout.
Certification

In stock

 More payment options
Description ▼

WiFi-operated Relay Switch

Control a wide range of home appliances and office equipment (lights, power lines, garage doors, curtains, security systems, heating radiators, air conditioners, etc.)  from anywhere with the smallest WiFi-operated relay switch.

KEY FEATURES

  • Open Source
  • Firmware Reprogrammable
  • Embedded webserver
  • Designed for installation in a limited space, such as wall mounts, electrical control panels, etc.
  • Can function as a standalone device, as an accessory to a home automation controller, or it may be used as another automation system's component
  • Can support electrical circuits up to 3.5 kW with energy consumption monitoring, overload protection, and temperature protection

NOTES

  • Standard warranty (included in purchase price): 24-month warranty through manufacturer due to device malfunctions when it is used in user manual described conditions.
  • While this is technically user-installable in many locales, we recommend consulting a licensed electrician to install automation components - in addition to being licensed to work with electrical devices, they are also familiar with local building codes.
  • Manufacturer's note: Each Shelly device emits heat under load. Do not combine two or more Shelly devices stacked on top of each other in a confined space. There must be a minimum distance of 1 cm between them to allow for airflow.
  • IF SELECTING A RECERTIFIED UNIT, PLEASE NOTE: EVERY UNIT HAS BEEN MANUALLY TESTED INDIVIDUALLY BY AN AMERIDROID ENGINEER TO BE IN FULLY-WORKING CONDITION AND COMES WITH THE SAME WARRANTY AS THE ORIGINAL PRODUCT. IT CAN BE THAT THE UNIT MIGHT BE ASSIGNED TO A PREVIOUS OWNER ACCOUNT AND SHELLY IS THE ONLY ONE WHO CAN UNLOCK THE UNITS.

SPECIFICATIONS

Category Details
Power supply AC 110-230V ±10%, 50/60Hz
Power supply DC 30 - 50V
Dry contacts No
Roller shutter mode No
Device temperature protection Yes
Overload protection Yes
Power measurement Yes
Working without a neutral line No
Channels 1 Channel
Maximum load 16A
Operational temperature -40 to +40°C
Device power consumption < 1 W
Intelligent On/Off Yes
Local and remote control Yes
Sunrise/Sunset Yes
Weekly Schedule Yes
UL Listed option Yes
Wireless/WiFi Protocol 802.11 b/g/n
Radiofrequency 2400 - 2484 MHz
Radio signal power 1mW
Range up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
Size 41mm x 36mm x 17mm



LINKS

Recommended Accessories ▼
Bundle Deals▼

Let’s Connect! We’re a small business passionate about helping you achieve your goals of comfort, privacy, and security with Home Assistant, Single Board Computers, and more. Get in touch for a free consultation or just a fun chat about what’s possible—we’ll do our best to guide you in the right direction and get you the best deal! As a small team, we’ll strive to be available or get back to you as soon as possible.

E0084

View full details

SBC Memory Match

Select your difficulty level for a shot at winning a discount code! (Important: You can play the game as many times as you like, even across multiple sessions or browsers, but you'll only receive one unique discount code per account—no additional codes will be issued for future plays. The code itself is redeemable just one time on a single order.)

Discount code cannot be combined with other offers.

Discount codes are valid for 24 hours only.

Choose a difficulty to win a discount!

Trivia Time!

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Recovering Engineer
Great little switch

Great little switch. The app makes it surprisingly simple to configure. The "SW" terminal had me puzzled — the wiring instructions are inadequate — because I don't have a local switch. I love the power monitoring aspect of this device. All in all, great value.
