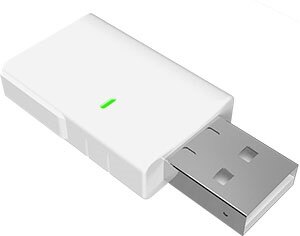

ShellyBLU Gateway (the Device) is a smart BLE to Wi-Fi gateway in a USB A dongle.
SPECIFICATIONS
Type
Value
Physical
Size (HxWxD):
45x20x8 mm / 1.77x0.79x0.21 in
Weight:
5 g / 0.18 oz
Material:
Plastic
Color:
White
Environmental
Ambient temperature:
-20 °C to 40 °C / -5 °F to 105 °F
Humidity
30 % to 70 % RH
Electrical
Power supply:
5 VDC (from USB Type-A port)
Power consumption:
< 1 W
Radio
RF band:
2400 - 2495 MHz
Max. RF power:
<20 dBm
Wi-Fi protocol:
802.11 b/g/n
Wi-Fi Range:
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol:
4.2
Bluetooth Range:
Up to 20 m / 66 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
MCU
CPU:
ESP32
Flash:
4 MB
Firmware capabilities
Scripting:
Yes
MQTT:
Yes
CoAP:
No
NOTES
Standard warranty (included in purchase price): 24-month manufacturer warranty due to device malfunctions when it is used in user manual described conditions.
