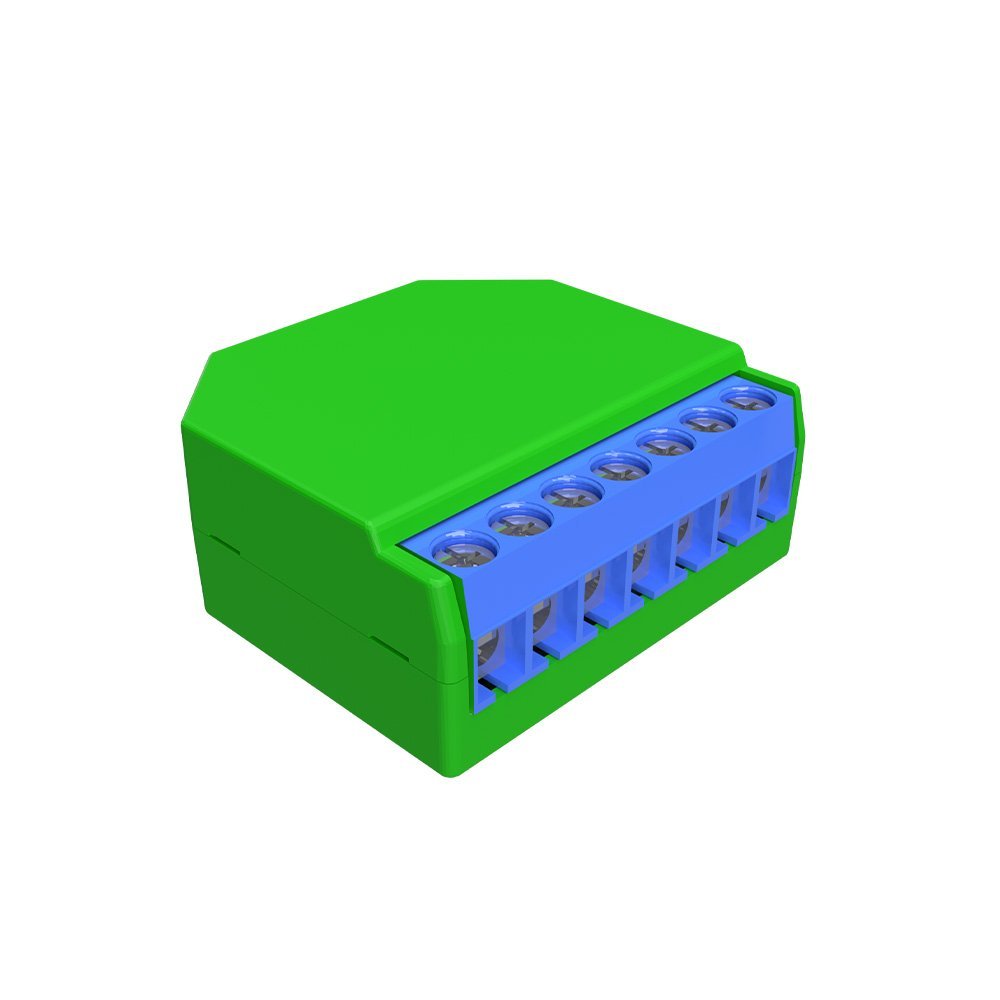

Shelly Dimmer 2 - WiFi AC Dimmer for Bulbs / LEDs / Transformers
Shelly Dimmer 2 - WiFi AC Dimmer for Bulbs / LEDs / Transformers
Thank you for supporting a US-based small business!
Out of Stock!
Couldn't load pickup availability
🎄 Sending this as a gift?
Add gift wrapping to this order for $6.95. Pricing is left out of the package.
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
WiFi-operated Dimmer
Control a wide range of halogen lights, dimmable LEDs, and ferromagnetic transformers from anywhere with the smallest WiFi-operated dimmer in the world. no neutral line required.
KEY FEATURES
- Open Source
- Firmware Reprogrammable
- Embedded webserver
- Designed for installation in a limited space, such as wall mounts, electrical control panels, etc.
- Can function as a standalone device, as an accessory to a home automation controller, or it may be used as another automation system's component.
NOTES
- Standard warranty (included in purchase price): 24-month warranty through manufacturer due to device malfunctions when it is used in user manual described conditions.
- For multiple loads (bulbs, LEDs, transformers) connected to one Dimmer 2, all loads connected to the Dimmer 2 must be equal in power load and technology - do not mix loads on the Dimmer 2.
-
While this is technically user-installable in many locales, we recommend consulting a licensed electrician to install automation components - in addition to being licensed to work with electrical devices, they are also familiar with local building codes.
-
Manufacturer's note: Each Shelly device emits heat under load. Do not combine two or more Shelly devices stacked on top of each other in a confined space. There must be a minimum distance of 1 cm between them to allow for airflow.
- IF SELECTING A RECERTIFIED UNIT, PLEASE NOTE: EVERY UNIT HAS BEEN MANUALLY TESTED INDIVIDUALLY BY AN AMERIDROID ENGINEER TO BE IN FULLY-WORKING CONDITION AND COMES WITH THE SAME WARRANTY AS THE ORIGINAL PRODUCT. IT CAN BE THAT THE UNIT MIGHT BE ASSIGNED TO A PREVIOUS OWNER ACCOUNT AND SHELLY IS THE ONLY ONE WHO CAN UNLOCK THE UNITS.
| Power | |
| Power supply AC | 110-230V ±10%, 50/60Hz |
| Special functions | |
| Device temperature protection | Yes |
| Overload protection | Yes |
| Power measurement | Yes |
| Dimming | Yes |
| Dimmable LED | 50-200VA / 10W – 200W |
| Incandescent and halogen light sources | 10-220W |
| Resistive-inductive loads ferromagnetic transformers | 50-150VA |
| Working without a neutral line | Yes |
| Features | |
| Colour changing | No |
| Predefined effects | Yes |
| Channels | 1 Channel |
| Operational temperature | 0°C to + 35 °C |
| Device power consumption | < 1 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| Connectivity | |
| Wireless/WiFi Protocol | 802.11 b/g/n |
| Radiofrequency | 2400 - 2484 MHz |
| Radio signal power | 1mW |
| Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Dimensions | |
| Size | 42mm x 36mm x 14 mm |
LINKS
- Official Support - https://shelly.cloud/support/
- Support Group - https://www.facebook.com/groups/ShellyIoTCommunitySupport
- API and Communication Documentation - https://shelly-api-docs.shelly.cloud/gen1/
VIDEOS
