Shelly Flood Gen 4

Physical

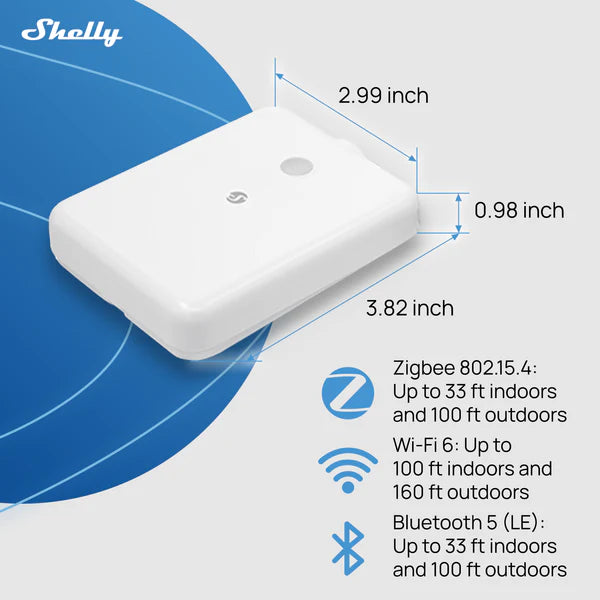

Size (HxWxD):

97x76x25 mm / 3.82x2.99x0.98 inch

Weight:

• 91 g / 3.21 oz (without batteries)

• 185 g / 6.53 oz (with batteries)

Mounting:

Wall

Shell material:

Plastic

Shell color:

White

Environmental

Ambient working temperature:

-20°C to 40°C / -5°F to 105°F

Humidity:

30% to 70% RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply:

Batteries

Battery type:

4x AA 1.5 V

Estimated battery life:

approx. 2 years (depending on batteries used, device usage, and network connection strength)

Sensors, meters

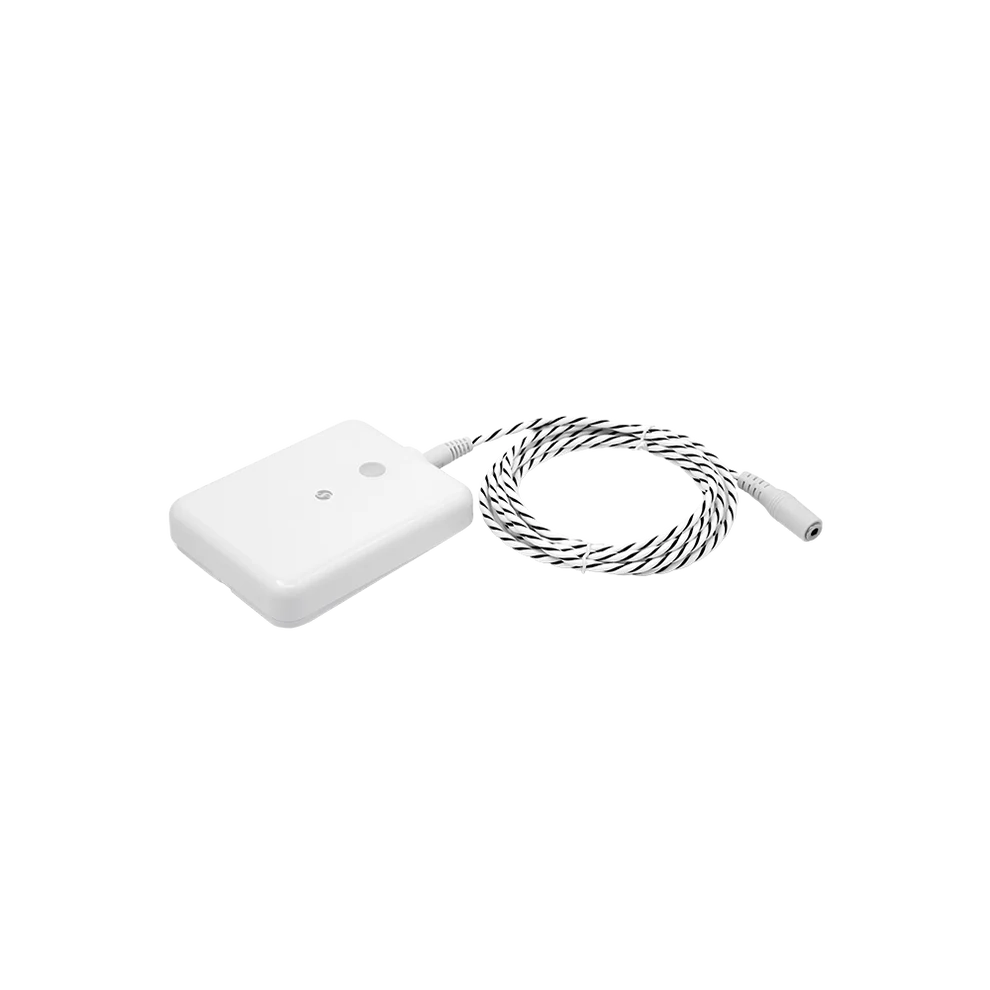

Leak sensor cable:

2 m, extendable (up to 150 m), attaches via designated port

Radio

Wi-Fi

Protocol:

802.11 b/g/n/ax

RF band:

2401 - 2483 МHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth

Protocol:

5 (LE)

RF band:

2402 - 2480 MHz

Max. RF power:

< 20 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

Zigbee

Protocols:

802.15.4

RF bands:

2405 to 2480 MHz

Max. RF power:

< 20 dBm

Range:

Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors
(Depends on local conditions)

Microcontroller unit

CPU:

ESP-Shelly-C68F

Flash:

8 MB

Firmware capabilities

Schedules:

No

Webhooks (URL actions):

10 with 2 URLs per hook

Scripting:

No

MQTT:

Yes

UDP:

Yes

KVS (Key-Value Store):

Yes
