Shelly Pro 2PM
Shelly Pro 2PM
Thank you for supporting a US-based small business!
Out of Stock!
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼

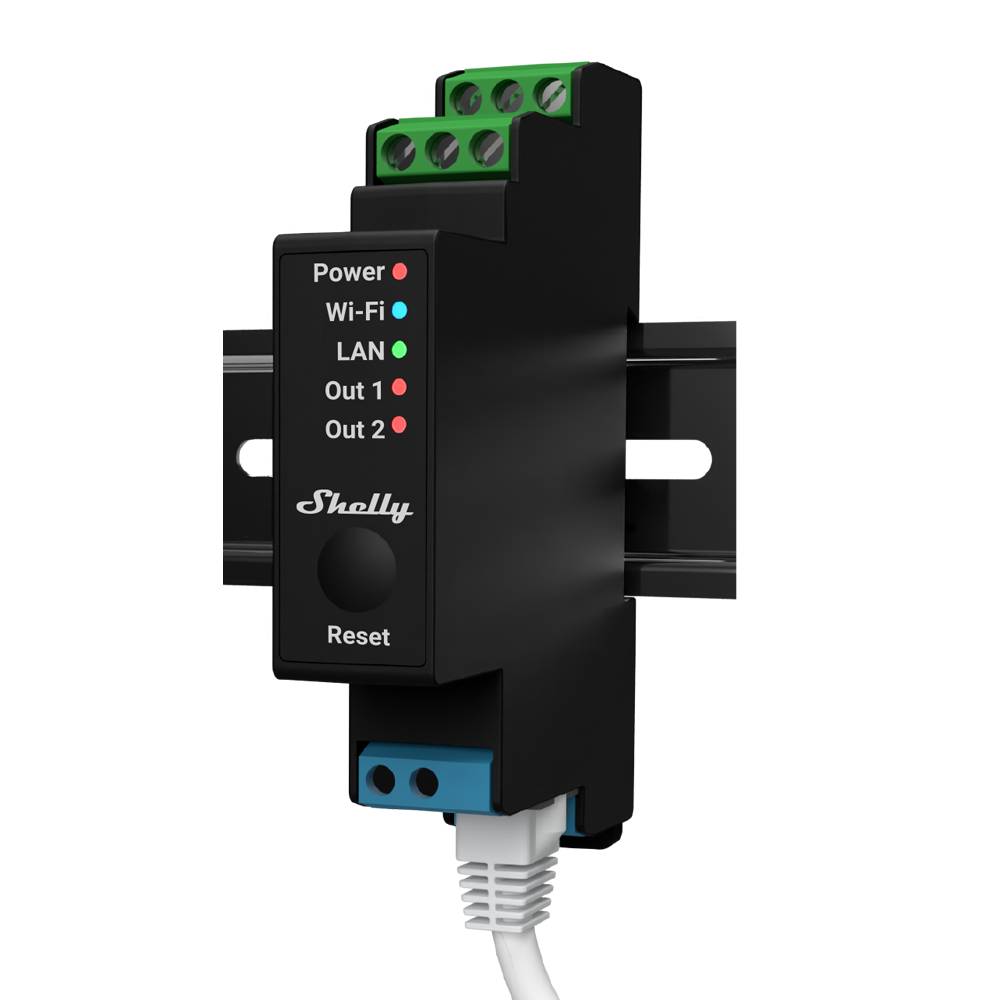

2 channel DIN rail relay switch with power metering and Wi-Fi, LAN and Bluetooth connection
Professional 2 channel relay with Wi-Fi, LAN, and Bluetooth connection, suitable for home and facility automation with remote control and precise power management. DIN rail mountable insde a breaker box. Enhanced safety features and compatible with most used home automation platforms.
KEY FEATURES
- LAN, Wi-Fi, and Bluetooth connection
- 2 output, 16A each. Total device maximum of 25A
- Power metering
- DIN rail mountable
- Roller Shutter - Requires upcoming firmware update of the device.
- We offer the latest versions offered by Shelly once the previous ones has been discontinued, current version is Shelly Pro 2PM v.1
NOTES
-
Standard warranty (included in purchase price): 5 Years warranty through manufacturer due to device malfunctions when it is used in user manual described conditions.
-
While this is technically user-installable in many locales, we recommend consulting a licensed electrician to install automation components - in addition to being licensed to work with electrical devices, they are also familiar with local building codes.
- Manufacturer's note: Each Shelly device emits heat under load. Do not combine two or more Shelly devices stacked on top of each other in a confined space. There must be a minimum distance of 1 cm between them to allow for airflow.
| Power | |
| Power supply AC | 110-240V ±10%, 50/60Hz |
| Power supply DC |
12V DC ± 10% |
| Maximum Load | 2 outputs, 16A each. Total device maximum of 25A |
| Special functions | |
| Roller Shutter Mode |
Requires upcoming firmware update of the device. |
| Device Temperature Protection |
Yes |
| Overload Protection | Yes |
| Power Measurement | Yes |
| Features | |
| HTTP/HTTPS webhooks | Yes |
| Custom scripts(mJs) | Yes |
| Channels | 2 Channel |
| Operational temperature | 0°C to + 40 °C |
| Device power consumption | < 4 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| Connectivity | |
| Wireless | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Radio frequency | 2412 - 2484 MHz |
| Wi-Fi Radio signal power | 1mW |
| Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Bluetooth | Yes |
| Ethernet | Yes |
| Dimensions | |
| Size | 18,5mm x89,5mm x 68,5mm |
LINKS
- Official Support - https://shelly.cloud/support/
- Support Group - https://www.facebook.com/groups/ShellyIoTCommunitySupport
- API and Communication Documentation - https://shelly-api-docs.shelly.cloud/gen2/
