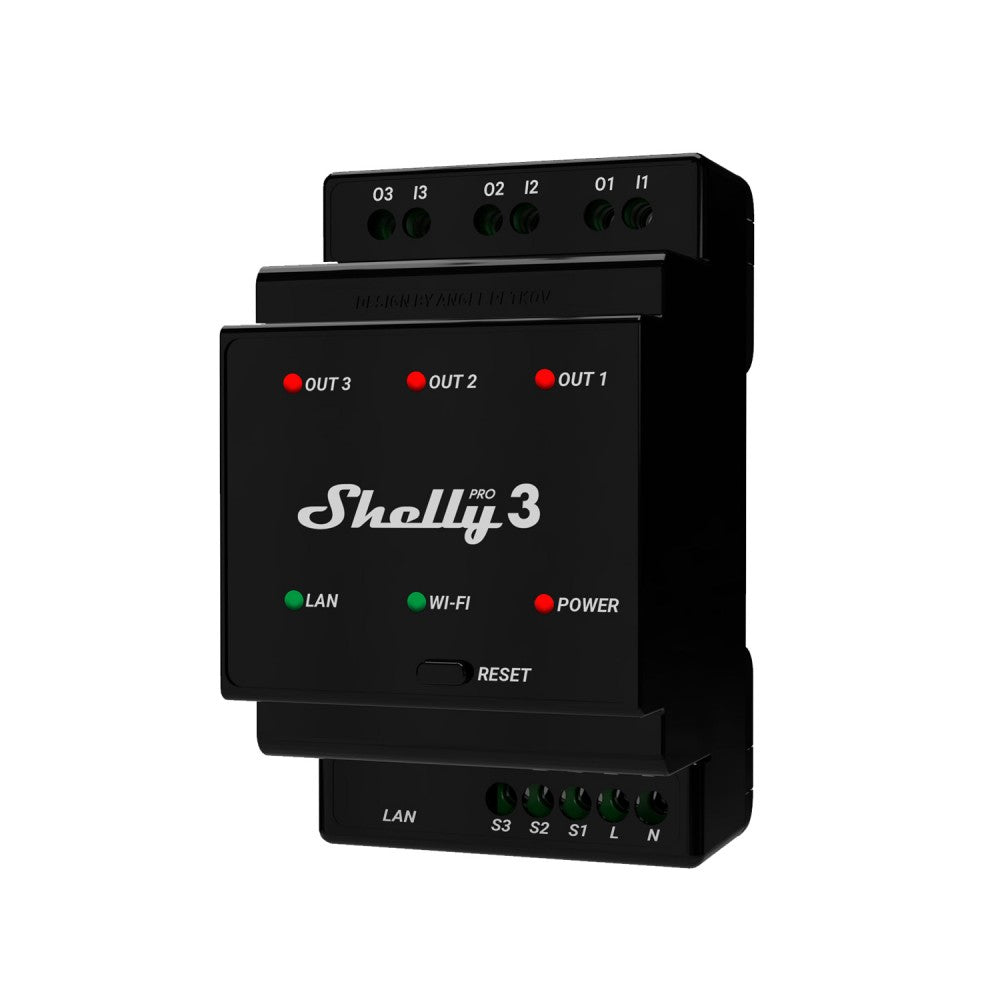

Shelly Pro 3
3 channels DIN rail relay switch with Wi-Fi, LAN and Bluetooth connection
Professional 3 channels relay with Wi-Fi, LAN, and Bluetooth connection, suitable for home and facility automation with remote control. DIN rail mountable inside a breaker box. Enhanced safety features and compatible with most used home automation platforms.
- LAN, Wi-Fi, and Bluetooth connection
- 3 output, 16A each. Total device maximum of 48A
- Dry contact
- DIN rail mountable
- 3 phases control
- Standard warranty (included in purchase price): 24-month warranty through manufacturer due to device malfunctions when it is used in user manual described conditions.
While this is technically user-installable in many locales, we recommend consulting a licensed electrician to install automation components - in addition to being licensed to work with electrical devices, they are also familiar with local building codes.
- Manufacturer's note: Each Shelly device emits heat under load. Do not combine two or more Shelly devices stacked on top of each other in a confined space. There must be a minimum distance of 1 cm between them to allow for airflow.
|Power supply AC||110-240V, 50/60Hz|
||up to 16A per channel with up to 48A for the whole device|
|Roller Shutter Mode
|Device Temperature Protection
|Operational temperature||-20°C to + 40 °C|
|Device power consumption||< 3 W|
|Local and remote control||Yes|
|UL Listed option||No|
|Wi-Fi Protocol||802.11 b/g/n|
|Wi-Fi Radio frequency||2412 – 2472 МHz; (Max. 2495 MHz)|
|Wi-Fi Range||Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)|
|Size||96x53x59 mm / 3.78×2.01×2.32 inch|
- Official Support - https://shelly.cloud/support/
- Support Group - https://www.facebook.com/groups/ShellyIoTCommunitySupport
- API and Communication Documentation - https://shelly-api-docs.shelly.cloud/gen2/
