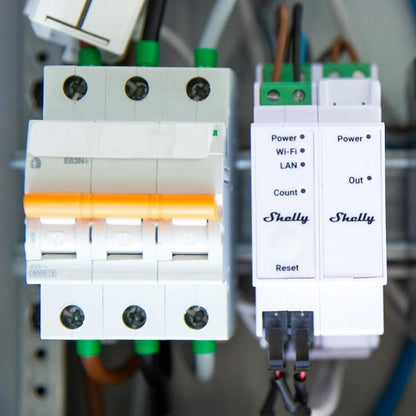

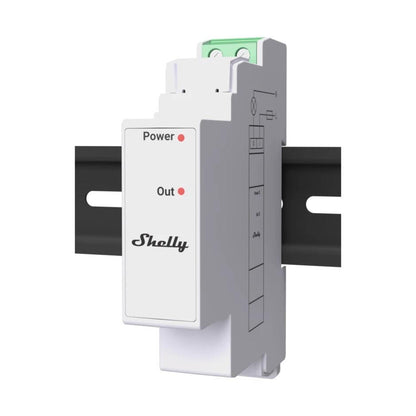

A galvanically isolated switch designed to expand the capabilities of your Shelly Pro 3EM device. This add-on allows you to easily control contactors and other electrical devices, giving you greater flexibility and control over your consumption.
KEY FEATURES
Dry contacts
DIN-rail mountable
NOTES
Standard warranty (included in purchase price): 5 Years warranty through manufacturer due to device malfunctions when it is used in user manual described conditions.
SPECIFICATIONS
Type
Value
Physical
Size (HxWxD):
94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in
Weight:
20 ±1 g / 0.70 ±0.05 oz
Mounting:
DIN rail, attached to a Shelly Pro 3EM
Screw terminals max torque:
0.4 Nm / 4.43 lbin
Conductor cross section:
0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded and bootlace lugs)
Conductor stripped length:
6 to 7 mm / 0.24 to 0.28 in
Shell material:
Plastic
Color:
White
Environmental
Ambient temperature:
-20 °C to 40 °C / -5 °F to 105 °F
Humidity:
30 % to 70 % RH
Max. altitude:
2000 m / 6562 ft
Electrical
Power supply voltage AC:
N/A
Power supply voltage DC:
3.3 V and 12 V (from Shelly Pro 3EM device)
Power consumption:
< 1 W
Sensors, meters
Internal-temperature sensor:
Yes
Output circuits ratings
Max switching voltage AC:
240 V
Max switching voltage DC:
30 V
Max switching current AC:
2 A
Max switching current DC:
2 A
