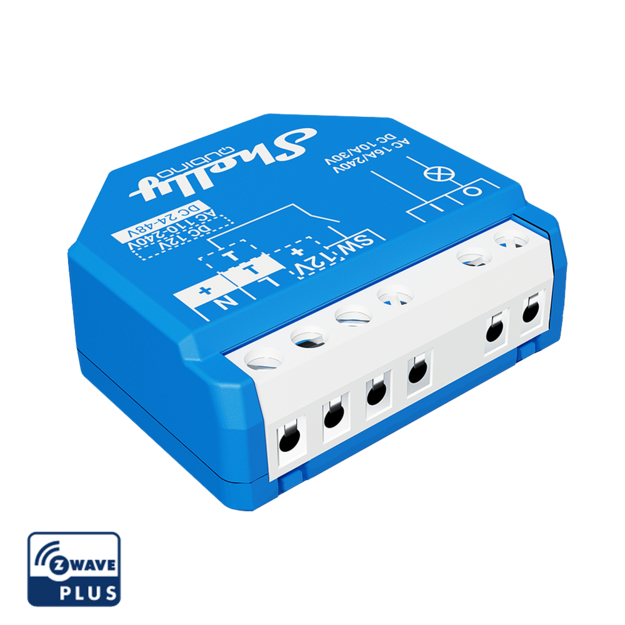

Shelly Qubino Wave 1
Shelly Qubino Wave 1
Thank you for supporting a US-based small business!
Low stock
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
Z-Wave™ smart switch, 1 channel 16 A
Control a wide range of devices and office equipment, such as electrical locks, gates, garage doors, irrigation systems, LED strips, lights, and sockets, from anywhere. The output contact is voltage-free (dry contact), allowing you to connect various power supply loads of up to 16 A to the device.
KEY FEATURES
- Dry contacts
- Extremely low power consumption: 0.3 W.
- Latest technology: Z-Wave 800 Series
- Z-Wave frequency band: 908.4 MHz
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Supports over-the-air firmware updates (OTA)
- Works with Z-Wave certified gateways and over 4,000 Z-Wave devices
Video Example
SPECIFICATIONS
| Power supply | 110-240 V AC / 24-48 V DC / 12 V DC ± 10% |
|---|---|
| Power consumption | < 0.3 W |
| Max. switching voltage AC | 240 V |
| Max. switching current AC | 16 A |
| Max. switching voltage DC | 30 V |
| Max. switching current DC | 10 A |
| Overheating protection | Yes |
| Distance | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave™ repeater: | Yes |
| CPU | Z-Wave™ S800 |
| Z-Wave™ frequency bands: | 868,4 MHz; 865,2 MHz; 869,0 MHz; 921,4 MHz; 908,4 MHz; 916 MHz; 919,8 MHz; 922,5 MHz; 919,7-921,7-923,7 MHz; 868,1 MHz; 920,9 MHz |
| Maximum radio frequency power transmitted in frequency band(s) | < 25 mW |
| Size (H x W x D) | 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in |
| Weight | 26 g / 0.92 oz. |
| Mounting | Wall console |
| Screw terminals max. torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material | Plastic |
| Color | Blue |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft. |
NOTES
- Standard warranty (included in purchase price): 24-month warranty through manufacturer due to device malfunctions when it is used in user manual described conditions.

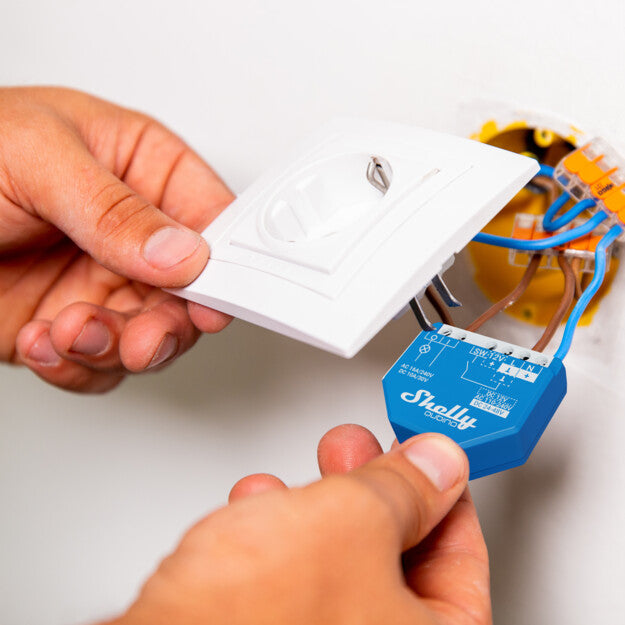

- While this is technically user-installable in many locales, we recommend consulting a licensed electrician to install automation components - in addition to being licensed to work with electrical devices, they are also familiar with local building codes.
- Manufacturer's note: Each Shelly device emits heat under load. Do not combine two or more Shelly devices stacked on top of each other in a confined space. There must be a minimum distance of 1 cm between them to allow for airflow.
