Shelly Qubino Wave 2PM
Shelly Qubino Wave 2PM
Thank you for supporting a US-based small business!
In stock
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼

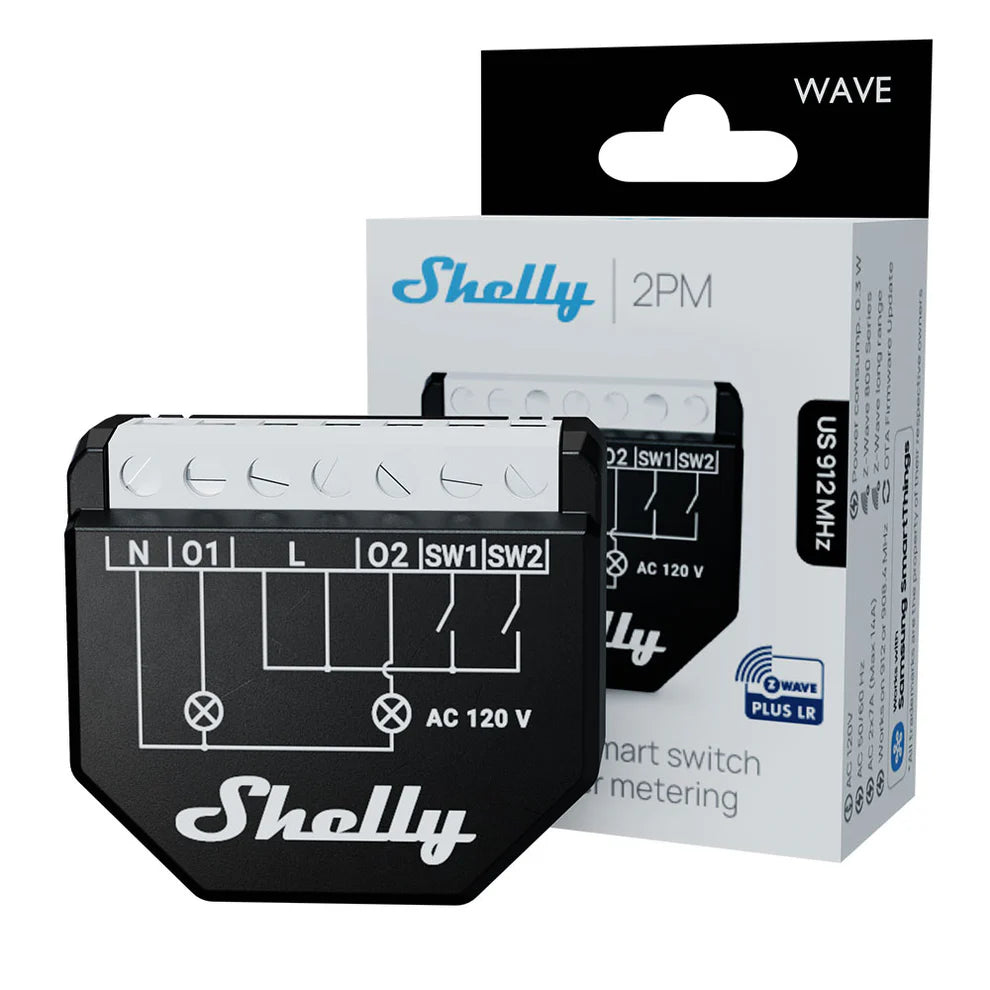

Z-Wave™ smart switch, 2 channels 16 A total current (18 A peak), with power metering
Remotely control two independent electrical appliances (e.g. lights) and monitor their power consumption separately and in total.
KEY FEATURES
- Two channels (2x 7A, 14 A total)
- Power measurement on each channel and in total
- Energy efficient: uses only up to 0.3 W of power
- Latest Z-Wave 800 series
- Dual Z-Wave frequency options: choose between 912 MHz (ZWLR) or 908.4 MHz (Z-Wave Plus)
- Easy set up with SmartStart - just scan and go
- Security 2 Authenticated for the highest level of security
- Supports over-the-air firmware updates

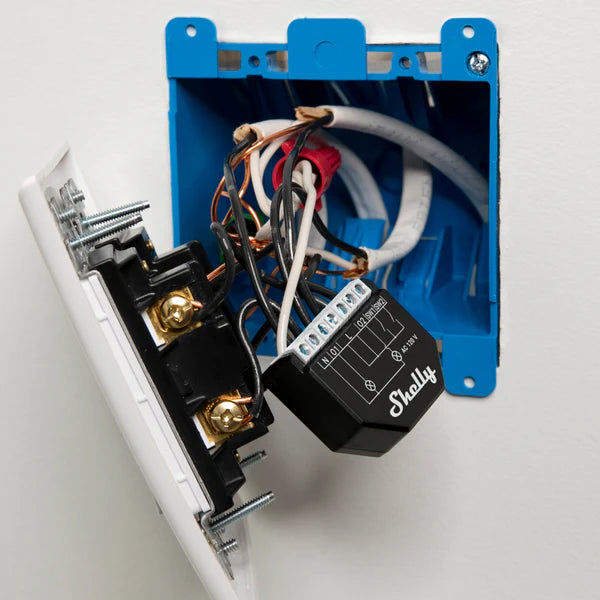

- Simple installation in most standard electrical boxes and switches
SPECIFICATIONS
|
Power supply |
120 V AC 50/60 Hz |
|
|
Power consumption |
< 0.3 W |
|
|
Power measurement [W] |
Yes |
|
|
Max. Power per channel |
1/3 hp |
|
|
Max switching voltage AC |
120 V |
|
|
Max switching current AC |
7 A per channel, 14 A total |
|
|
Overheating protection |
Yes |
|
|
Overcurrent protection |
Yes |
|
|
Long range network |
Distance (depends on local condition) |
Up to 80 m indoors (262 ft.) or up to 1000 m outdoors (3281 ft.) |
|
Z-Wave® repeater |
No |
|
|
Z-Wave® frequency bands |
912 MHz |
|
|
Mesh network |
Distance (depends on local condition) |
Up to 40 m indoors (131 ft.) |
|
Z-Wave® repeater |
Yes |
|
|
Z-Wave® frequency bands |
908.4 MHz |
|
|
CPU |
Z-Wave® S800 |
|
|
Size (H x W x D) |
37x42x16 ± 0.5 mm / 1.46x1.65x0.63 ± 0.02 in |
|
|
Weight |
29 g / 1,02 in |
|
|
Mounting |
In-wall box |
|
|
Screw terminals max torque |
0.4 Nm / 3.5 lbin |
|
|
Conductor cross section |
0.5 to 1.5 mm² / 20 to 16 |
|
|
Conductor stripped length |
5 to 6 mm / 0.20 to 0.24 in |
|
|
Shell material |
Plastic |
|
|
Color |
Black |
|
|
Ambient temperature |
-20°C to 40°C / -5°F to 105°F |
|
|
Humidity |
30% to 70% RH |
|
|
Max. altitude |
2000 m / 6562 ft. |
|
NOTES
- Standard warranty (included in purchase price): 24-month warranty through manufacturer due to device malfunctions when it is used in user manual described conditions.
-
While this is technically user-installable in many locales, we recommend consulting a licensed electrician to install automation components - in addition to being licensed to work with electrical devices, they are also familiar with local building codes.
- Manufacturer's note: Each Shelly device emits heat under load. Do not combine two or more Shelly devices stacked on top of each other in a confined space. There must be a minimum distance of 1 cm between them to allow for airflow.
LINKS
- Official Support - https://shelly.cloud/support/
- Support Group - https://www.facebook.com/groups/ShellyIoTCommunitySupport
