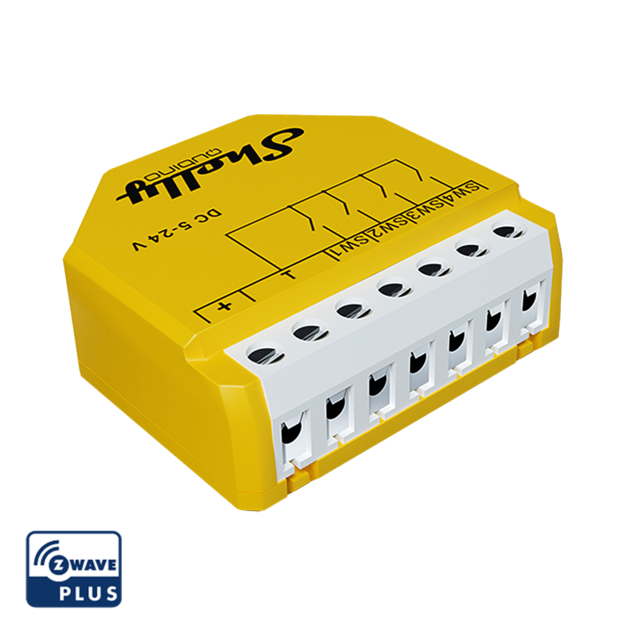

Shelly Qubino Wave i4 DC
Shelly Qubino Wave i4 DC
Thank you for supporting a US-based small business!
In stock
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
Z-Wave™ 4-digital inputs controller for enhanced actions control
Manually activate or deactivate any created scene, run synchronized actions, or execute complex trigger scenarios.
KEY FEATURES
- Wave i4 DC is an input reader device (it does not contain relays).
- Manually control other Z-Wave devices (e.g. with a multi-button switch)
- Multi-click – activation of up to 12 actions
- Extremely low power consumption: < 0.3 W
- Z-Wave frequency band: 908.4 MHz US/Americas
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Over-the-air firmware updates
- Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
SPECIFICATIONS
| Power supply DC | 5-24 V DC |
|---|---|
| Power supply AC | No |
| Power consumption | < 0.3 W |
| Overload protection | No |
| Power measurement | No |
| Number of inputs | 4 |
| Distance | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave repeater: | Yes |
| CPU | Z-Wave S800 |
| Z-Wave frequency band | 908.4 MHz US/Americas |
| Maximum radio frequency power transmitted in frequency bend(s) | < 25 mW |
| Size (H x W x D) | 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in |
| Weight | 17 g / 0.6 oz |
| Mounting | Wall console |
| Screw terminals max. torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 1.5 mm²/ 20 to 16 AWG |
| Conductor stripped length | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material | Plastic |
| Color | Yellow |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30 % to 70 % RH |
NOTES
- Standard warranty (included in purchase price): 24-month warranty through manufacturer due to device malfunctions when it is used in user manual described conditions.
-
While this is technically user-installable in many locales, we recommend consulting a licensed electrician to install automation components - in addition to being licensed to work with electrical devices, they are also familiar with local building codes.
- Manufacturer's note: Each Shelly device emits heat under load. Do not combine two or more Shelly devices stacked on top of each other in a confined space. There must be a minimum distance of 1 cm between them to allow for airflow.
LINKS
- Official Support - https://shelly.cloud/support/
- Support Group - https://www.facebook.com/groups/ShellyIoTCommunitySupport
