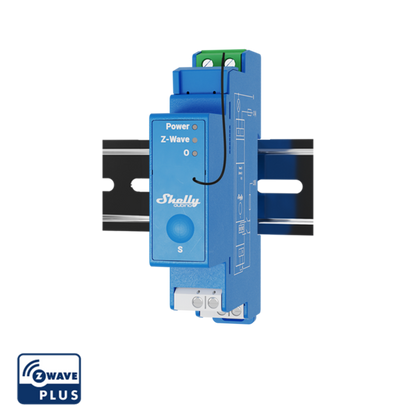

Professional 1-channel DIN rail Z-Wave® smart switch with dry contacts
Suitable for home and facility automation with remote control. DIN-rail mountable inside a breaker box. Enhanced safety features.
KEY FEATURES
- 1 output, 16 A
- Potential-free contacts (dry contacts)
- DIN-rail mountable
- Extremely low power consumption: < 0.3 W
- Z-Wave Frequency: 908.4 MHz US/Americas
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Over-the-air firmware updates
- Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
SPECIFICATIONS
| Power supply | 110-240 V AC, 50/60 Hz |
|---|---|
| Power consumption | < 0,3 W |
| Max. switching voltage AC | 240 V |
| Max. switching current AC | 16 A |
| Max. switching voltage DC | N/A |
| Max. switching current DC | N/A |
| Overheating protection | Yes |
| Power measurement (W) | No |
| Distance | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave repeater | Yes |
| CPU | Z-Wave S800 |
| Z-Wave frequency bands | 908.4 MHz US/Americas |
| Maximum radio frequency power transmitted in frequency bend(s) | < 25 mW |
| Size (H x W x D) | 94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in |
| Weight | 60 g / 2.12 oz. |
| Mounting | DIN rail |
| Screw terminals max. torque | 0.4 Nm / 3.54 lbin |
| Conductor cross section | 0.5 to 2.5 mm / 20 to 14 AWG (green connector) 0.5 to 1.5 mm / 20 to 16 AWG (white connectors) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (white connectors) |
| Shell material | Plastic |
| Color | Blue |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft. |
NOTES
- Standard warranty (included in purchase price): 24-month warranty through manufacturer due to device malfunctions when it is used in user manual described conditions.
-
While this is technically user-installable in many locales, we recommend consulting a licensed electrician to install automation components - in addition to being licensed to work with electrical devices, they are also familiar with local building codes.
- Manufacturer's note: Each Shelly device emits heat under load. Do not combine two or more Shelly devices stacked on top of each other in a confined space. There must be a minimum distance of 1 cm between them to allow for airflow.
LINKS
- Official Support - https://shelly.cloud/support/
- Support Group - https://www.facebook.com/groups/ShellyIoTCommunitySupport
