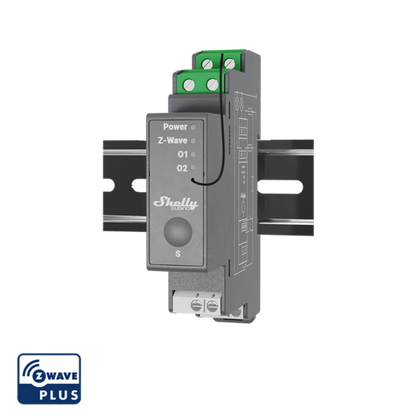

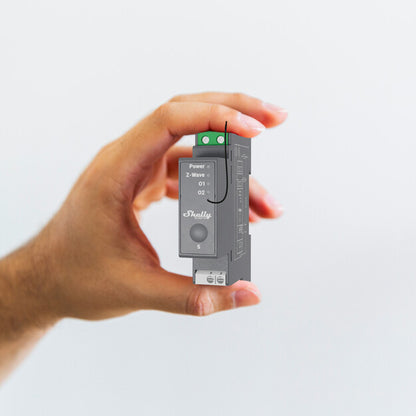

Shelly Qubino Wave Pro 2
Shelly Qubino Wave Pro 2
Thank you for supporting a US-based small business!
Low stock
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
Professional 2-channel DIN rail Z-Wave® smart switch with dry contacts
Suitable for home and facility automation with remote control. DIN rail mountable inside a breaker box. Enhanced safety features.
KEY FEATURES
- 2 outputs, 16 A each. Total device maximum of 25 A.
- Potential-free contacts (dry contacts)
- DIN-rail mountable
- 2-phase control
- Extremely low power consumption: < 0.3 W
- Z-Wave frequency band: 908.4 MHz US/Americas
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Over-the-air firmware updates
- Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
SPECIFICATIONS
| Power supply | 110-240 V AC, 50/60 Hz |
|---|---|
| Power consumption | < 0.3 W |
| Max. switching voltage AC | 240 V |
| Max. switching current AC | 16 A per channel, 25 A total |
| Max. switching voltage DC | N/A |
| Max. switching current DC | N/A |
| Overheating protection | Yes |
| Power measurement (W) | No |
| Distance | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Z-Wave repeater: | Yes |
| CPU | Z-Wave S800 |
| Z-Wave frequency bands | 908.4 MHz US/Americas |
| Maximum radio frequency power transmitted in frequency band(s) | < 25 mW |
| Size (H x W x D) | 94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in |
| Weight? | 73 g / 2.58 oz. |
| Mounting | DIN rail |
| Screw terminals max. torque | 0.4 Nm / 3.54 lbin |
| Conductor cross section | 0.5 to 2.5 mm / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm / 20 to 16 AWG (white connectors) |
| Conductor stripped length | 6 to 7 mm / 0.24 to 0.28 in (green connectors) 5 to 6 mm / 0.20 to 0.24 in (white connectors) |
| Shell material | Plastic |
| Color | Grey |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30 % to 70 % RH |
| Max. altitude | 2000 m / 6562 ft. |
NOTES
- Standard warranty (included in purchase price): 24-month warranty through manufacturer due to device malfunctions when it is used in user manual described conditions.
-
While this is technically user-installable in many locales, we recommend consulting a licensed electrician to install automation components - in addition to being licensed to work with electrical devices, they are also familiar with local building codes.
- Manufacturer's note: Each Shelly device emits heat under load. Do not combine two or more Shelly devices stacked on top of each other in a confined space. There must be a minimum distance of 1 cm between them to allow for airflow.
LINKS
- Official Support - https://shelly.cloud/support/
- Support Group - https://www.facebook.com/groups/ShellyIoTCommunitySupport
