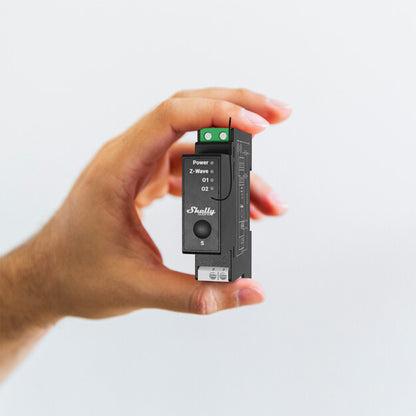

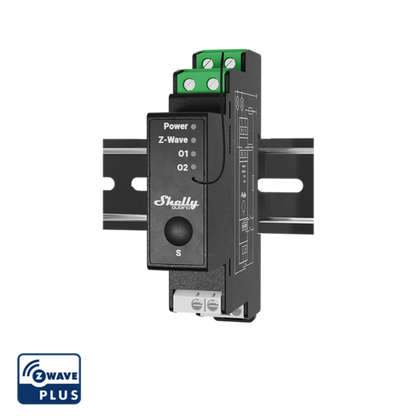

Professional 2-channel DIN rail Z-Wave® smart switch with power metering
Suitable for home and facility automation with remote control. DIN-rail mountable inside a breaker box. Enhanced safety features.
KEY FEATURES
2 outputs, 16 A each. Total device maximum of 25 A.
Power metering on each channel separately and together
DIN-rail mountable
1-phase control
Extremely low power consumption: < 0.3 W
Z-Wave frequency band: 908.4 MHz US/Americas
Latest technology: Z-Wave 800 Series
Automatic set-up with SmartStart
Security 2 Authenticated for the highest level of security
Over-the-air firmware updates
Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
SPECIFICATIONS
Power supply
110-240 V AC, 50/60 Hz
Power consumption
< 0.3 W
Power measurement (W)
Yes
Max. switching voltage AC
240 V
Max. switching current AC
16 A per channel, 25 A total
Max. switching voltage DC
N/A
Max. switching current DC
N/A
Overheating protection
Yes
Overload protection
Yes
Overvoltage protection
Yes
Distance
Up to 40 m indoors (131 ft.) (depends on local condition)
Z-Wave repeater:
Yes
CPU
Z-Wave™ S800
Z-Wave frequency bands
908.4 MHz US/Americas
Maximum radio frequency power transmitted in frequency band(s)
< 25 mW
Size (H x W x D)
94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in
Weight
75 g / 2.65 oz.
Mounting
DIN rail
Screw terminals max. Torque
0.4 Nm / 3.54 lbin
Conductor cross section
0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm²/ 20 to 16 AWG (white connectors)
Conductor stripped length
6 to 7 mm² / 0.24 to 0.28 in (green connectors) 5 to 6 mm / 0.20 to 0.24 in (white connectors)
Shell material
Plastic
Color
Black
Ambient temperature
-20°C to 40°C / -5°F to 105°F
Humidity
30 % to 70 % RH
Max. Altitude
2000 m / 6562 ft.
NOTES
Standard warranty (included in purchase price): 24-month warranty through manufacturer due to device malfunctions when it is used in user manual described conditions.
While this is technically user-installable in many locales, we recommend consulting a licensed electrician to install automation components - in addition to being licensed to work with electrical devices, they are also familiar with local building codes.
Manufacturer's note: Each Shelly device emits heat under load. Do not combine two or more Shelly devices stacked on top of each other in a confined space. There must be a minimum distance of 1 cm between them to allow for airflow.
