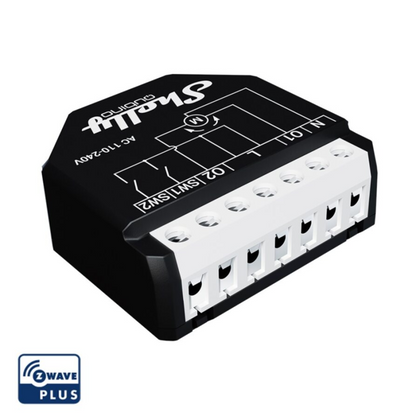

Shelly Qubino Wave Shutter
Shelly Qubino Wave Shutter
Thank you for supporting a US-based small business!
In stock
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼
Z-Wave™ shutter control with power measurement, 10 A per channel
Automate and remotely control the position of roller shutters, blinds, windows, awnings, pool covers, and other devices powered by bi-directional AC motors.
KEY FEATURES
- Control the tilt position (angle) of the venetian blind slats
- Supports push-buttons/momentary switches, and toggle switches
- Power metering
- Extremely low power consumption: < 0.3 W
- Z-Wave frequency band: 908.4 MHz
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Over-the-air firmware updates
- Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
SPECIFICATIONS
| Size (H x W x D) | 37 mm x 42 mm x 16 mm ± 0.5 mm / 1.46 in x 1.65 in x 0.63 in ± 0.02 in |
|---|---|
| Weight | 29 g / 1.02 oz. |
| Mounting | Wall console |
| Screw terminals max. torque | 0.4 Nm / 3.5 lbin |
| Conductor cross section | 0.5 to 1.5 mm² / 20 to 16 AWG |
| Conductor stripped length | 5 to 6 mm / 0.20 to 0.24 in |
| Shell material | Plastic |
| Color | Black |
| Ambient temperature | -20°C to 40°C / -5°F to 105°F |
| Humidity | 30% to 70% RH |
| Max. altitude | 2000 m / 6562 ft. |
| Power supply | 110–240 V AC ±10% |
| Power Consumption | < 0.3 W |
| Power measurement | Yes |
| Max. switching voltage AC | 240 V |
| Max. switching current AC | 10 A per channel |
| Z-Wave frequencies band(s) | 868,4 MHz; 865,2 MHz; 869,0 MHz; 921,4 MHz; 908,4 MHz; 916 MHz; 919,8 MHz; 922,5 MHz; 919,7-921,7-923,7 MHz; 868,1 MHz; 920,9 MHz |
| Z-Wave repeater | Yes |
| Z-Wave range | Up to 40 m indoors (131 ft.) (depends on local condition) |
| Maximum radio frequency power transmitted in frequency band(s) | < 25 mW |
| CPU | Z-Wave S800 |
| Overcurrent protection | Yes |
| Overheating protection | Yes |
NOTES
- Standard warranty (included in purchase price): 24-month warranty through manufacturer due to device malfunctions when it is used in user manual described conditions.
-
While this is technically user-installable in many locales, we recommend consulting a licensed electrician to install automation components - in addition to being licensed to work with electrical devices, they are also familiar with local building codes.
- Manufacturer's note: Each Shelly device emits heat under load. Do not combine two or more Shelly devices stacked on top of each other in a confined space. There must be a minimum distance of 1 cm between them to allow for airflow.
