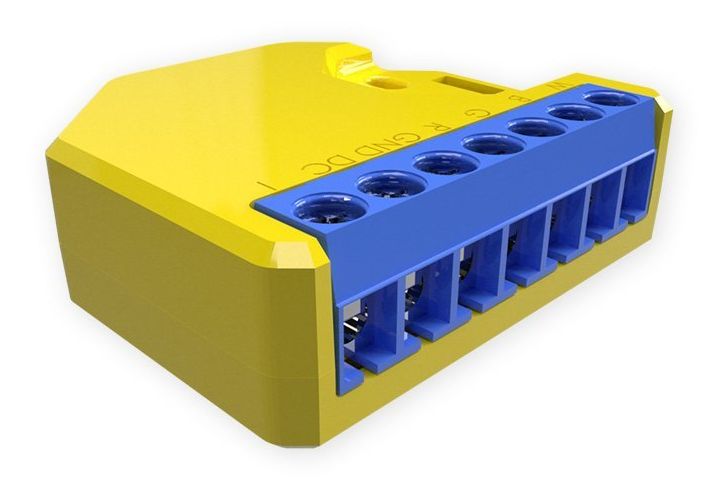

Shelly RGBW2 - WiFi LED Controller

$21.95

WiFi-operated RGBW controller

KEY FEATURES
  • Control RGB / RGBW strips / LED Lights or other 12-24VDC devices from a mobile app, browser, or automation software
  • Shelly RGBW2 connects like any standard LED controller
  • Support any 12v or 24v White, RGB, RGBW led strips and 12/24v led bulbs, with up to 288W combined power

NOTES

  • Standard warranty (included in purchase price): 24-month warranty through manufacturer due to device malfunctions when it is used in user manual described conditions.
  • While this is technically user-installable in many locales, we recommend consulting a licensed electrician to install automation components - in addition to being licensed to work with electrical devices, they are also familiar with local building codes.
  • Manufacturer's note: Each Shelly device emits heat under load. Do not combine two or more Shelly devices stacked on top of each other in a confined space. There must be a minimum distance of 1 cm between them to allow for airflow.

SPECIFICATIONS

Power
Power supply AC No
Power supply DC 12 - 24V
DC Power Output 12V per channel 45W
DC Power Output 24V per channel 90W
DC Power Output 12V combined power 144W
DC Power Output 24V combined power 288W
Special functions
Device temperature protection No
Overload protection No
Power measurement Yes
Dimming Yes
Working without a neutral line No
Features
Colour changing Yes
Predefined effects Yes
Channels 4 Channel
Maximum load 12A
Operational temperature -10ºC to +50ºC
Device power consumption < 1 W
Intelligent On/Off Yes
Local and remote control Yes
Sunrise/Sunset Yes
Weekly Schedule Yes
UL Listed option No
Connectivity
Wireless/WiFi Protocol 802.11 b/g/n
Radio frequency 2400 - 2484 MHz
Radio signal power 1mW
Range up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
Dimensions
Size 43mm x 38mm x 14mm
