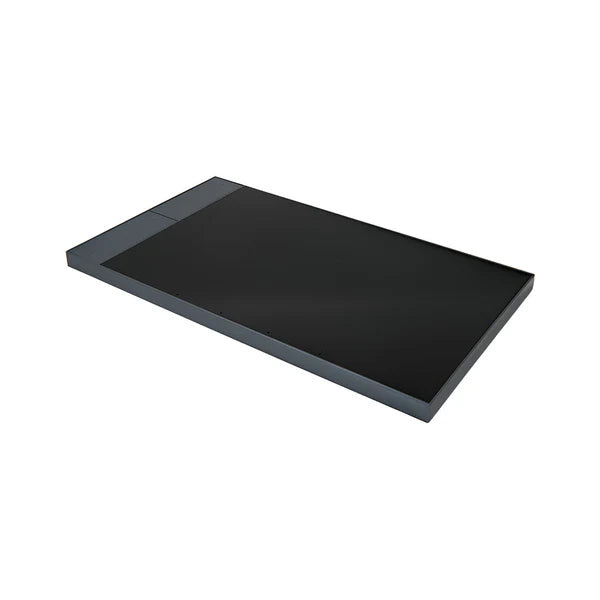

Shelly Wall Display XL
Shelly Wall Display XL
Thank you for supporting a US-based small business!
Out of Stock! If you see a Pre-order badge and/or an Add to Cart/Preorder Now button, you can place a pre-order now!
Couldn't load pickup availability
Free standard shipping on US orders over $150
Add $150 to your cart to unlock free standard shipping. Use code FREESHIPPING at checkout.
US orders only. Excludes oversized, freight, and bulk orders. Not combinable with other discounts. Expedited shipping not included. CircuitMess items do not count toward free shipping. The FREESHIPPING code must be entered at checkout.
Description ▼

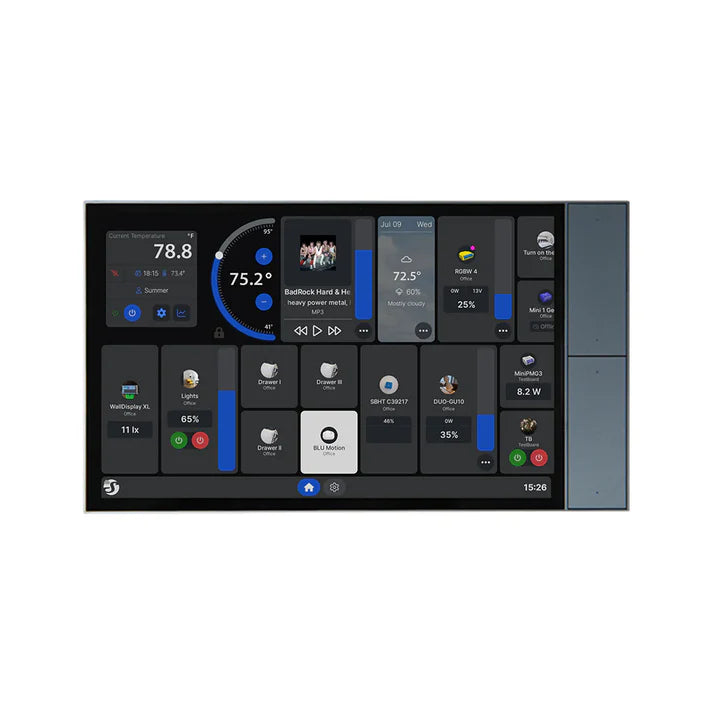

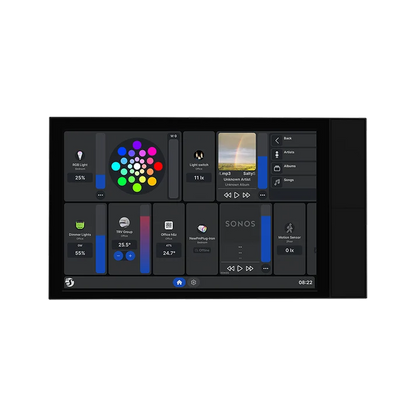

Smart home control panel with a 10.1” touch display, built-in relay switching and four customizable buttons. Installs in a standard electrical wall box and gives you full, easy control over your Shelly devices-ideal for houses, apartments, hotels, and commercial spaces. For non wall placement consider this 3D Printed Stand.
KEY FEATURES
- 10.1" responsive HD color touchscreen display
- Ultra-fast quad-core CPU for instant response
- Wall-mount design compatible with US standard switch boxes
- Integrated dual 2W high-quality stereo speakers
- Bluetooth and SONOS speakers support
- Dual connectivity: Bluetooth 5.4 and Dual Band Wi-Fi 6 (2.4GHz & 5GHz)
- Build-it 5A relay for appliances control
- 4 customizable buttons for quick actions & scenes
- Built-in proximity & brightness (lux) sensors
- Power monitoring function of connected Shelly PM devices
- Fully customizable screen interface for device management
- Integrated media player & internet radio support

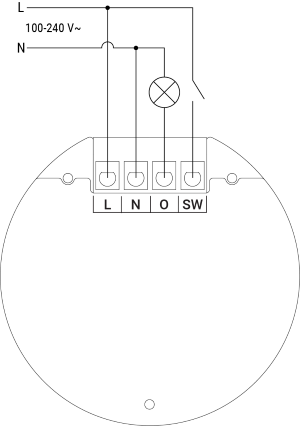

WIRING
SPECIFICATIONS
| Physical | |
|---|---|
| Size (HxWxD): | 155,8x272,5x38,3 mm / 6.13x10.7x1.50 inch |
| Weight: | 920 g / 32.45 oz |
| Touch Screen: | 5-point capacity screen, G+FF touch |
| Screen resolution: | 1280x752 px |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 15 mm / 0.24 to 0.59 in |
| Mounting: | Wall box |
| Shell material: | Metal stamping, PC with coating, glass |
| Shell color: | Black with Grey frame (Not available) Black with Black frame (Available now) |
| Speaker: | 2x 2 W (BOX sound cavity) |
| Environmental | |
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 100 - 240 V~ 50/60Hz |
| Power consumption: | < 15 W |
| USB TYPE-C power supply: | 5 V⎓ / 3 A |
| Power Button: | 1 button for turning On/Off the screen |
| Control Buttons: | 4 functional buttons for setting |
| Output Circuits Ratings | |
| Max. switching voltage: | 240 V~ |
| Max. switching current: | 5 A |
| Output (AC): | 100 - 240 V~ 50/60Hz |
| Output (USB TYPE-C): | 5 V⎓ / 0.5 A |
| Sensors & Meters | |
| Internal-temperature sensor: | No |
| Ambient temperature sensor: | No |
| Humidity sensor: | No |
| Light sensor: | Yes |
| Microphone: | Yes (Four-microphone line array) |
| G-sensor: | No |
| Proximity sensor: | Yes (≤1 meter) |
| Radio | |
| Wi-Fi | |
| Protocol: | Wi-Fi 6 Dual Band |
| RF band: | 2.4 & 5 GHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth | |
| Protocol: | 5.4 |
| RF band: | 2402 - 2480 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 160 ft outdoors (Depends on local conditions) |
| Microcontroller Unit | |
| CPU: | Rockchip RK3566 Quad core Cortex-A55 1.8GHz |
| RAM: | 2 GB |
| Flash: | 32 GB |
| System: | Android 11 |
| Firmware Capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook… |
| Scripting: | No |
| MQTT: | Yes |
